Attention!
The air dryer must be used simultaneously with the compressor .
Product description: xTool Selected Air Dryer - compressor air dryer for MetalFab systems
The xTool Selected Air Dryer is a professional air dryer designed for demanding applications, such as laser cutting of metals with the xTool MetalFab . The device eliminates moisture, oil, and dust particles from compressed air , resulting in improved cut quality and protection of system components . The advanced HyperPure filtration system and heat exchanger effectively reduce air temperature and humidity, ensuring stable working conditions. The dryer is the foundation of the SaveGas system , allowing for clean, burr-free edges when machining stainless steel, aluminum, and brass. It's important to remember that the dryer must be operated in conjunction with an air compressor to function properly and prevent equipment damage.

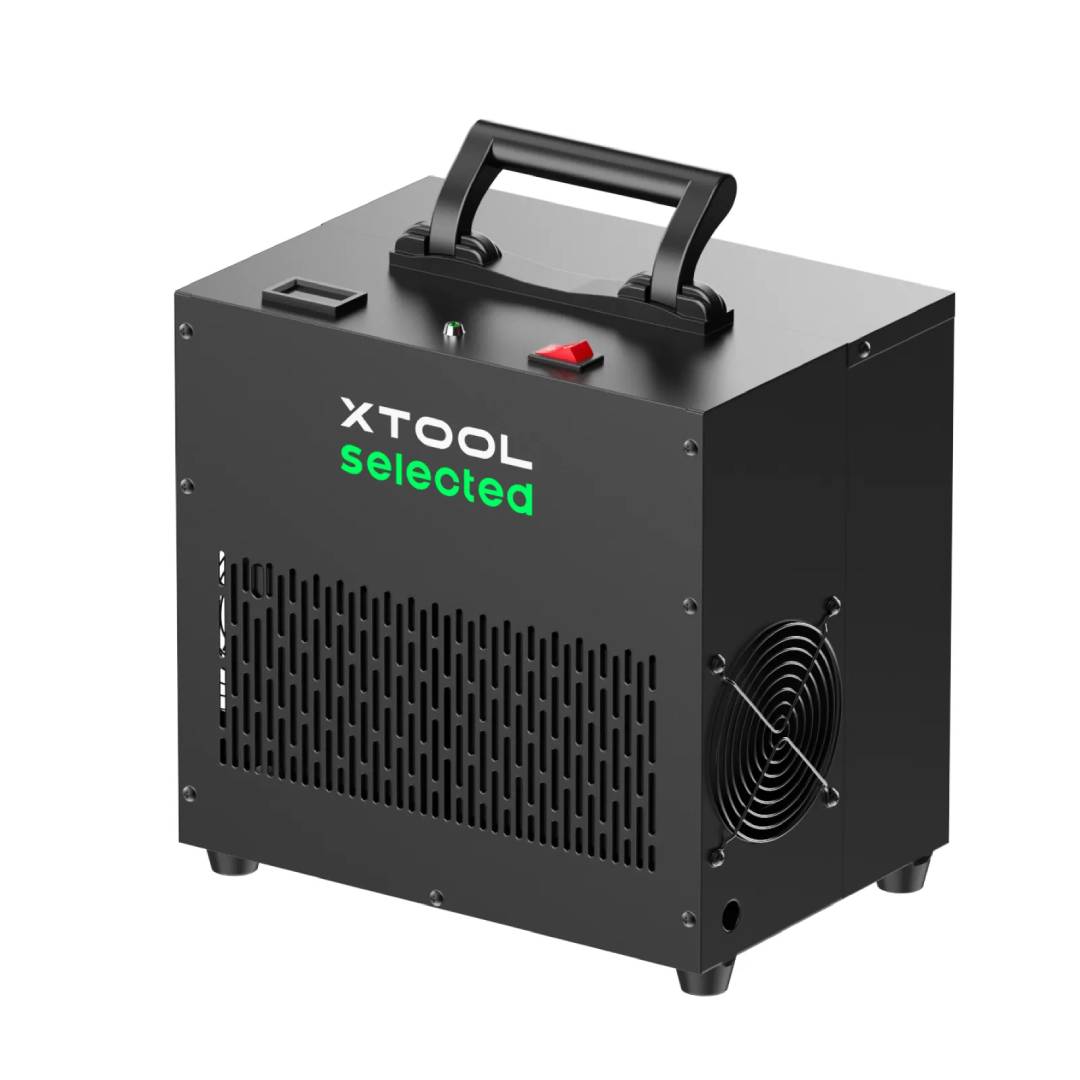

xTool Selected Air Dryer - compressor air dryer for MetalFab systems.

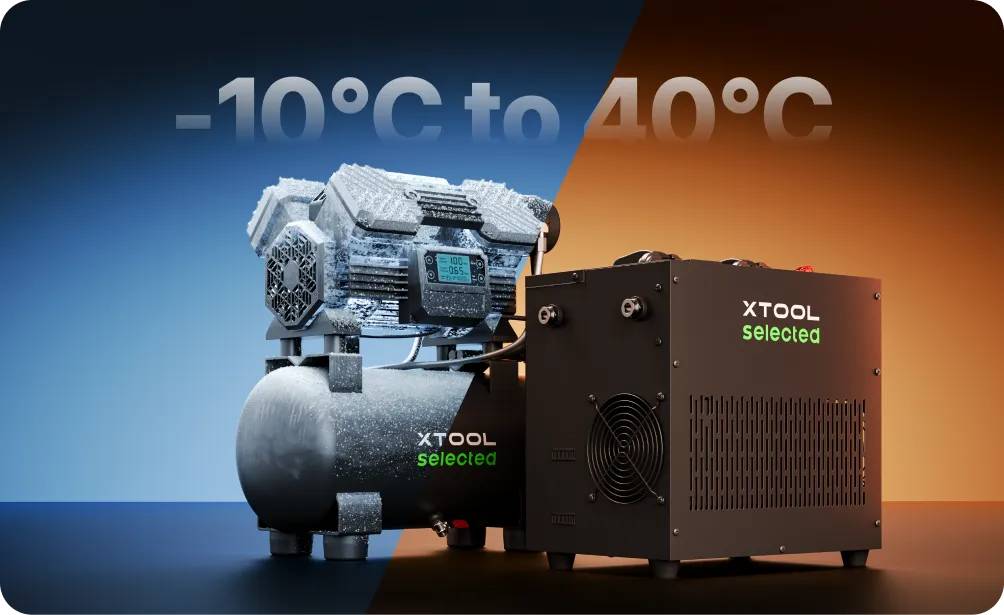

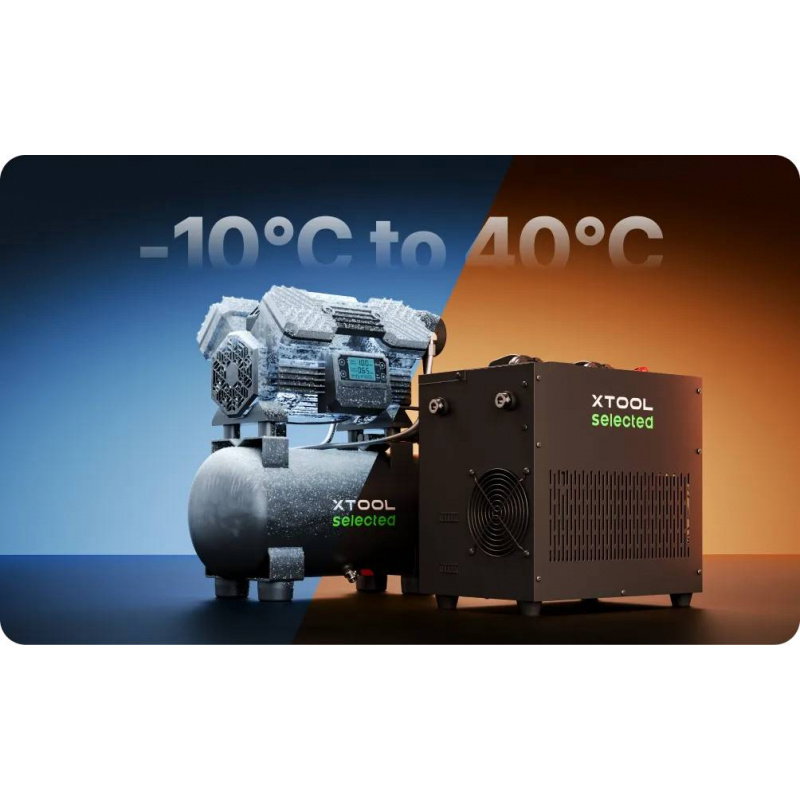

The dehumidifier can operate even at temperatures ranging from -10°C to 40°C.
Main features of a refrigeration dryer
- HyperPure Filtration System : 3-stage filtration removes up to 99.999% of oil and dust and 99% of moisture
- High drying efficiency : lowers the dew point to a range of 2°C to 10°C, which prevents condensation of water vapor in pneumatic lines
- Device protection : prevents moisture and contaminants from entering the system
- Compact design : the device is lightweight and takes up little space, which makes it easy to integrate into small studios
- High performance : handles air flow up to 400 l/min at a maximum pressure of 1.25 MPa
- Durability and reliability : designed to operate for 2,400 hours in temperatures ranging from -10°C to 40°C
The three-stage HyperPure filtration system in the xTool dehumidifier
The HyperPure system utilizes a three-stage filtration process to ensure maximum air purity. The first stage is a 1µm sintered nano-PE filter , responsible for removing 99% of moisture, oil, and dust. The second stage utilizes a 0.1µm borosilicate fiber filter with two-stage Lydall technology, resulting in 99.99% contaminant reduction. The final 0.01µm filtration stage achieves 99.999% oil and dust removal efficiency, leaving less than 0.01 ppm of oil particles in the airstream. This rigorous cleaning process is crucial to maintaining perfect edge quality and protecting the optics in MetalFab systems.

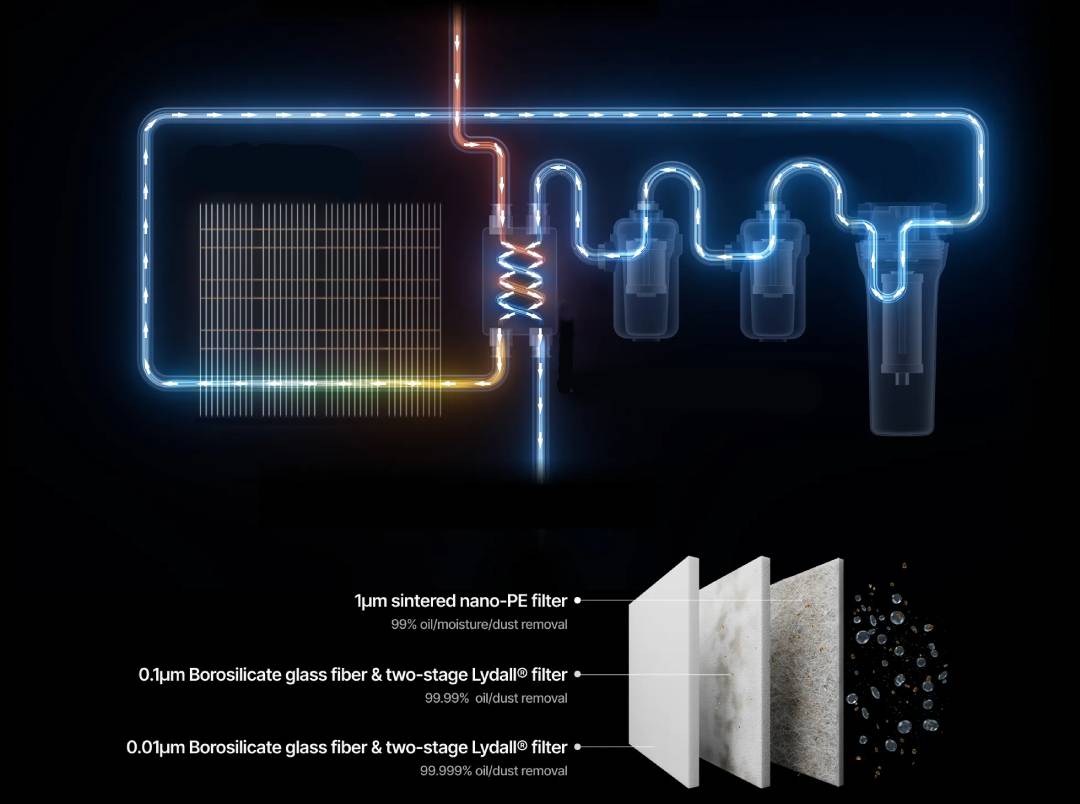

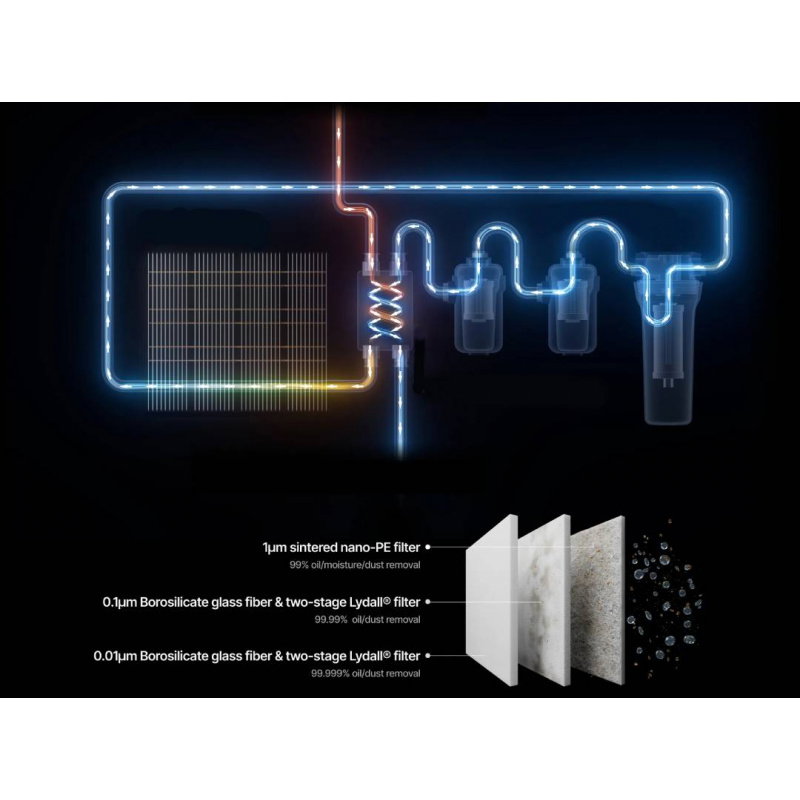

Triple industrial filter removes 99% of moisture, dirt and oil.

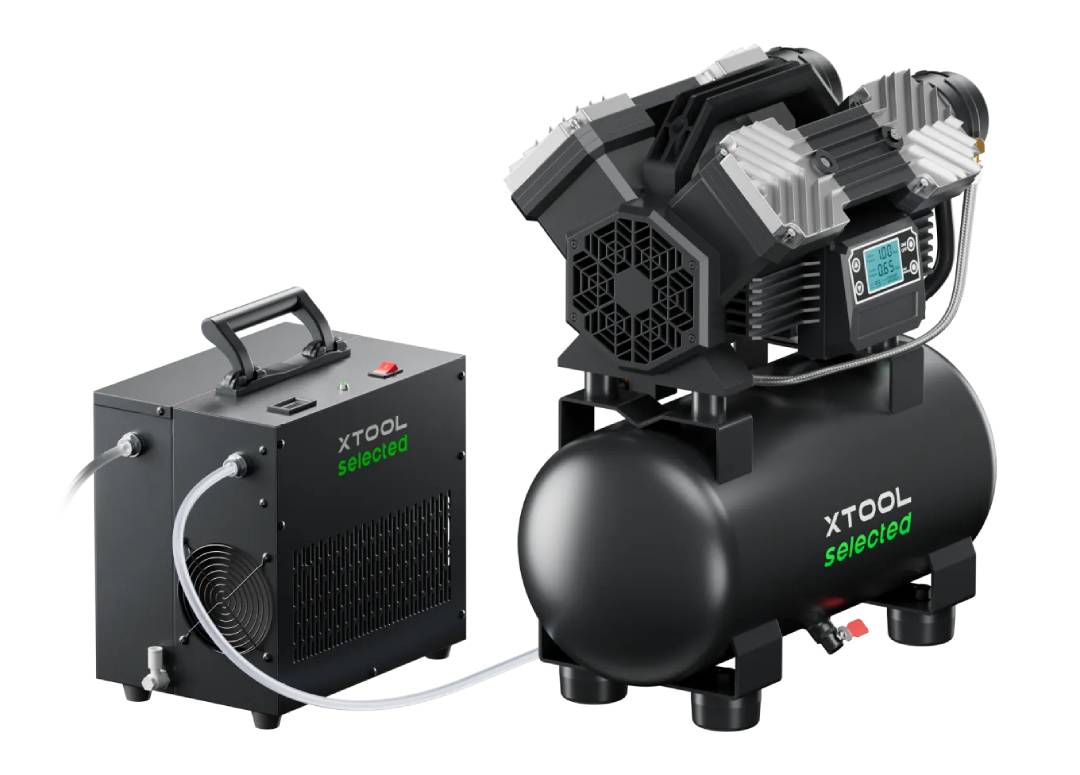

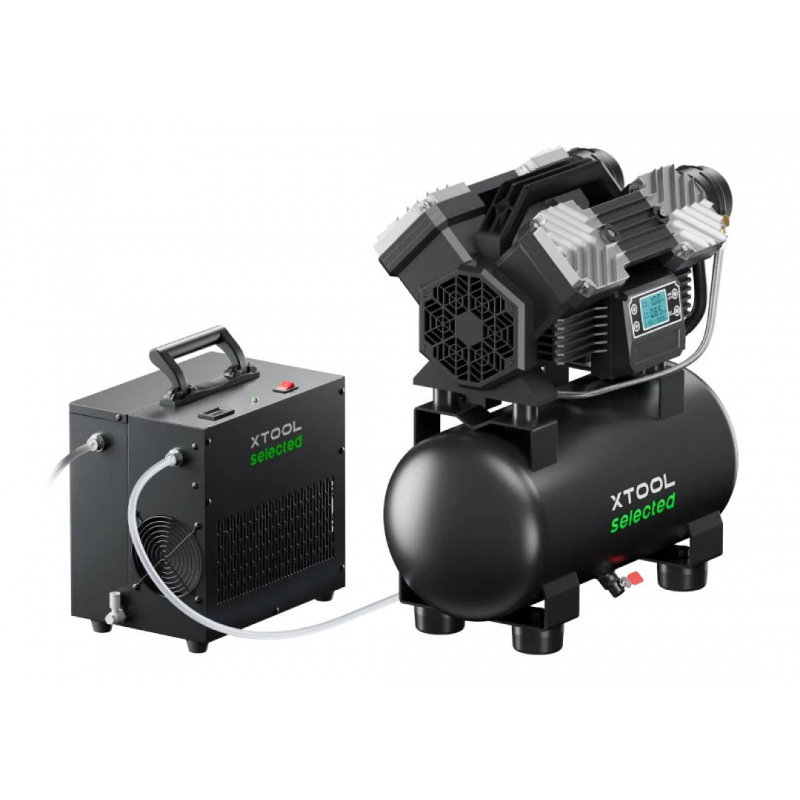

The compressor and air dryer must be used together.
Compressor compatibility and interoperability
The xTool Selected Air Dryer doesn't generate air on its own—its job is to dry and purify the compressed air supplied by the compressor . Although the device is designed for the xTool compressor , it is possible to connect the dryer to your own compressor from another brand , as long as it meets certain technical requirements. It is crucial that the inlet air temperature does not exceed 50°C , the pressure is lower than 12.5 bar (1.25 MPa) , and the flow does not exceed 400 l/min . Using the dryer with an external compressor with pressure above 10 bar allows for the full performance of the SaveGas nozzle . Meeting these parameters ensures safe operation and full filtration efficiency, and protects the device from damage.
Technical Specifications of the xTool Selected Air Dryer
- Type: air dryer
- Effectiveness: 99% moisture, 99.999% oil and rust
- Maximum air flow: 400 l/min (14.1 CFM)
- Maximum air pressure: 12.5 bar (1.25 MPa)
- Dew point: 2°C to 10°C
- Air inlet temperature: up to 45°C
- Rated power: 380 W (0.51 HP)
- Power supply voltage: 220 V
- Rated current: 2.6 A
- Cable connection diameter: 10 mm
- Operating temperature: -10°C to 40°C
- Dimensions: 402 x 355 x 227 mm
- Weight: 10.8 kg
Kit contents
- xTool Selected Air Dryer
- Filters
- Pneumatic hose (3 m)
- Drain pipe (2 m)
- Adjustable wrench
- Screwdriver
- Instruction

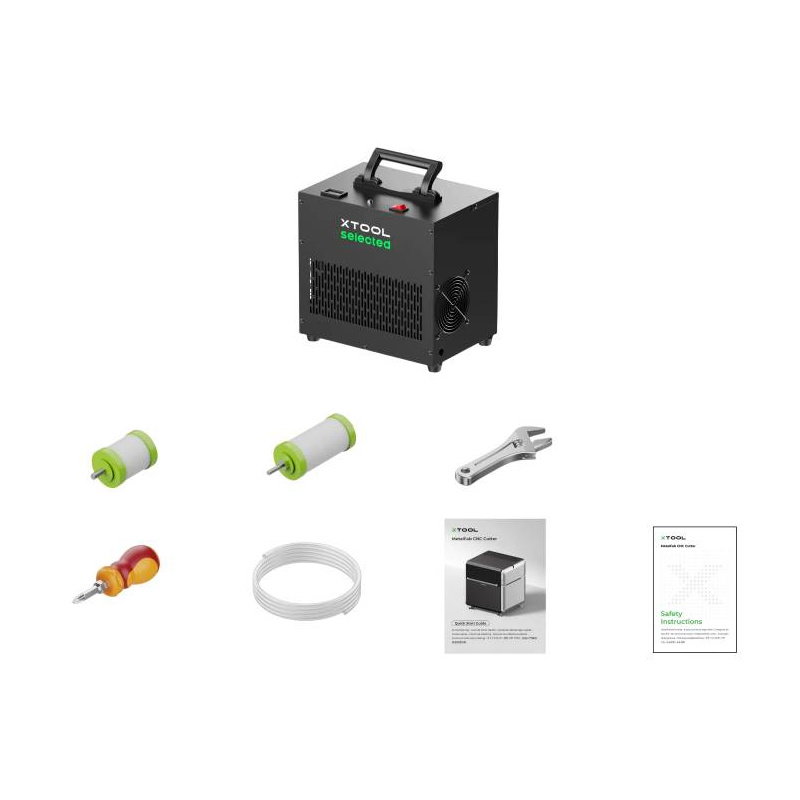

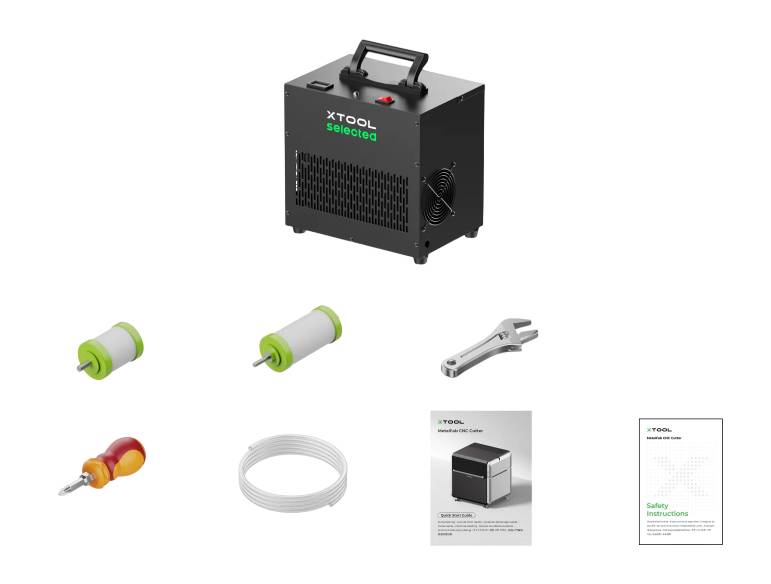

Elements included in the set.
