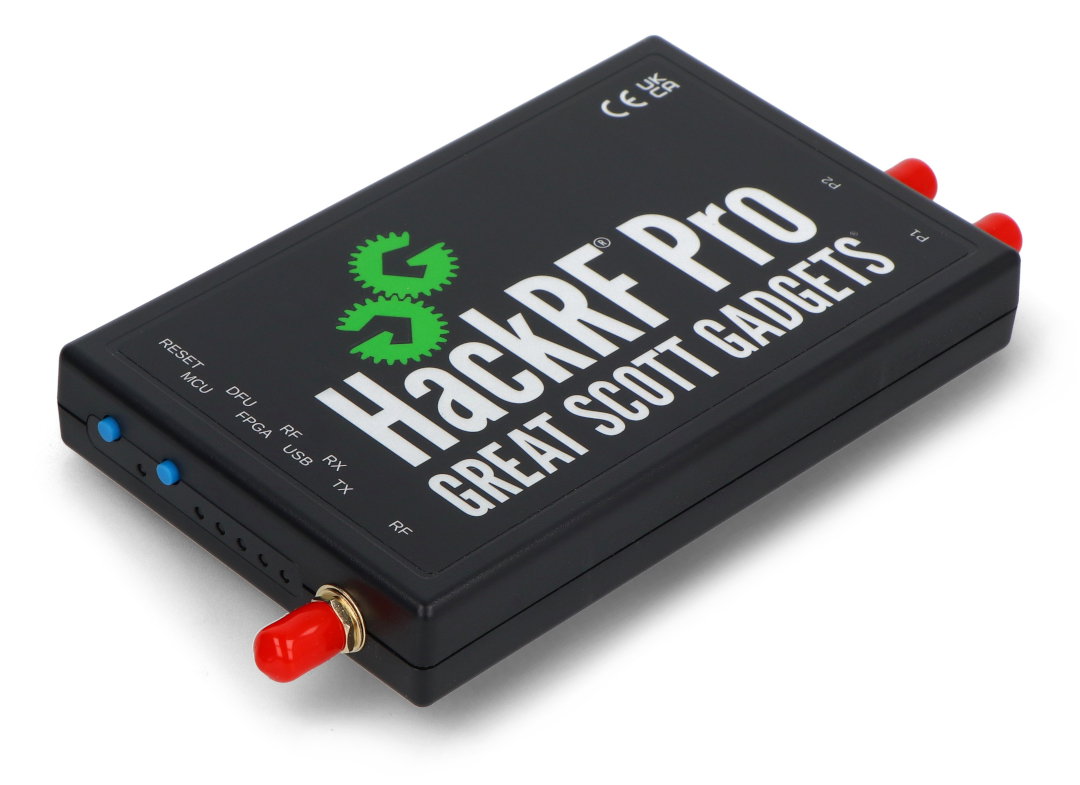

Product description: HackRF Pro - a device for testing radio waves
HackRF Pro is the next generation of the popular HackRF SDR , designed for engineers, security researchers, radio amateurs, and radio system developers. The device enables the analysis, reception, and transmission of radio signals over a wide frequency range , making it a versatile tool for wireless communications experiments and research. The Pro model introduces a number of hardware improvements, including a more efficient FPGA instead of a CPLD, a built-in high-stability TCXO oscillator, and improved RF characteristics . The use of a USB Type-C connector, additional RAM and Flash memory, and shielded radio section significantly improves operational stability and firmware upgradeability. Thanks to its HackRF One-compatible architecture, the device works with existing SDR software without requiring any changes.

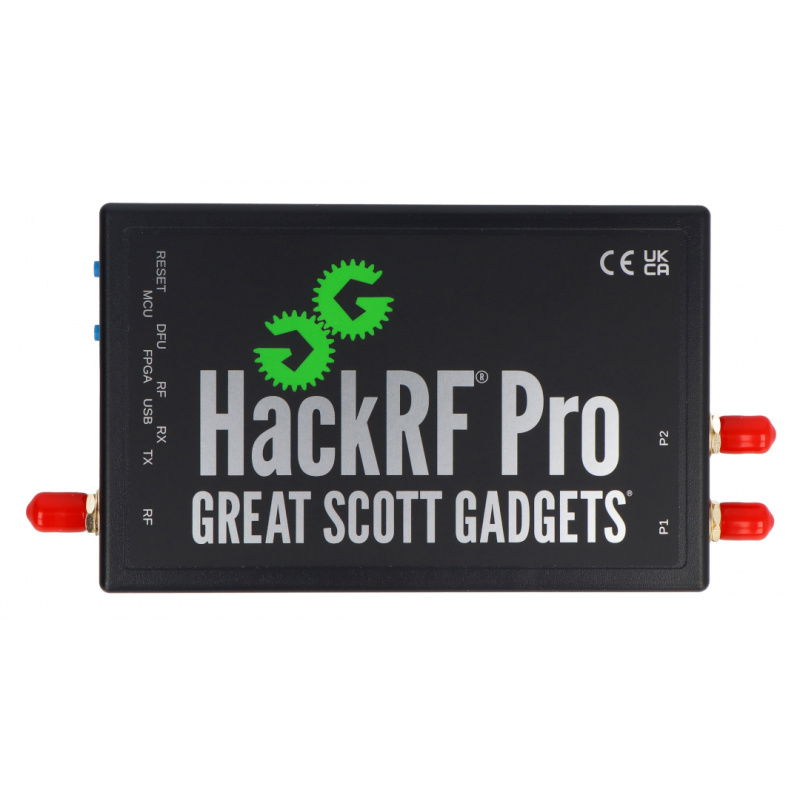

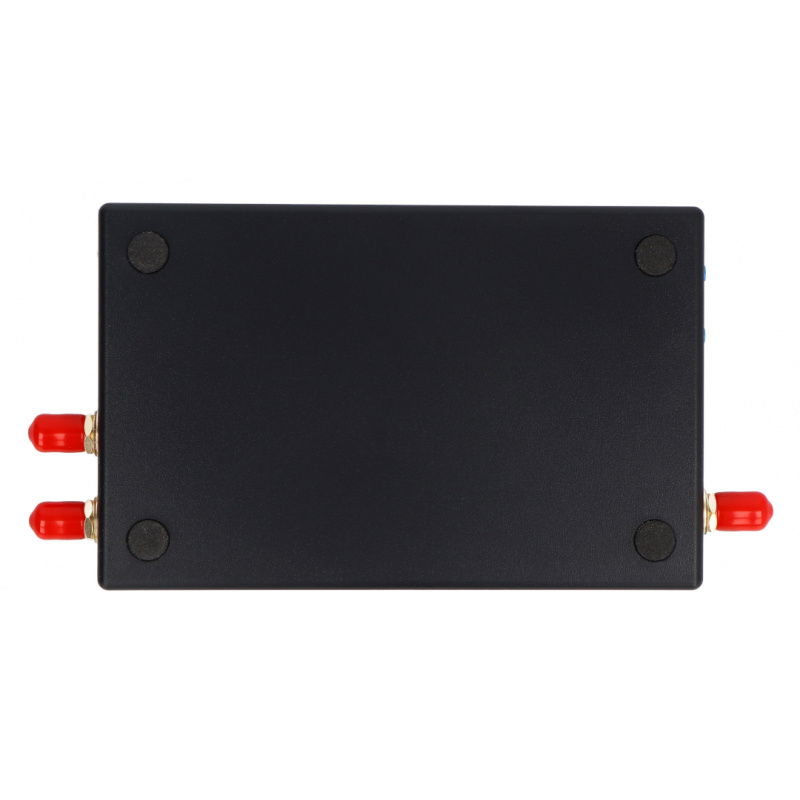

HackRF Pro - a device for testing radio waves.
HackRF Pro enables the transmission or reception of radio signals in the range of 100 kHz to 6 GHz.
HackRF Pro Main Features
- SDR Frequency Range : Supports signals from 100 kHz to 6 GHz, tunable from 0 Hz to 7.1 GHz
- Half-duplex transceiver : the ability to transmit and receive radio signals
- High sampling rate : up to 20 million samples per second (20 Msps)
- Quadrature Sampling : 8-bit I and 8-bit Q for standard SDR operation
- Advanced modes : 16-bit extended precision for high dynamics and 4-bit half precision up to 40 Msps
- Stable TCXO oscillator : high frequency and timing stability
- FPGA : more efficient signal processing and greater firmware development capabilities
- RF connector : SMA socket for antenna connection
- Synchronization : SMA clock input and output for synchronizing multiple devices
- USB Type-C connector : High-Speed USB 2.0 interface and USB power supply
- Programmable gain : configurable RX, TX and baseband filter
- Open source hardware platform : fully documented and modifiable
The new standard for software-defined radio (SDR)
The HackRF Pro sets a new standard in the affordable SDR segment . The design has been significantly improved over the previous generation by incorporating a highly stable TCXO oscillator and a flatter RF frequency response . This allows the device to provide more accurate tuning and more stable RF signal analysis. The new version also eliminates the DC spike problem that plagued older SDR designs. The RF section's shielding, improved power management, and larger RAM and Flash memory enable the creation of more extensive firmware and the development of new RF features.
HackRF Pro is an open source hardware platform.
Compatibility with SDR software and signal analysis tools
HackRF Pro is designed to be fully compatible with the HackRF One software . This allows most existing SDR applications and tools to work out-of-the-box, with no additional configuration required. The device works with popular software such as GNU Radio, SDR#, GQRX, and other RF analysis tools . Maintaining a compatible architecture allows you to leverage your existing software ecosystem while offering improved RF performance and new sampling modes .
HackRF Pro Technical Specifications
- Device type: SDR software-defined radio
- Operating mode: half-duplex transceiver
- RF operating range: 100 kHz to 6 GHz
- Tuning range: 0 Hz to 7.1 GHz
- Maximum sampling rate: 20 Msps
- Half precision mode: up to 40 Msps
- Standard sampling: 8-bit I / 8-bit Q
- Extended precision mode: 16-bit
- Oscillator: TCXO
- Logic system: FPGA
- Communication interface: High-Speed USB 2.0
- USB connector: USB Type-C
- RF connector: SMA
- Synchronization connectors: SMA clock input and output
- Power supply: from the USB port
Contents of the set
- 1x HackRF Pro
USB cable and antenna are not included in the kit.
