Specification
- Supply voltage: 5 V
- Current consumption: 4 mA for 5 V, 15 mA for 9 V
- Working frequency: 433MHz
- Modulation: ASK
- Range up to: 100 m
- Transmission speed: up to 9.6 KB
- Interface: TTL single-wire
- Connector for soldering an external antenna
- Dimensions:
- transmitter: 20 x 19 mm
- receiver: 30 x 14 mm
Description

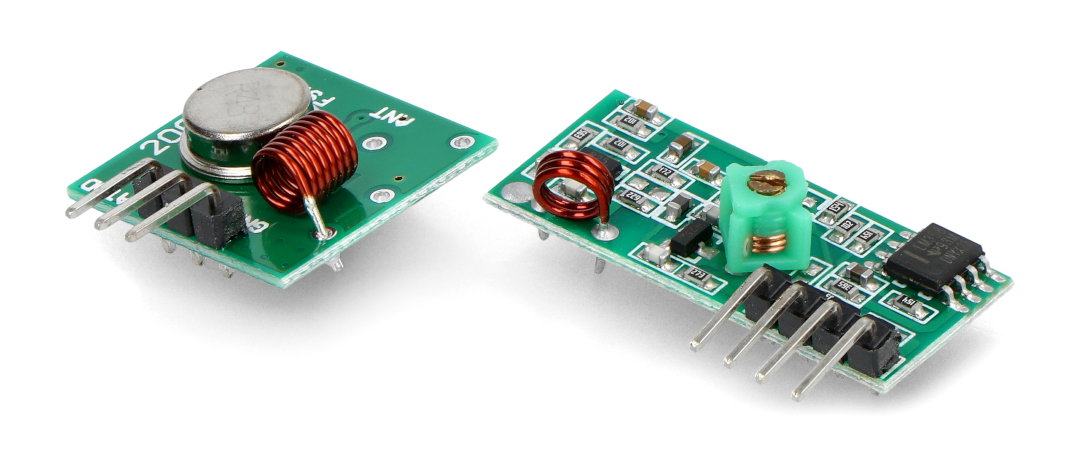

The set includes a transmitter and receiver that communicate with each other at a frequency of 433 MHz. The devices are powered with the 5 V voltage, communication with the microcontroller is through the single-wire interface.
Service
The supply voltage must be connected between VCCandGNDpins. The output signal is marked with the DATA (ADAT) sign.
|
The product is compatible with Arduino On the Internet, you can findan example of a connectionof the radio module with Arduino. Library is available onthe GitHUb |
