Product description: Flux Capacitor - CC1101 signal amplifier with 433 MHz antenna for Flipper Zero - Rabbit Labs
Flux Capacitor is an external module designed to work with Flipper Zero , which significantly increases its capabilities in terms of receiving and transmitting signals. The built-in CC1101 amplifier and specially selected antenna allow for obtaining power up to 100 mW , which provides a much greater operating range compared to the standard capabilities of the Flipper Zero module. Thanks to this, you can get a signal at a distance of up to 100 meters , and in the case of using an antenna with a higher gain, this range can be even greater. The module works natively with alternative software for Flipper Zero - just connect it to the device and the LED indicator will signal that it is ready to work. This is an ideal solution for penetration testers who need a range to capture signals from a greater distance, as well as for hobbyists who want to get a better range in their projects.

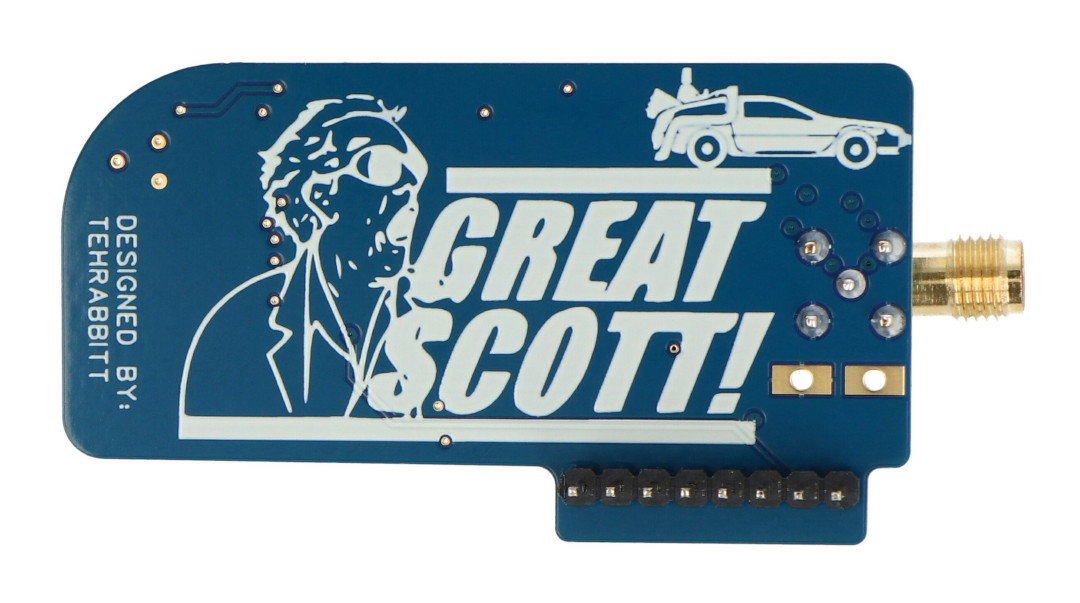

Flux Capacitor - CC1101 signal amplifier with 433 MHz antenna for Flipper Zero - Rabbit Labs.
Attention!
It is important that the module is always used with an antenna , as its absence may cause irreversible damage to the radio module.
The Flux Capacitor has an SMA connector for the included antenna.
Key Features of Flux Capacitor
- CC1101 Amplified Signal : Provides up to 100mW of power, extending the operating range to 100 meters
- Flipper Zero Compatibility : Works natively with alternative firmware, ready to use when plugged in
- Low Noise Amplifier : Integrated low noise amplifier provides cleaner signal and greater reliability
- Matching Antenna : 433MHz 90 degree antenna included
- 5V Powered Module : Powered by an ultra-low noise voltage regulator
- Frequency range : supports 425MHz to 450MHz band
Practical applications
Flux Capacitor is a dedicated solution for professional penetration testers who need a longer range when working with radio devices . It can also be used by hobbyists and enthusiasts who want to extend the functionality of their Flipper Zero and get a better range for controlling devices.

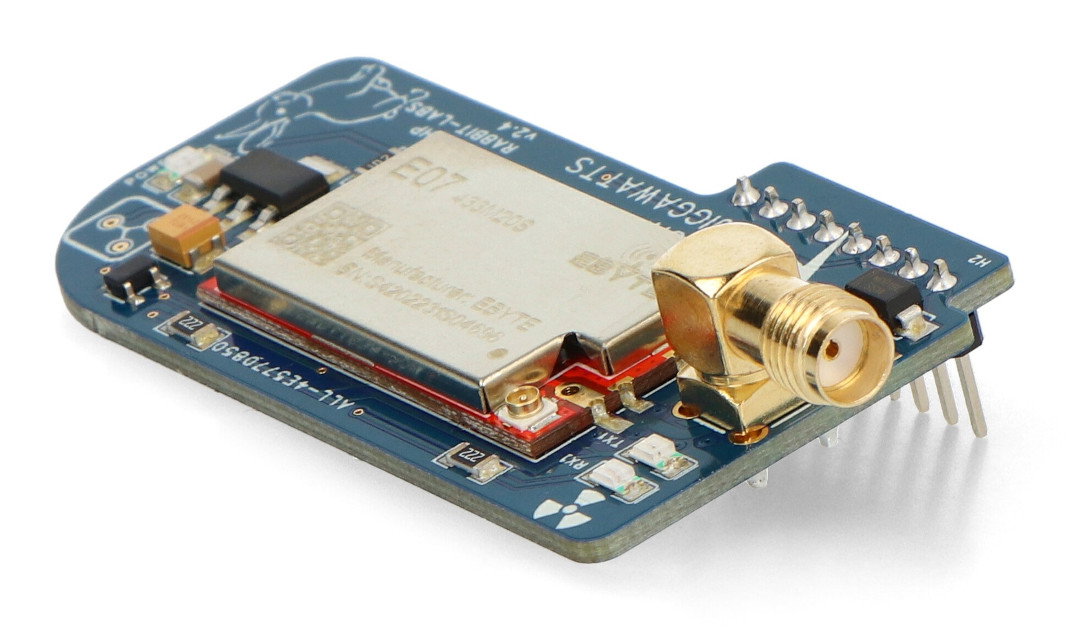

Flux Capacitor is a module designed to work with Flipper Zero.

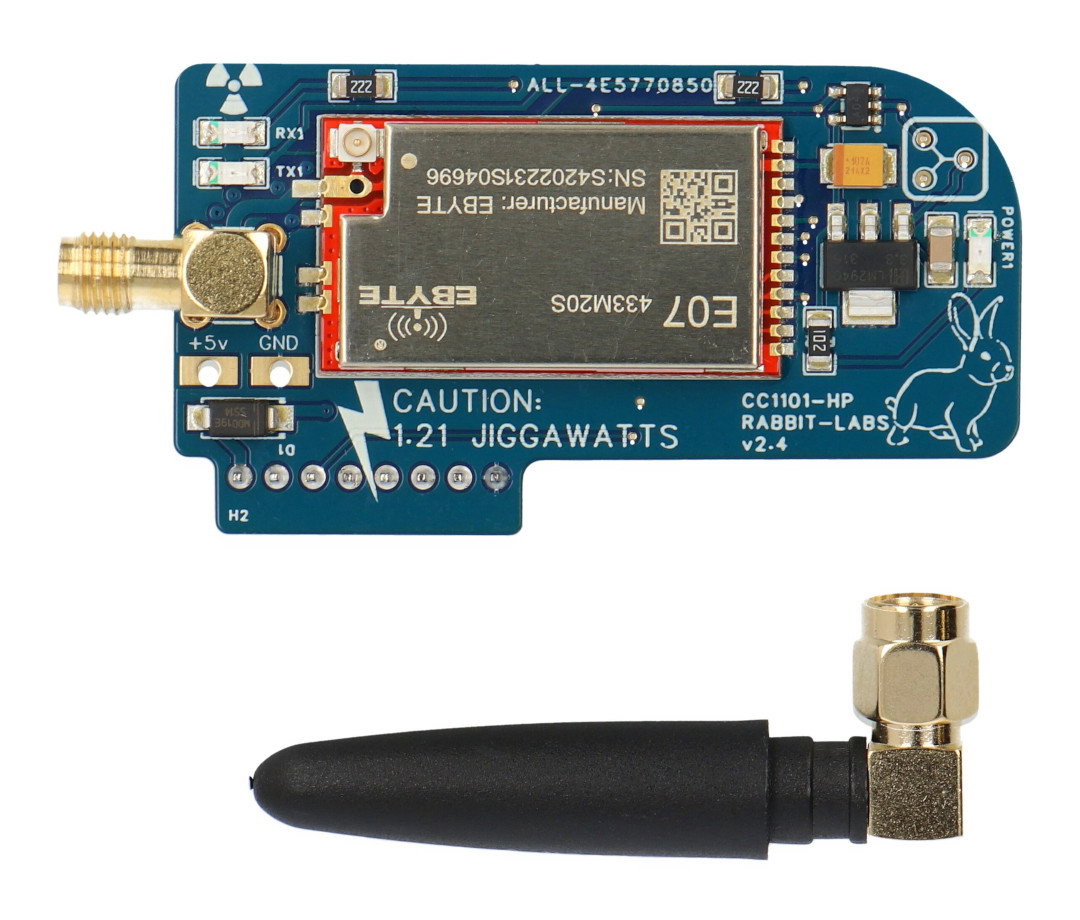

Items included in the set.
Flux Capacitor Technical Specifications
- System: E07-433M20S (CC1101)
- Maximum power: 100 mW
- Frequency range: 425 MHz to 450 MHz
- Supply voltage: 5V
- Amplifier: Built-in low noise amplifier
- Connector: SMA
- Antenna: 433MHz, 90°
- Power supply: 5V, powered by USB Type-C
- Weight: 40g
Kit Contents
- 1x Flux Capacitor (CC1101 amplifier)
- 1x 433 MHz Antenna (90° angle)
