Product description: DigiLab for Flipper Zero - diagnostic module for analyzing I2C and SPI signals - Lab401

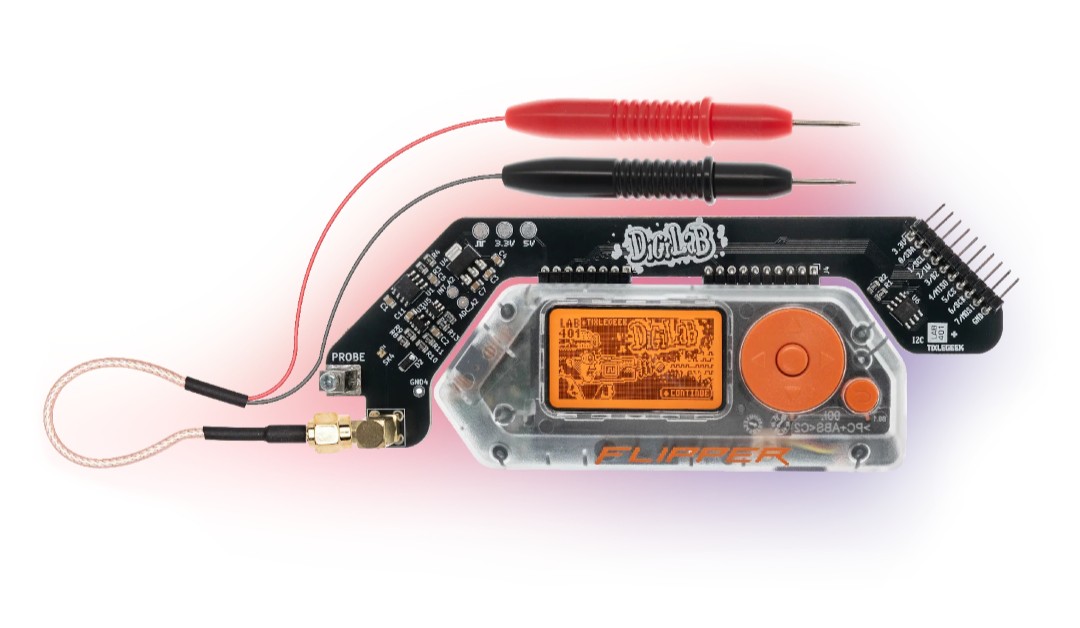

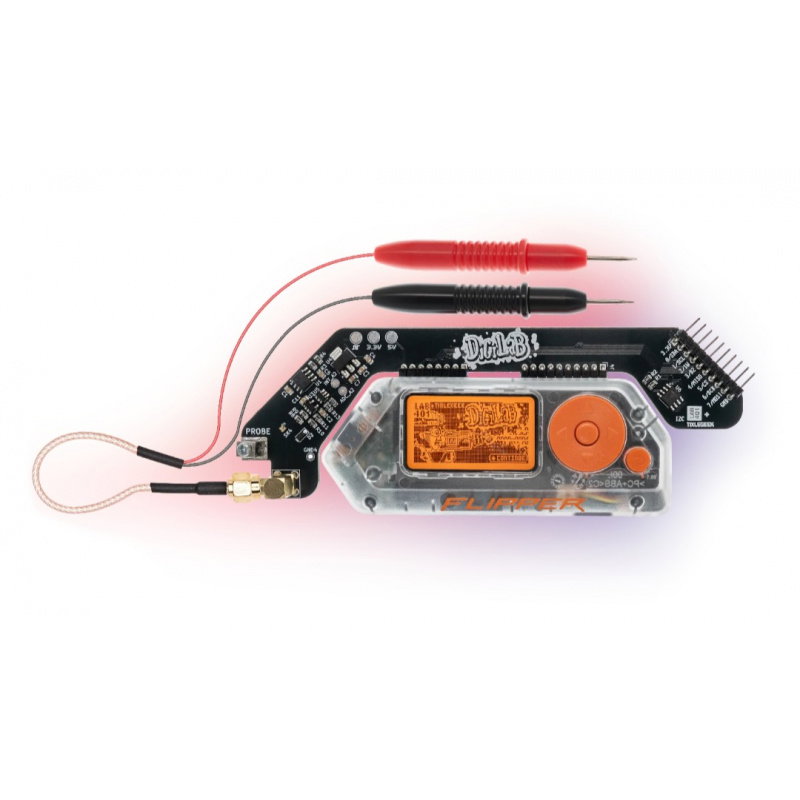

DigiLab by Lab401 is an advanced diagnostic and educational module for the Flipper Zero that transforms the popular hacking tool into a portable electronics laboratory . Designed with electronics engineers, embedded system developers, students, and electronics enthusiasts in mind, this accessory enables signal analysis, voltage measurements, I2C and SPI device detection, and direct communication with electronic circuits . The device allows you not only to observe signals but also to "see," "hear," and "feel" their actions thanks to the built-in RGB LED, speaker, and Flipper Zero vibration motor. The Scope function enables real-time waveform visualization , while the Probe tool allows you to quickly identify voltages, frequencies, and active communication lines during electronic system diagnostics.
DigiLab for Flipper Zero - diagnostic module for analyzing I2C and SPI signals - Lab401.
DigiLab from Lab401 is an advanced diagnostic and educational module designed for Flipper Zero.Special features
- Compatibility with Flipper Zero: extending the device's functionality with advanced diagnostic tools
- Scope Tool: Real-time signal and voltage visualization
- Probe Tool: Quickly detect voltages, frequencies, and active signal lines
- I2C and SPI bus support: detection, analysis and communication with devices
- Predictive Identification Engine: Automatic Recognition of Electronic Circuits
- Reading and writing registers: direct communication with memories and sensors
- Visual and haptic feedback: using RGB LED, sound and vibration
- BusPirate compatibility: works with popular diagnostic accessories
- Open Source and Open Hardware: Open Hardware and Software Documentation
- Educational and diagnostic tool: ideal for learning electronics and debugging systems
Practical applications
- diagnostics of electronic systems
- analysis of digital and analog signals
- I2C and SPI device identification
- debugging embedded projects
- analysis of communication buses
- learning electronics and microcontroller programming
- reading memory and sensor registers
- prototyping electronic devices
I2C and SPI bus analysis
DigiLab significantly simplifies working with devices communicating via I2C and SPI buses. The module can automatically detect multiple devices simultaneously, identify their manufacturer and function, and then enable direct reading and writing of registers. This allows users to quickly diagnose electronic modules, analyze sensors, and test memory without the need to write additional code or use external programmers.
Turns a popular hacking tool into a portable electronics lab.
The accessory was created with electronics engineers, embedded system programmers, students and electronics enthusiasts in mind.Technical specifications
- Model: DigiLab
- Compatibility: Flipper Zero
- Product type: diagnostic and educational module
- Supported buses: I2C, SPI
- Features:
- Scope Tool
- Probe Tool
- I2C Probe
- SPI Probe
- Voltage measurement range: 0 V to 12 V
- Maximum measurement frequency: up to approximately 200 kHz
- I2C functions:
- device detection
- system identification
- reading registers
- record keeping
- HEX editor
- SPI functions:
- device detection
- system identification
- reading registers
- record keeping
- HEX editor
- BusPirate accessory compatibility: yes
- Project nature: Open Source, Open Hardware

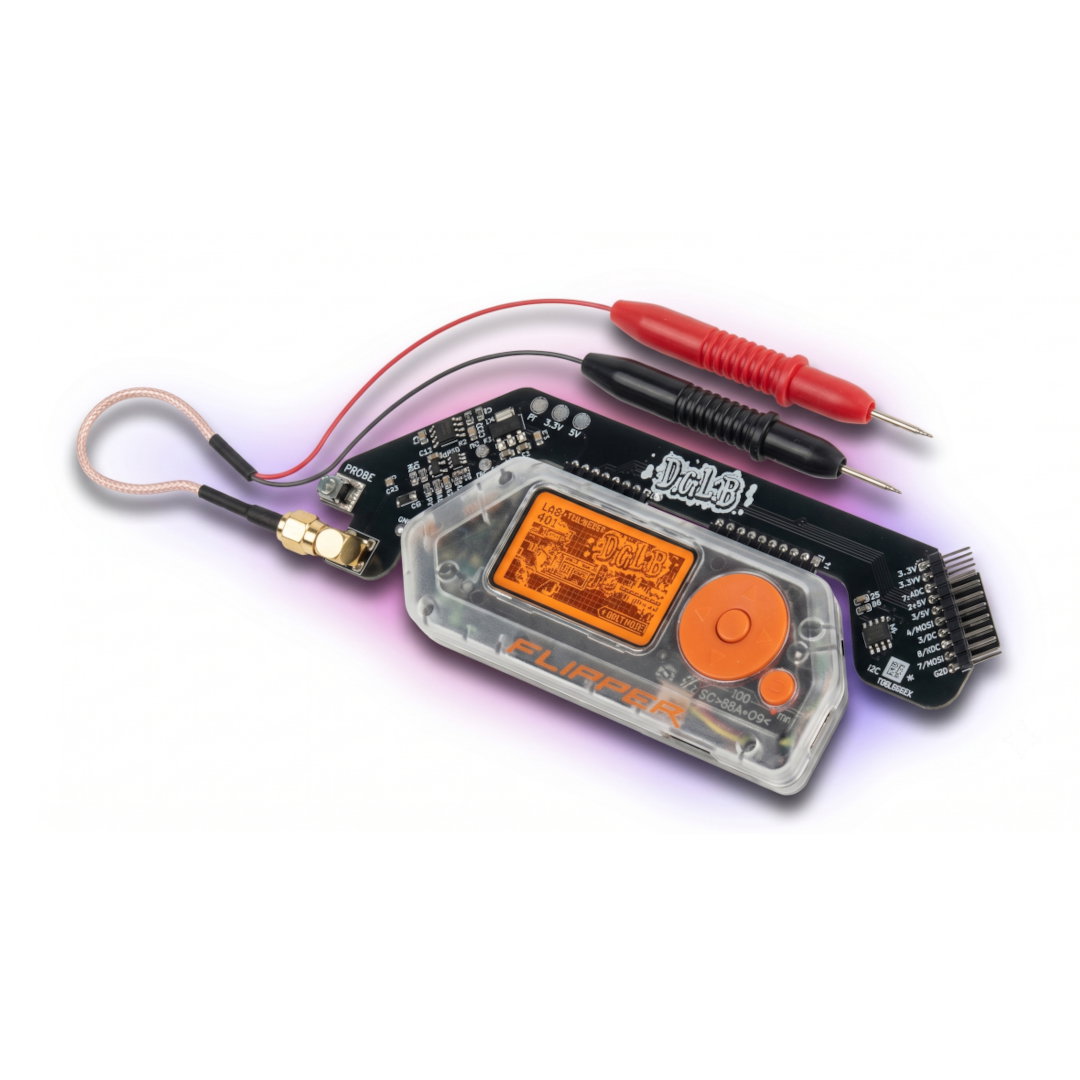

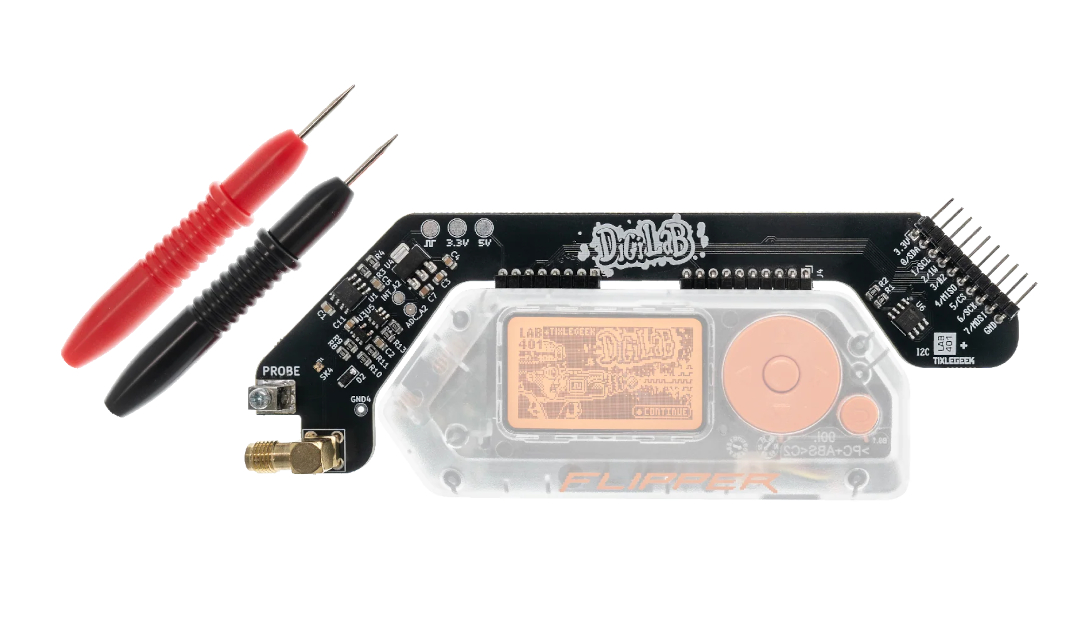

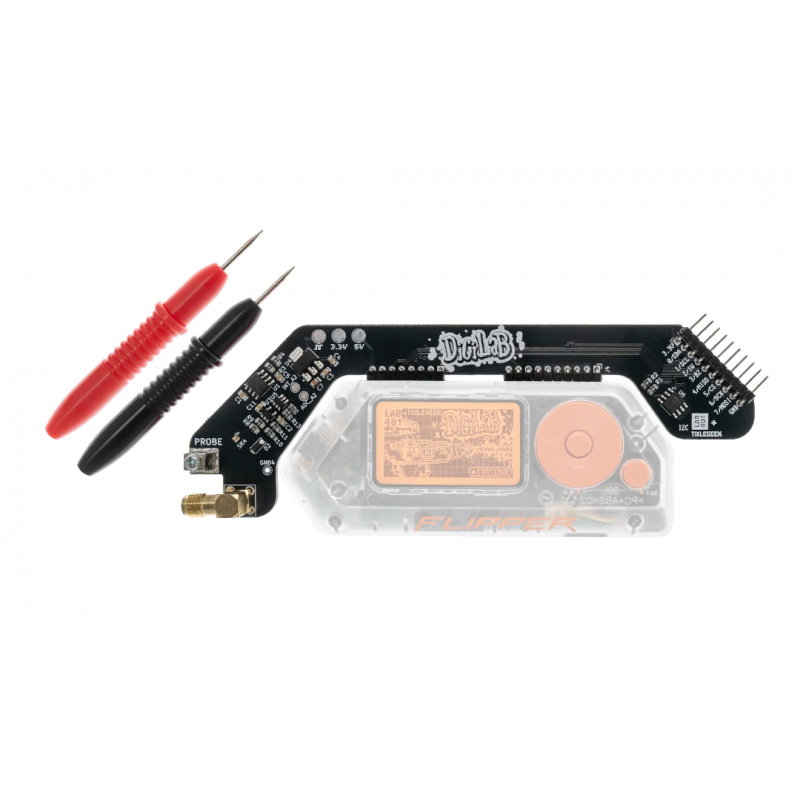

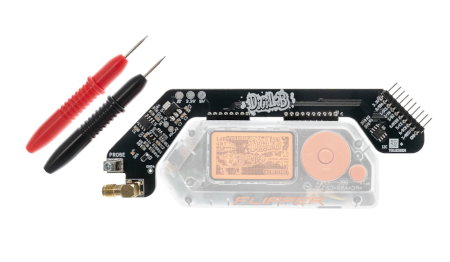

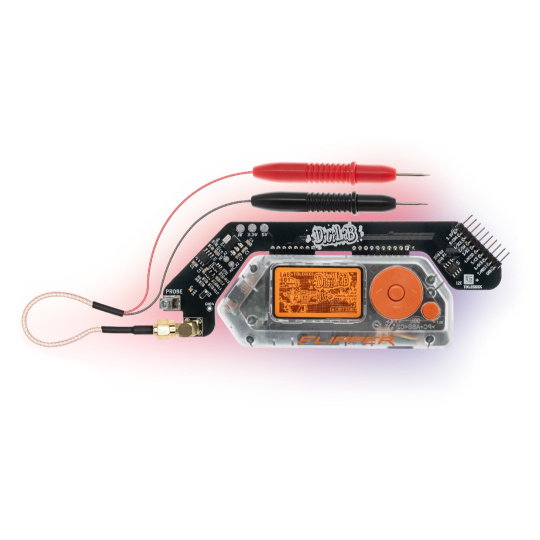

Kit contents

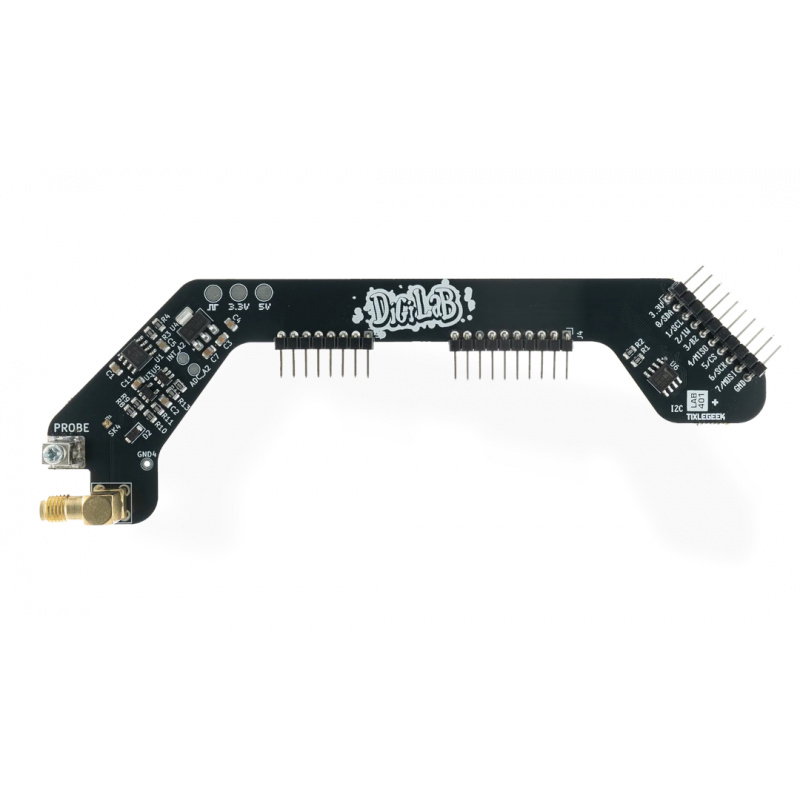

- DigiLab module
- a pair of shielded RG-178 test leads with an SMA connector
- Probe Point measuring tip
- DigiLab app for Flipper Zero (download)
