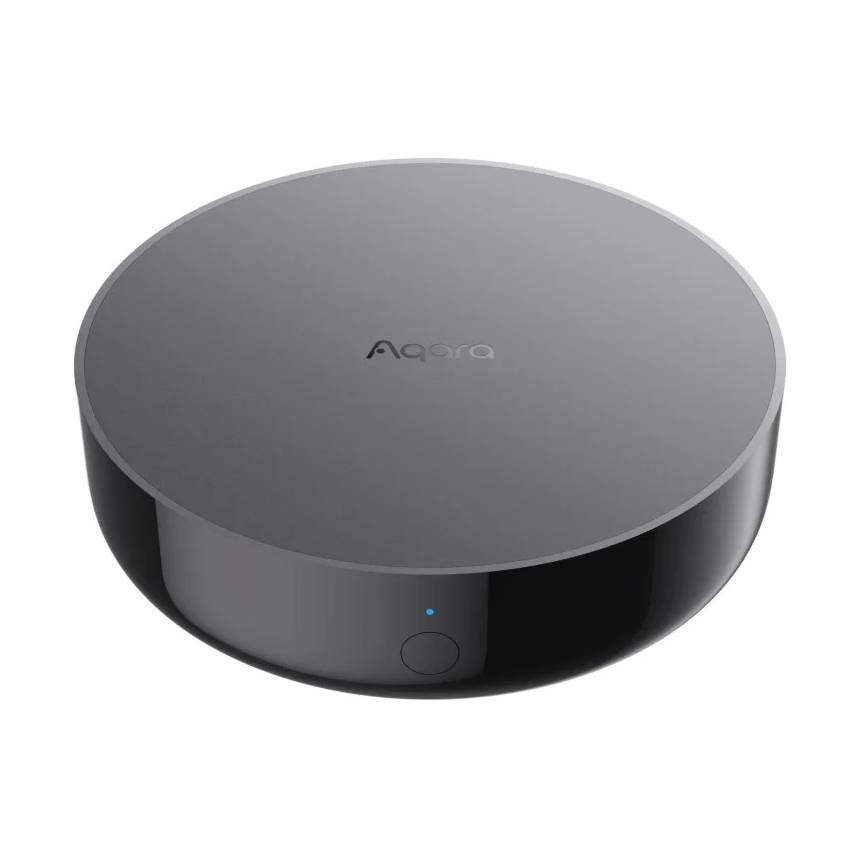

Product description: Aqara Hub M200 - WiFi / Bluetooth / ZigBee / Thread / Matter gateway - USB C / PoE
The Aqara Hub M200 is the central management point for an extensive smart home system. The gateway integrates Aqara ZigBee and Thread accessories, as well as third-party Matter devices , enabling their operation in a single installation. The built-in Matter Controller, Thread Border Router, and Matter Bridge allow you to connect devices to popular ecosystems such as Apple Home, Google Home, Amazon Alexa, SmartThings, and Home Assistant. The hub uses WiFi 6 in the 2.4 GHz and 5 GHz bands and can also work over a wired Ethernet network. PoE support allows you to simultaneously transmit data and power the device using a single network cable. The built-in 360° IR transmitter also allows you to control traditional infrared devices, such as air conditioning.
Aqara Hub M200 - WiFi / Bluetooth / ZigBee / Thread / Matter gateway - USB C / PoE.
Aqara Hub M200 can act as the main control unit of a smart home, connecting sensors, lighting, controllers, locks, cameras and other Aqara devices.
Main features of the Aqara Hub M200
- Matter support : The built-in Matter controller allows you to manage over 50 types of compatible devices via the Aqara Home app
- Thread Border Router : Hub connects Matter over Thread devices to a WiFi or Ethernet network and can extend the range of a Thread mesh network
- Matter Bridge : allows you to share compatible Aqara ZigBee devices with external Matter ecosystems
- Advanced Matter Bridging : allows you to use selected features of Aqara devices also on third-party platforms
- ZigBee Hub : supports up to 40 Aqara ZigBee devices
- Thread Support : Allows you to work with up to 40 Thread devices
- 360° IR transmitter : controls devices using 38 kHz infrared
- Bi-directional IR support : the hub can detect the use of a traditional remote control, making it easy to keep your device up to date
- Matter Air Conditioning Integration : A compatible IR-controlled air conditioner can be shared with Matter and used similarly to a thermostat
- Local Automations : Automations 2.0 uses WHEN-IF-THEN logic and allows you to execute multiple scenes locally, without having to communicate with the cloud
- WiFi 6 Dual Band : supports 2.4 GHz and 5 GHz bands and WPA3 security
- Wired Ethernet connection : RJ45 port allows for more stable communication than wireless network
- PoE Power : Enables power and data transmission over a single Ethernet cable
- USB Type-C Power Supply : Alternative 5V/2A power supply
- Bluetooth : enables, among others, cooperation with Aqara Voice Mate
- Aqara MagicPair : facilitates automatic detection and configuration of compatible devices in the Aqara Home app
- Built-in 90 dB loudspeaker : can be used for alarms, notifications, wake-up calls, ringtones and playing your own recordings

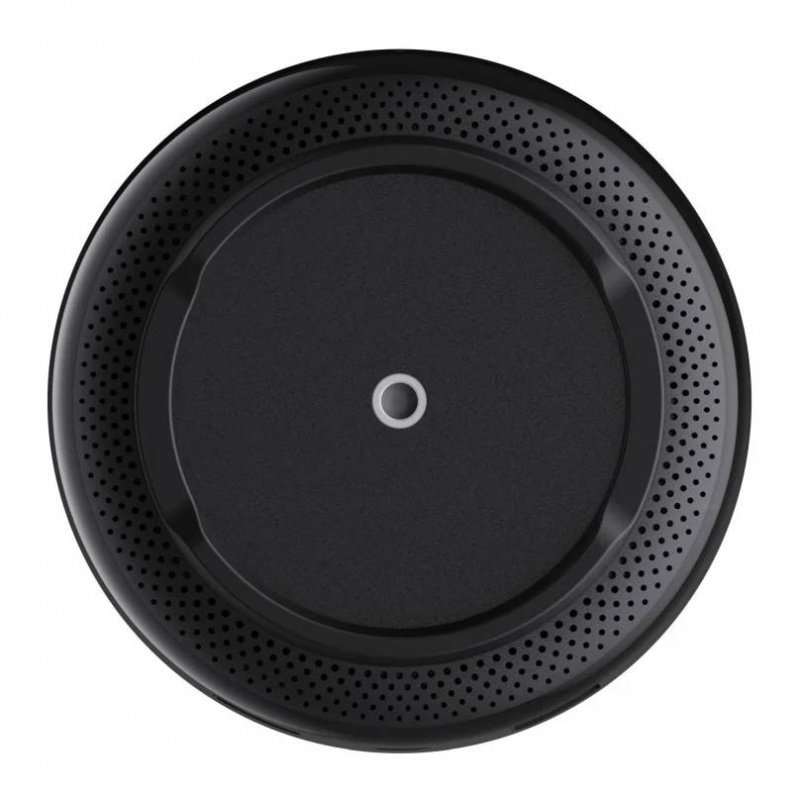

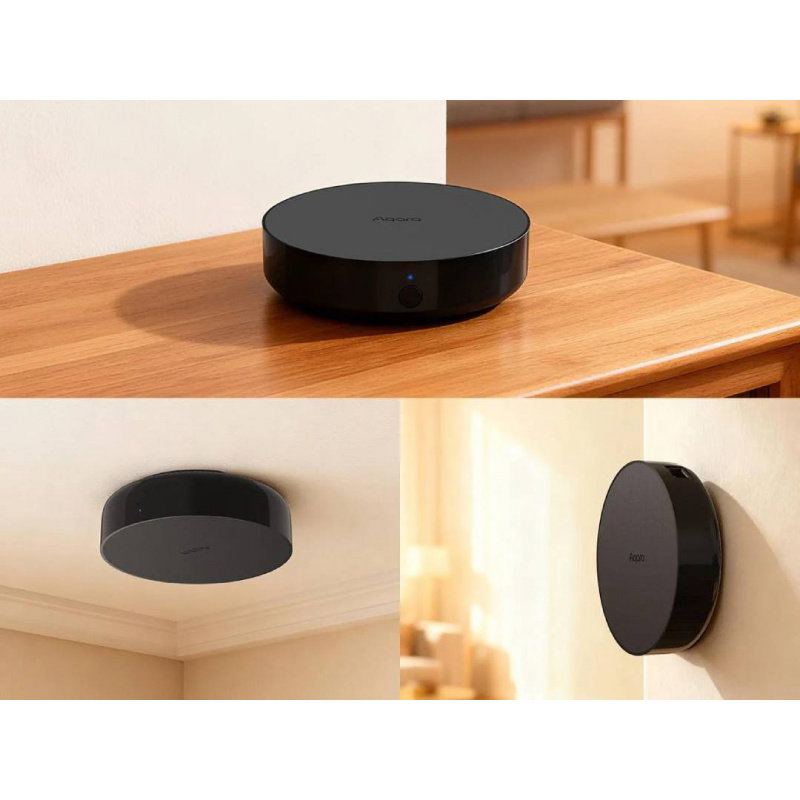

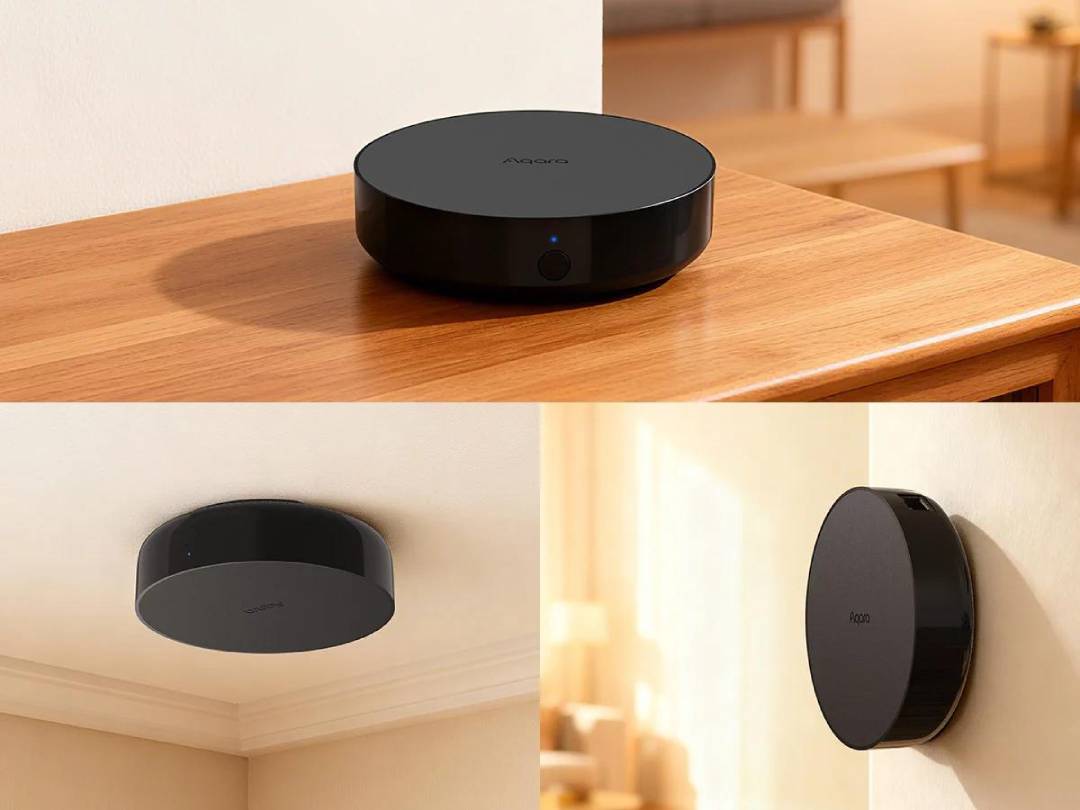

- Versatile mounting : The unit can be placed on a flat surface or mounted on a wall or ceiling using a standard 1/4" thread
| Aqara Hub M200, Hub M100 and Hub M3 comparison | |||
|---|---|---|---|
| Function | Aqara Hub M200 | Aqara Hub M100 | Aqara Hub M3 |
| Matter Controller | Yes | Yes | Yes |
| Thread Border Router | Yes | Yes | Yes |
| Matter Bridge | Yes | Yes | Yes |
| IR control | Yes | NO | Yes |
| Hub for Aqara ZigBee devices | Yes | Yes | Yes |
| Processing | Local Hub | Local Hub | Edge Hub |
| Loudspeaker | 90 dB | Lack | 95 dB |
| WiFi | 2.4GHz / 5GHz | 2.4 GHz | 2.4GHz / 5GHz |
| Power supply | USB Type-C, PoE | USB Type A | USB Type-C, PoE |
| Max. number of Aqara ZigBee devices | 40 | 20 | 127 |
| Max Thread Devices | 40 | 20 | 127 |
| MARS Tech | Yes | NO | Yes |
The Aqara Hub M200 is a mid-point between the compact Hub M100 and the more advanced Hub M3. Compared to the M100, it offers dual-band WiFi, PoE, an IR transmitter, a speaker, and twice the number of ZigBee and Thread devices supported . The Hub M3 remains a solution intended for the largest installations, while the M200 is well-suited for complex home systems requiring extensive protocol support and local automation.
Thanks to Matter and Thread support, the gateway can be used to expand installations with products from other manufacturers, without being limited to a single ecosystem.
Aqara Hub M200 technical specifications
- Supported standards: Matter, Thread, ZigBee, Bluetooth
- Matter Controller: yes
- Matter Bridge: yes
- Thread Border Router: Yes
- Thread Mesh Extender: Yes
- Wireless protocols: WiFi IEEE 802.11 a/b/g/n/ac/ax, ZigBee / Thread IEEE 802.15.4, Bluetooth
- WiFi band: 2.4GHz / 5GHz
- WiFi Standard: WiFi 6
- WiFi security: WPA3
- Maximum number of Aqara ZigBee devices: 40
- Maximum number of Thread devices: 40
- IR control: yes
- Infrared frequency: 38 kHz
- IR emission range: 360°
- Speaker: 90 dB at 10 cm
- Power supply via USB Type-C: 5V/2A
- PoE power supply: 48V/0.25A

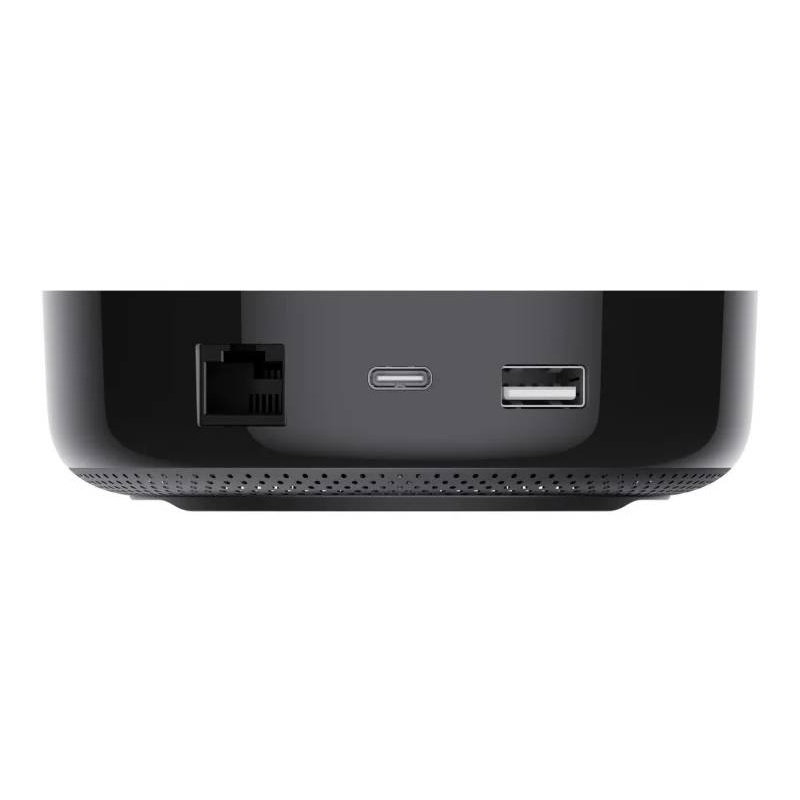

- Ports: RJ45 PoE x 1, USB Type A x 1, USB Type C x 1
- Mounting method: flat surface, wall or ceiling

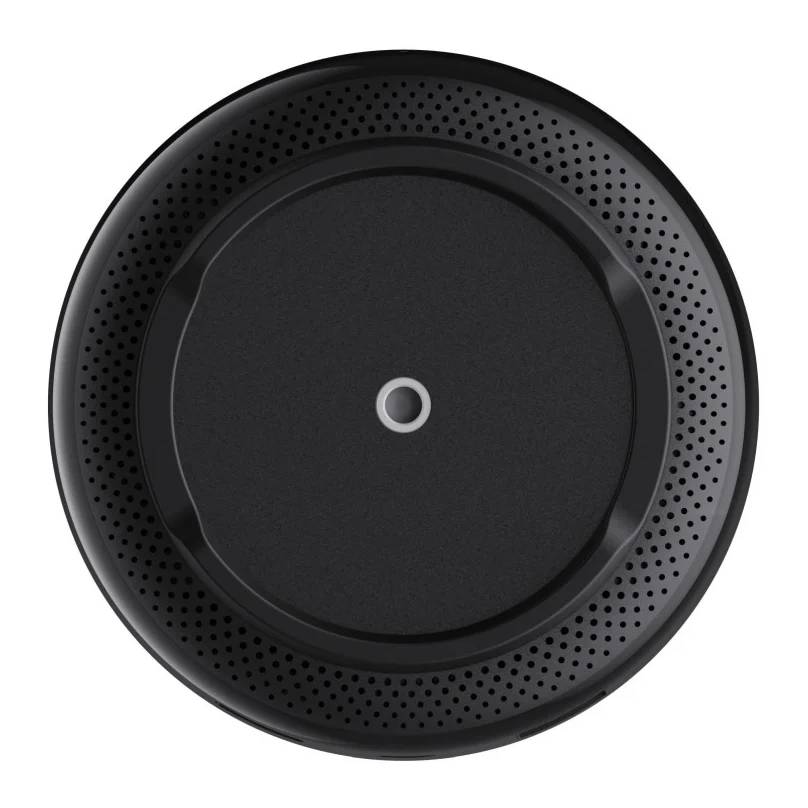

- Mounting thread: 1/4"
- Operating temperature: -10°C to 50°C
- Operating humidity: 0% RH to 95% RH, non-condensing
- Dimensions: Ø 100.5 x 30.75 mm

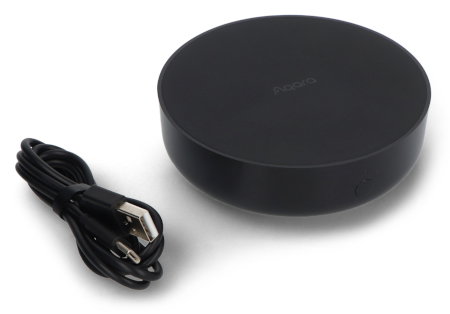

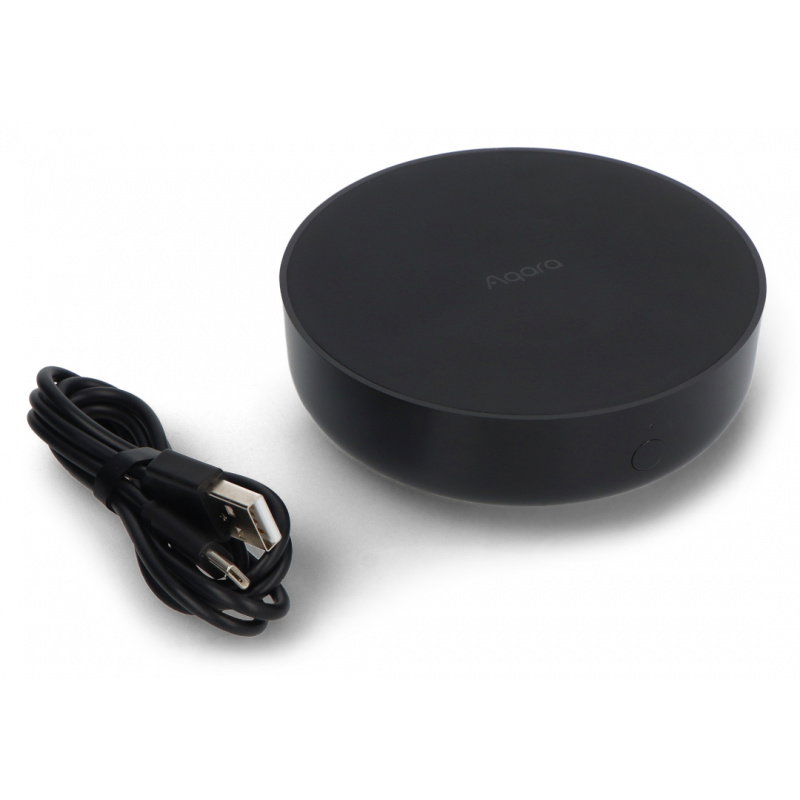

Contents of the set
- Aqara Hub M200
- USB Type A - USB Type C cable
