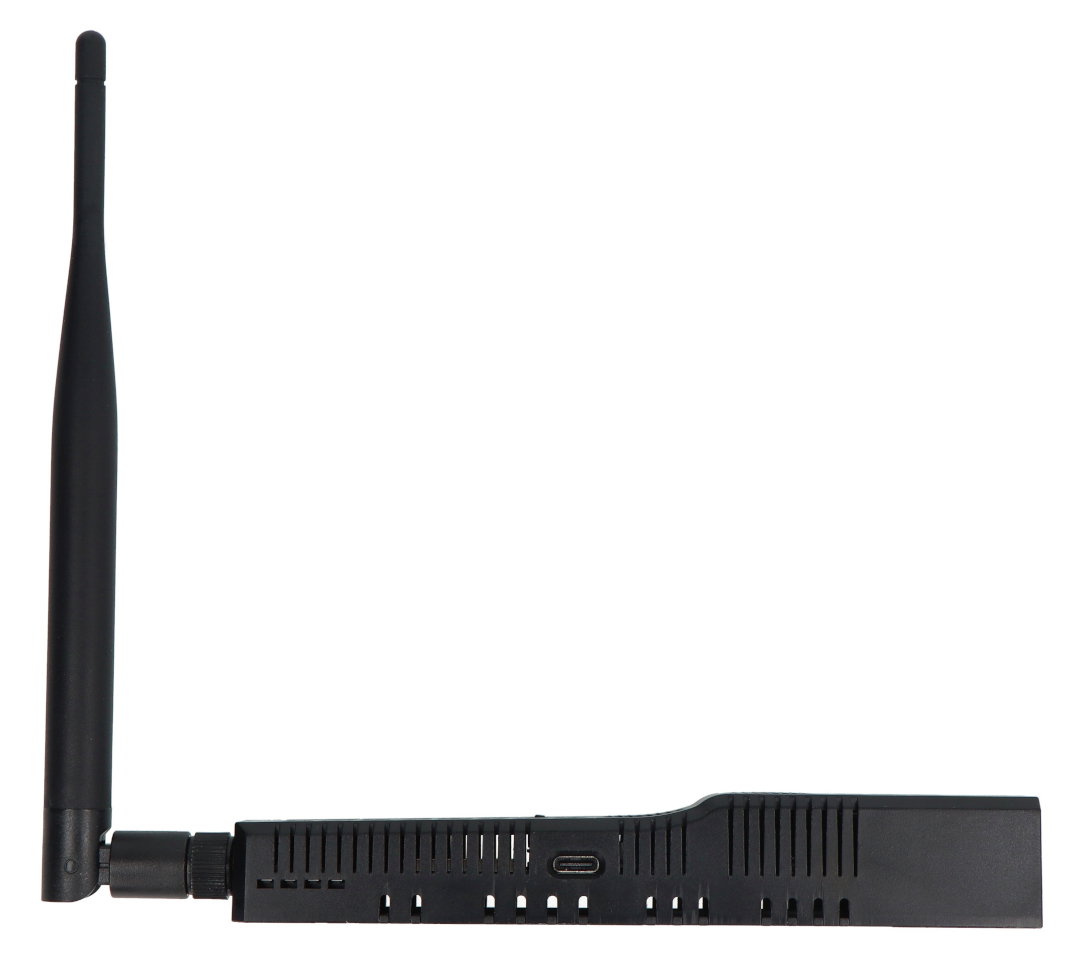

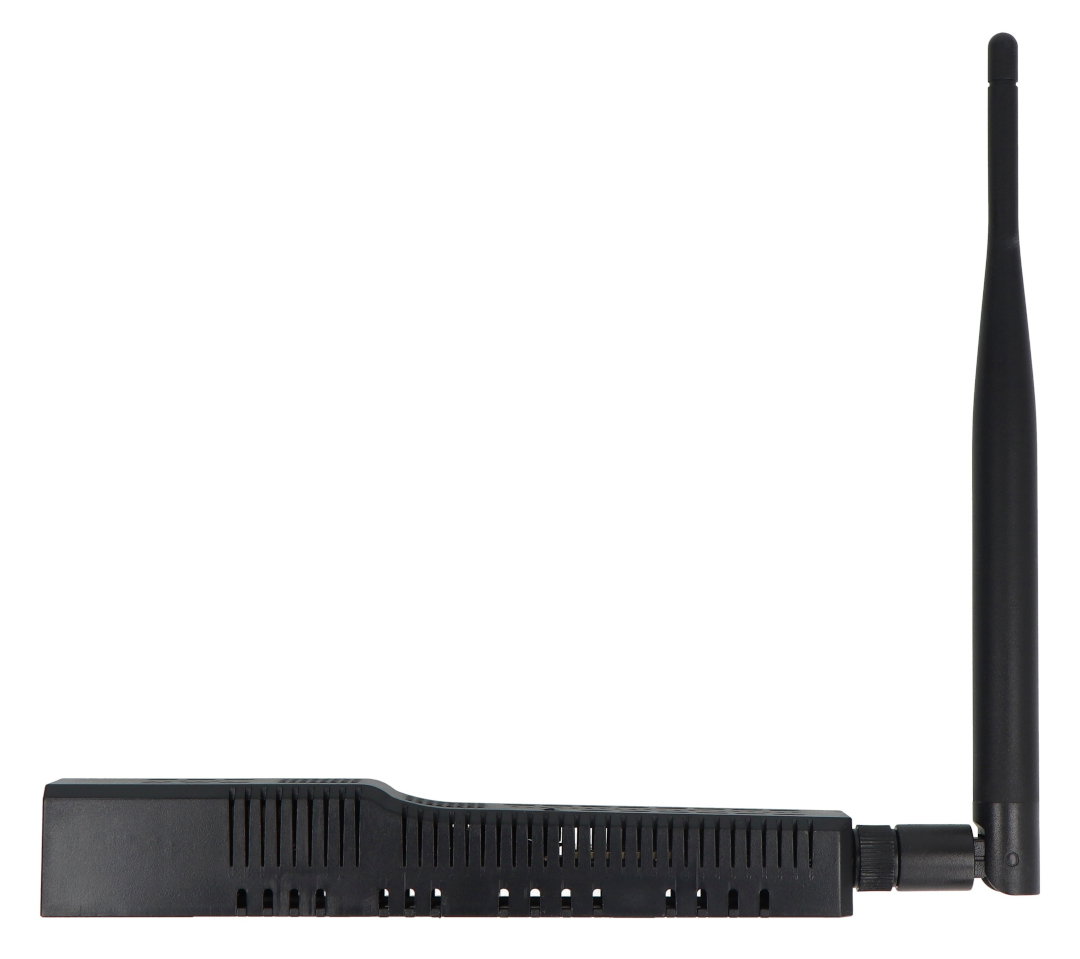

SMLIGHT SLZB-06-U - CC2652P ZigBee gateway for Home Assistant - Ethernet/PoE/USB/LAN/Wi-Fi
The SLZB-06-U by SMLIGHT is an advanced ZigBee 3.0 coordinator based on CC2652P and ESP32 chipsets, enabling communication via Ethernet with PoE, WiFi, or USB Type-C . It works with Home Assistant, ZigBee2MQTT, and ZHA , offering support for up to 200 ZigBee end devices. With an external 5 dB antenna , 20 dB signal amplifier, and Matter over Thread support, it is an ideal solution for modern smart home systems.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: SMLIGHT SLZB-06-U - ZigBee CC2652P gateway for Home Assistant - Ethernet / PoE / USB / LAN / WiFi
The SLZB-06-U is an advanced ZigBee coordinator designed for building efficient and reliable home automation networks. It utilizes the proven Texas Instruments CC2652P chip for ZigBee 3.0 communication and an ESP32 microcontroller to manage network connections and device configuration. Support for Ethernet with PoE, Wi-Fi, and USB allows you to freely choose the coordinator's installation method and location, regardless of the Home Assistant server's location. Optoelectronic isolation allows simultaneous USB and Ethernet connections without interference. The gateway is factory-configured and ready to work immediately after connection. It supports ZigBee2MQTT, ZHA , and the emerging Matter over Thread standard, enabling the integration of devices from multiple manufacturers within a single smart home ecosystem. Thanks to its efficient design and the ability to be mounted in an optimal location, the SLZB-06-U improves the range and stability of ZigBee communication, even in complex installations.
SLZB-06U is a newer version of SLZB-06 with support for USB passthrough via Ethernet , i.e. the ability to share USB devices connected to the adapter in the network, while maintaining the same ZigBee CC2652P chip.
The SLZB-06U, aside from USB passthrough support, is identical to the SLZB-06. Currently, all available SLZB adapter models are manufactured with U.
SMLIGHT SLZB-06-U - ZigBee CC2652P gateway for Home Assistant - Ethernet / PoE / USB / LAN / WiFi.
The ZigBee gateway works via Ethernet (PoE), USB or WiFi.
Main features of SMLIGHT SLZB-06-U
- Texas Instruments CC2652P : a high-performance ZigBee 3.0 coordinator with a 20 dB signal amplifier
- Additional ESP32 chip : supports network communication, web interface and OTA updates
- Three communication methods : Ethernet, WiFi and USB
- Remote mode change : switch between Ethernet, WiFi and USB without using mechanical switches
- Powered by PoE 802.3af or USB Type-C : flexible installation without the need for additional power supplies
- External 5 dB antenna : increased range and stability of ZigBee connections
- ZigBee2MQTT and ZHA support : full integration with Home Assistant
- Matter over Thread support : preparing for modern building automation standards
- OTA updates : convenient software updates over the network
- Factory configured : ready to work without additional programming
- Mounting with screws or double-sided tape : easy installation in the desired location
Ethernet, PoE, USB Type-C and WiFi connectivity
The SLZB-06-U offers exceptional communication flexibility thanks to its support for three independent connection interfaces. It can operate as a ZigBee coordinator connected to a server via Ethernet, Wi-Fi, or USB , allowing for customization of installation to suit a specific environment. IEEE802.3af -compliant PoE support enables simultaneous data and power transmission over a single network cable. This allows the coordinator to be installed in a location that provides the best ZigBee network coverage, regardless of the Home Assistant server's location. The use of a 20 dB RF amplifier and a 5 dB antenna further improves communication quality with end devices.

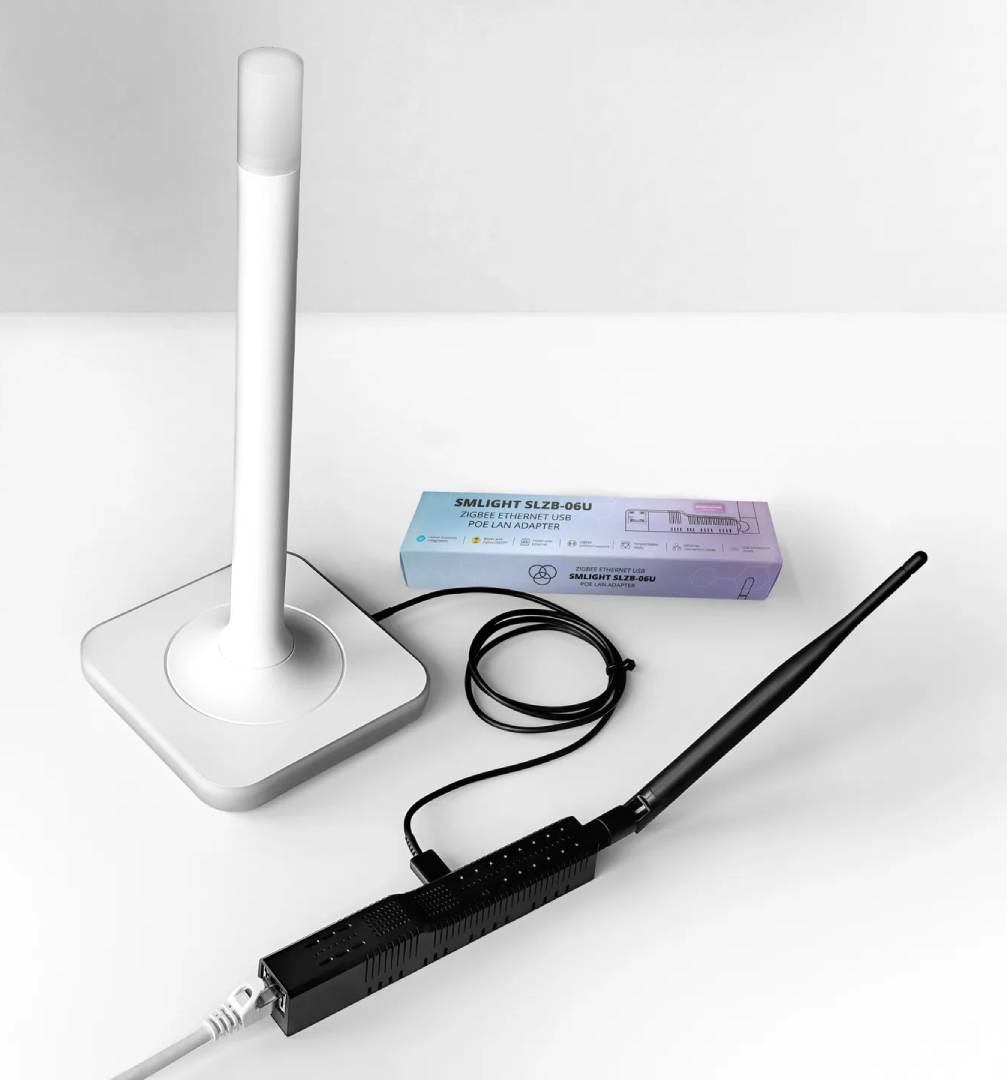

SMLIGHT SLZB-06-U is used to control ZigBee devices using the Home Assistant and Zigbee2MQTT or ZHA applications.
SLZB-06-U offers full support for ZigBee 3.0 and Matter-over-Thread protocols.
Home Assistant compatibility and SLZB-OS software
The gateway is designed to work with the most popular home automation platforms. It is fully compatible with Home Assistant and supports both ZigBee2MQTT and ZHA integration. It allows you to integrate devices from multiple manufacturers, such as IKEA, Sonoff, Tuya, Xiaomi, Moes, and Gledopto, into a single, cohesive system. It runs on SLZB-OS , offering a user-friendly configuration interface accessible via a web browser . The software provides OTA updates, multi-language support, advanced security options, WireGuard VPN features, and extensive diagnostic tools. Thanks to the support of the open-source community, you have access to regular updates and new features.
Technical specifications of the ZigBee gateway
- Main ZigBee Chip: Texas Instruments CC2652P
- CPU architecture: ARM Cortex-M4F 48 MHz
- CC2652P Memory: 352 KB Flash, 256 KB ROM, 88 KB RAM
- SRAM Cache: 8 kB
- WiFi communication system: ESP32
- ESP32 processor: dual-core
- ESP32 memory: 520 kB SRAM, 448 kB ROM
- USB/UART Converter: CP2102
- Ethernet controller: LAN8720
- Communication: ZigBee 3.0, Ethernet, WiFi, USB
- Thread Support: Yes
- Matter over Thread Support: Yes, Beta
- RF signal amplifier: 20 dB
- Antenna gain: 5 dB
- PoE power supply: IEEE802.3af, up to 15W
- USB Power: USB Type-C
- Operating modes: coordinator, router, ZigBee to Ethernet, ZigBee to USB
- OTA updates: yes
- ZigBee2MQTT support: yes
- ZHA support: yes
- Open-source software: yes
- Installation: double-sided tape or screws
- Dimensions: 160 x 24 x 28mm
- Weight: 86 g
Contents of the set
- ZigBee SMLIGHT SLZB-06-U adapter
- 5 dB antenna
- microUSB to USB Type C adapter
- Double-sided tape x2
- Mounting screws x2
- Screwdriver
- Assembly template with QR code for instructions

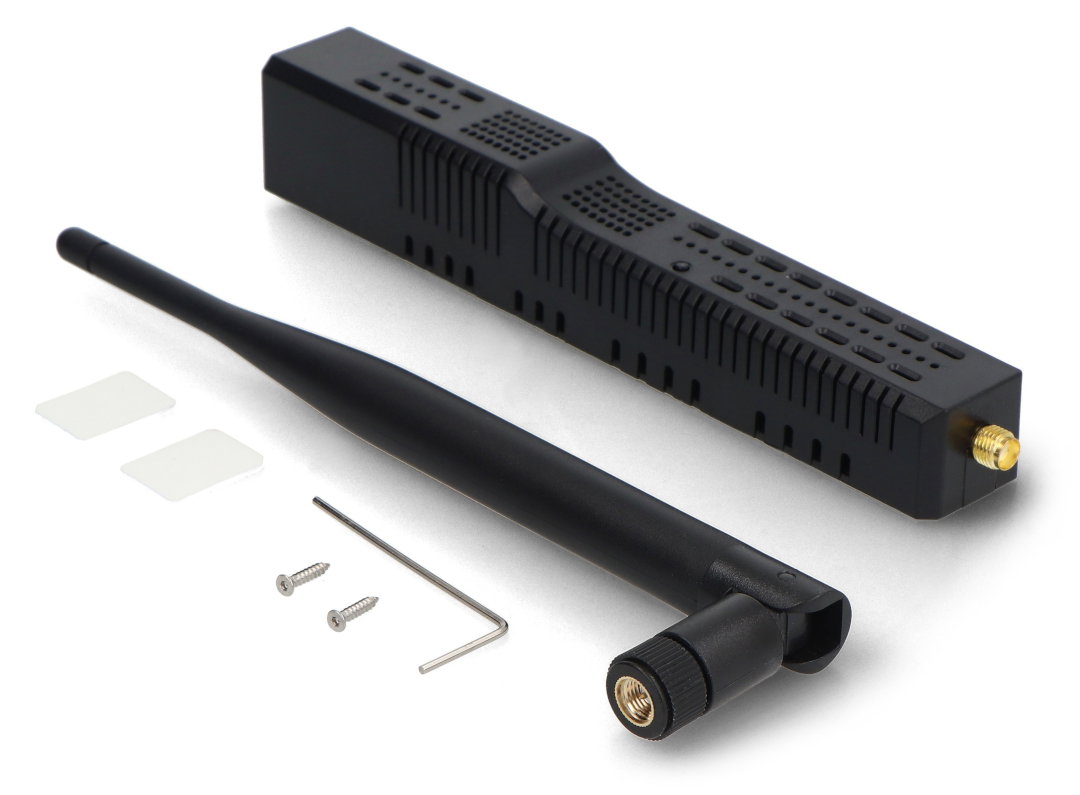

Elements included in the set.
Comparison of models from the SLZB-06-U series
| Model | SLZB-06 -U | SLZB-06M | SLZB-06MG24 | SLZB-06P7 | SLZB-06P10 |
|---|---|---|---|---|---|
| SoC ZigBee/Thread | CC2652P | EFR32MG21 | EFR32MG24 | CC2652P7 | CC2674P10 |
| SoC Manufacturer | Texas Instruments | Silicon Labs | Silicon Labs | Texas Instruments | Texas Instruments |
| Max connected devices | up to 200 | up to 200 | up to 350 | up to 300 | up to 400 |
| The best choice for | Zigbee2MQTT | ZHA | ZHA | Zigbee2MQTT | Zigbee2MQTT |
| Good compatibility with | ZHA | Zigbee2MQTT | Zigbee2MQTT | ZHA | ZHA |
| ZigBee support | Yes, all models natively support ZigBee | ||||
| Thread Support | Yes, all models natively support Thread | ||||
| WiFi support | Yes, 2.4 GHz, including Ethernet-WiFi bridge mode | ||||
| Bluetooth ESPHome support | BLE over ESP32 and ESPHome integration | ||||
| SLZB-OS System | Yes, ready to go right out of the box | ||||
| Multiprotocol | NO | Yes | Yes | NO | NO |
| Attention | Multiprotocol mode is not recommended by Home Assistant |
Useful links
| Name | Value |
|---|---|
| Smart Home | Central unit |
| Communication |
|
| Width | 19.3 cm |
| Height | 4.6 cm |
| Depth | 2.8 cm |
| Weight | 0.089 kg |
