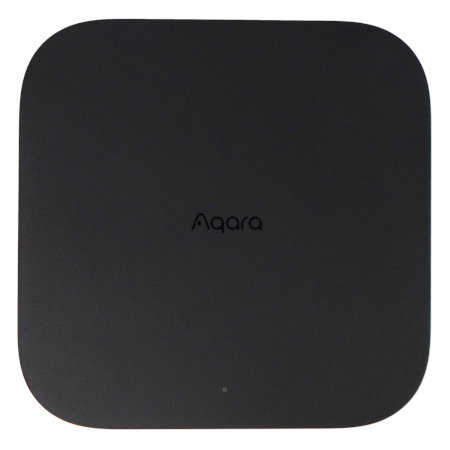

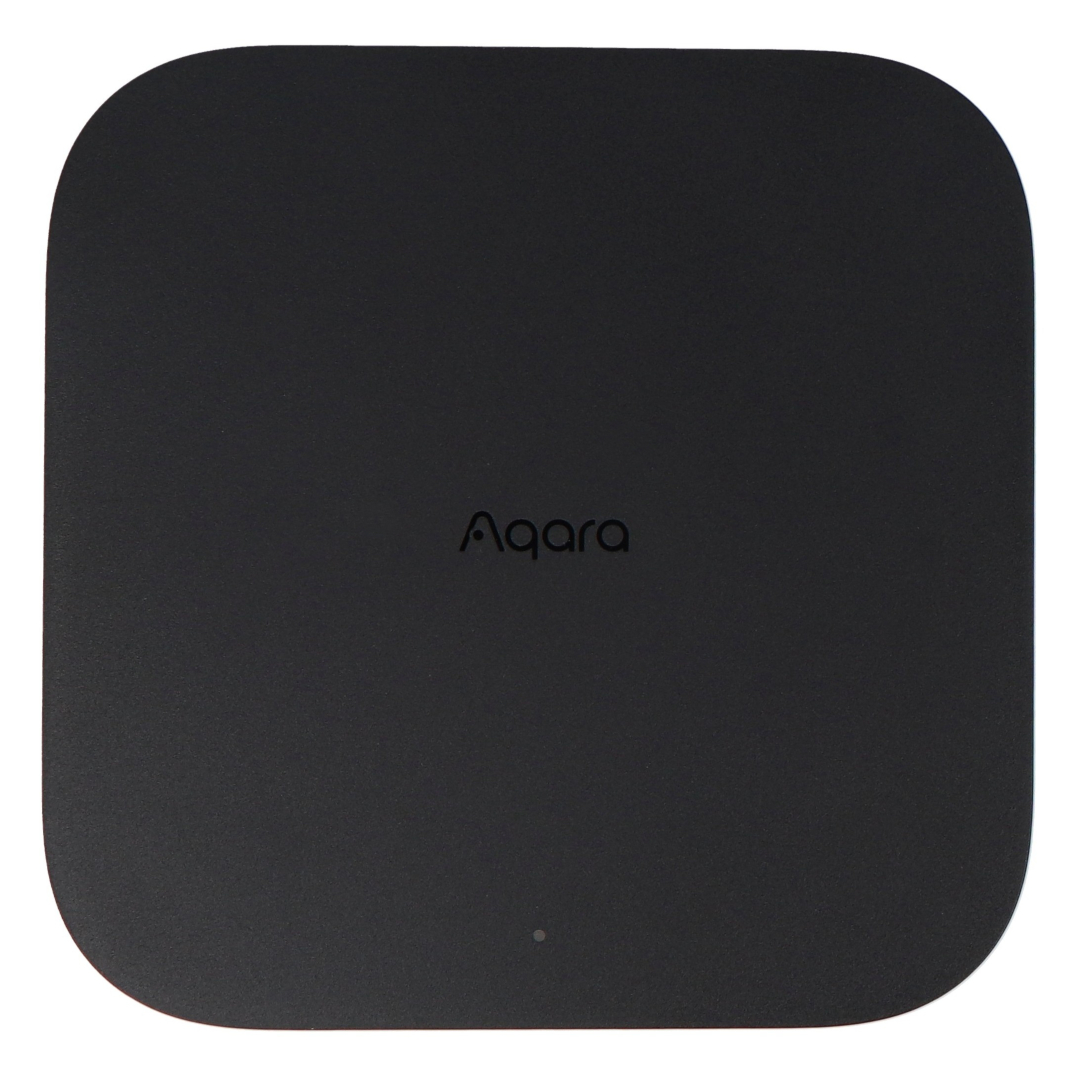

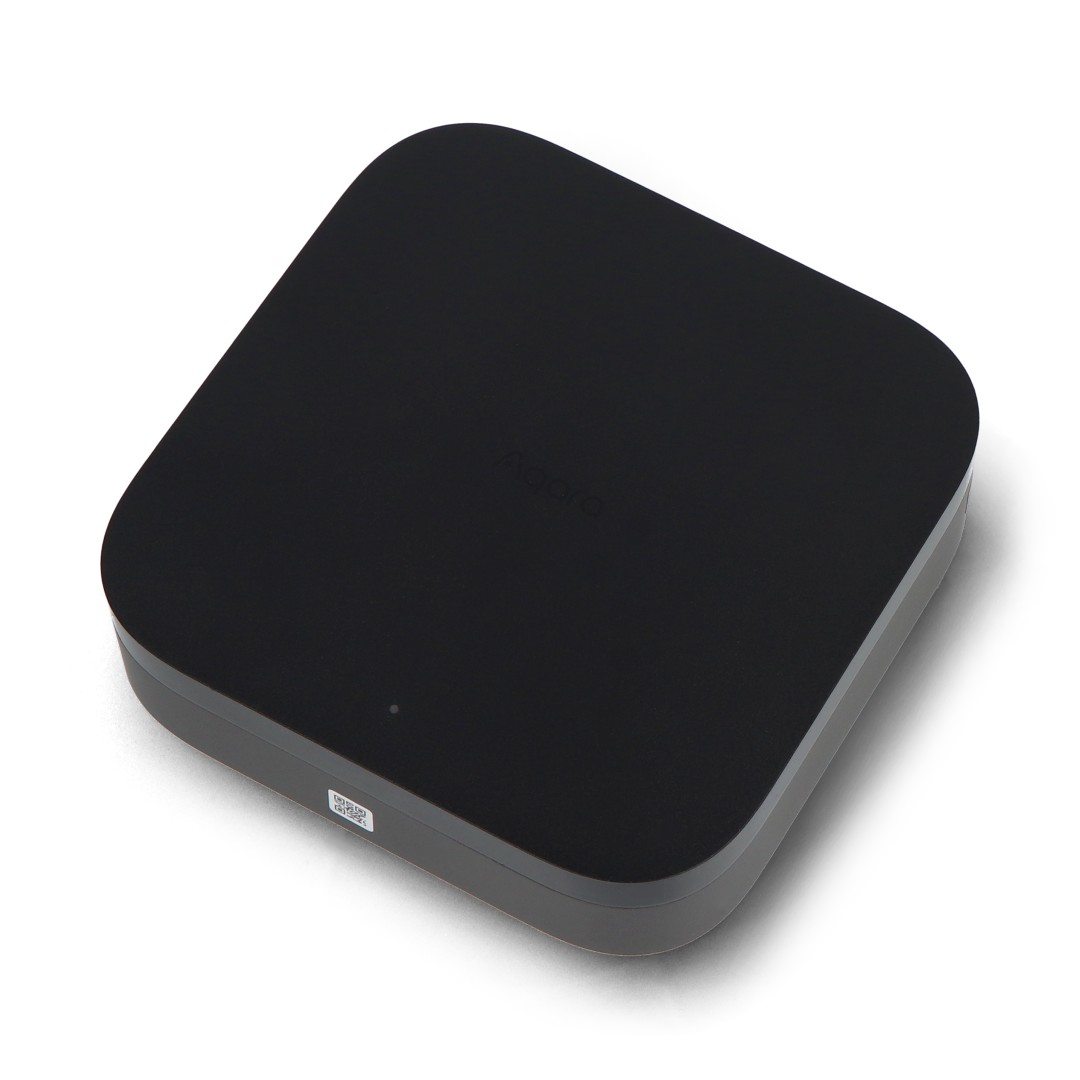

Product description: Aqara Hub M3 - WiFi / Bluetooth / ZigBee / Thread / Matter gateway - USB C / PoE
The Aqara Hub M3 is a multi-protocol control unit designed for complex Smart Home installations. The device functions as a Matter controller, Matter bridge, and Thread border router , while also supporting Aqara devices using ZigBee . The M3 was designed with a focus on local data processing and automation , allowing some scenes to operate even without internet access. A built-in infrared transmitter, speaker , and extensive network connectivity allow a single control unit to perform multiple tasks within a home automation system.
The built-in 360° infrared transmitter allows you to use the Aqara Hub M3 to control compatible devices.
Main features of the Aqara Hub M3 Smart Home control unit
- Multi-protocol support: ZigBee, Thread, Matter, WiFi and Bluetooth 5.1 compatible
- Matter Controller: Add compatible Matter devices to the Aqara Home ecosystem
- Matter Bridge: Sharing supported Aqara ZigBee devices with other Matter-compatible ecosystems
- Thread Border Router: The central unit can act as a border router for devices using Thread
- Local automation: execute supported scenes without the need for a constant internet connection
- Dual-band WiFi: Supports 2.4GHz and 5GHz networks
- Ethernet and PoE: wired network connection and power supply via Ethernet
- 360° IR transmitter: control compatible infrared devices such as air conditioners
- 95 dB speaker: supports alarms, announcements, and custom sounds used in automation
- 8GB eMMC memory: local space to safely store system data
- MagicPair: Quickly detect and configure your home automation center in the Aqara Home app
- Flexible installation: the device can be placed on a flat surface or mounted on a wall or ceiling
ZigBee, Thread, Matter and WiFi connectivity on the Aqara Hub M3
The Aqara Hub M3 combines several communication standards in a single device, facilitating the development of a comprehensive smart home system. The hub supports ZigBee/Thread IEEE 802.15.4, Bluetooth 5.1, and dual-band 2.4 GHz/5 GHz WiFi , and can also be connected to the network via Ethernet . With the Matter Controller, Matter Bridge, and Thread Border Router features, the device allows you to connect compatible accessories from different manufacturers and share supported Aqara devices with external smart home ecosystems. The M3 works with Apple Home, Amazon Alexa, Google Home, and Samsung SmartThings , among others. providing great freedom in expanding the installation.
Thanks to the Ethernet connection and PoE power supply, the control panel can be used in installations where the stability of network communication is particularly important.
| Aqara Hub M200, Hub M100 and Hub M3 comparison | |||
|---|---|---|---|
| Function | Aqara Hub M200 | Aqara Hub M100 | Aqara Hub M3 |
| Matter Controller | Yes | Yes | Yes |
| Thread Border Router | Yes | Yes | Yes |
| Matter Bridge | Yes | Yes | Yes |
| IR control | Yes | NO | Yes |
| Hub for Aqara ZigBee devices | Yes | Yes | Yes |
| Processing | Local Hub | Local Hub | Edge Hub |
| Loudspeaker | 90 dB | Lack | 95 dB |
| WiFi | 2.4GHz / 5GHz | 2.4 GHz | 2.4GHz / 5GHz |
| Power supply | USB Type-C, PoE | USB Type A | USB Type-C, PoE |
| Max. number of Aqara ZigBee devices | 40 | 20 | 128 |
| Max Thread Devices | 40 | 20 | 128 |
| MARS Tech | Yes | NO | Yes |
The Aqara Hub M3 is the most advanced model in the list, designed to support larger and more advanced smart home installations. Compared to the Hub M100 and Hub M200, it stands out primarily for its support for up to 128 Aqara ZigBee devices and 128 Thread devices, Edge Hub processing, and a 95 dB speaker . It also offers dual-band WiFi, PoE power, IR control, Matter Controller, Matter Bridge, and Thread Border Router, making it a perfect centerpiece for an extensive home automation system.
Elements included in the set.
Aqara Hub M3 technical specifications
- Device type: smart home control unit
- Wireless protocols: WiFi IEEE 802.11 a/b/g/n/ac 2.4 GHz / 5 GHz, ZigBee/Thread IEEE 802.15.4, Bluetooth 5.1
- Matter Support: Matter Controller, Matter Bridge
- Thread Support: Thread Border Router
- Wired connection: Ethernet RJ45
- Infrared emitter: IR 360°
- Speaker: 95 dB
- Memory: 8 GB eMMC
- Power supply: 5V/2A via USB Type-C
- PoE power supply: 48V/0.27A
- Operating temperature: -10°C to 50°C
- Operating humidity: 0% RH to 95% RH, non-condensing
- Dimensions: 105 x 105 x 36.5 mm
- Weight: 200 g

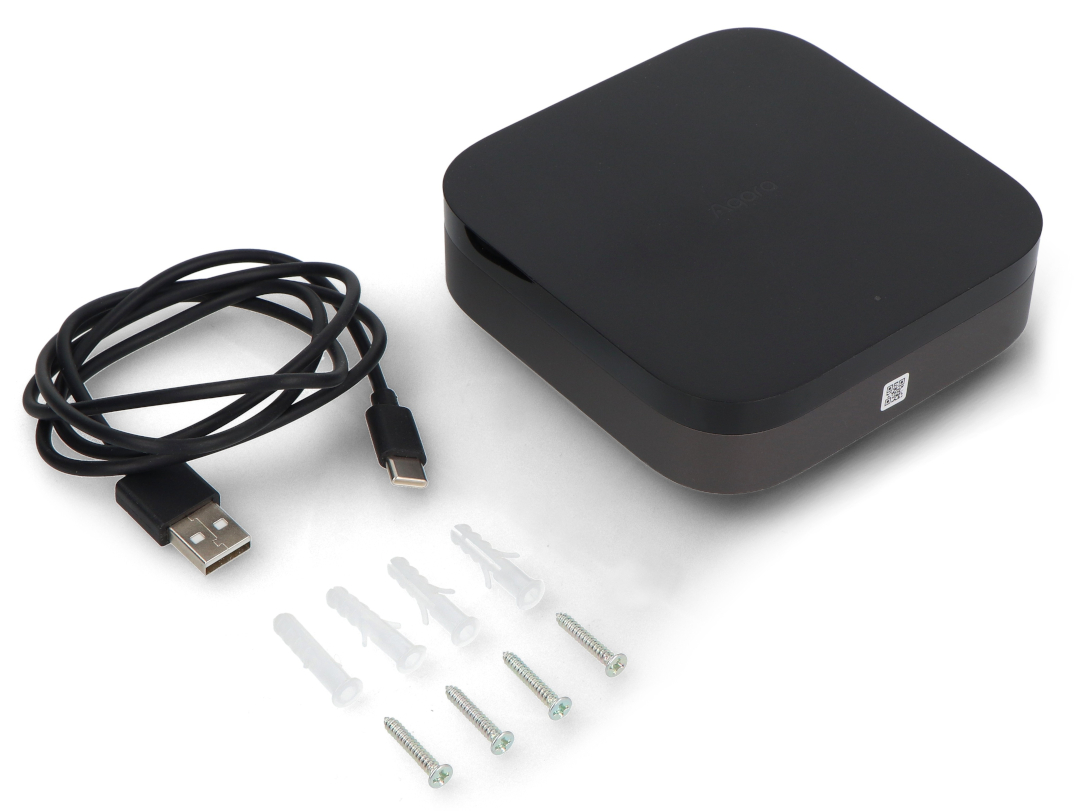

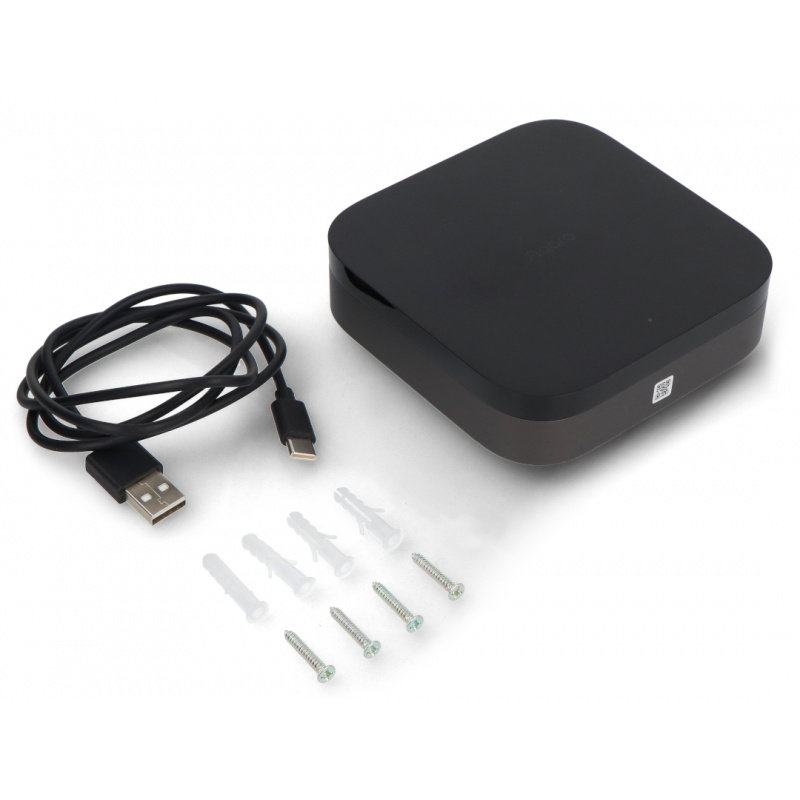

Contents of the set
- Aqara Hub M3
- USB Type A - USB Type C cable

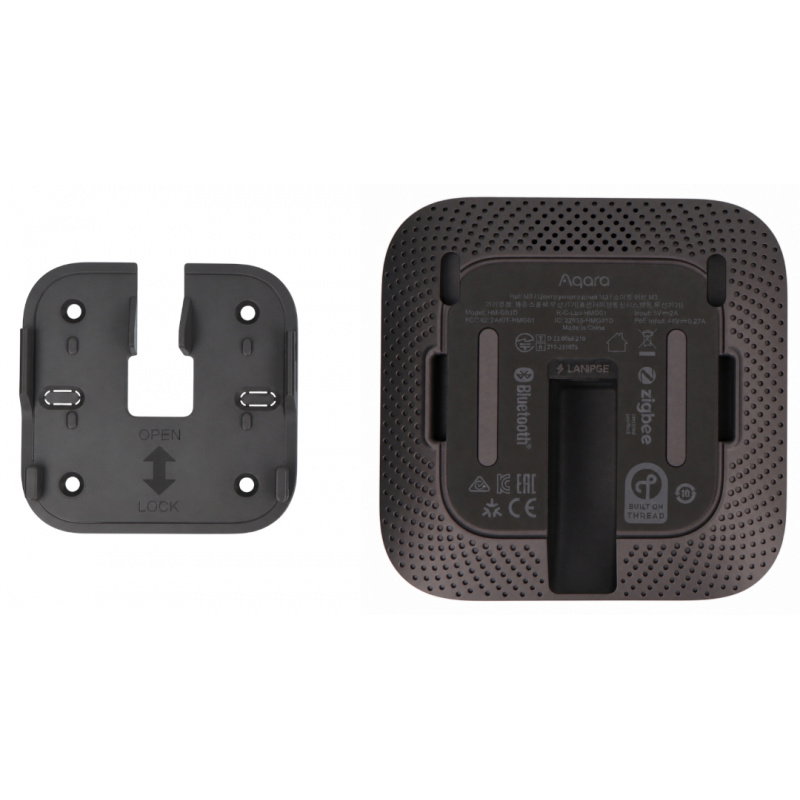

- Mounting bracket
- Set of screws and mounting plugs
