Product description: Shelly Wall Display XL - smart control panel with 5A WiFi / Bluetooth relay - black
The Shelly Wall Display XL is an advanced control panel with a 10.1" touchscreen , designed for comprehensive smart home management. The device combines elegant design with functionality, offering intuitive control of devices, scenes, and schedules , as well as access to a media player and internet radio . It is equipped with a 1500W relay , four physical buttons, and modern connectivity interfaces, including WiFi 6 and Bluetooth 5.4 . Mounting in a standard wall box makes it easy to install and fits perfectly into any interior—both residential and commercial.

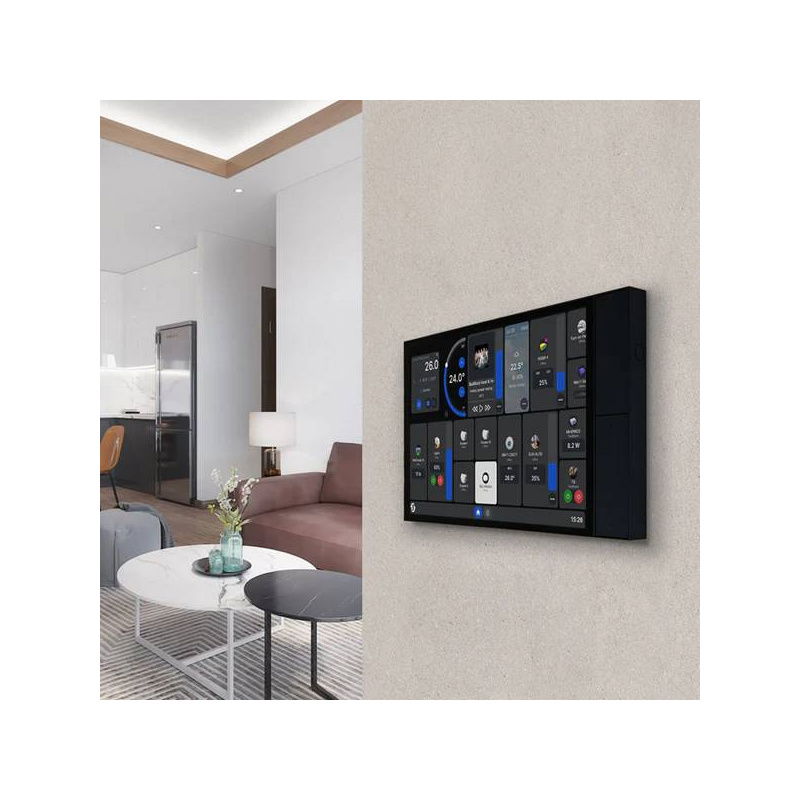

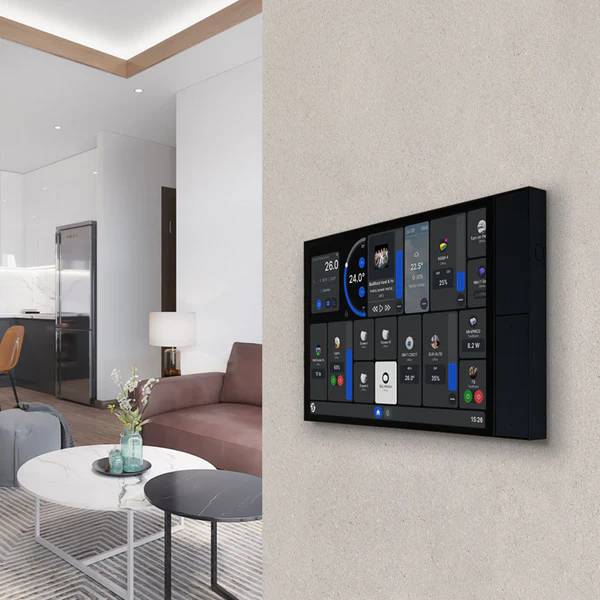

Shelly Wall Display XL - Smart Control Panel with 5A Relay WiFi / Bluetooth - Black.

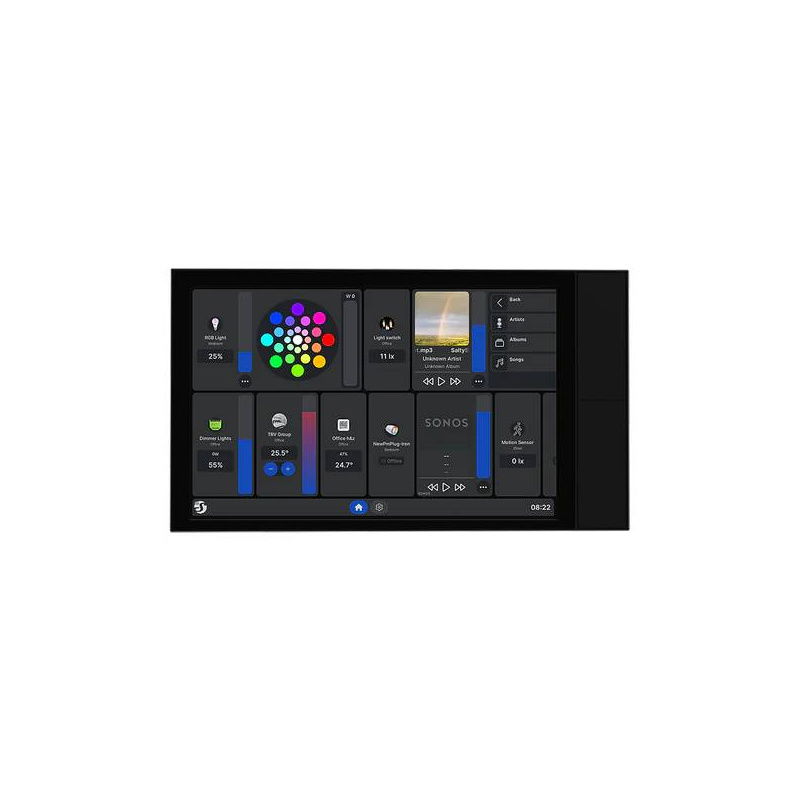

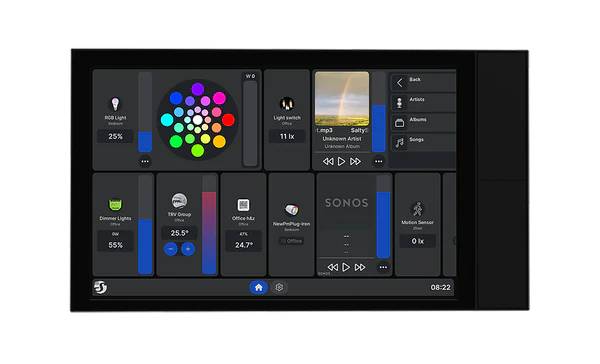

Shelly Wall Display XL is a wall control panel with a touch screen.
Key Features of the Shelly Wall Display XL
- 10.1'' touchscreen: HD color display with five-point G+FF panel for comfortable operation
- High performance: Quad-core Cortex-A55 processor, 2GB RAM and 32GB Flash guarantee fast response
- Smart Home Integration: Home Assistant, MQTT, and Webhooks Support
- 4 customizable buttons: quick access to selected functions without the need to use the app
- Built-in relay: allows direct control of loads up to 1500 W
- Remote control: via Shelly Smart Control app for Android and iOS
- Multimedia and internet radio: audio player, 2 x 2W speakers, Sonos and Bluetooth support
- Energy monitoring: readings from Shelly PM devices allow you to analyze power consumption
- Sensors: proximity and light automate control
- Stylish housing: black glass front, wall box installation (EU standard)
Advanced control panel and intuitive Smart Home operation

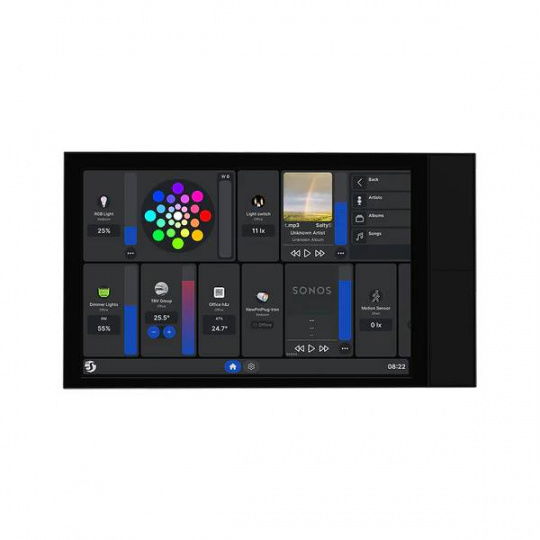

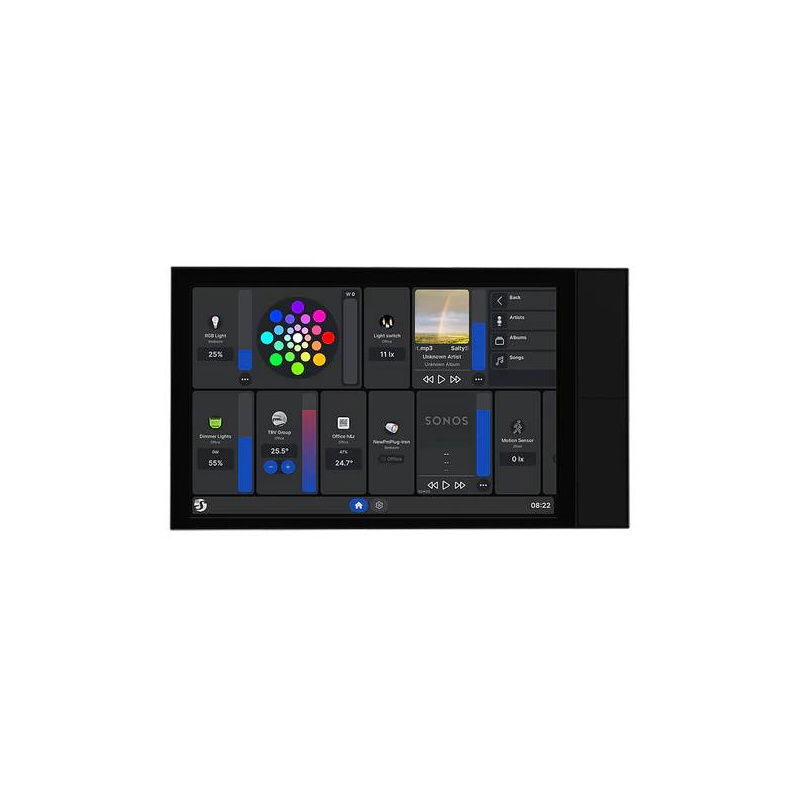

The Shelly Wall Display XL is designed as a central control point for a smart room or entire building. The large, easy-to-read 10.1" touchscreen allows for convenient operation of devices, groups, and scenes without having to reach for your smartphone. The interface is fully customizable to your needs, allowing you to create your own widgets, shortcuts, and screen layouts. A built-in relay allows for direct control of loads up to 1500W, and four configurable physical buttons ensure quick control even when the screen is off.

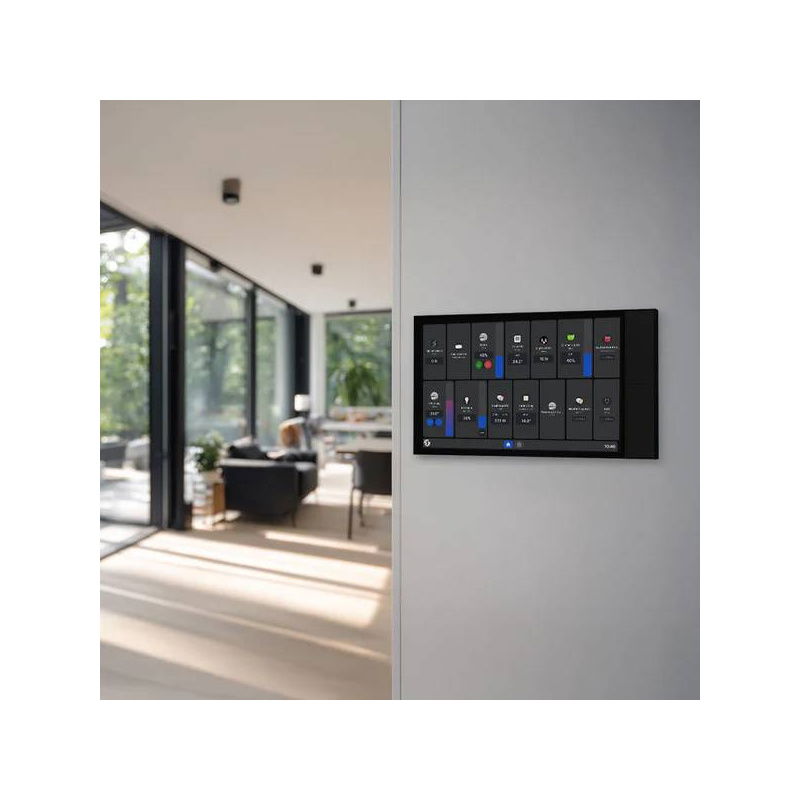

The panel connects via WiFi 6 and Bluetooth 5.4.

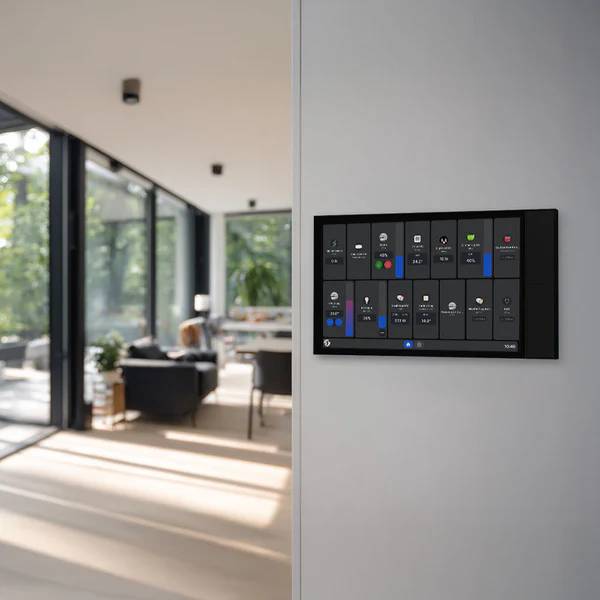

Shelly Wall Display XL offers remote management via the Shelly Smart Control app.
Connectivity and use in commercial environments
The Shelly Wall Display XL panel supports WiFi 6 (2.4 GHz / 5 GHz) and Bluetooth 5.4 , ensuring stable connectivity and rapid system response. The device supports Home Assistant, MQTT, and Webhooks , making it a versatile solution for both home and commercial installations. Mounting in a standard wall box , it's suitable for homes, hotels, and offices alike. Integration with the Shelly Smart Control app allows for remote management, energy consumption monitoring, and scene configuration from anywhere.
Shelly Wall Display XL Technical Specifications
- Screen: 10.1'' capacitive, 5-point, G+FF
- Resolution: 1280 x 752 px
- Processor: Rockchip RK3566 Quad-core Cortex-A55 1.8 GHz
- RAM: 2 GB
- Flash memory: 32 GB
- System: Android 11
- Connectivity: WiFi 6 (2.4GHz / 5GHz), Bluetooth 5.4
- Relay: 240 V~ / 5 A (max. 1500 W)
- Speakers: 2 x 2 W
- Sensors: light, proximity (≤ 1 m), microphone (4-microphone array)
- Power button: 1 (screen ON/OFF)
- Function Button: 4 configurable
- Power supply: 100 V to 240 V~ 50/60 Hz, USB Type-C 5 V⎓ / 3 A
- Power consumption: < 15 W

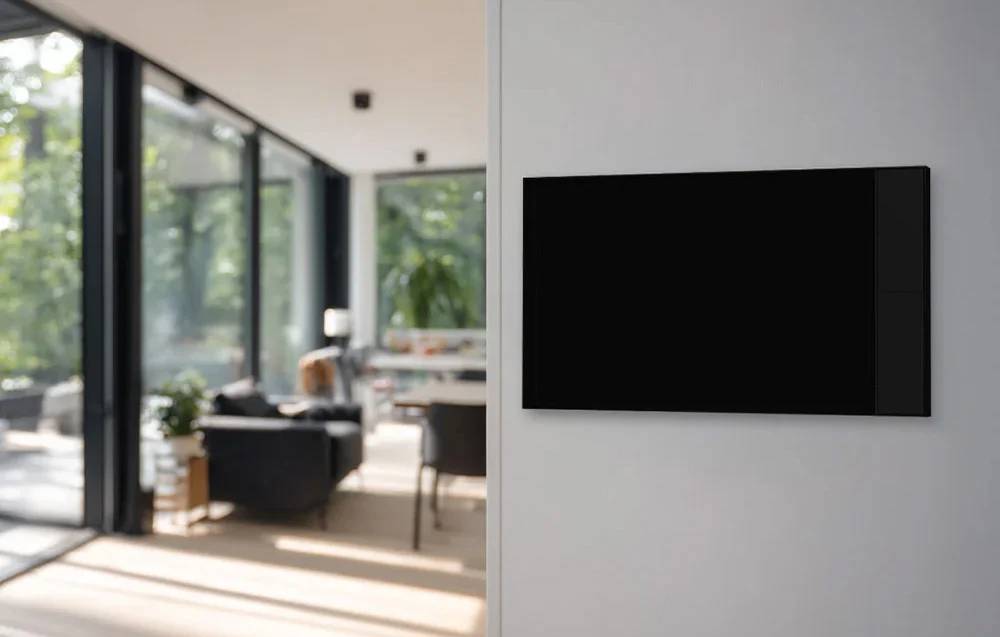

- Installation: wall box (EU standard)
- Material: metal, glass, PC plastic with coating
- Color: black
- Operating temperature: -20°C to 40°C
- Operating environment humidity: 30% RH to 70% RH
- Dimensions: 155.8 x 272.5 x 38.3 mm
- Weight: 920 g
Contents of the set
- 1x Shelly Wall Display XL Control Panel (Black)
The built-in relay allows direct control of devices with a power of up to 1500 W.
