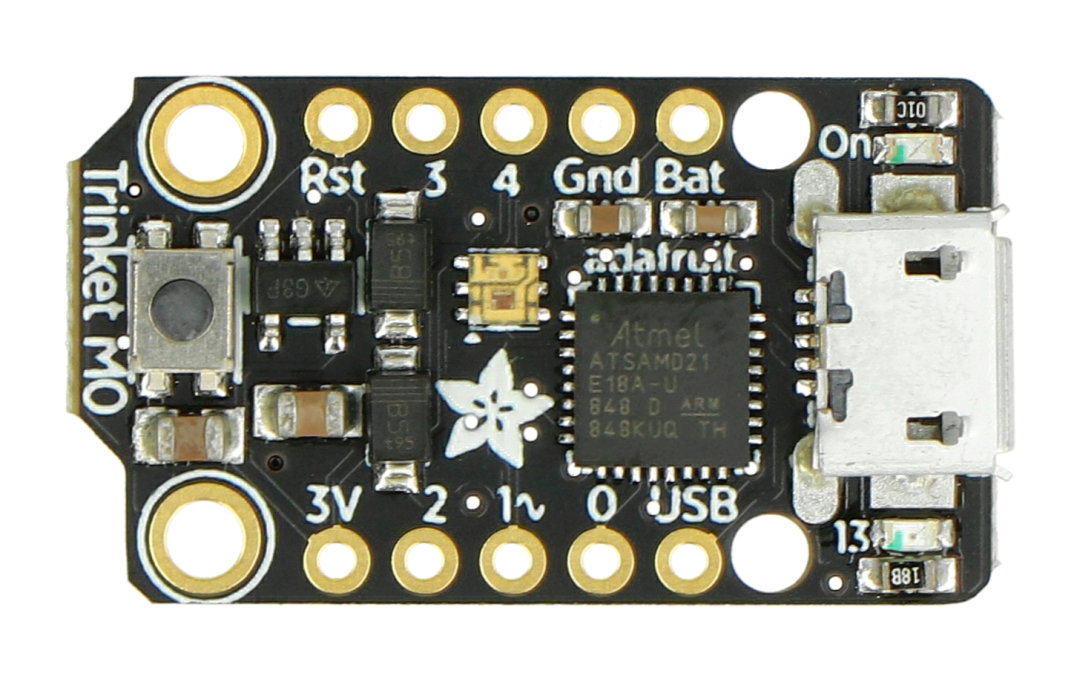

Trinket M0 Microcontroller - CircuitPython and Arduino IDE - Adafruit 3500
Module with Atmel ATSAMD21 microcontroller equipped with 256 kb of Flash memory, 5 digital pins, analog inputs and 2 PWM channels. On board is a microUSB connector, through which the system can be programmed via the CircuitPython environment or the Arduino IDE. This version works with a voltage of 3.3 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Module with Atmel ATSAMD21 microcontroller equipped with 256 kb of Flash memory, 5 digital pins, analog inputs and 2 PWM channels. On board is a microUSB connector, through which the system can be programmed via the CircuitPython environment or the Arduino IDE. This version works with a voltage of 3.3 V.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
The updates to previous versions
- ATiny85 8-bit microcontroller was changed to ATmel ATSAMD21E18 32-bit Cortex M0+
- 256 KB Flash - 32 times more than in ATiny85
- 32 KB RAM - 64 times more than in ATiny85
- Processor frequency: 48 MHz - 6 times faster than ATiny85
- Native USB supports all operating systems
- It can be used with the Arduino IDE and CircuitPython
- Built-in green LED ON
- Built-in red LED on pin 13
- Built-in RGB DotStar LED
Specification
- Atmel ATSAMD21 microcontroller:
- Flash memory: 256 KB
- SRAM: 32 KB
- Clock Frequency: 48 MHz
- Working voltage: 3.3 V
- USB bootloader with capability of programming by using the Arduino IDE or CircuitPython
- MicroUSB connector for programming, in our offer, you will find the appropriate wire
- On the board are three LEDs: green - for power, red - for a user, connected to pin 13 and DotStar RGB.
- Power supply from USB port or external power source with automatic switching system
- The RESET button
- Digital leads: 5
- Analog inputs: 3
- PWM channels: 2
- Two pins can be used as a mechanical touch sensor
- Four mounting holes
- Dimensions: 27 x 15,3 x 2.75 mm
- Weight: 1.4 g
Useful links
| Name | Value |
|---|---|
| Voltage to | 5.0 V |
| Voltage from | 5.0 V |
| Voltage nominal | 5 V |
| Voltage output from | 3.3 V |
| Output voltage to | 3.3 V |
| Nominal output voltage | 3.3 V |
| UC - core | 1. Single Core |
| UC - I2C | yes |
| UC - UART | yes |
| UC - SPI interface | yes |
| Width | 10 cm |
| Height | 4 cm |
| Depth | 2 cm |
| Weight | 0.004 kg |
