Product description: Wio Tracker L1 Lite - developer module for Meshtastic - GPS and nRF52840 - Seeedstudio 114993653

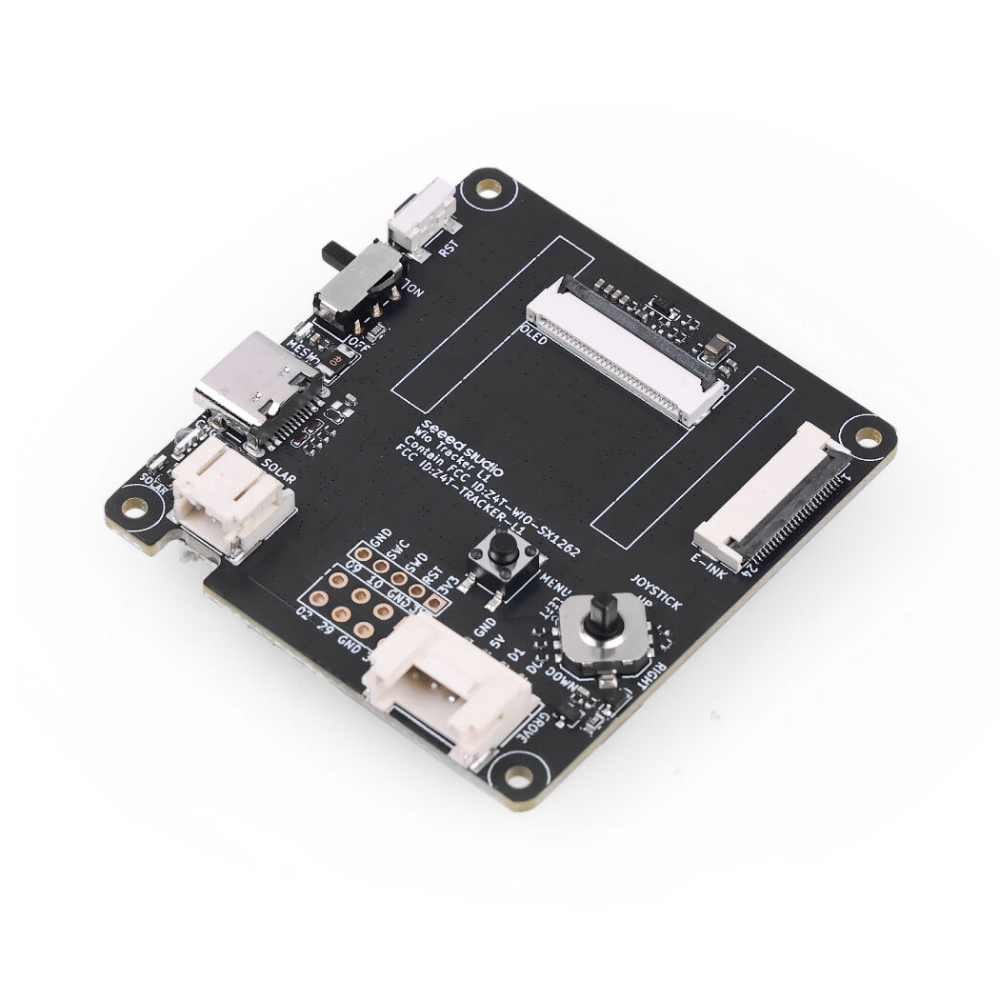

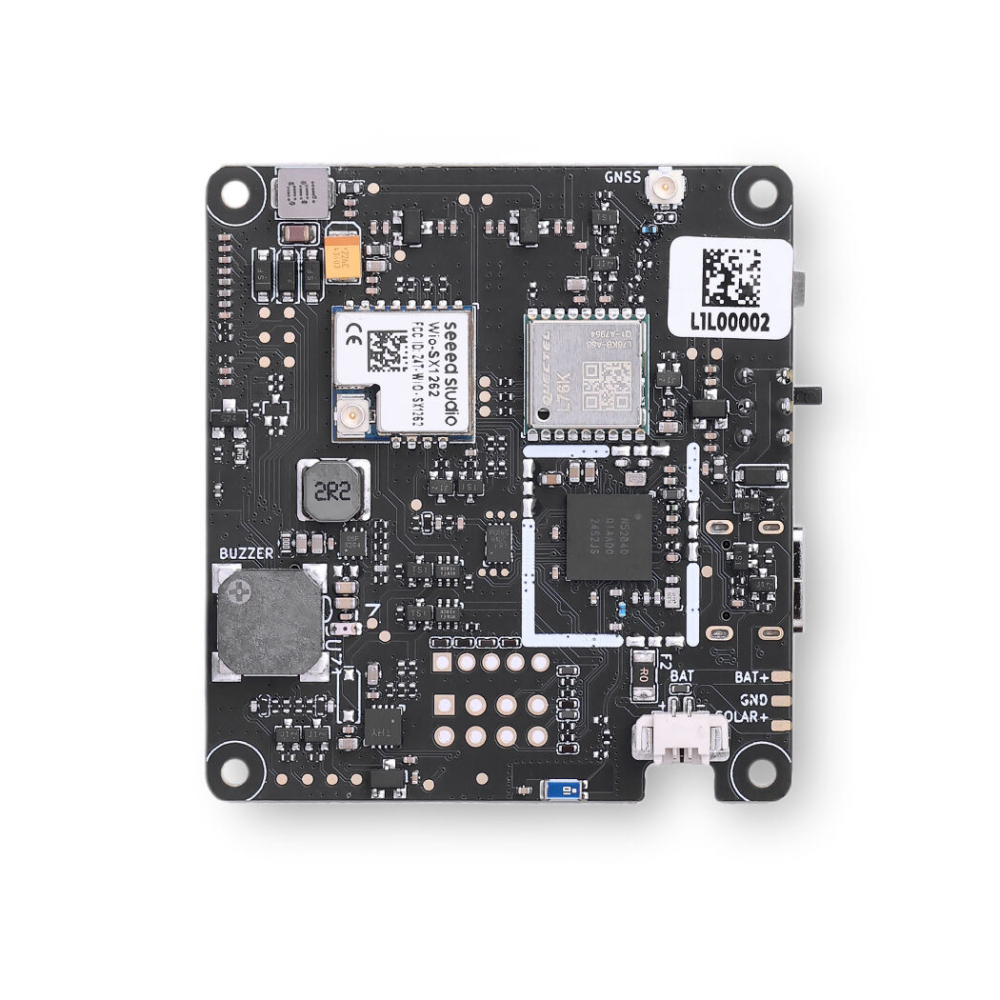

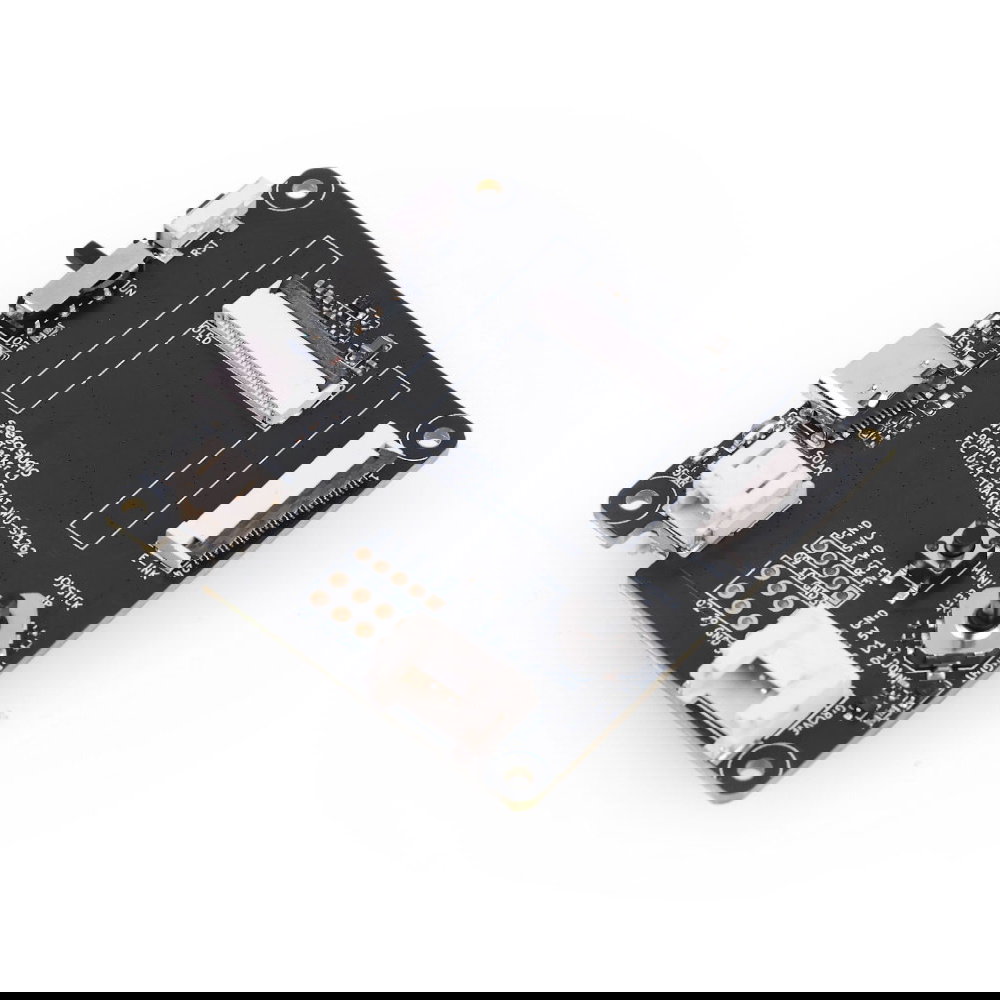

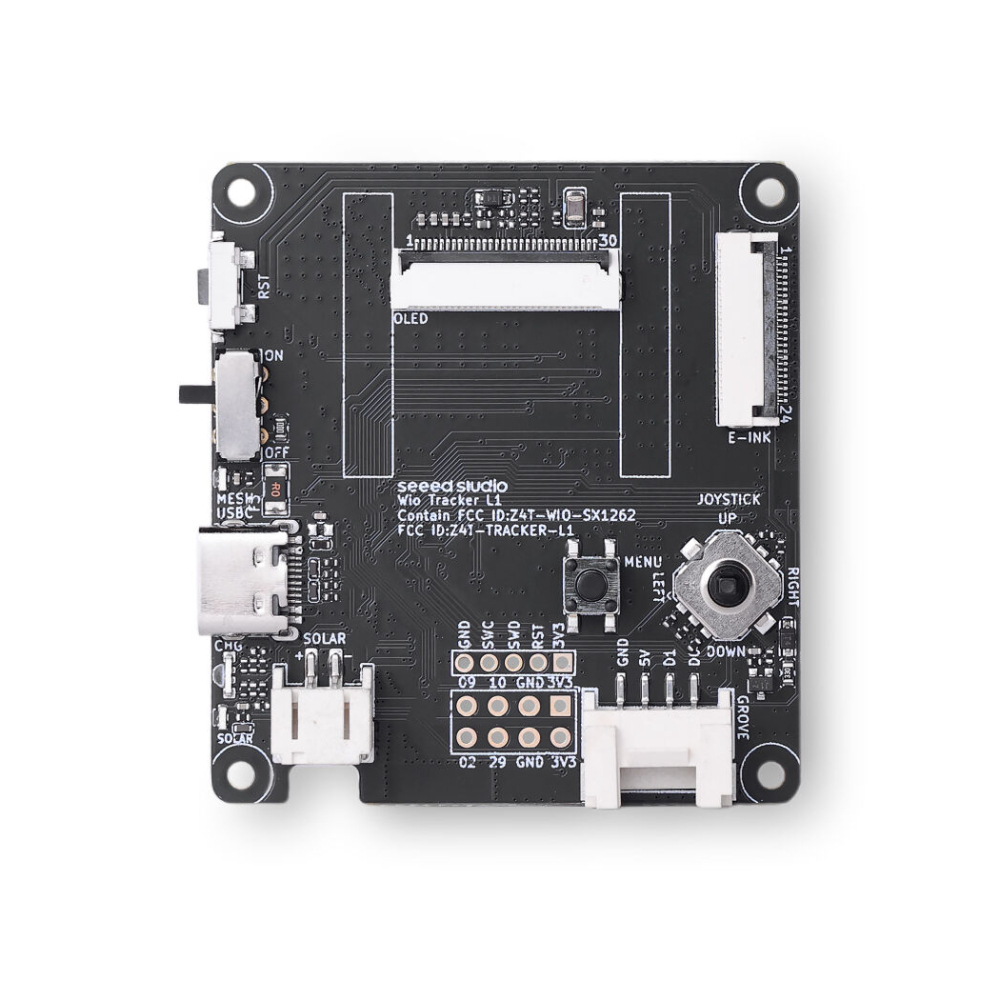

The Wio Tracker L1 Lite from Seeedstudio is a compact development board designed for building Meshtastic network nodes, enabling long-range LoRa communication . The device is based on the powerful Nordic nRF52840 microcontroller with an ARM Cortex-M4 core, ensuring high performance with low power consumption. The module is equipped with the LoRa SX1262 chip, which enables reliable communication in the 862 MHz to 930 MHz band, and the L76K GPS receiver, supporting a variety of navigation systems. With pre-installed Meshtastic software, the device is ready to use right out of the box. The Wio Tracker L1 Lite offers extensive expansion options thanks to compatibility with the Grove ecosystem, PTH connectors, and an SWD interface . Support for various power methods, including solar energy, makes it ideal for field and mobile applications.
Wio Tracker L1 Lite - developer module for Meshtastic - GPS and nRF52840 - Seeedstudio 114993653.
The Wio Tracker L1 Lite from Seeedstudio is a compact development board designed for building Meshtastic network nodes.Special features
- nRF52840 microcontroller: high-performance ARM Cortex-M4 chip up to 64 MHz with low power consumption
- LoRa communication: Supports 862 MHz to 930 MHz band (SX1262)
- Meshtastic: Pre-loaded software ready to use
- GPS L76K: Supports GPS, BeiDou, GLONASS, QZSS systems
- Bluetooth 5.0: Additional wireless communication
- Flexible power supply: USB Type-C, 3.7V Li-ion battery, solar panel
- Display support: OLED 1.3" and E-Ink 2.13" compatible
- Extensibility: Grove, PTH and SWD interface support
- Compact design: ideal for embedded and mobile projects
Practical applications
The Wio Tracker L1 Lite is ideal for projects requiring long-distance communication without network infrastructure. It can be used as a Meshtastic network node to transmit text messages, telemetry data, and GPS location. The device can be used in monitoring systems, asset tracking, outdoor projects, and IoT solutions operating in harsh field conditions. Its solar-powered capability and low power consumption make it ideal for long-term installations.
Technical specifications of the module
- Processor: Nordic nRF52840 (ARM Cortex-M4, up to 64 MHz)
- Memory: 1 MB Flash, 256 kB RAM
- Communication:
- LoRa (SX1262): 862MHz to 930MHz
- Bluetooth 5.0
- GPS: L76K (GPS, BeiDou, GLONASS, QZSS)
- Interfaces:
- Grove: UART / I2C / GPIO
- PTH: UART / I2C / GPIO / analog
- SWD (solder pads)
- Display interfaces: OLED 1.3", E-Ink 2.13"
- Power supply:
- USB Type-C: 5V/1A
- Solar panel: 5V/1A
- Li-Ion battery: 3.7V/1A
- Certificates: FCC, CE, RoHS
- Dimensions: 52 x 50 x 12 mm
Contents of the set
- Wio Tracker L1 Lite
Support for various power methods – including solar – makes it ideal for field and mobile applications. Useful links |
