Product description: PCIe to M.2 adapter - compatible with Raspberry Pi CM4 - Waveshare 19091
An adapter created by Waveshare that allows you to connect high-speed NVMe SSDs using the M.2 bus to the PCIe bus. The module is also compatible with CM4IO expansion board for Raspberry Pi Compute Module 4 and other boards equipped with PCIe x1 / x4 / x8 / x16 port.
The manufacturer has prepared a user guide for Raspberry Pi Compute Module 4 devices.

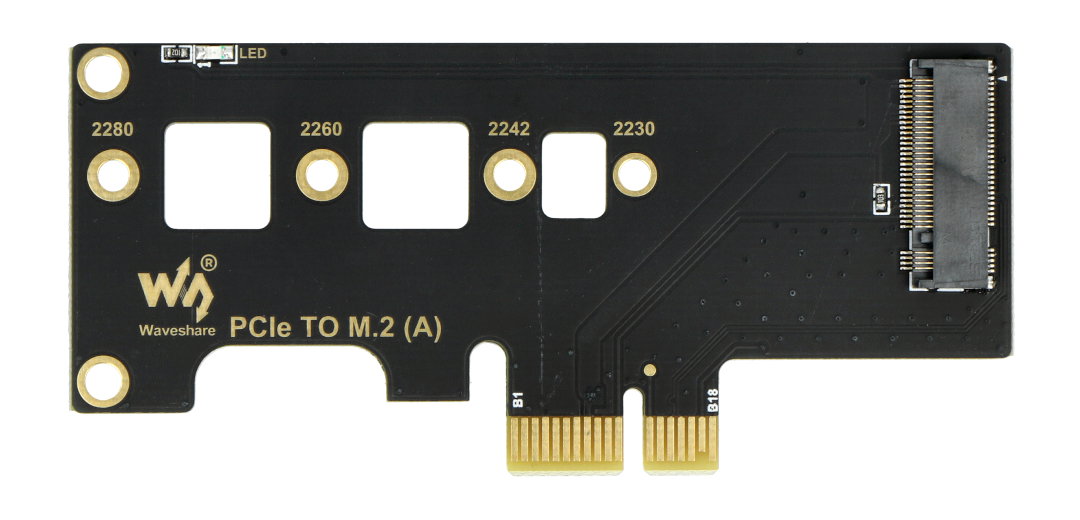

PCIe to M.2 adapter.
Allows you to connect M.2 drives via PCIe connector.NVMe M.2 SSDs
NVMe SSDs feature much faster read and write speeds than traditional HDDs. The adapter supports NVMe drives with an M key (notch on the right side). The maximum NVMe data transfer rate is 32 Gbps. The bus supports drives of different sizes such as: 2230, 2242, 2260 and 2280. The adapter is equipped with an LED that lights up when powered and flashes when transferring data.
PCIe M.2 adapter specifications
- Adapter type: PCIe to NVMe
- Supported connectors: PCIe x1 / x4 / x8 / x16
- Supported slots: M key
- Supported drive sizes: 2230, 2242, 2260, 2280
- Adapter dimensions: 90.30 x 35.60 mm
Set contents
- PCIe to M.2 adapter
- Set of screws

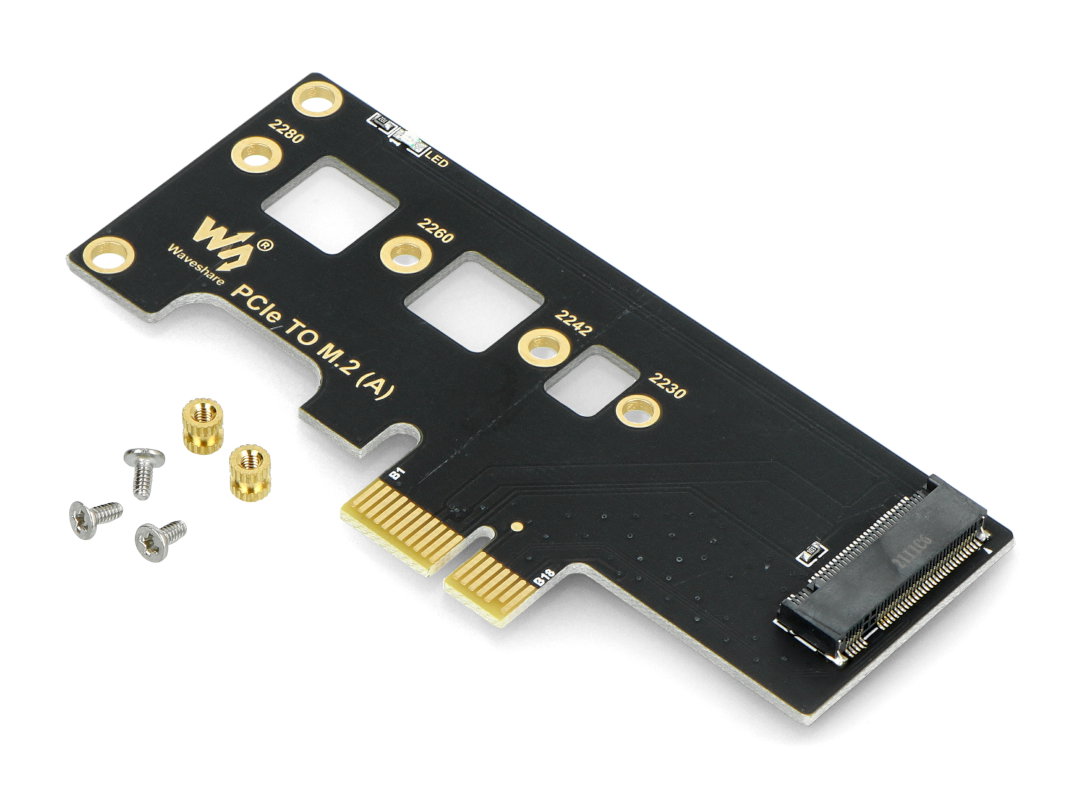

Kit contents.
