Product description: SMLIGHT SLZB-06mg24 - ZigBee EFR32MG24 gateway for Home Assistant - Ethernet / PoE / USB / LAN / WiFi
The SLZB-06mg24 is a versatile ZigBee 3.0 coordinator from the SMLIGHT SLZB-06 series, designed for stable operation in smart homes, offices, and building automation systems. It utilizes Silicon Labs' EFR32MG24 radio chip with an ARM Cortex-M33 core and an ESP32 module responsible for Wi-Fi communication and networking functions, among other things. The adapter can operate via Ethernet with PoE, Wi-Fi, or USB Type-C , allowing it to be placed in a location that provides the best ZigBee network coverage. The SLZB-06mg24 is ready to use out of the box, supports Home Assistant via Zigbee2MQTT and ZHA , and the SLZB-OS system provides convenient configuration via a web interface, OTA updates, and features useful for complex IoT installations.

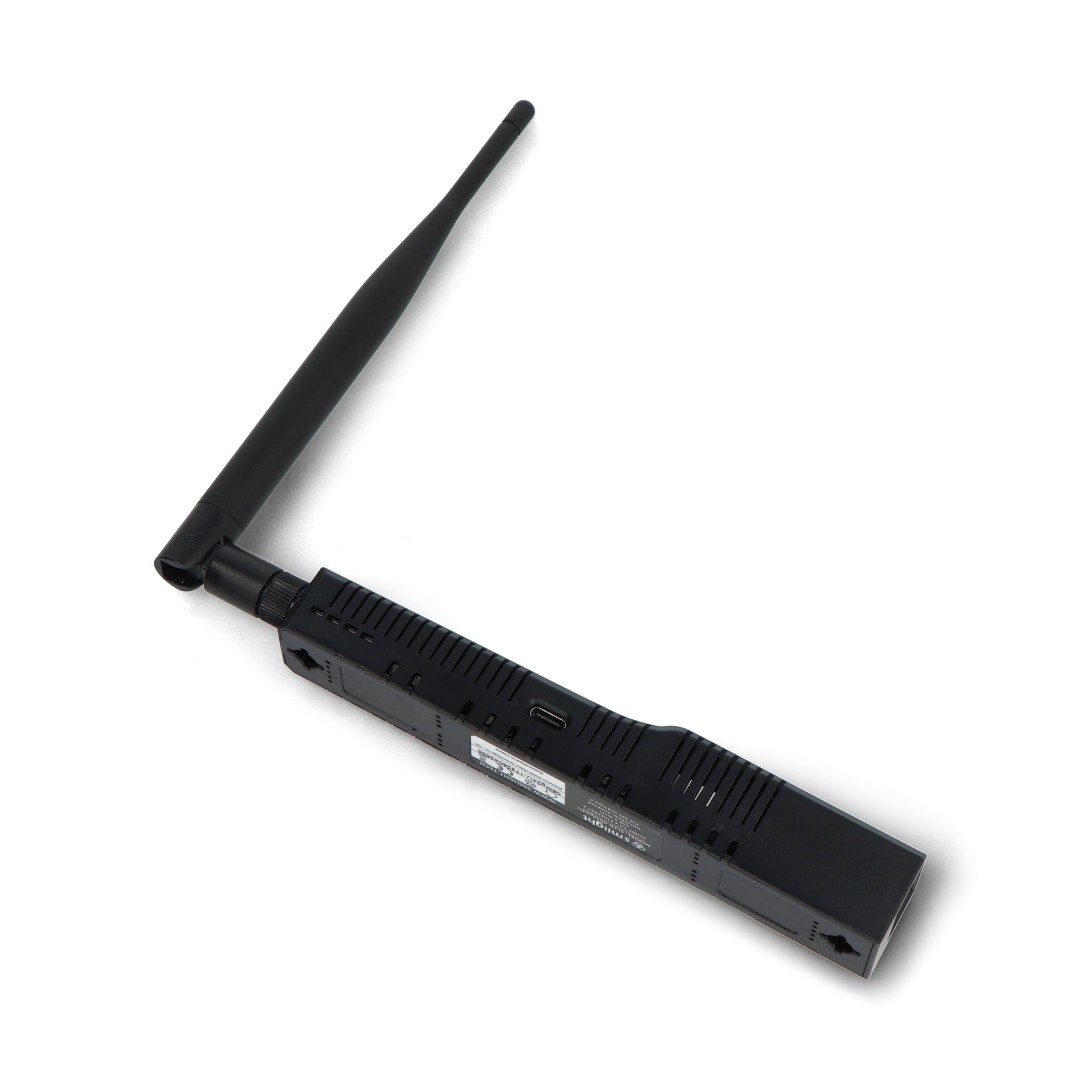

SMLIGHT SLZB-06mg24 - ZigBee EFR32MG24 gateway for Home Assistant - Ethernet / PoE / USB / LAN / WiFi.

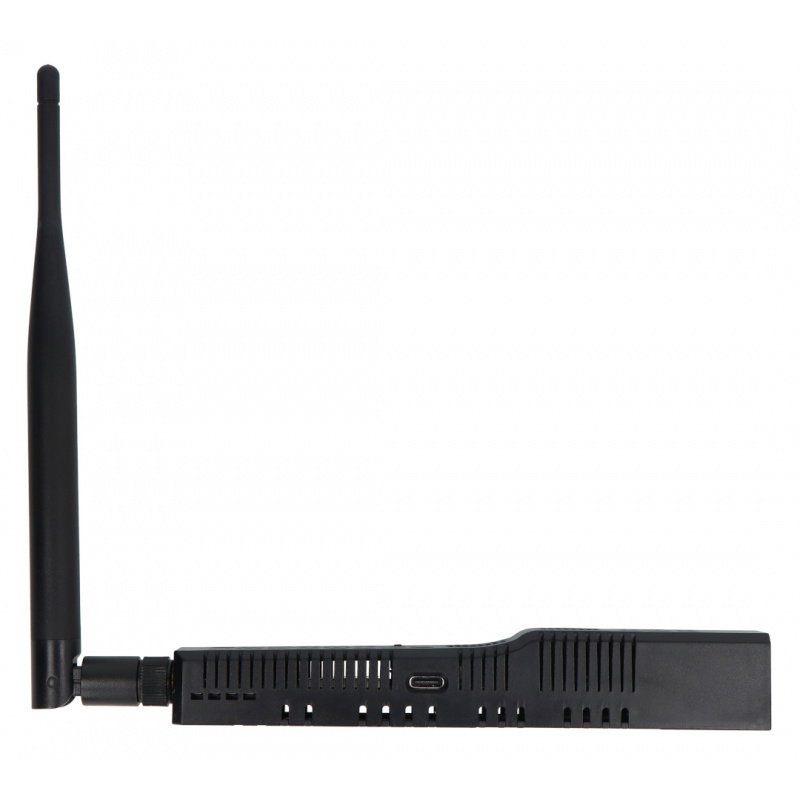

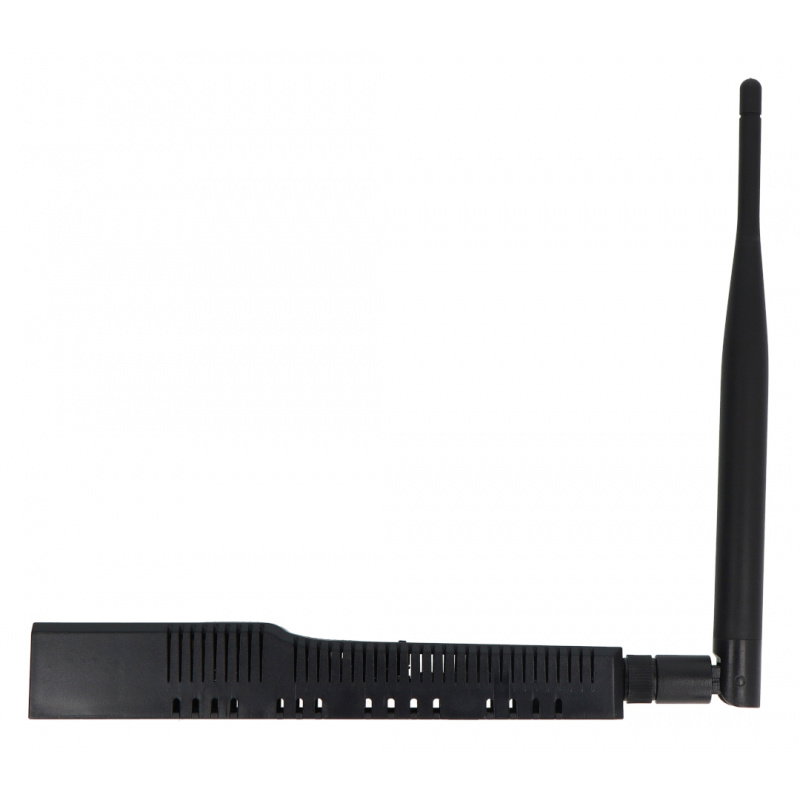

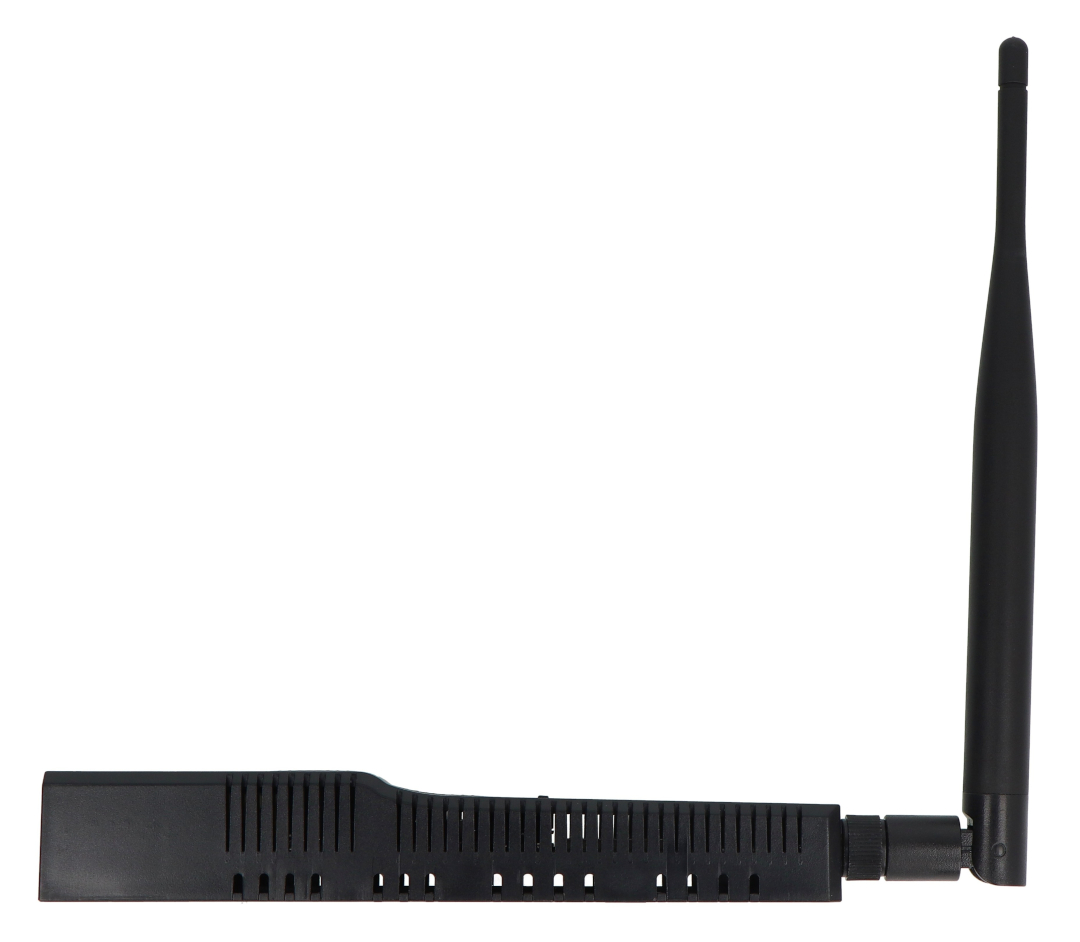

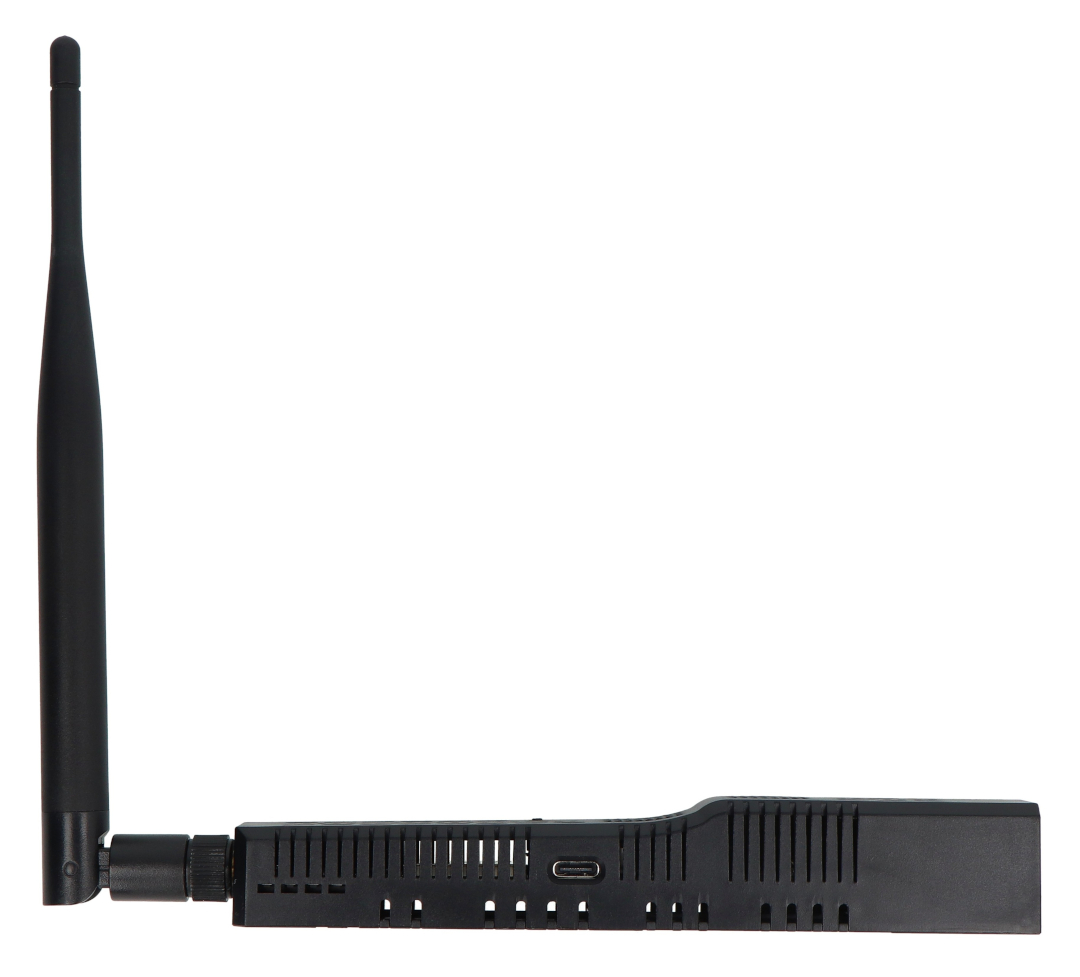

The ZigBee coordinator works via Ethernet (PoE), USB or WiFi.
Main features of the SLZB-06mg24 gateway
- EFR32MG24 chip : a high-performance Silicon Labs SoC with an ARM Cortex-M33 core up to 78 MHz, Flash memory up to 1536 KB and RAM 256 KB
- Ethernet, WiFi and USB connectivity : Versatile network connectivity via RJ45, 2.4GHz WiFi or USB Type-C
- PoE Power : Supports the IEEE 802.3af standard, allowing the adapter to be powered directly via the Ethernet cable
- Home Assistant compatibility : works with Zigbee2MQTT and ZHA right out of the box
- ZigBee and Thread support : ready to work with modern Smart Home systems, including Matter over Thread beta
- Signal amplification : 20 dB amplifier and external 5 dB antenna increase communication range and stability
- SLZB-OS : Web interface, OTA updates, scripting support and Home Assistant integration
- Operating modes : ZigBee coordinator, ZigBee router and Open Thread Border Router, depending on configuration
- LEDs : clear indication of operating mode, power supply and connection to Zigbee2MQTT
- Open source software : can be developed and updated as needed
ZigBee - a stable network for a smart home
ZigBee is an energy-efficient wireless communication standard that works well in smart home systems. ZigBee devices can create a mesh network , allowing network-powered components to transmit signals further and extend the range of the entire installation. The SLZB-06mg24 adapter can act as a ZigBee coordinator, the central point of the network responsible for communication with sensors, relays, lighting, thermostats, and other automation devices. Support for Zigbee2MQTT and ZHA allows you to easily integrate multiple devices from different manufacturers into a single Home Assistant system.

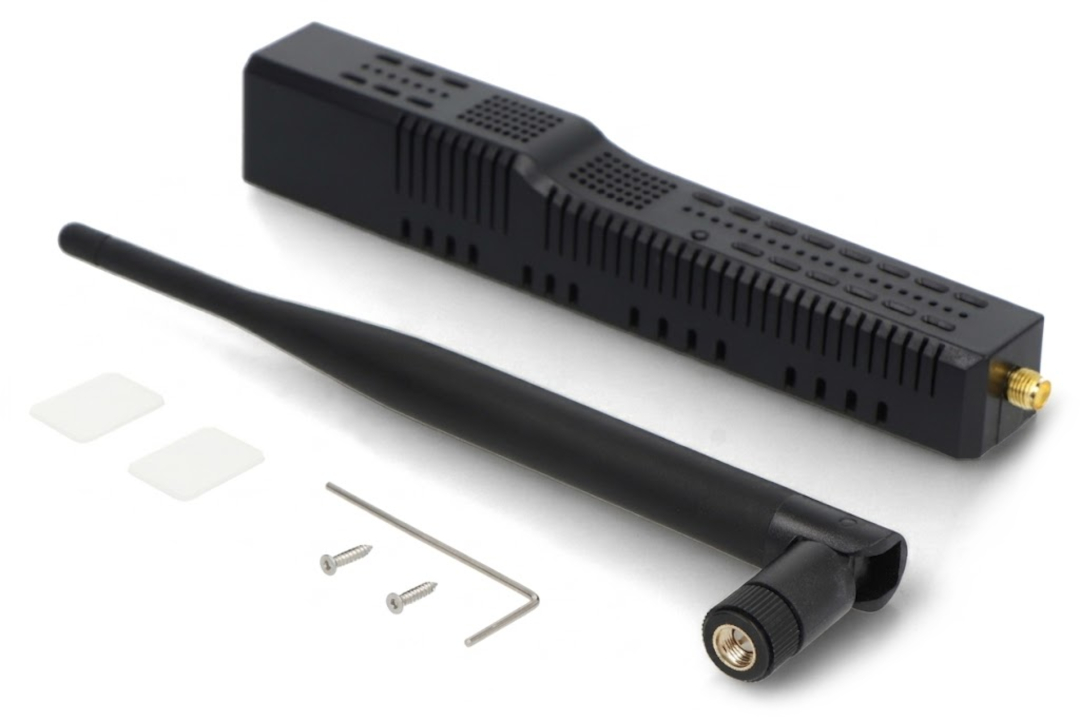

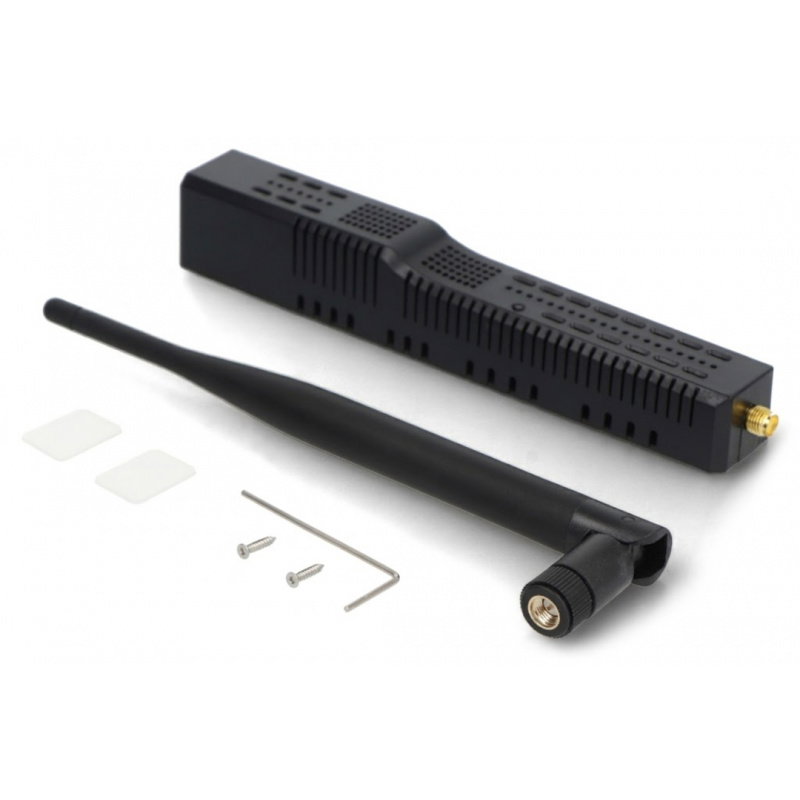

Elements included in the set.
SLZB-06mg24 is compatible with the Home Assistant app via ZigBee2MQTT0 and ZHA.
Technical specifications of the ZigBee gateway
- Main ZigBee Chip: EFR32MG24 Silicon Labs
- Core: ARM Cortex-M33, up to 78 MHz
- Memory: up to 1536 kB Flash, 256 kB RAM
- Main control chip: ESP32 Espressif
- ESP32 processor: dual-core, up to 240 MHz
- ESP32 memory: 520 kB SRAM, 448 kB ROM
- USB/UART Converter: CP2102 Silicon Labs
- Ethernet Controller: LAN8720 Microchip
- ZigBee Standard: ZigBee 3.0
- Supported ZigBee modes: coordinator, router
- Thread Support: Yes
- Matter over Thread Support: Yes, Beta
- Open Thread Border Router Support: Yes
- Zigbee2MQTT support: yes, ready to use
- ZHA Support: Yes, ready to use
- Wired communication: Ethernet RJ45, USB Type-C
- Wireless communication: WiFi 2.4 GHz, Bluetooth BLE via ESP32 and ESPHome
- PoE support: yes
- PoE standard: IEEE 802.3af, 15 W
- USB Power: 5V via USB Type-C
- ZigBee signal amplifier: 20 dB
- External antenna: 5 dB, three-dimensionally rotatable
- OTA updates: yes
- Software: SLZB-OS
- Open source software: yes
- LEDs: blue, yellow, green, red
- Physical button: yes, for changing operating mode and settings
- Operating temperature: 5°C to 35°C
- Dimensions: 160 x 22 x 24 mm
Contents of the set
- Adapter SLZB-06mg24
- 5 dB external antenna
| Comparison of models from the SLZB-06 series | |||||
|---|---|---|---|---|---|
| Model | SLZB-06 | SLZB-06M | SLZB-06MG24 | SLZB-06P7 | SLZB-06P10 |
| SoC ZigBee/Thread | CC2652P | EFR32MG21 | EFR32MG24 | CC2652P7 | CC2674P10 |
| SoC Manufacturer | Texas Instruments | Silicon Labs | Silicon Labs | Texas Instruments | Texas Instruments |
| Max connected devices | up to 200 | up to 200 | up to 350 | up to 300 | up to 400 |
| The best choice for | Zigbee2MQTT | ZHA | ZHA | Zigbee2MQTT | Zigbee2MQTT |
| Good compatibility with | ZHA | Zigbee2MQTT | Zigbee2MQTT | ZHA | ZHA |
| ZigBee support | Yes, all models natively support ZigBee | ||||
| Thread Support | Yes, all models natively support Thread | ||||
| WiFi support | Yes, 2.4 GHz, including Ethernet-WiFi bridge mode | ||||
| Bluetooth ESPHome support | BLE over ESP32 and ESPHome integration | ||||
| SLZB-OS System | Yes, ready to go right out of the box | ||||
| Multiprotocol | NO | Yes | Yes | NO | NO |
| Attention | Multiprotocol mode is not recommended by Home Assistant | ||||
