Product description: Multifunctional LCR tweezers meter for SMD components - FNIRSI LCR-ST1

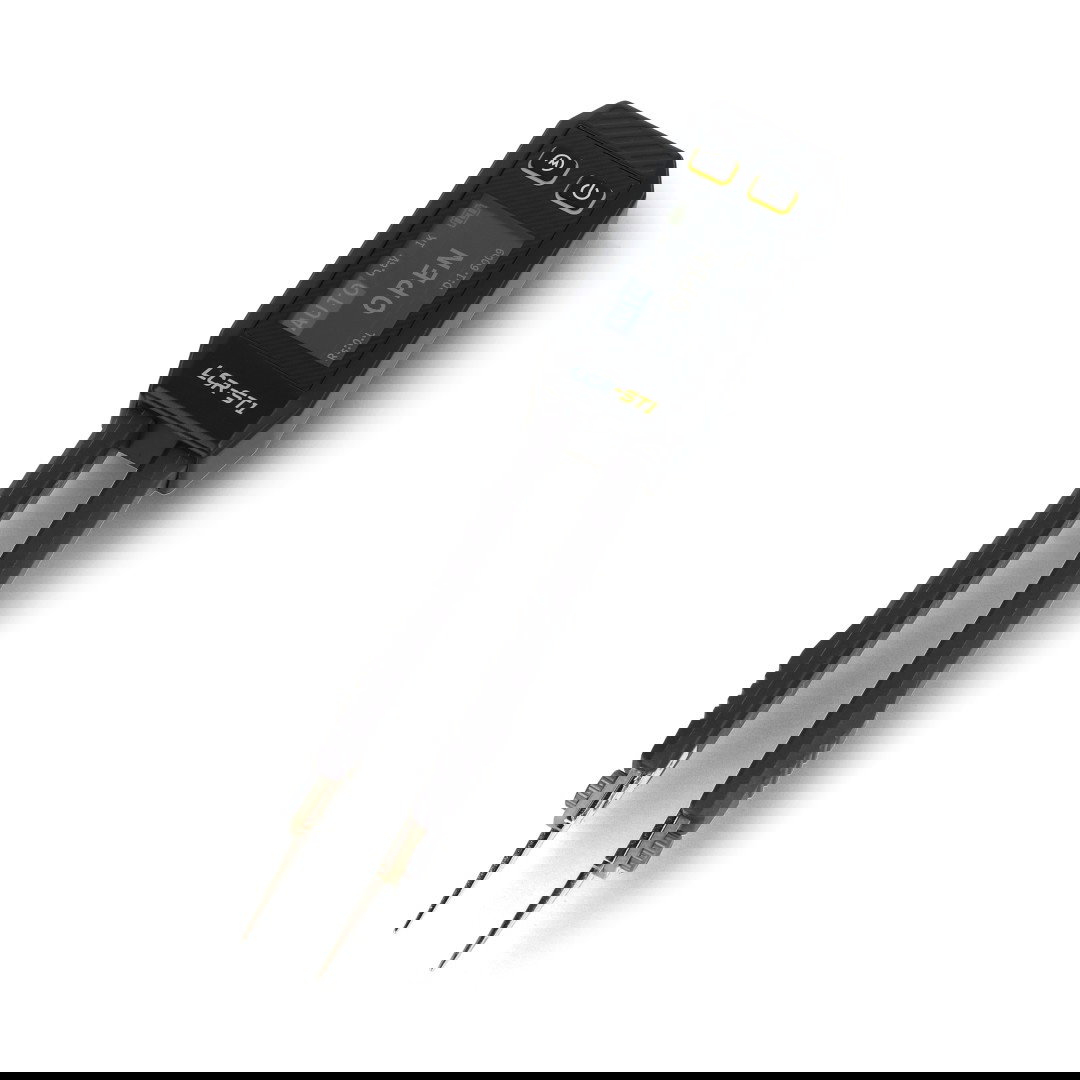

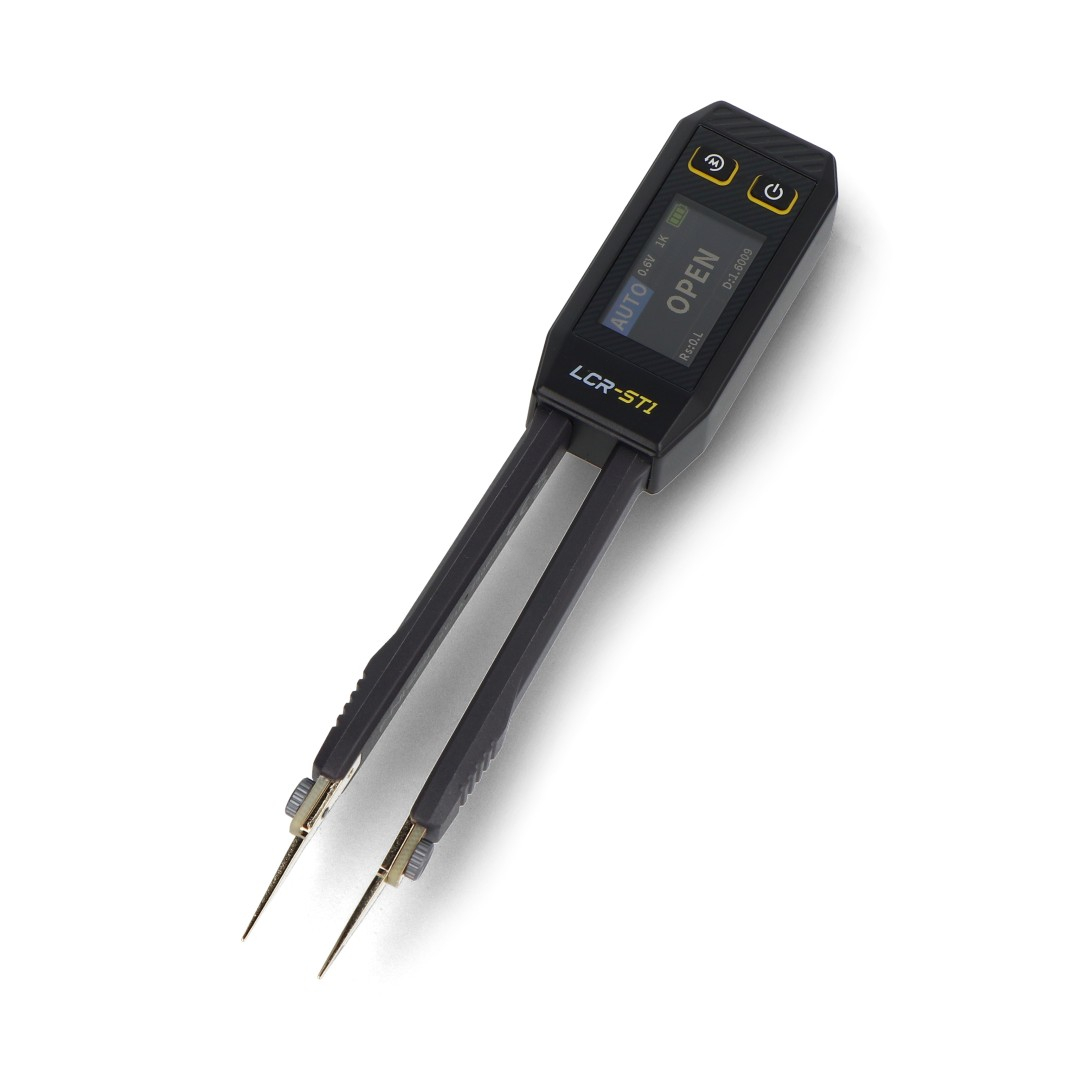

The FNIRSI LCR-ST1 is a modern tweezers LCR/ESR meter designed for convenient testing of small electronic components, especially SMD (surface-mount) components . The device automatically recognizes the type of component being tested and displays both the main measurement value and auxiliary parameters such as ESR , dissipation factor D , quality factor Q , impedance Z , and reactance X. The meter supports three test frequencies: 100 Hz , 1 kHz , and 10 kHz , as well as test voltage levels of 0.3 V and 0.6 V RMS , allowing you to match the measurement conditions to the component's characteristics. The 1.14-inch HD color screen presents data clearly, and the ergonomic design of the tweezers facilitates measurement of components in hard-to-reach places. Thanks to the built-in 250 mAh lithium battery, USB Type-C charging and a low weight of 41 g , FNIRSI LCR-ST1 is a convenient tool for work in the field, service and laboratory.

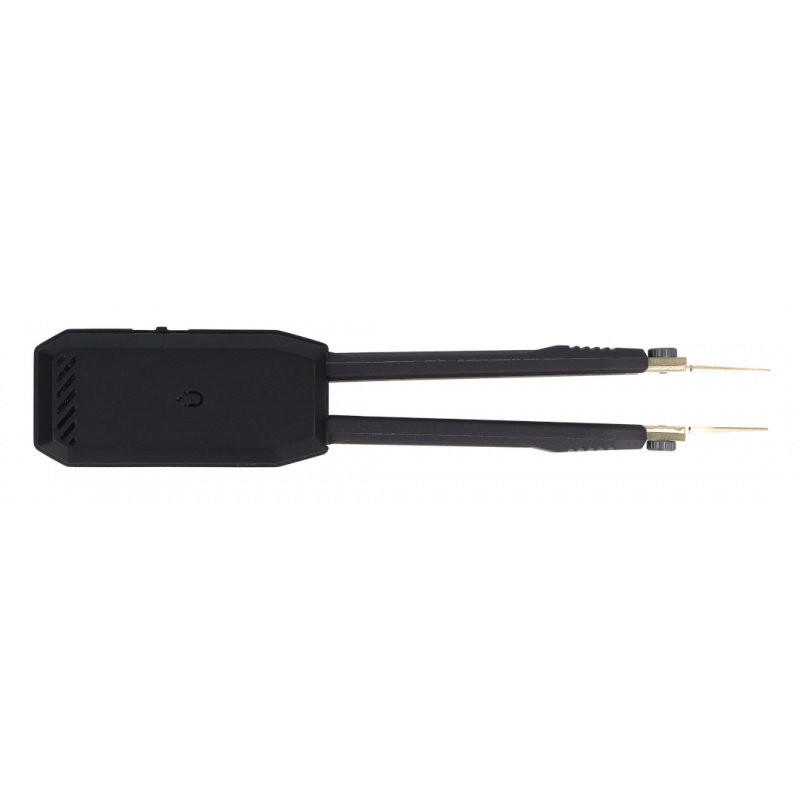

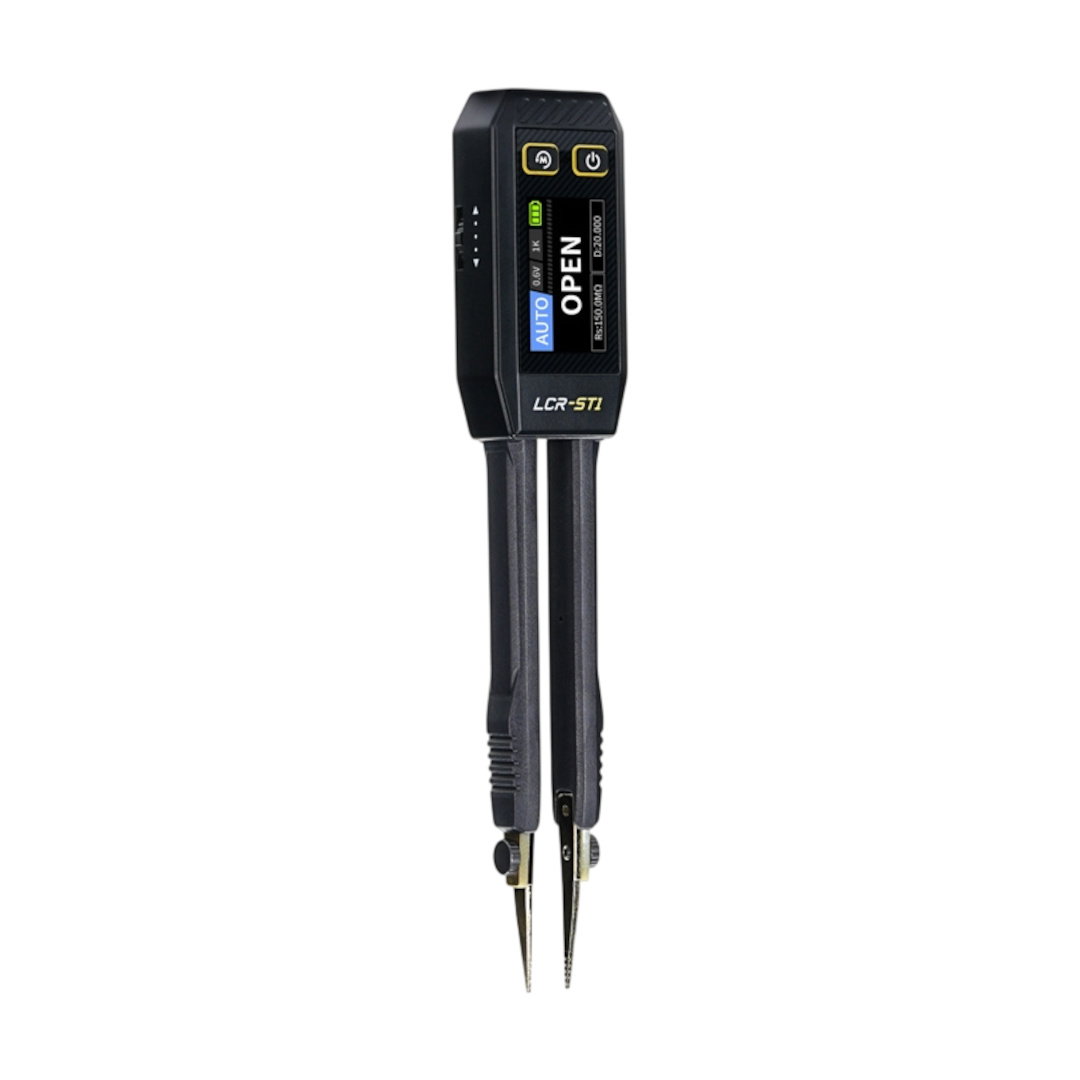

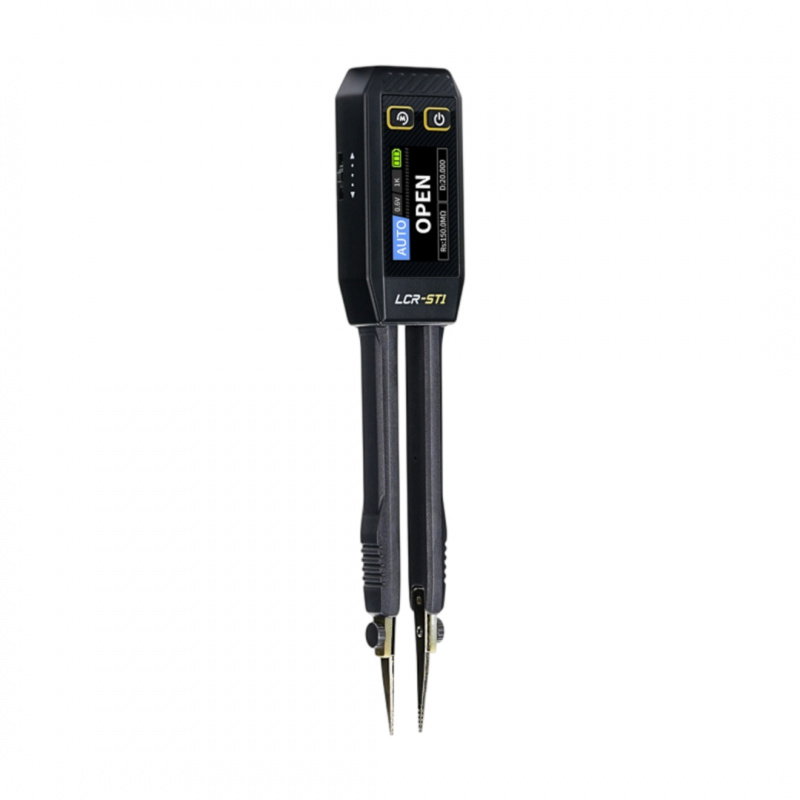

Multifunctional tweezers LCR meter for SMD components - FNIRSI LCR-ST1.
It allows you to measure resistance, capacitance, inductance, diode test and circuit continuity.
Main features of the FNIRSI LCR-ST1 meter
- Automatic component recognition : automatically identifies the component being tested and displays the main and auxiliary parameters
- LCR/ESR measurement : Supports resistance, capacitance, inductance and ESR measurements
- Additional parameters : D, Q, Z, X value reading for more accurate component analysis
- Three test frequencies : 100 Hz / 1 kHz / 10 kHz for better measurement accuracy
- Test Levels : 0.3V and 0.6V RMS test voltage selection
- 1.14'' display : color screen presenting data in a clear way

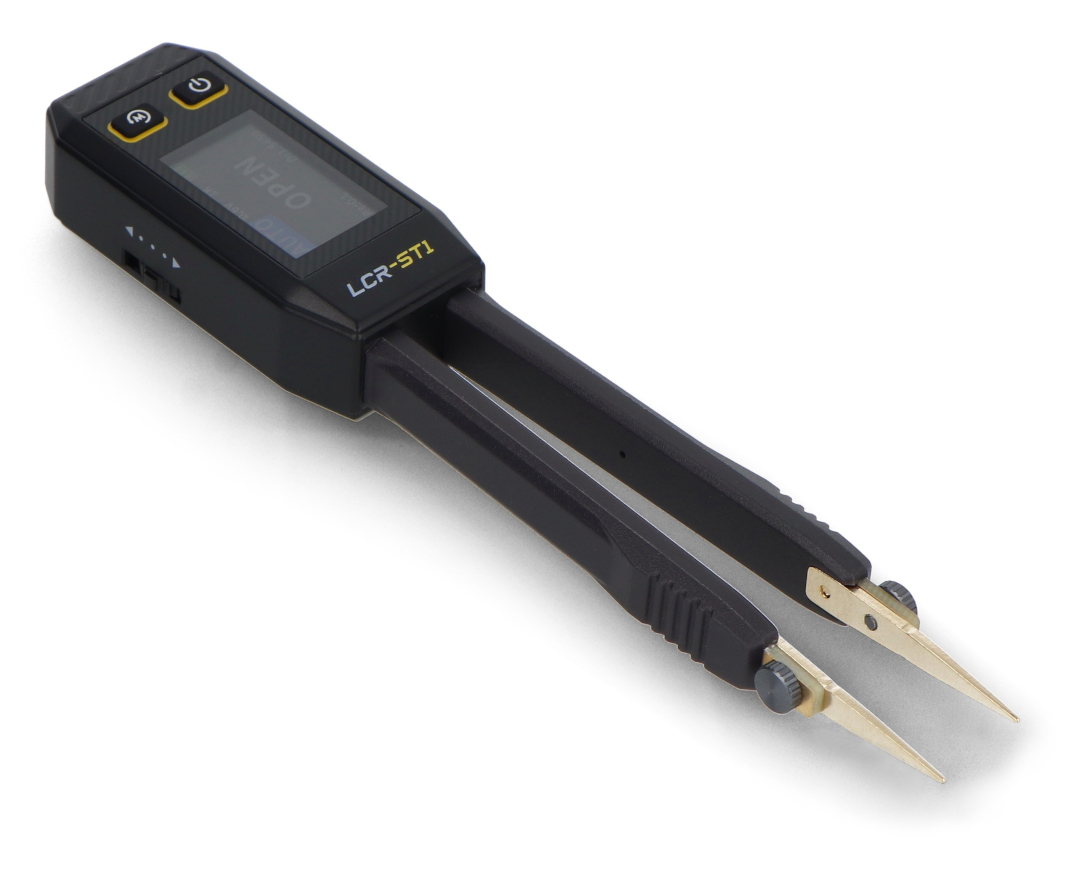

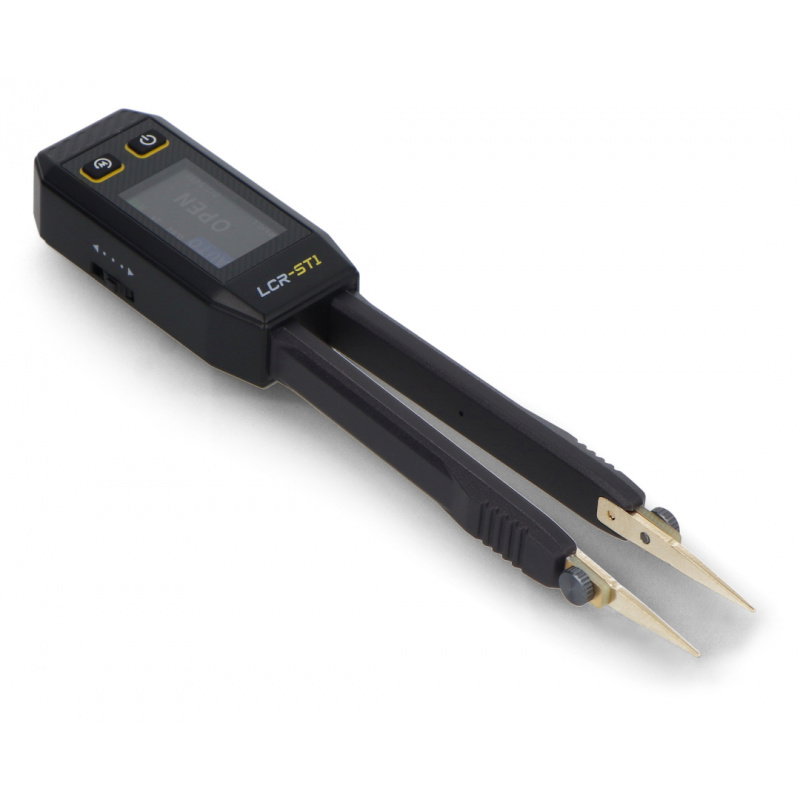

- Interchangeable tweezers tips : set includes curved hook tips and straight tips
- Data recording : automatic saving of results and the ability to export them to a computer
- Battery power : built-in 250 mAh battery charged via USB Type-C
Quick testing of SMD components
The tweezers-style design of the meter makes it easy to grip and measure small surface-mount components without the need for additional fixtures. Automatic component identification allows you to quickly check the parameters of resistors, capacitors , and inductors without manually switching modes . This solution speeds up work during PCB servicing and quality control in electronics production. The FNIRSI LCR-ST1 can be used for, among other things:
- diagnostics and testing of SMD components on PCBs
- consumer electronics and electronic devices service
- quality control of components in electronics production
- laboratory and educational work in the field of electronics
- quick identification of resistor, capacitor and coil parameters

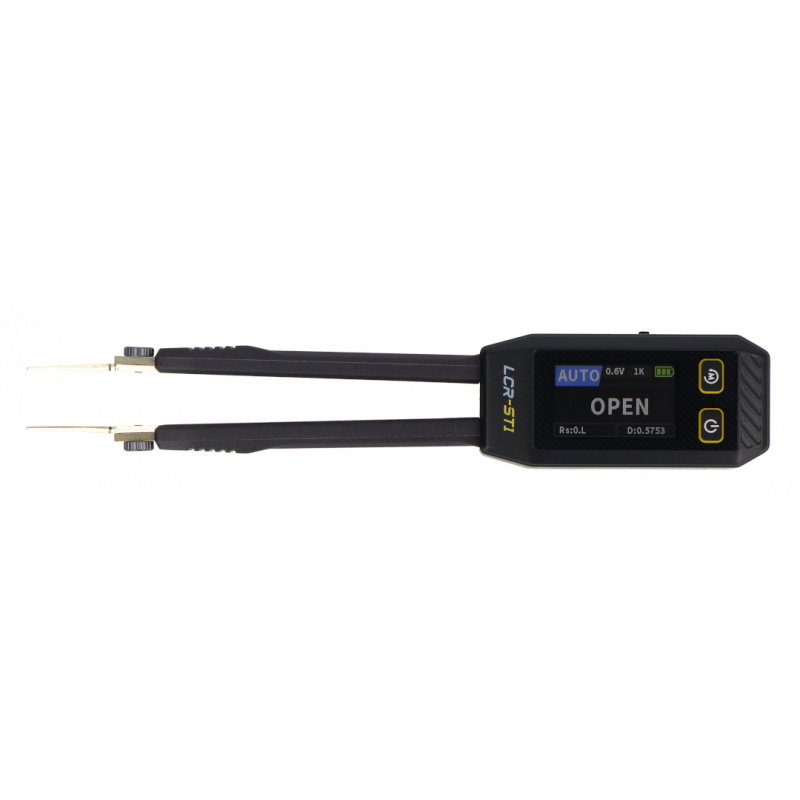

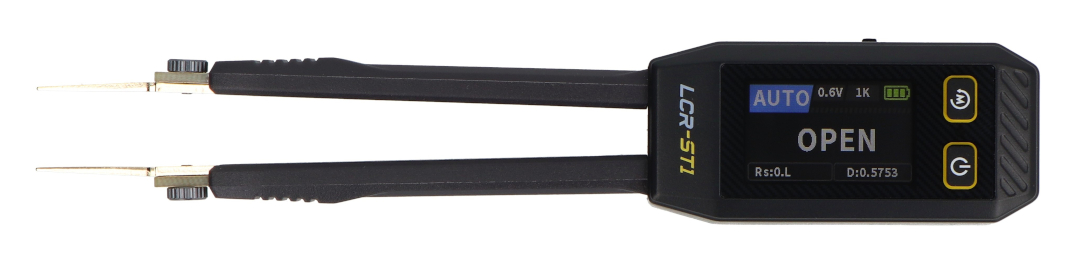

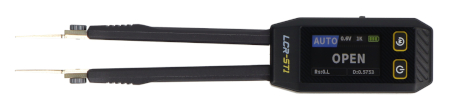

A clear, 1.14" color display shows measurement parameters.
| Measurement accuracy | ||||
|---|---|---|---|---|
| Type | Range | 100 Hz | 1 kHz | 10 kHz |
| Electrical capacity | from 1 mF to 22 mF | 5% of reading ±3 | 5% of reading ±3 | - |
| from 1 µF to 1 mF | 2% of reading ±3 | 2% of reading ±3 | 2% of reading ±3 | |
| from 1 nF to 1 µF | 2% of reading ±3 | 0.5% of reading ±3 | 0.5% of reading ±3 | |
| from 1 pF to 1 nF | - | 2% of reading ±3 | 2% of reading ±3 | |
| Inductance | from 1 H to 10 H | 5% of reading ±3 | 5% of reading ±3 | - |
| from 1 mH to 1 H | 2% of reading ±3 | 2% of reading ±3 | 2% of reading ±3 | |
| from 10 µH to 1 mH | 2% of reading ±3 | 0.5% of reading ±3 | 0.5% of reading ±3 | |
| from 1 µH to 10 µH | - | - | 2% of reading ±3 | |
| Resistance | from 1 MΩ to 10 MΩ | 5% of reading ±3 | 5% of reading ±3 | - |
| from 1 kΩ to 1 MΩ | 1% of reading ±3 | 0.5% of reading ±3 | 1% of reading ±3 | |
| from 1 Ω to 1 kΩ | 1% of reading ±3 | 0.5% of reading ±3 | 0.5% of reading ±3 | |
| from 10 mΩ to 1 Ω | 2% of reading ±3 | 2% of reading ±3 | 2% of reading ±3 | |
Elements included in the set.
Technical specifications of the tweezers meter
- Model: LCR-ST1
- Display: 1.14'' color screen
- Test frequencies: 100 Hz / 1 kHz / 10 kHz
- Test voltage levels: 0.3 V and 0.6 V RMS
- Resistance measurement range: 10 mΩ to 10 MΩ
- Capacity measurement range: from 1 pF to 22 mF
- Inductance measurement range: 1 µH to 10 H
- Diode test: forward voltage approx. 0.7 V
- Additional parameters: ESR / D / Q / Z / X
- Charging interface: USB Type-C, 5V/1A
- Power supply: 250 mAh lithium battery
- Dimensions: 28 x 19 x 150 mm
- Weight: 41 g

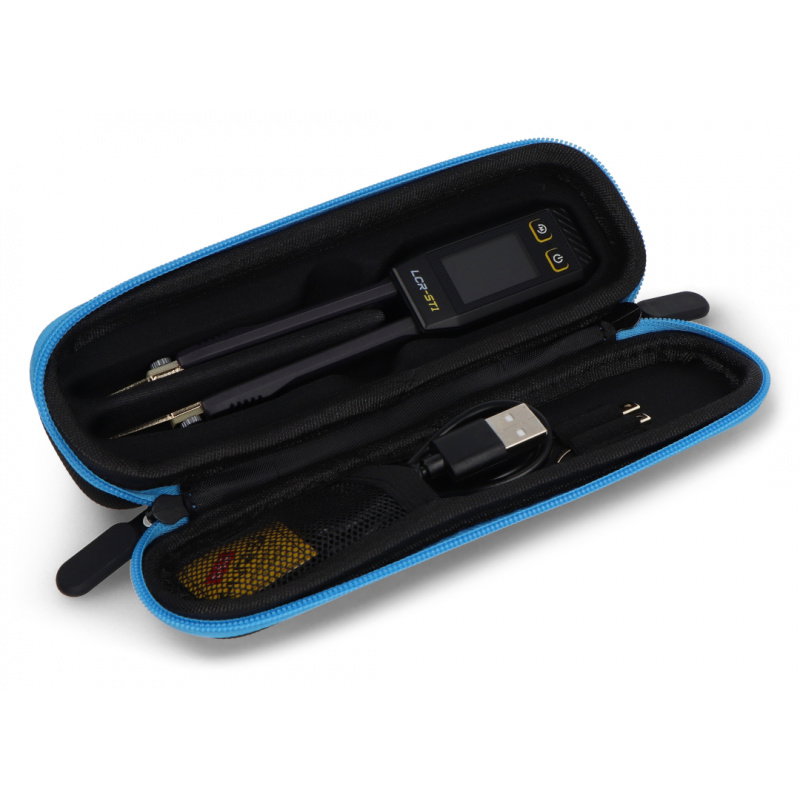

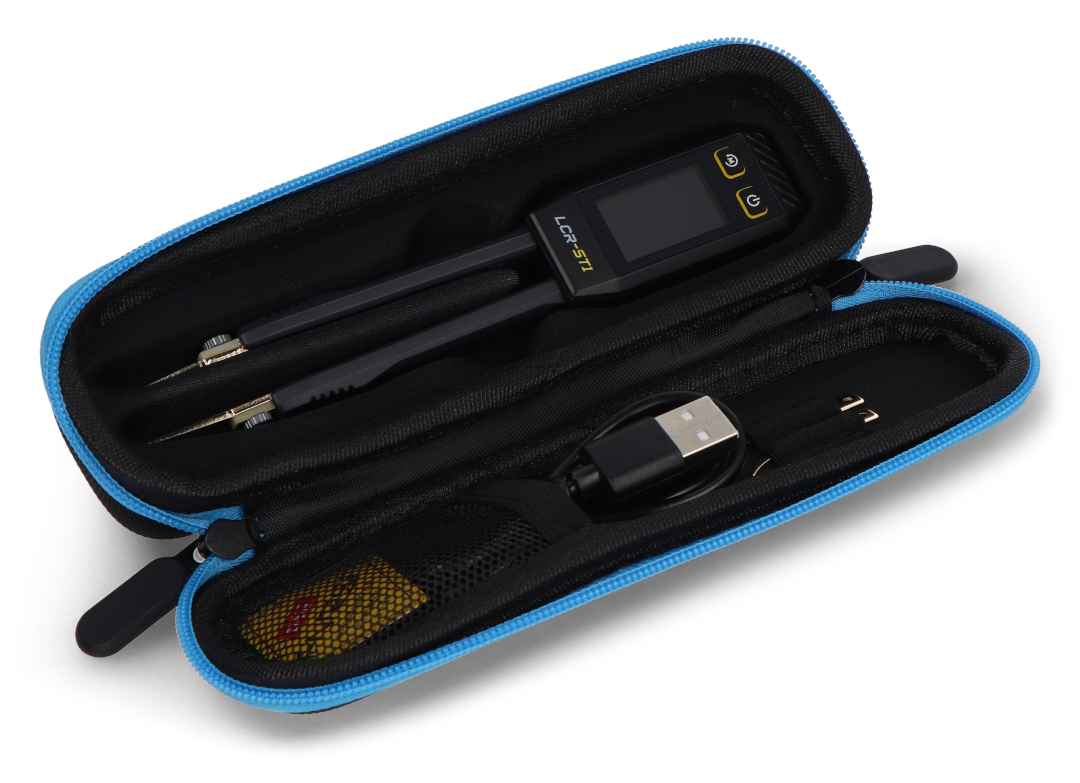

Contents of the set
- FNIRSI LCR-ST1 Tweezers Multimeter
- Curved hook tips (1 pair)
- Magnetic stand
- USB charging cable
- User manual
