Product description: BMV080 - mini air quality sensor PM1 / PM2.5 / PM10 - SparkFun SEN-26554

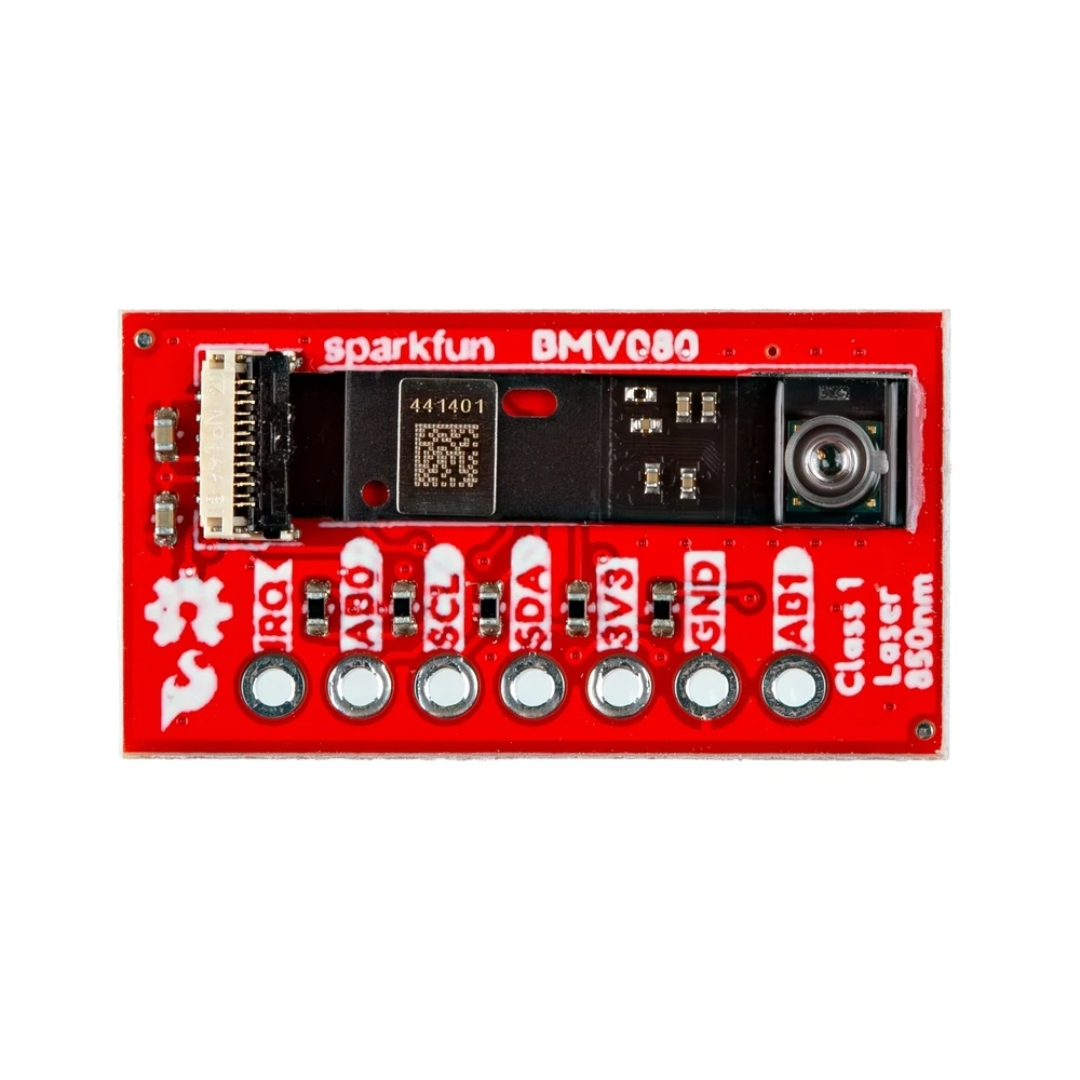

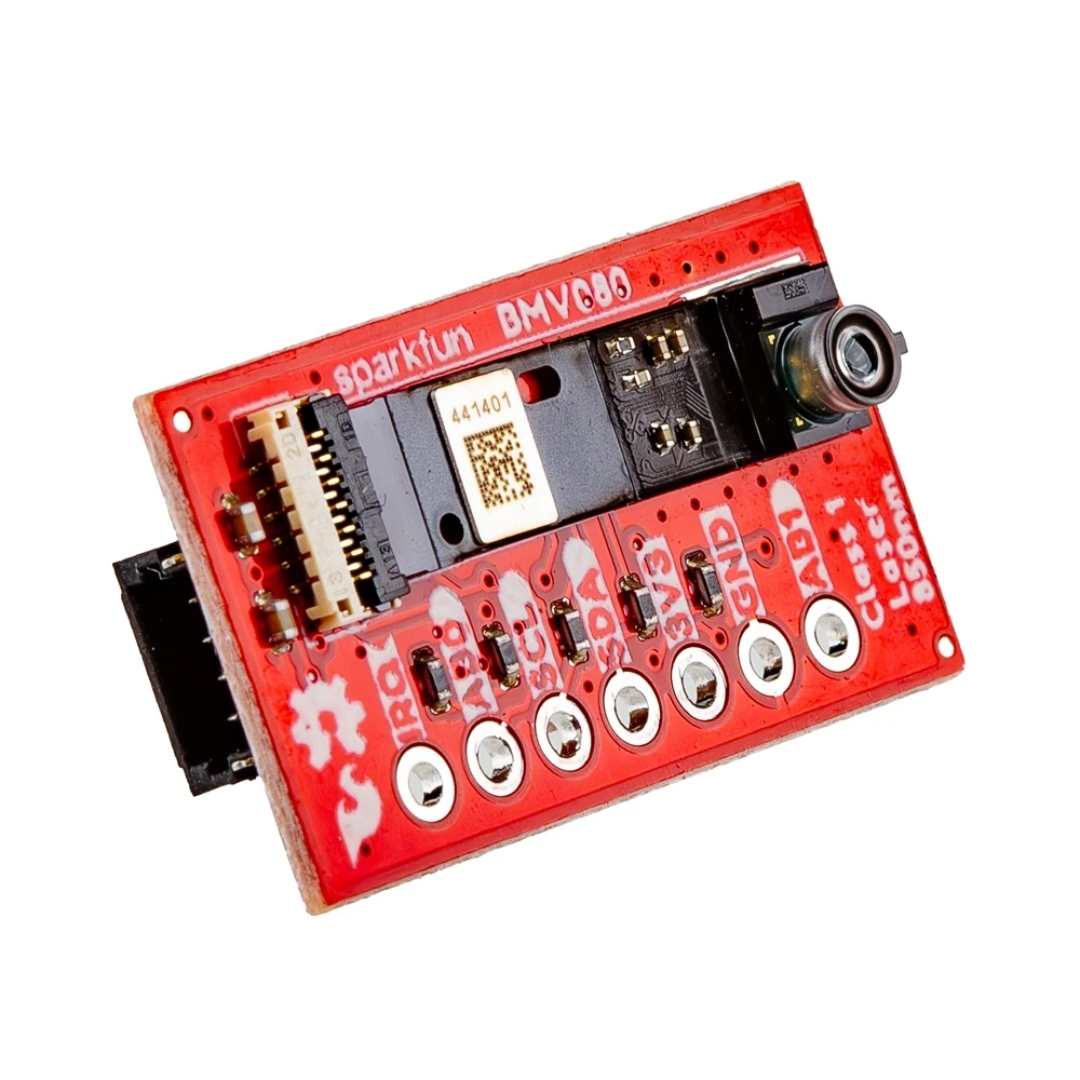

The BMV080 is the world's smallest dust sensor (4.4 x 3 x 3 mm) that monitors air pollution without the need for a fan . It uses an ultra-compact laser with a built-in photodiode and advanced algorithms to measure PM1, PM2.5, and PM10 particles in free space. The sensor is packaged on a board with flexible FPC cable and a Qwiic connector , allowing for easy connection to Raspberry Pi systems or other I2C or SPI-enabled devices. It supports I2C address adjustment and offers rapid prototyping thanks to standard 2.54 mm pin spacing .
BMV080 - mini air quality sensor PM1 / PM2.5 / PM10 - SparkFun SEN-26554.
The BMV080 sensor is the world's smallest dust sensor (4.4 x 3 x 3 mm) that monitors air pollution without the need for a fan.Special features
- Bosch BMV080 sensor: the world's smallest dust sensor measuring 4.4 x 3 x 3 mm for compact and precise particle detection
- PM1, PM2.5 and PM10 measurement: enables real-time air quality monitoring, providing accurate data on the concentration of suspended particulate matter
- Communication interfaces: Qwiic I2C by default with the option to switch to SPI, which allows for flexible connection to various devices
- Configurable I2C addresses: 4 jumper selectable options, allowing multiple sensors to be connected on the same bus
- Compact design: ideal for IoT projects, smart homes, and other applications requiring a small footprint
- Built-in lens: enables accurate measurement of particles in free space, increasing detection precision
- Arduino support: ready-made SparkFun BMV080 library allows for quick start and easy integration into projects
Practical applications
- Monitoring air quality in smart homes and offices
- IoT projects that require a small and precise sensor
- Alarm systems informing about increased dust concentrations
- Control of visual or audible signals, e.g. LEDs or buzzers
- Cloud integration and automatic notifications, e.g. via email or webhook
It uses an ultra-compact laser with a built-in photodiode and advanced algorithms to measure PM1, PM2.5 and PM10 particles in free space.
It supports I2C address adjustment and offers the possibility of rapid prototyping thanks to standard 2.54 mm pin spacing.Sensor technical specifications
- Sensor: Bosch BMV080
- Power supply: 3.3V Qwiic
- Power consumption:
- Active measurement: <68 mA
- Sleep mode: <30 µA
- PM concentration measurement range: from 0 µg/m³ to 1000 µg/m³
- Resolution: 1 µg/m3
- Measurement accuracy: ±10 µg/m³ (for 0 µg/m³ to 100 µg/m³), ±10% of the value (for 101 µg/m³ to 1000 µg/m³)
- Measurement modes: continuous, cyclic
- Startup time: 1.2 sec
- Communication interface: I2C (default), I2S
- Connector: FPC 13-pin, 0.33 mm pitch
- Qwiic connector: 1x vertical
- Pull-up resistors: 2x 2.2 kΩ (for I2C bus)
- Jumper-configurable I2C addresses: 0x54, 0x55, 0x56, 0x57 (default)

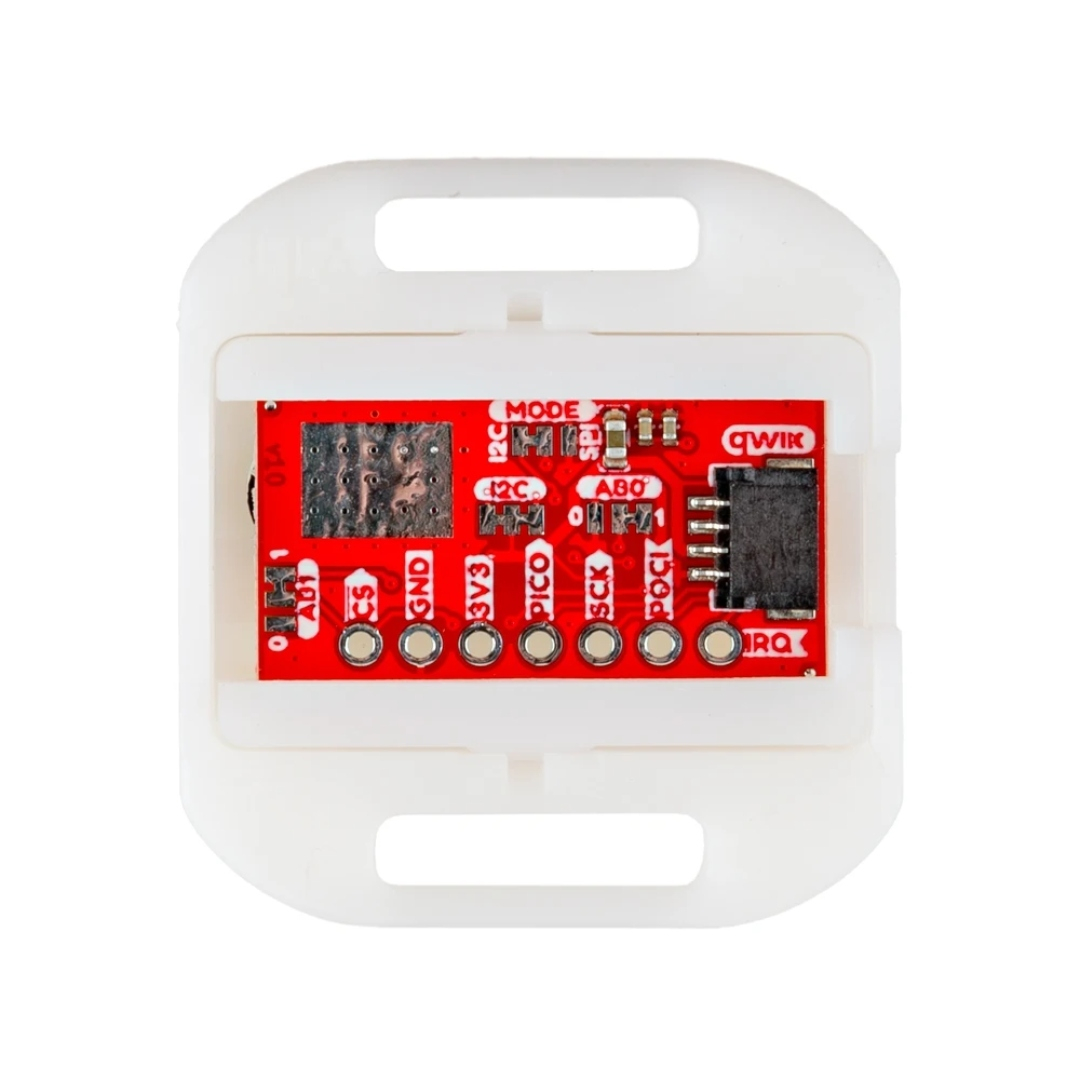

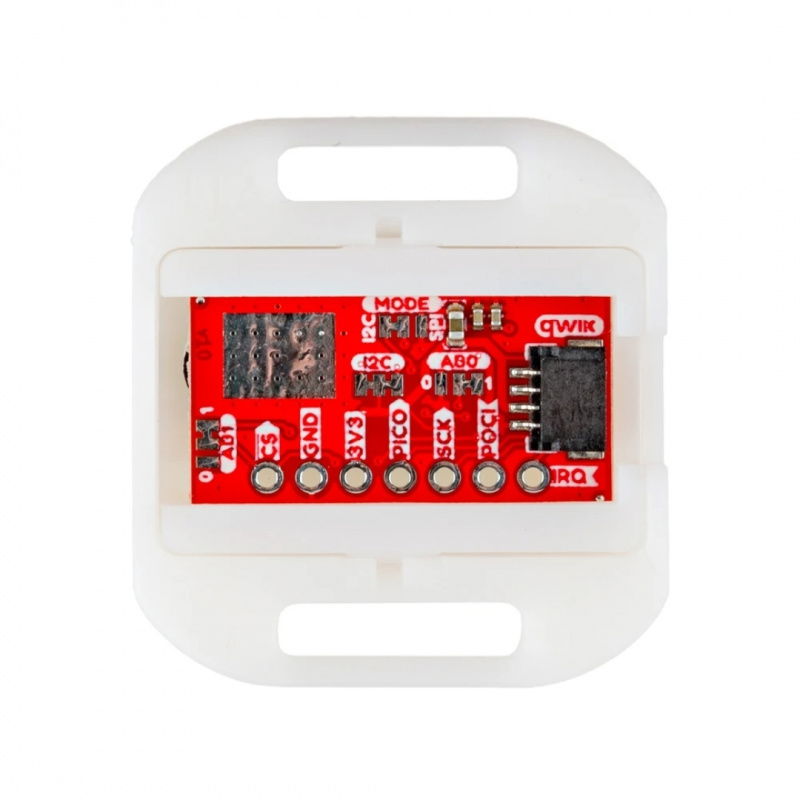

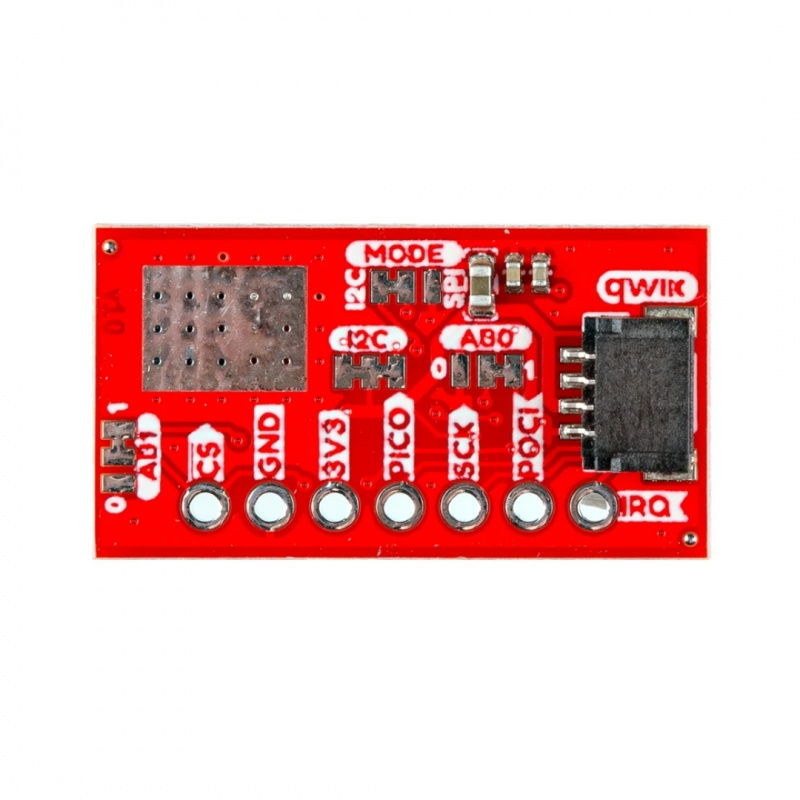

- Configuration jumpers: I2C / SPI interface, address AB0 / AB1
- Laser class: Class 1 IEC 60825-1
- Operating temperature range: 15°C to 65°C
- Plate dimensions: 24.13 x 12.7
Contents of the set
- 1x MV080 - mini air quality sensor
