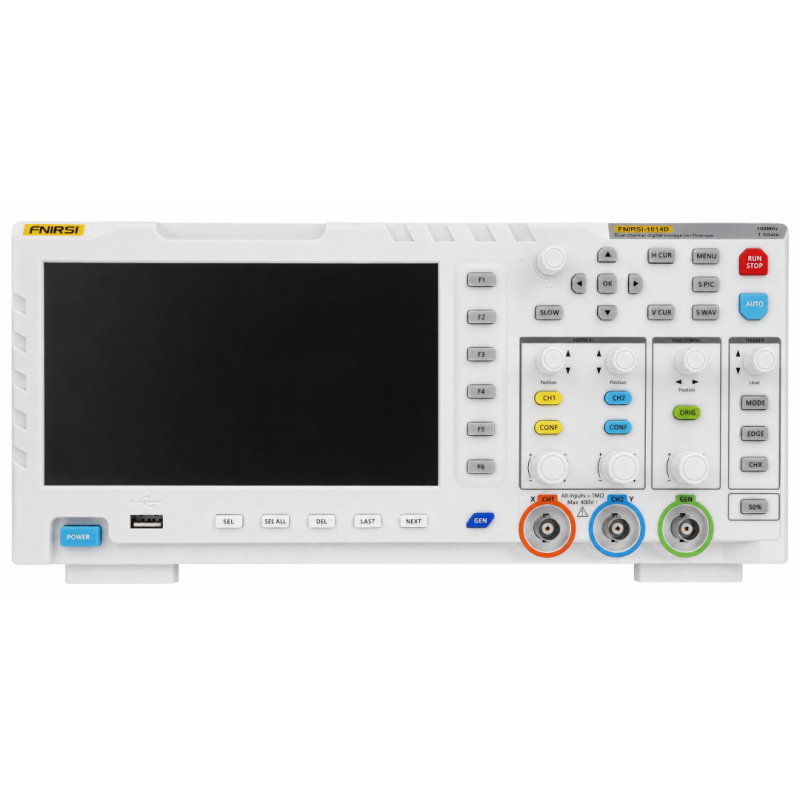

FNIRSI 1014D - 2-channel, 100 MHz, 1 GSa/s digital oscilloscope with a DDS generator
The FNIRSI 1014D is a 2-in-1 digital storage oscilloscope that combines the functionality of a 2-channel oscilloscope with a DDS signal generator. The device offers 100 MHz x2 analog bandwidth, 1 GSa/s real-time sampling, and a 7-inch color TFT LCD with 800 x 480 px resolution. This makes it ideal for measurement, diagnostics, and signal analysis in electronics, service, automation, and DIY projects.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: FNIRSI 1014D - 2-channel digital oscilloscope 100 MHz 1 GSa/s with DDS generator
The FNIRSI 1014D is a 2-in-1 digital storage oscilloscope that combines the functions of a 2-channel oscilloscope with a DDS signal generator. The device offers a 100 MHz x2 analog bandwidth, 1 GSa/s real-time sampling rate, and a 7-inch color TFT LCD with 800 x 480 resolution. This makes it ideal for measurement, diagnostics, and signal analysis in electronics, service, automation, and DIY projects. The oscilloscope supports Auto, Normal, and Single trigger modes , AC/DC coupling, and cursor measurements , which facilitate peak-to-peak and frequency readings without manual recalculation. The built-in DDS generator allows you to create 14 standard signal types and a custom signal. The device also supports waveform recording, image export via USB, AUTO function, Roll mode, FFT view, and Lissajous plot presentation.
FNIRSI 1014D - 2-channel digital oscilloscope 100 MHz 1 GSa/s with DDS generator.
FNIRSI 1014D is a 2-in-1 digital oscilloscope that combines the function of a 2-channel oscilloscope and a DDS signal generator.

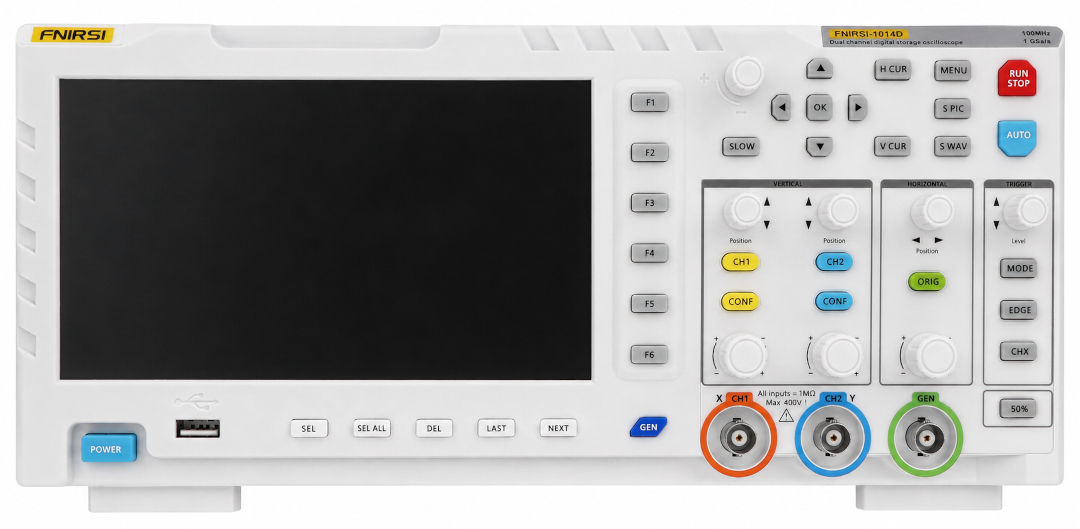

Special features
- 2-in-1 device: digital oscilloscope and DDS signal generator in one housing
- Two measurement channels: the ability to simultaneously observe and compare two signals
- 100 MHz x 2 bandwidth: suitable for diagnostics of electronic, digital and analog systems
- 1 GSa/s sampling: fast signal recording while preserving waveform details
- Large 7" screen: 800 x 480 px TFT color LCD display for easy waveform analysis
- DDS Generator: Supports 14 standard signals and a custom signal
- Trigger modes: Auto, Normal, and Single for periodic and non-periodic signals
- Cursor measurement: quick reading of voltage and frequency values without manual recalculation
- Waveform and screenshot storage: stores up to 1000 images and 1000 waveforms
- USB Export: Conveniently transfer your saved data to your computer
- Analysis features: FFT and Lissajous plot support for comparing signal amplitude, frequency, and phase
- High voltage protection: Measures up to 40V with a 1X probe and up to 400V with a 10X probe
Built-in DDS signal generator

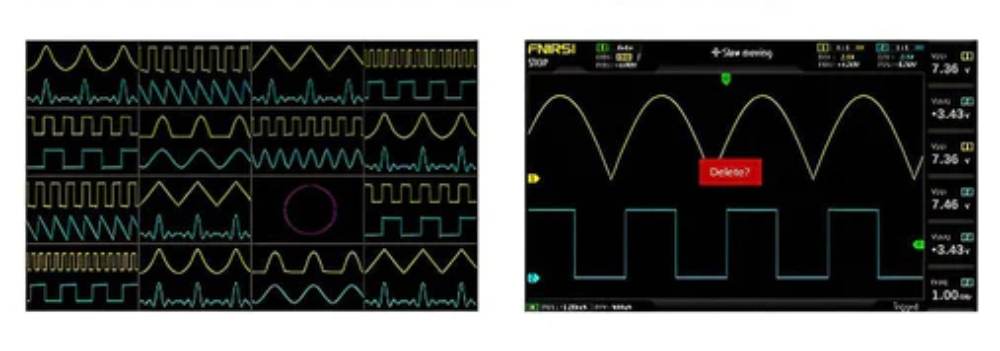

The FNIRSI 1014D features a built-in DDS function generator, allowing you to create test signals without the need for an additional device. The generator supports 14 standard 2.5 Vpp signal types, including sine, square, triangle, sawtooth, and other test waveforms. The sine wave frequency can reach up to 10 MHz, and the other signals up to 2 MHz.
The oscilloscope supports Auto, Normal and Single trigger modes, AC/DC coupling and cursor measurements.
The device also supports waveform recording, image export via USB, AUTO function, Roll mode, FFT view and Lissajous plot presentation.

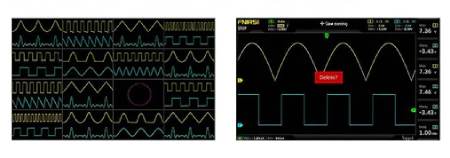

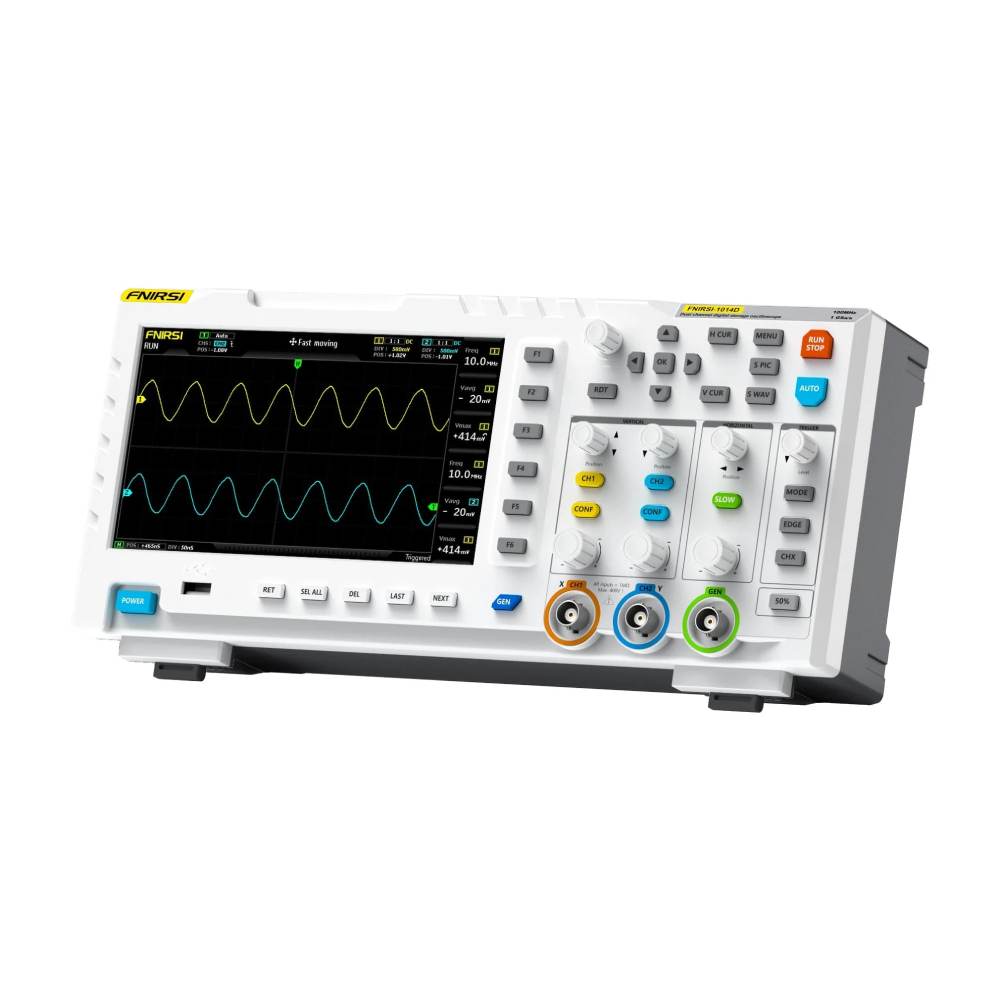

Convenient waveform analysis on a large screen
The large 7-inch TFT LCD screen with 800 x 480 px resolution provides a clear view of signals, settings, and measurement parameters. The AUTO function allows for quick measurement settings, which is useful when working with new or unfamiliar signals. Cursor measurement facilitates amplitude and frequency analysis, especially when automatic measurement may be hampered by noise or unusual waveforms.
Signal saving, exporting and comparison functions

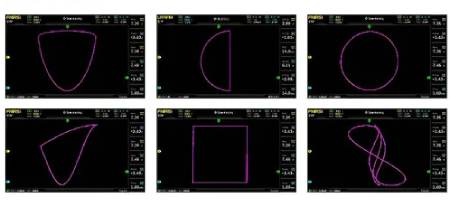

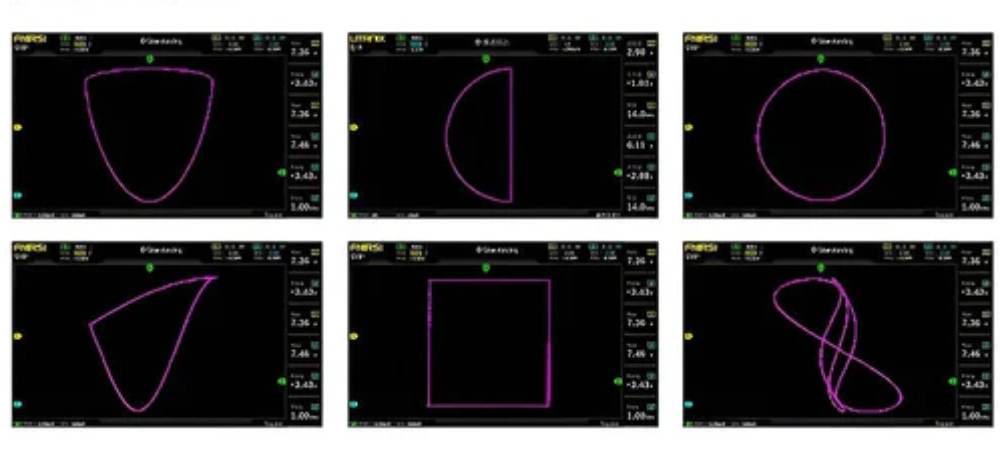

The oscilloscope allows you to save screenshots and waveforms, making it easier to document measurements and analyze them later. USB export allows you to transfer saved images to a computer and use them in reports, service documentation, or educational materials. The Lissajous function allows you to compare two signals in terms of amplitude, frequency, and phase shift, while the FFT view helps you assess the frequency components of the signal being tested.
The frequency for a sine wave can reach up to 10 MHz, and for other signals up to 2 MHz.
The oscilloscope allows you to save screenshots and waveforms, which makes it easier to document measurements and analyze them later.

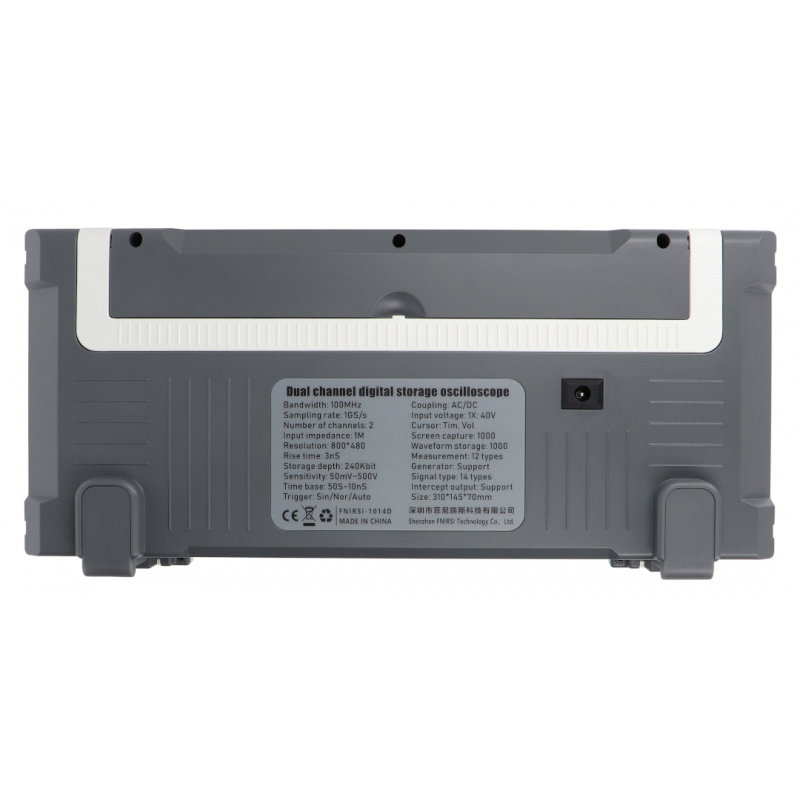

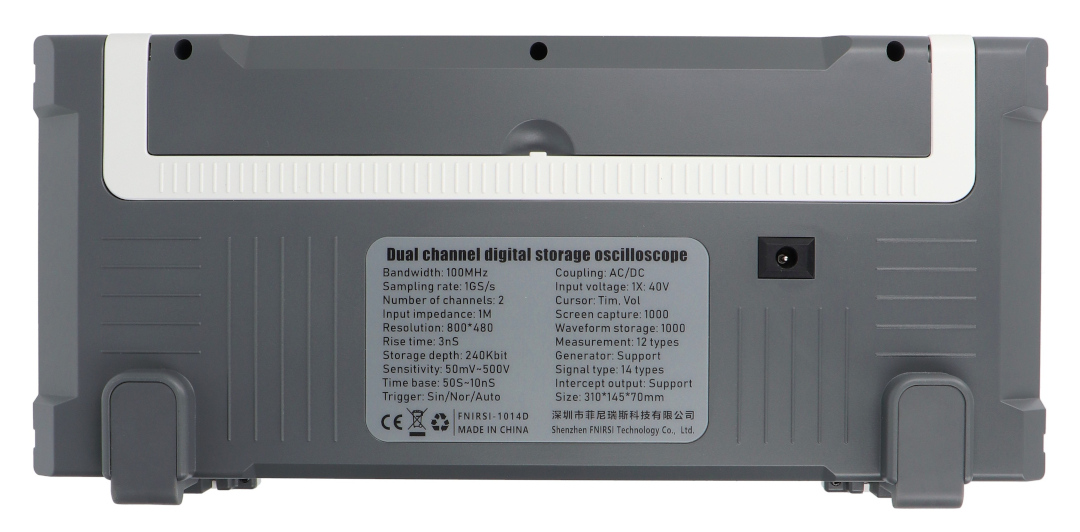

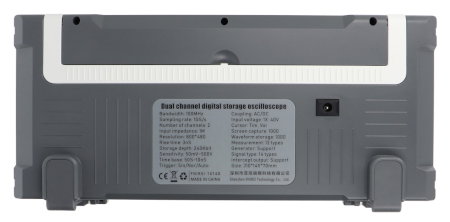

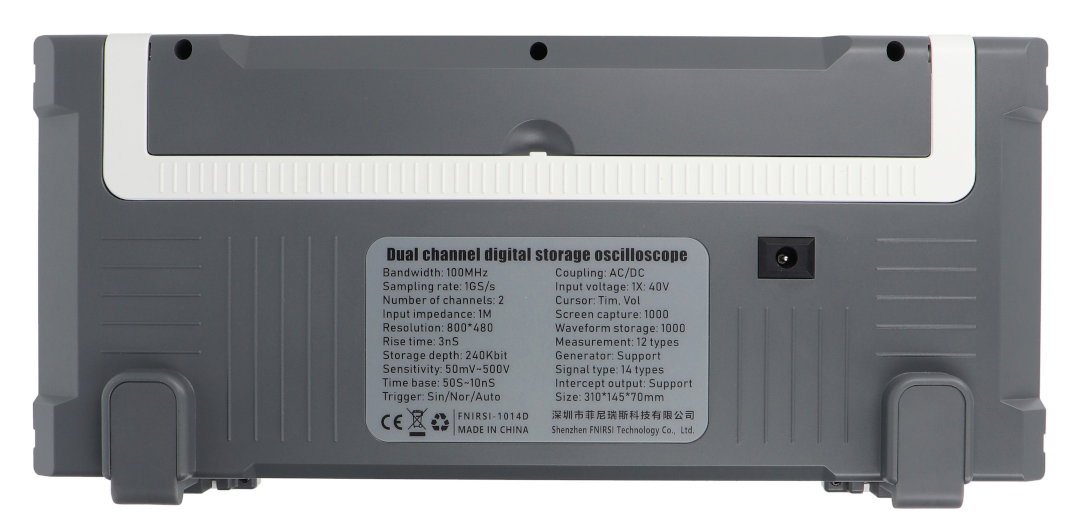

Technical specifications
- Number of oscilloscope channels: 2
- Number of generator channels: 1
- Analog Bandwidth: 100 MHz x 2
- Sampling rate: 1 GSa/s
- Display: LCD TFT, 7"
- Screen resolution: 800 x 480 px
- Vertical sensitivity: 50 mV/div to 500 V/div
- Time base: 50 s/div to 10 ns/div
- Recording depth: 240 kbit
- Input resistance: 1 MΩ
- ADC precision: 8 bits
- Rise time: less than 3 ns
- Coupling: AC/DC
- Trigger modes: Auto, Normal, Single
- Trigger Edge: Rising/Falling
- External trigger voltage: 0 V to 40 V
- Maximum measuring voltage with 1X probe: 40 V
- Maximum measuring voltage with 10X probe: 400 V
- Voltage accuracy: ±5%
- Frequency accuracy: ±0.01%
- Mileage Manager: Yes
- Waveform and image memory: up to 1000 screenshots and 1000 waveforms
- Export via USB: Yes
- Roll mode: yes
- AUTO function: yes
- Cursor measurement: yes
- Lissajous plots: yes
- FFT View: Yes
- Number of measurement parameters: 12
- Number of generator signals: 14
- Generator signal amplitude: 2.5 Vpp
- Maximum sine wave frequency: 10 MHz
- Maximum frequency of other signals: 2 MHz
- Maximum custom signal frequency: 1 MHz
- Generator frequency resolution: 1 Hz
- Power supply: 5V, 2A / 3A / 4A
- Housing material: ABS
- Dimensions: 310 x 145 x 70 mm

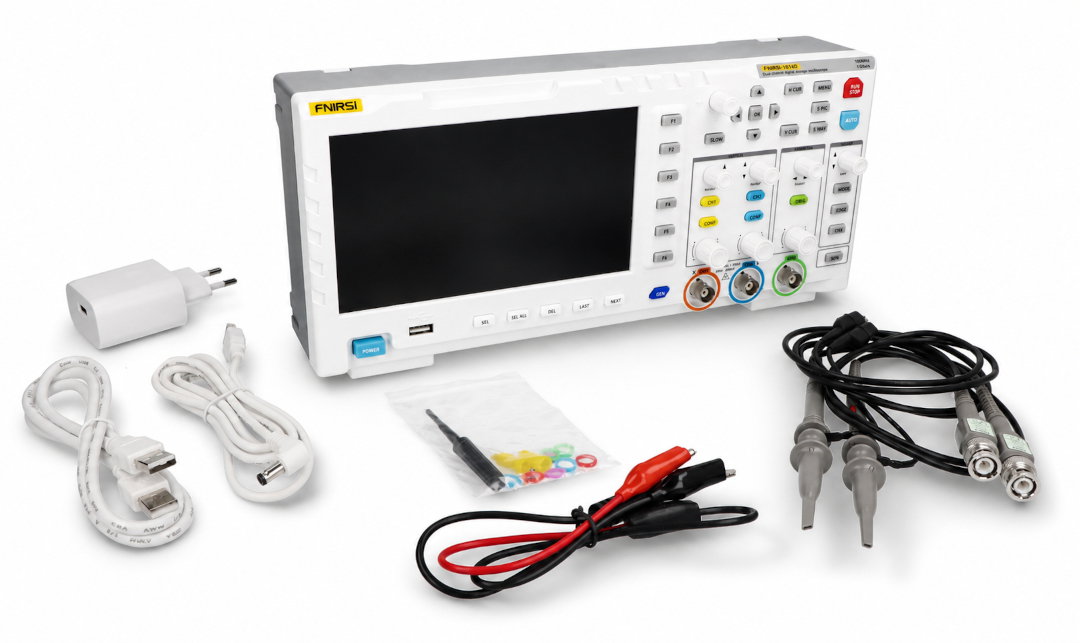

Contents of the set

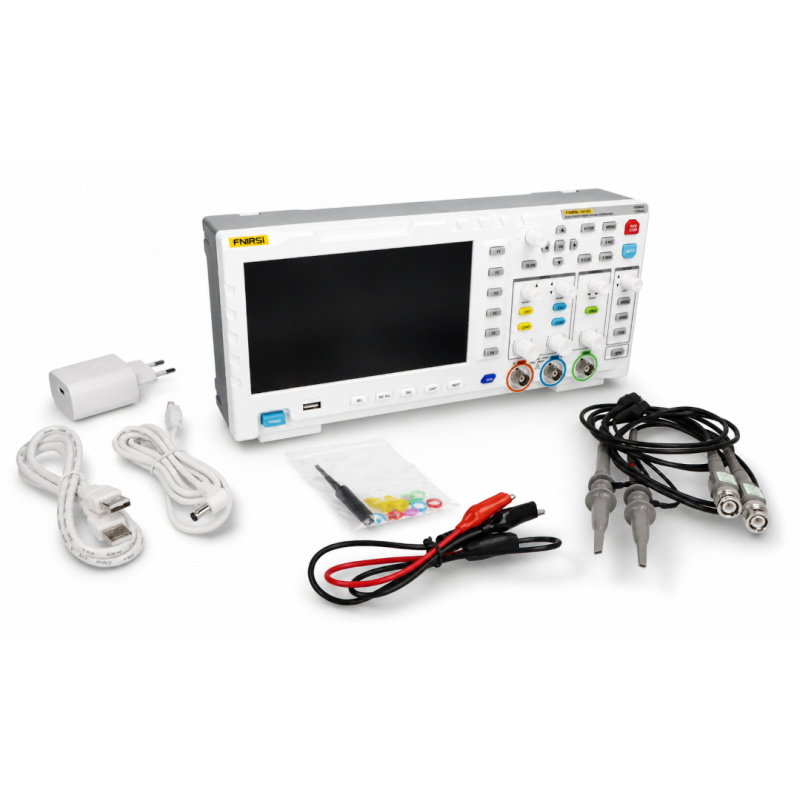

- FNIRSI 1014D digital oscilloscope
- 2x 100 MHz Probe
- USB charger
Useful links
| Name | Value |
|---|---|
| Oscilloscope - Type | digital |
| Oscilloscope - Sampling | 1 GS/s |
| Width | 37 cm |
| Height | 12 cm |
| Depth | 22 cm |
| Weight | 1.553 kg |
