Product description: Grove - adjustable RGB LED v1.1
Module with RGB LEDandGrove connector. The color of the diode can be changedby digital signalandPWM,as well as bypotentiometerson the board. The module is poweredfrom 3.3 V to 5 V.

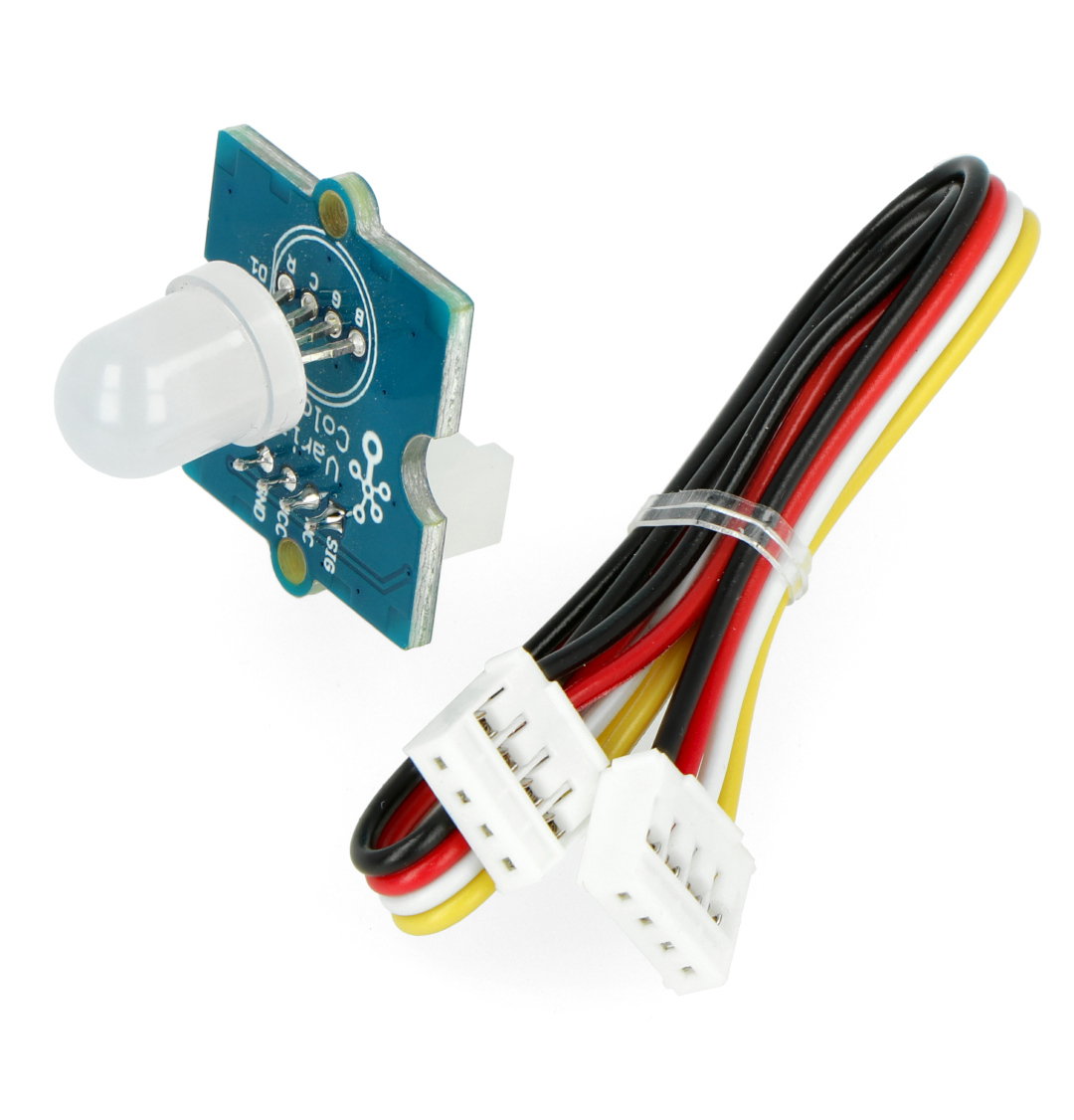

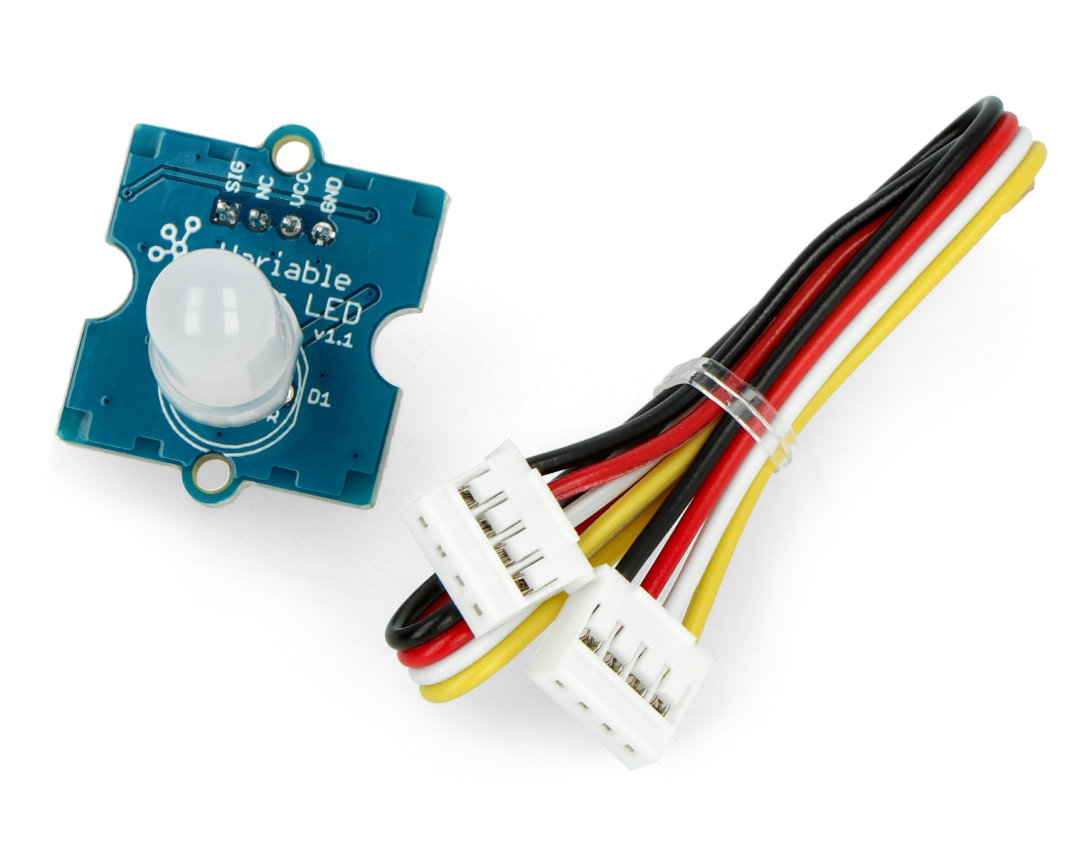

Adjustable RGB LED. Also included is a compatible Grove cable.
Product compatible with ArduinoandRaspberry Pi The manufacturer has prepared a user guide with asample program for Arduino. |

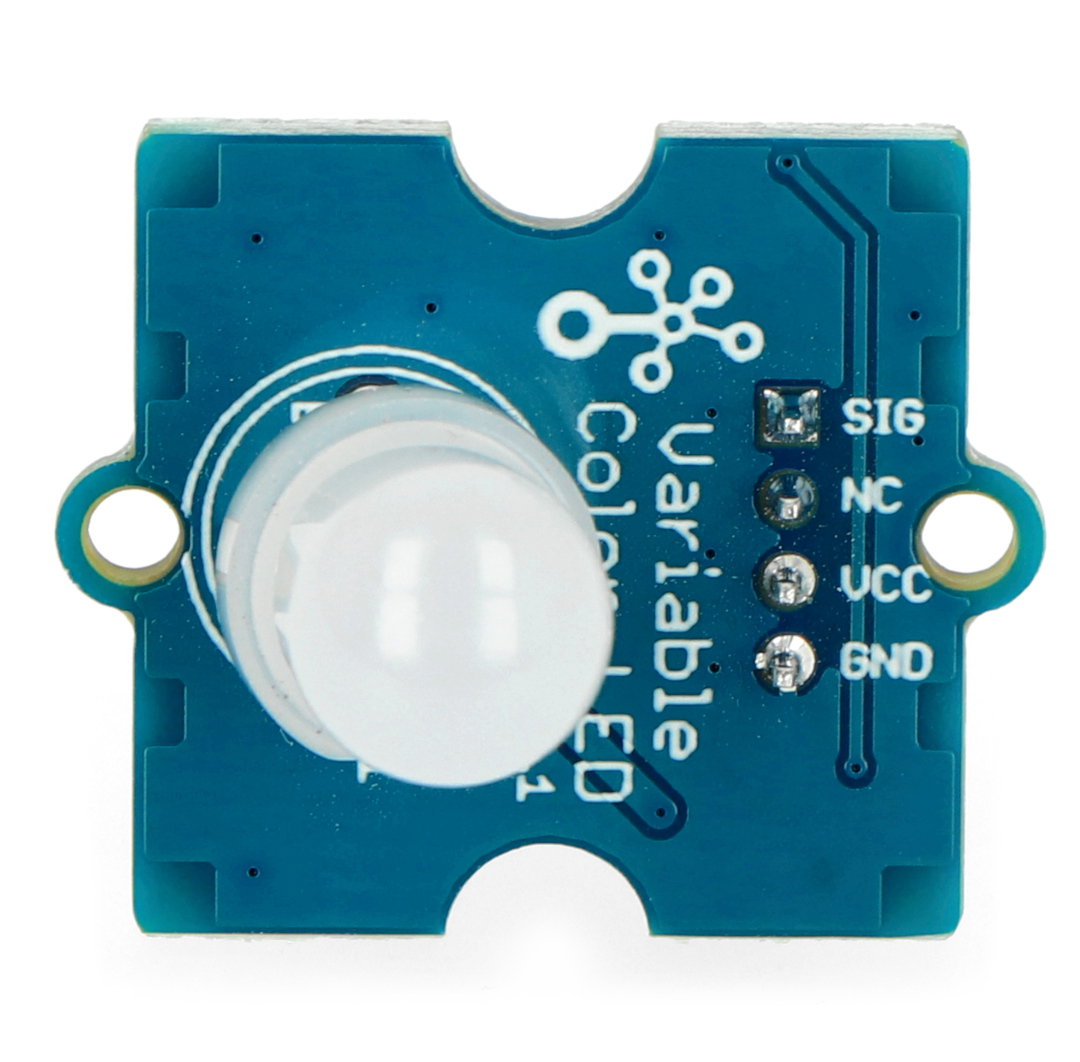

Module connection
The module is equipped with Grove interface for easy connection with ArduinoandBase Shield v2.0overlay.
Pin | Description |
---|---|
GND | The weight of the system. |
VCC | Supply voltage from 3.3 V to 5 V. |
NC | Not connected. |
SIG | Output signal. |
Diode specification
- Supply voltage: 3.3 V to 5 V
- The workflow: 20 mA
- LED: RGB LED
- Dimensions: 30 x 20 x 20 mm
- Weight: 7 g
