Description
Module with RGB diode from Grove. It allows you to control RGB diode using the digital pins of the microcontroller, and simultaneous connection of even 1024 modules using the Grove connectors. The kit includes a cable adapted for Seeedstudio Base Shield v2.0.
|
Attention! This product is only available in our market in Poland and cannot be sold to other countries. |
Specification
- Control system: P9813
- Built-in led: 8mm RGB
- Supply voltage: 5 V
- Maximum current: 60 mA
- Maximum number of modules per circuit: 1024
- Operating temperature: - 40 °C to 85 °C
- PWM output: 256 signals in shades of grey
- 4-pin Grove interface
- Module dimensions: 40 x 20 mm
- Weight: 11 g
|
The product is compatible with Arduino The manufacturer offers a user manual and library for Arduino. |
Connection

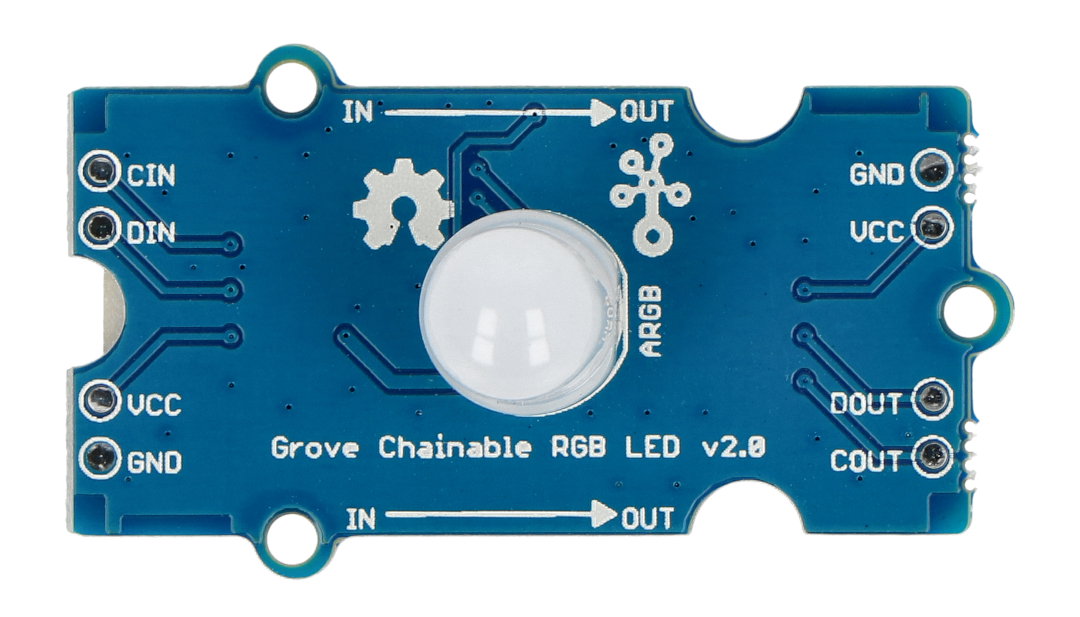

The sensor communicates with the microcontroller through two pins digital. It has the following pins:
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | The supply voltage of 5 V. |
| CIN | Clock signal input. |
| DIN | The data signal at the input. |
| COUT | Clock signal for the next module. |
| DOUT | Data signal for the next module. |
|
Grove is a series of modules and sensors that are compatible with Base Shield boards working with Arduino and STM32 Nucleo. |
