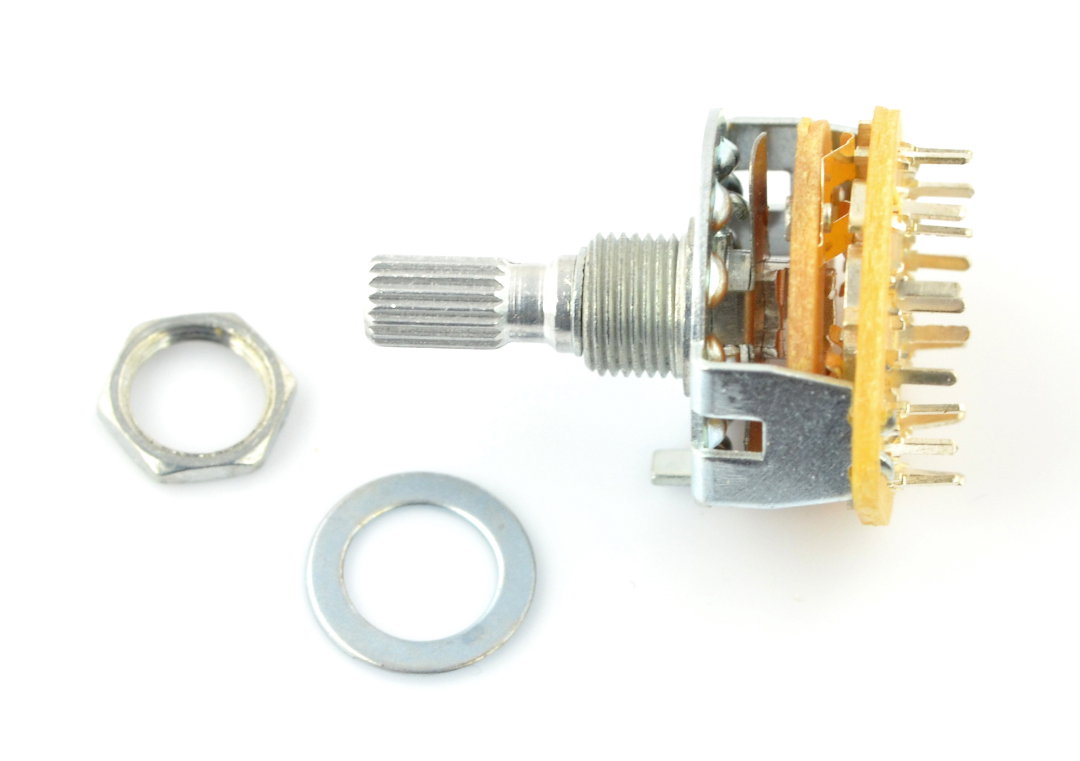

Rotary switch 3-position 4 circuits - 37mm

Index: UCC-06146 EAN: 5904422334376
BOTLAND B. DERKACZ SPÓŁKA JAWNA Opinie z ekomi-pl.com

Rotary switch, 3-state for the case, equipped with 16 contacts. The total height is 37 mm.

€1.06
€0.86 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment

Volume discounts

Quantity Discount You Save
5 5% Up to €0.27

Description of Rotary switch 3-position 4 circuits - 37mm

Rotary switch, 3-state for the case, equipped with 16 contacts. The total height is 37 mm.

 Rotary switch 3-position 4 circuits - 37mm

Specification: Przełącznik obrotowy 3-pozycje 4 obwody - 37mm

  • Type: rotary, 3-state
  • Number of circuits: 4
  • Number of pins: 16
  • Electrical parameters:
    • 0.3 A / 125 V AC
    • 1 A / 30 V DC
  • Contact resistance: 25 mΩ
  • Service life: 10,000 switching
  • The one position rotation angle: 30 °
  • The mounting thread: M10 x 0.75
  • The switch is not closed at the time of switching
  • Included is the pad and nut (in our offer, you will find also 6 mm shields)
  • Thread diameter of the axis: approx. 6 mm
  • Height: 37 mm







Switch - type2 bistable
Switch - type rotary 3x
Switch - shape round
Switch - backlight no
Colour orange
Diameter 6.0 mm
Height 37 mm
