Rotary switch 4-position 3 circuits - 60mm

Index: UCC-06153 EAN: 5904422374907

Rotary switch, 6-state for the case, equipped with 15 contacts. The total height is 60 mm.

Rotary switch 4-position 3 circuits - 60mm
€2.90
€2.36 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Description: Rotary switch 4-position 3 circuits - 60mm

Rotary switch, 6-state for the case, equipped with 15 contacts. The total height is 60 mm.

 Rotary switch 4-position 3 circuits - 60mm

Specification: Rotary switch 4-position 3 circuits - 60mm

  • Type: rotary, 6-state
  • Number of circuits: 2
  • Number of pins: 14
  • Electrical parameters:
    • 0.3 A / 125 V AC
    • 1 A / 30 V DC
  • Contact resistance: 25 mΩ
  • Service life: 10,000 switching
  • The one position rotation angle: 30 °
  • The mounting thread: M10 x 0.75
  • The switch is not shorted at the time of switching
  • Method of mounting: for mounting in case with bolt ends for soldering the cable

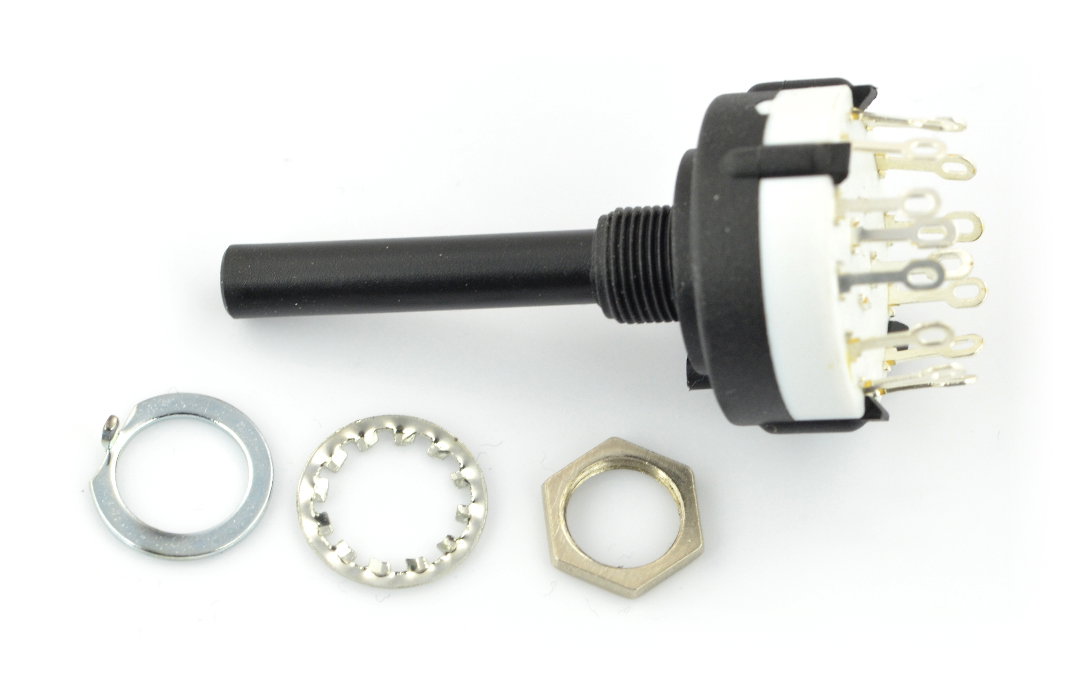

  • Included is the pad and nut, and nut for establishing the rotation angle (number of positions)
  • Length of axis: 30 mm
  • Thread diameter of the axis: approx. 6 mm (in our offer, you will find also shield of 6 mm)
  • Height: 60 mm







Switch - type2 bistable
Switch - type rotary 4x
Switch - shape round
Switch - backlight no
Colour white
Diameter 6.0 mm
Length 30 mm
Height 60 mm
Package width 6 cm
Package height 2.5 cm
Package depth 10 cm
Package weight 0.011 kg
