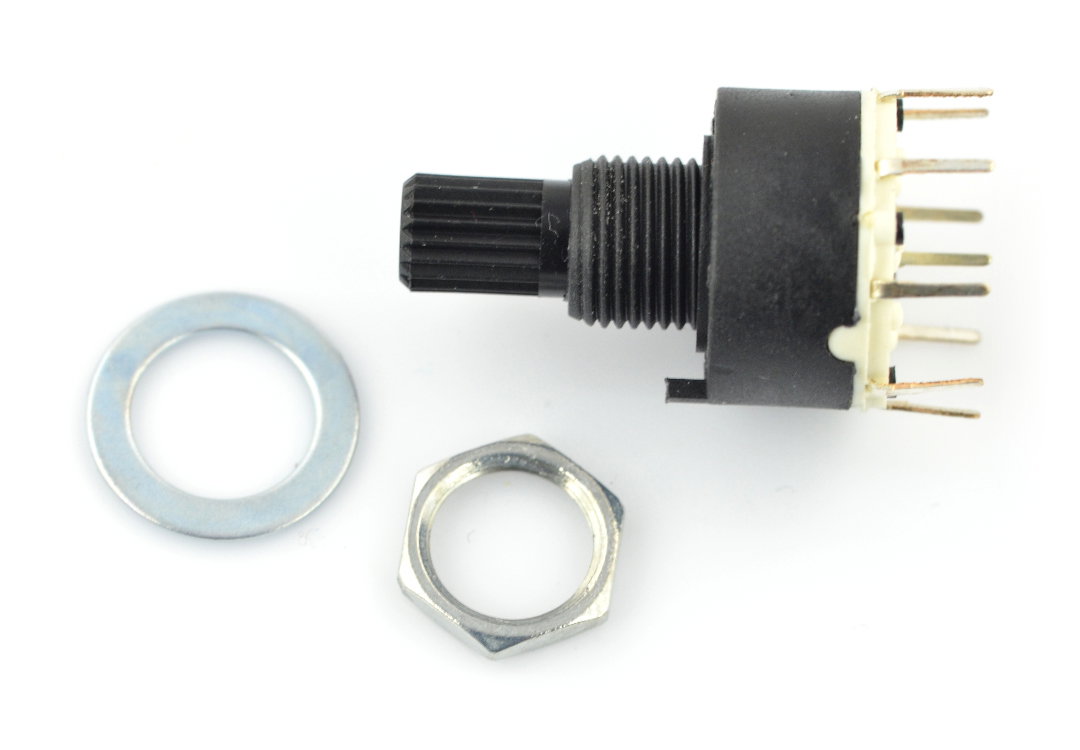

Rotary switch 6-position 1 circuit - 30mm

Index: UCC-06161 EAN: 5904422334413

Rotary switch, 6-state for the case, equipped with 9 contacts. The total height is 29.5 mm.

Rotary switch 6-position 1 circuit - 30mm
€2.90
€2.36 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Description: Rotary switch 6-position 1 circuit - 30mm

Rotary switch, 6-state for the case, equipped with 9 contacts. The total height is 29.5 mm.

Rotary switch 6-position 1 circuit - 30mm

Specification: Rotary switch 6-position 1 circuit - 30mm

  • Type: rotary, 6-state
  • Number of circuits: 1
  • Number of pins: 9
  • Electrical parameters:
    • 0,3 A / 60 V DC
  • Contact resistance: 100mΩ
  • Service life: 10,000 switching
  • The switch is not shorted when switching
  • Mounting diameter: 16 mm
  • The length of the axis: 15 mm
  • Thread diameter of the axis: approx. 6 mm (in our offer, you will find also shields of 6 mm)
  • Height: 29.5 mm



Details intechnical documentation.







Switch - type2 bistable
Switch - type rotary 6x
Switch - shape round
Switch - backlight no
Colour white
Diameter 6.0 mm
Length 15 mm
Height 29.5 mm
Package width 5 cm
Package height 1.5 cm
Package depth 3.5 cm
Package weight 0.005 kg
