Product description: WiFi antenna with FL / MHF3 / IPEX3 connector - Adafruit 5445
Manufactured by Adafruit WiFi and Bluetooth antenna operating in the frequency band from 2400 MHz to 2700 MHz . On the one hand, it is terminated with an MHF3 / IPEX3 / w.FL connector, and on the other it is attached to a PCB, which allows for convenient mounting of the antenna on another element (eg housing). The energy gain of the antenna is 4 dBi . The length of the antenna measured with the terminals is 220 mm, and the dimensions of the PCB are 32 x 14 x 0.8 mm.
Check also other antennas available in our offer!

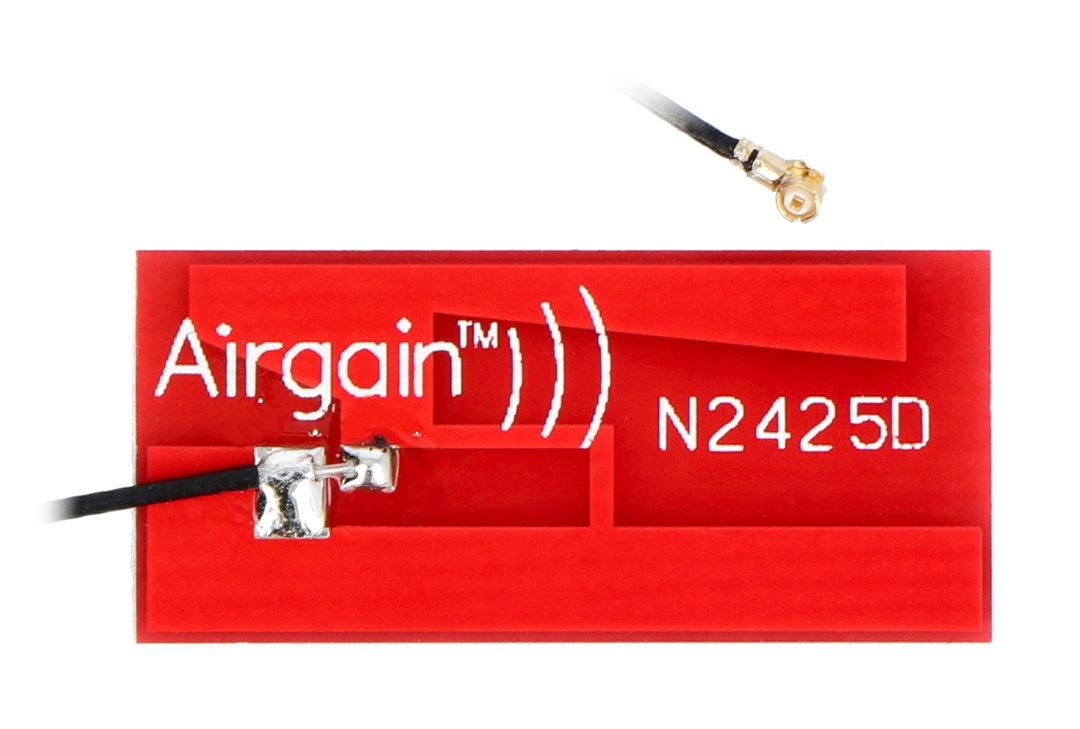

WiFi antenna from Adafruit.

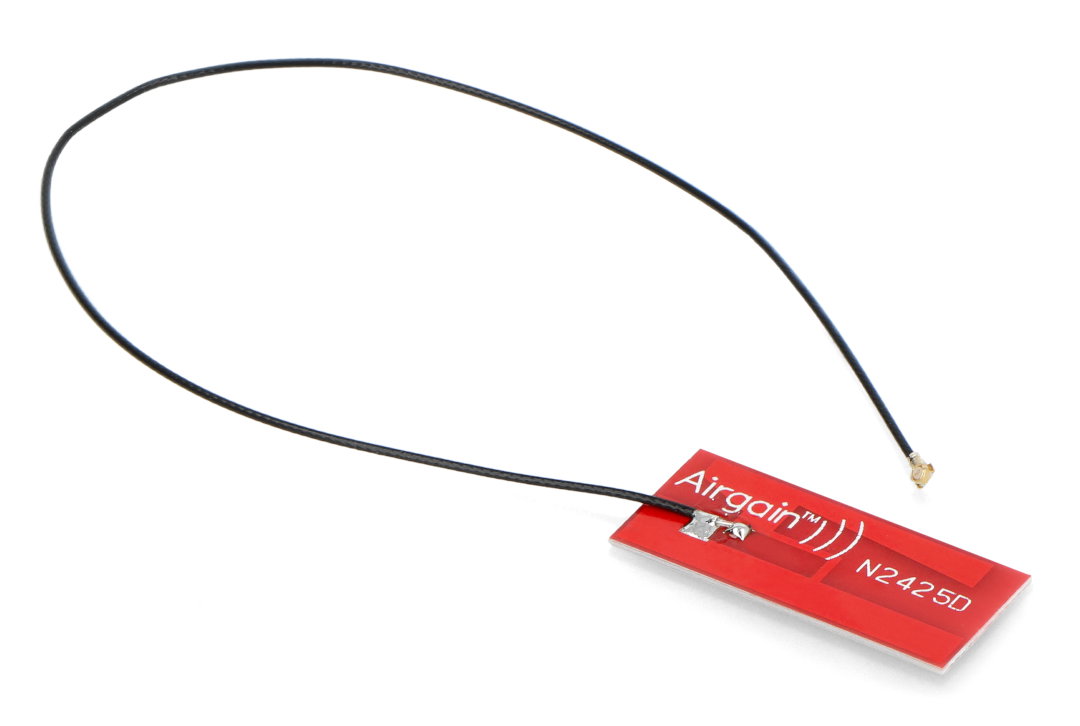

WiFi antenna with FL / MHF3 / IPEX3 connector - Adafruit 5445.
Antenna technical specification
- Antenna type: WiFi, Bluetooth
- Frequency Range: 2400MHz to 2700MHz
- Characteristic Impedance: 50 Ohms
- Radiation type: omnidirectional
- Energy Gain: 4 dBi
- VSWR: <= 2.0
- Connector type: MHF3/IPEX3/w.FL
- PCB dimensions: 32 x 14 x 0.8 mm
- Antenna length (measured with tips): 220 mm
Kit contents
- WiFi antenna with w.FL / MHF3 / IPEX3 connector - Adafruit 5445 - 1 piece
