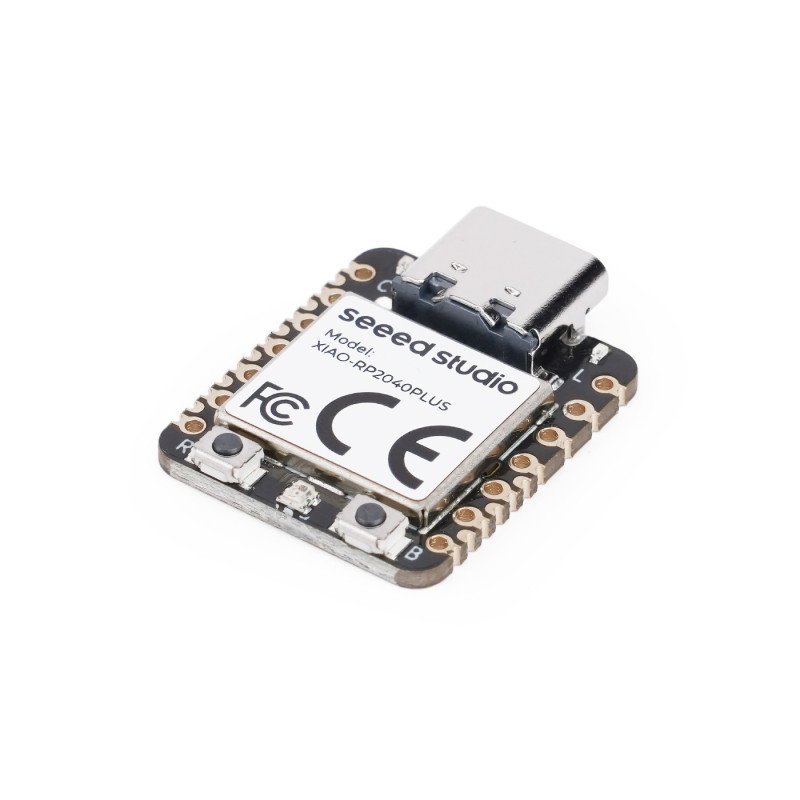

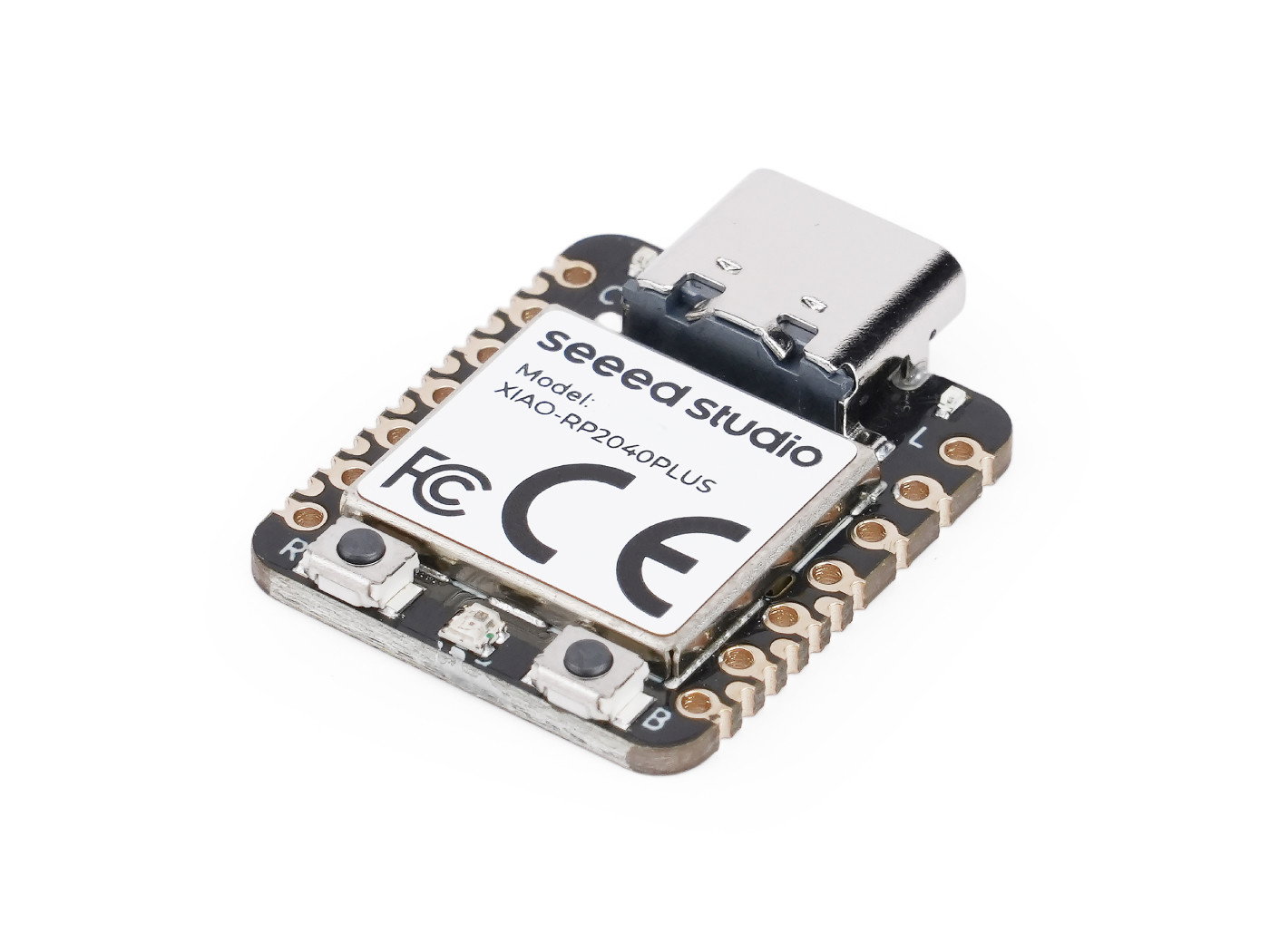

Seeed Xiao RP2040 Plus - 26 GPIO/Li-ion charging - Arduino/MicroPython - Seeedstudio 100059977
XIAO RP2040 with 26 pins instead of 11 and a battery charger: the same RP2040 chip in a 21 x 17.8 mm size.
- 15 additional SMD pads on the bottom of the board
- Li-ion battery charging via USB Type-C
- Arduino, MicroPython, CircuitPython and Rust
We could not load the price.
The promotional price does not combine with quantity discounts.
RP2040 with more pins and battery power
Seeed Studio XIAO RP2040 Plus is a Raspberry Pi RP2040 board that gives you 26 digital pins instead of 11 and charges a Li-ion battery. All of this fits in just 21 x 17.8 mm. Every one of these pins supports PWM, or pulse-width modulation, which you can use to control the brightness of LEDs and the speed of motors, and 4 of them work as analog inputs.
The chip has two Cortex-M0+ cores running at up to 133 MHz, 264 KB SRAM and 2 MB flash, just like the standard XIAO RP2040. You can write programs in Arduino, MicroPython, CircuitPython, TinyGo, Rust or C/C++, and the USB Type-C port is used for power and for uploading code.

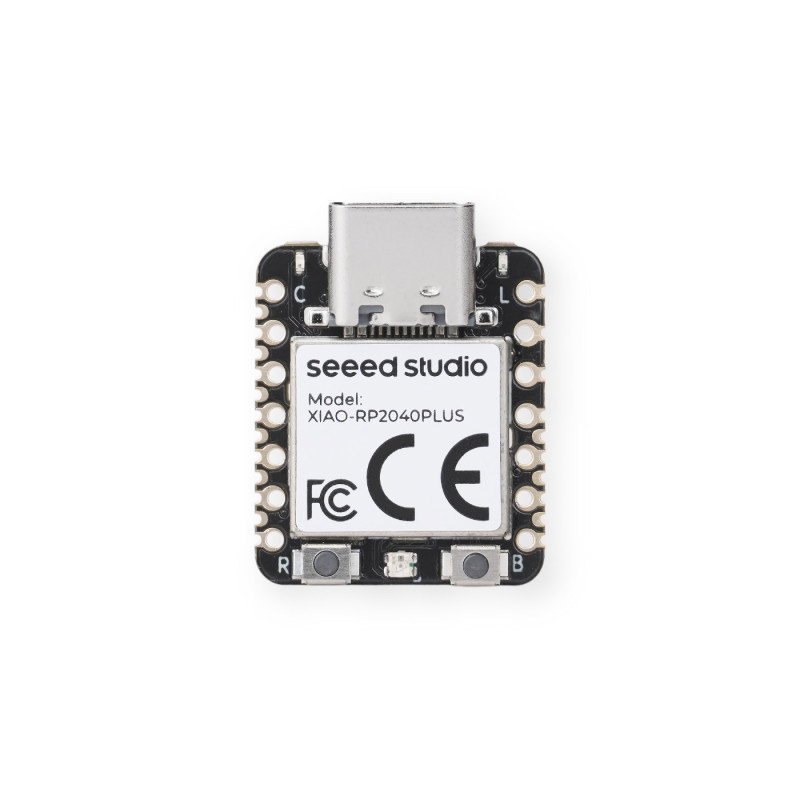

Seeed Studio XIAO RP2040 Plus - top view
26 GPIO
digital pins with PWM (standard XIAO RP2040: 11)
Li-ion
3.7 V battery charging via USB Type-C
2 x 133 MHz
two Cortex-M0+ cores in the RP2040 chip

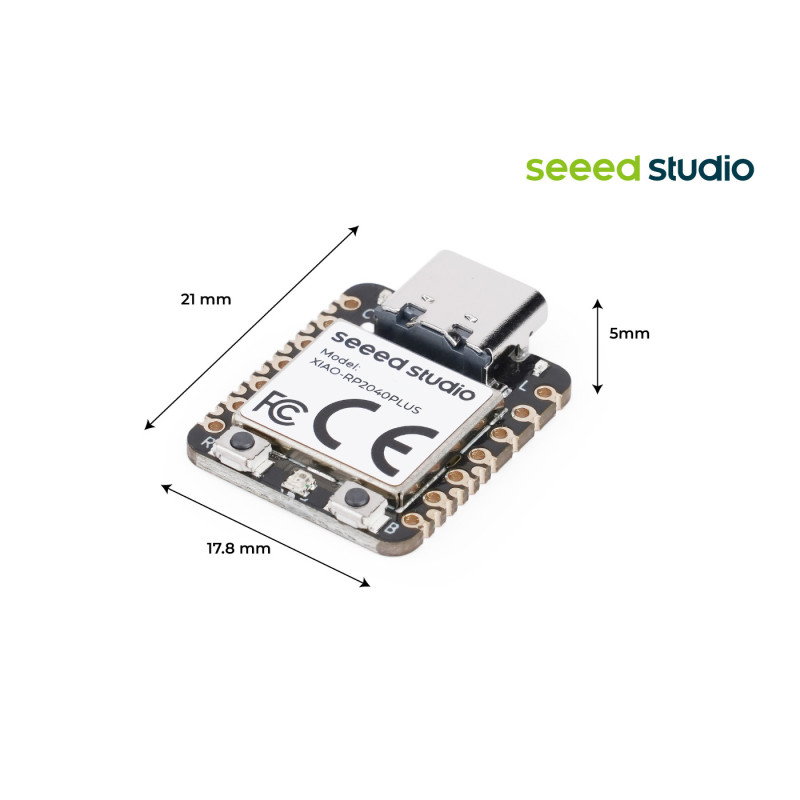

21 x 17.8 mm
board dimensions, the same as every XIAO

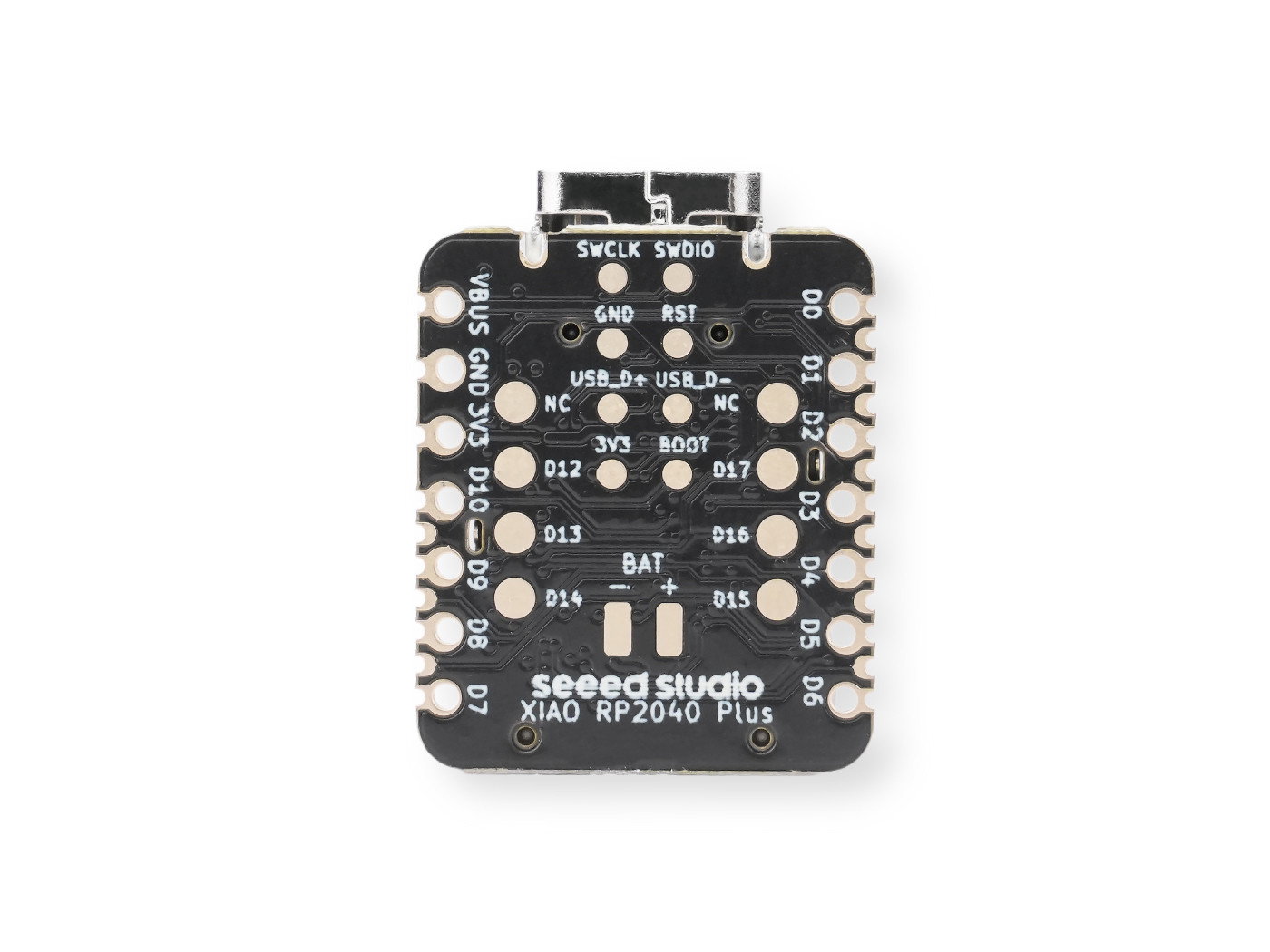

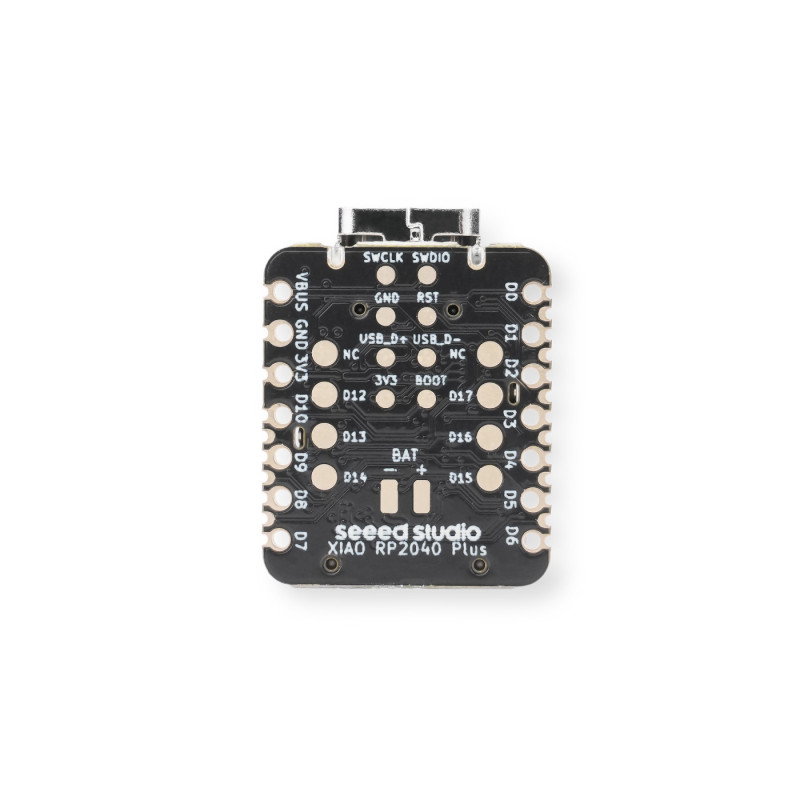

Seeed Studio XIAO RP2040 Plus - bottom view with solder pads

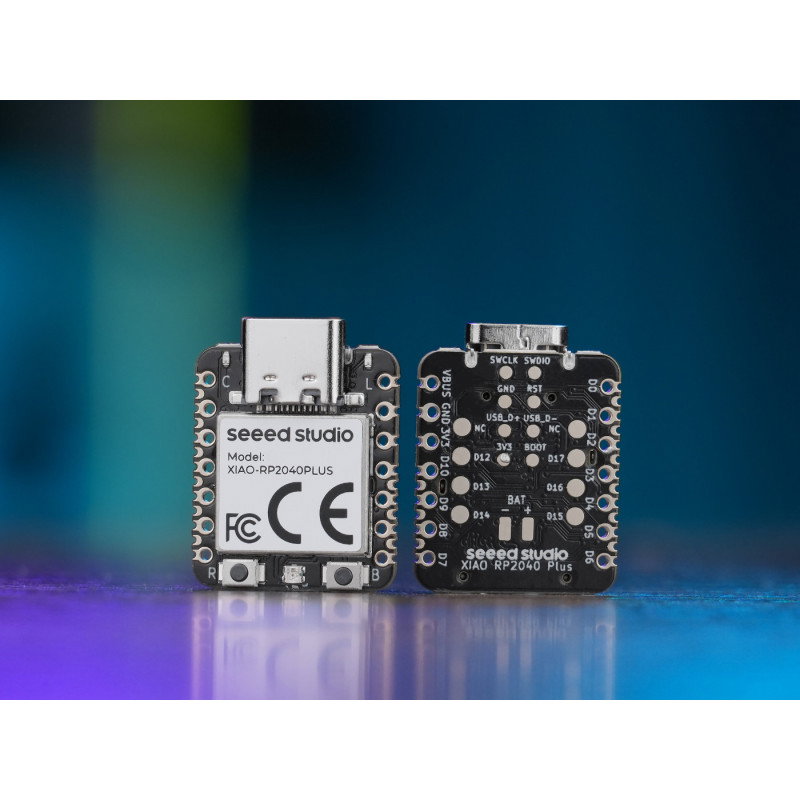

What the Plus version adds
On the front, the board has the same 14-pin XIAO layout with 2.54 mm pitch, so it fits a breadboard and add-on boards such as the XIAO Expansion Board or the Grove Shield for XIAO. On the bottom and sides there are 15 additional SMD pads with 1.27 mm pitch, meaning solder pads that let you solder the XIAO directly onto your own PCB.
The new pads give you access to a second I2C bus, USB D+ and D- signals and the battery pins BAT+, BAT- and BAT_EN. The power management chip (PMIC) charges the battery from USB, an LED indicates charging, and a protection circuit prevents current from the 3V3 line from flowing back into the battery.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Is it the right choice for you?
A good choice if:
- you need more than 11 pins in an XIAO-sized module
- you are building a device powered by a Li-ion battery and want to charge it over USB
- you are designing your own PCB and want to solder the XIAO onto it as a ready-made module
Consider another option if:
- 11 pins and USB power are enough for you: choose the standard XIAO RP2040
- you need WiFi or Bluetooth: see the XIAO ESP32-S3 Plus
XIAO RP2040 Plus vs. standard XIAO RP2040
| XIAO RP2040 Plus | XIAO RP2040 | |
|---|---|---|
| GPIO pins | 26 | 11 |
| Interfaces | 2 x I2C, UART, SPI | I2C, UART, SPI |
| Additional 1.27 mm SMD pads on the bottom | 15 | none |
| Li-ion battery charging | yes | no |
| See | this page | XIAO RP2040 |
Fun fact
Same processor, more pins
Both XIAO RP2040 boards use the same Raspberry Pi RP2040 chip, 264 KB SRAM and 2 MB flash. This gives you the same performance and the same libraries, and the Plus version differs in its pins and battery support.
Source: Seeed Studio Wiki: XIAO RP2040
Frequently asked questions
How do I enter bootloader mode?
Hold down the B (Boot) button and connect the board to your computer. A drive appears in the system and the board waits for a new program, even if the previous upload failed.
How do I read the battery voltage?
Set GPIO24 (BAT_EN) high, read input A3 (GPIO29) and multiply the result by 2. After the measurement, switch BAT_EN off so you do not waste energy. While BAT_EN is on, A3 does not work as a regular input.
Why does the LED turn on when I set the pin to a low state?
The user LEDs on the XIAO RP2040 are turned on by a low state, the opposite of Arduino boards. LOW turns the LED on and HIGH turns it off.

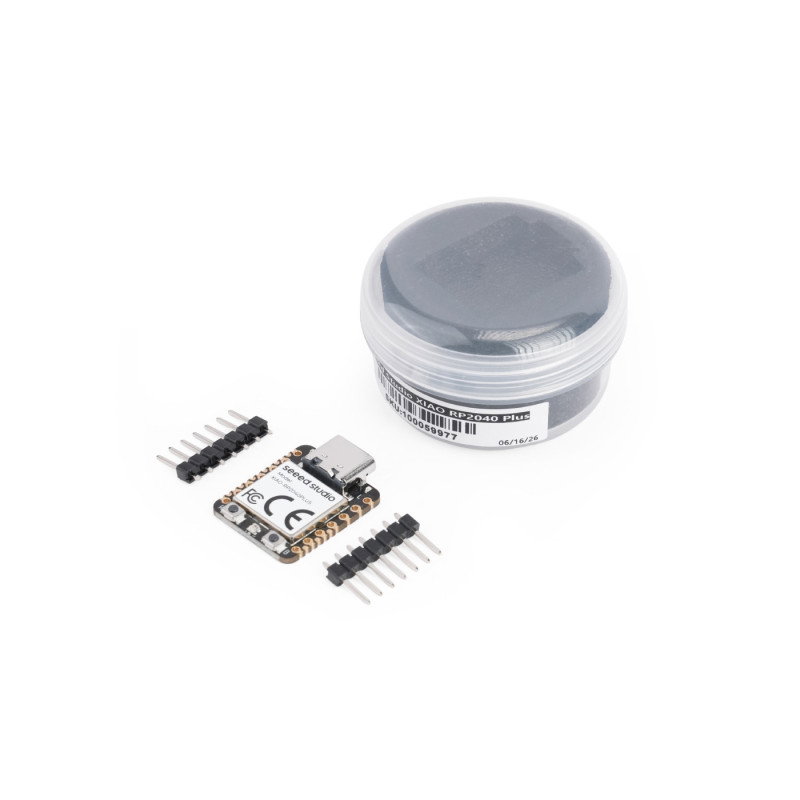

Package contents
- 1 x Seeed Studio XIAO RP2040 Plus board
- 2 x 7-pin gold pin headers
The gold pin headers are not soldered.
Technical specifications
| Parameter | Value |
|---|---|
| Microcontroller | Raspberry Pi RP2040, 2 Arm Cortex-M0+ cores up to 133 MHz, PIO blocks |
| Memory | 264 KB SRAM, 2 MB flash |
| Wireless connectivity | none |
| Pins | 29 GPIO: 14-pin XIAO layout and 15 additional SMD pads; 26 digital pins |
| PWM | 26 pins |
| Analog inputs | 4 (A3 shared with battery voltage measurement) |
| Interfaces | 2 x I2C, UART, SPI, SWD pads, USB D+/D- pads |
| On the board | user LED, charging LED, WS2812B RGB LED, Reset and Boot buttons |
| Battery management | SGM40567 Li-ion charger, BAT-3V3 protection, battery voltage measurement |
| Power supply | USB Type-C 5 V; Li-ion battery 3.7 V via BAT pads |
| USB connector | USB Type-C (USB 1.1 Full-Speed) |
| Software | Arduino, PlatformIO, MicroPython, CircuitPython, TinyGo, Rust, Zephyr, C/C++ SDK |
| Operating temperature | -20 °C to 70 °C |
| Dimensions | 21 x 17.8 x 5 mm |
| Manufacturer code | 100059977 |
| Manufacturer | Seeed Studio |
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller | RP2040 |
| UC - Core | ARM Cortex-M0+ |
| UC - Flash | 2 MB |
| UC - RAM | 264 kB |
| UC - core | 2. Dual Core |
| UC - Digital pins | 26 |
| UC - analog in | 4 |
| UC - freq | 133 MHz |
| UC - A/C | 12-bit |
| UC - USB | USB C |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Weight | 0.01 kg |
