Seeed Xiao ESP32-S3 Plus - WiFi/Bluetooth - 16 MB flash - Arduino/MicroPython - Seeedstudio 102010671
XIAO ESP32-S3 with twice the flash memory and 18 GPIO pins: WiFi and Bluetooth on a 21 x 17.8 mm board.
- 16 MB flash and 8 MB PSRAM
- 9 additional SMD pads and a B2B connector
- U.FL antenna included
We could not load the price.
The promotional price does not combine with quantity discounts.
ESP32-S3 with more memory and additional pins
Seeed Studio XIAO ESP32-S3 Plus is a dual-core ESP32-S3 board with WiFi and Bluetooth, 18 general-purpose pins and 16 MB flash in 21 x 17.8 mm. The two Xtensa LX7 cores run at up to 240 MHz, and 8 MB of PSRAM, meaning additional working memory, holds image and audio buffers and machine learning models.
The board connects over 2.4 GHz WiFi and BLE 5.0, or Bluetooth Low Energy, and an external antenna for the U.FL connector is included. The manufacturer states that with this antenna the range exceeds 100 m. You can program the board in Arduino, MicroPython or ESP-IDF, and it charges a Li-ion battery at 100 mA.

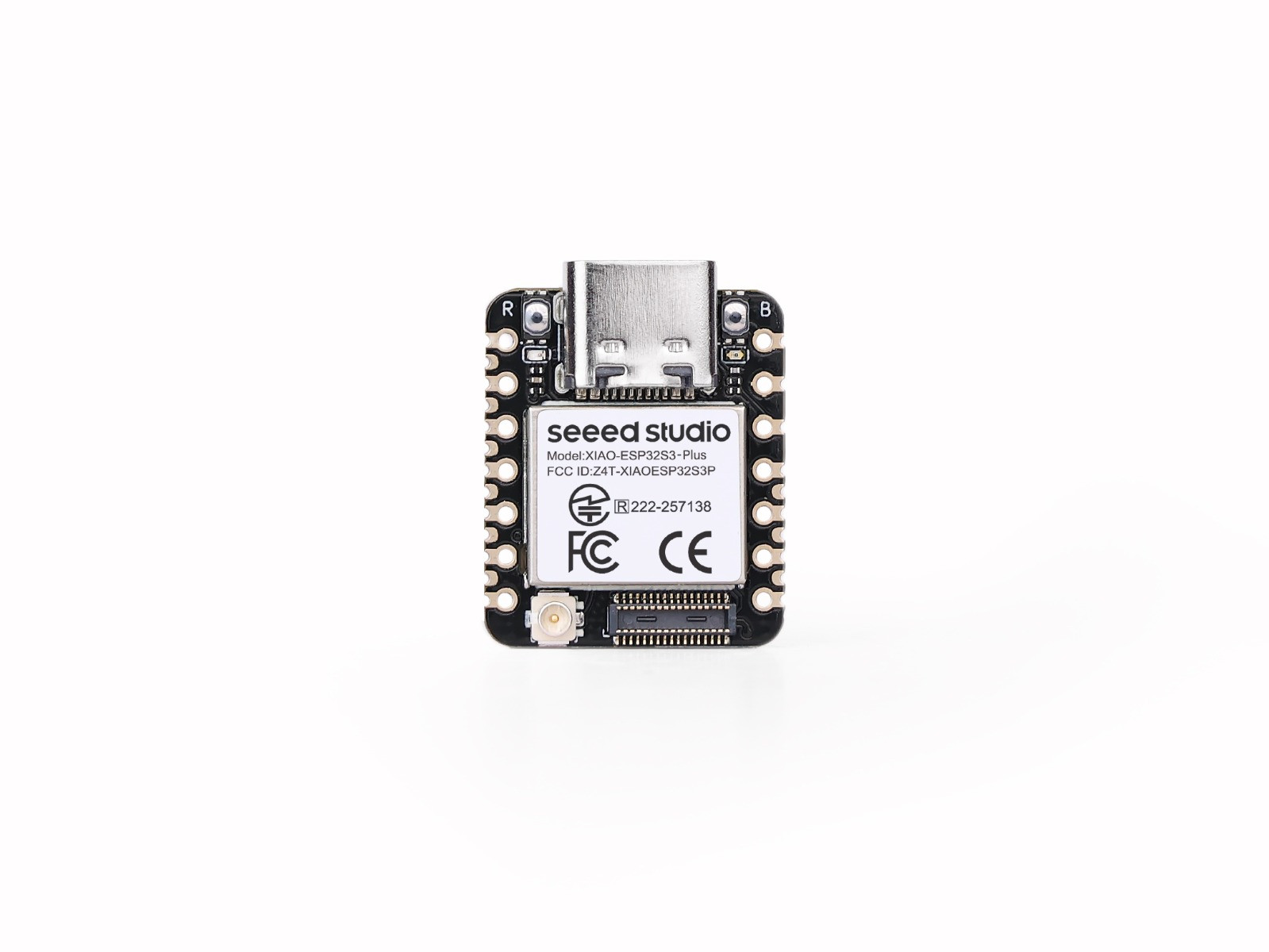

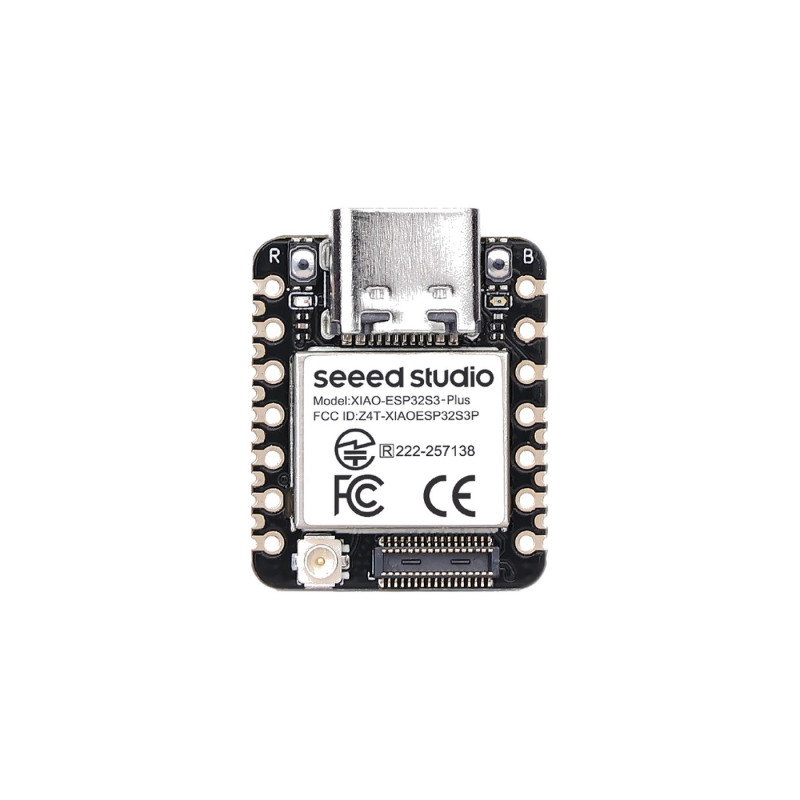

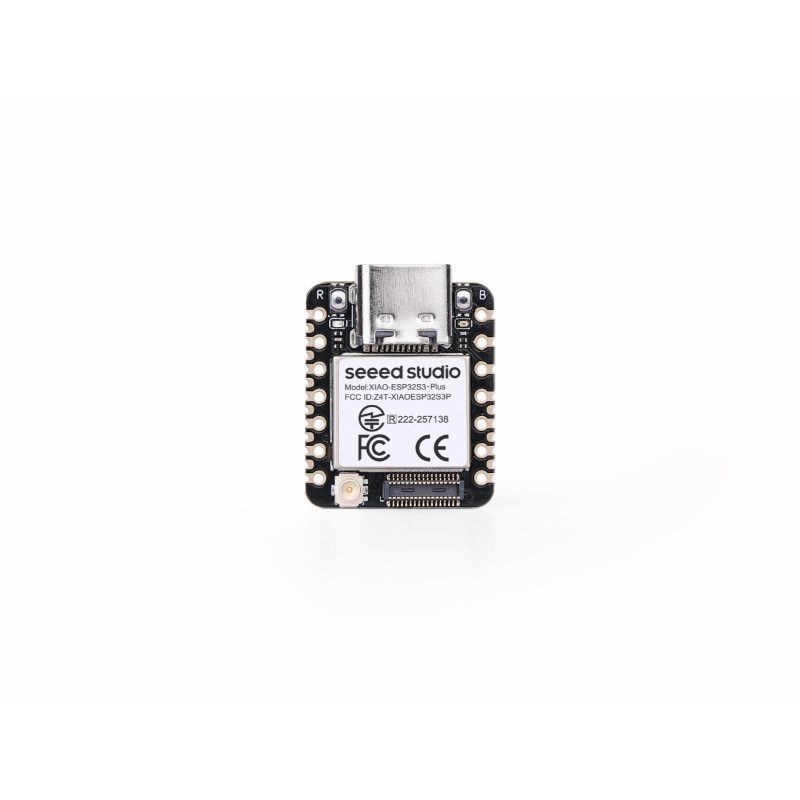

Seeed Studio XIAO ESP32-S3 Plus - top view
16 MB
of flash memory (standard XIAO ESP32-S3: 8 MB)
18 GPIO
pins (standard XIAO ESP32-S3: 11)
WiFi and BLE 5.0
with an external U.FL antenna included
2 x 240 MHz
two Xtensa LX7 cores
What sets this model apart
Twice as much flash memory as the standard XIAO ESP32-S3
The XIAO ESP32-S3 Plus has 16 MB flash, so it holds a larger program, web page files and data logging, and its 9 additional pins give you a second UART, a second SPI and I2S. Keep in mind that in deep sleep it draws 33.51 µA, so for a sensor that has to run for years on a battery, it is better to choose the XIAO nRF54LM20A.
16 MB
of flash memory (standard XIAO ESP32-S3: 8 MB)
18 GPIO
pins (standard XIAO ESP32-S3: 11)
100 mA
fast battery charging current (standard XIAO ESP32-S3: 50 mA)

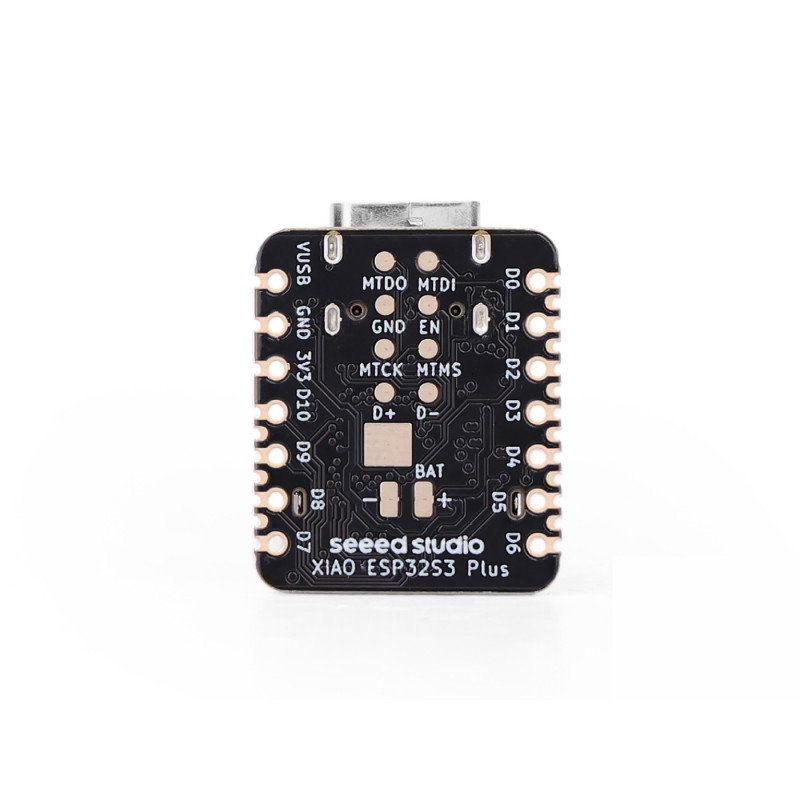

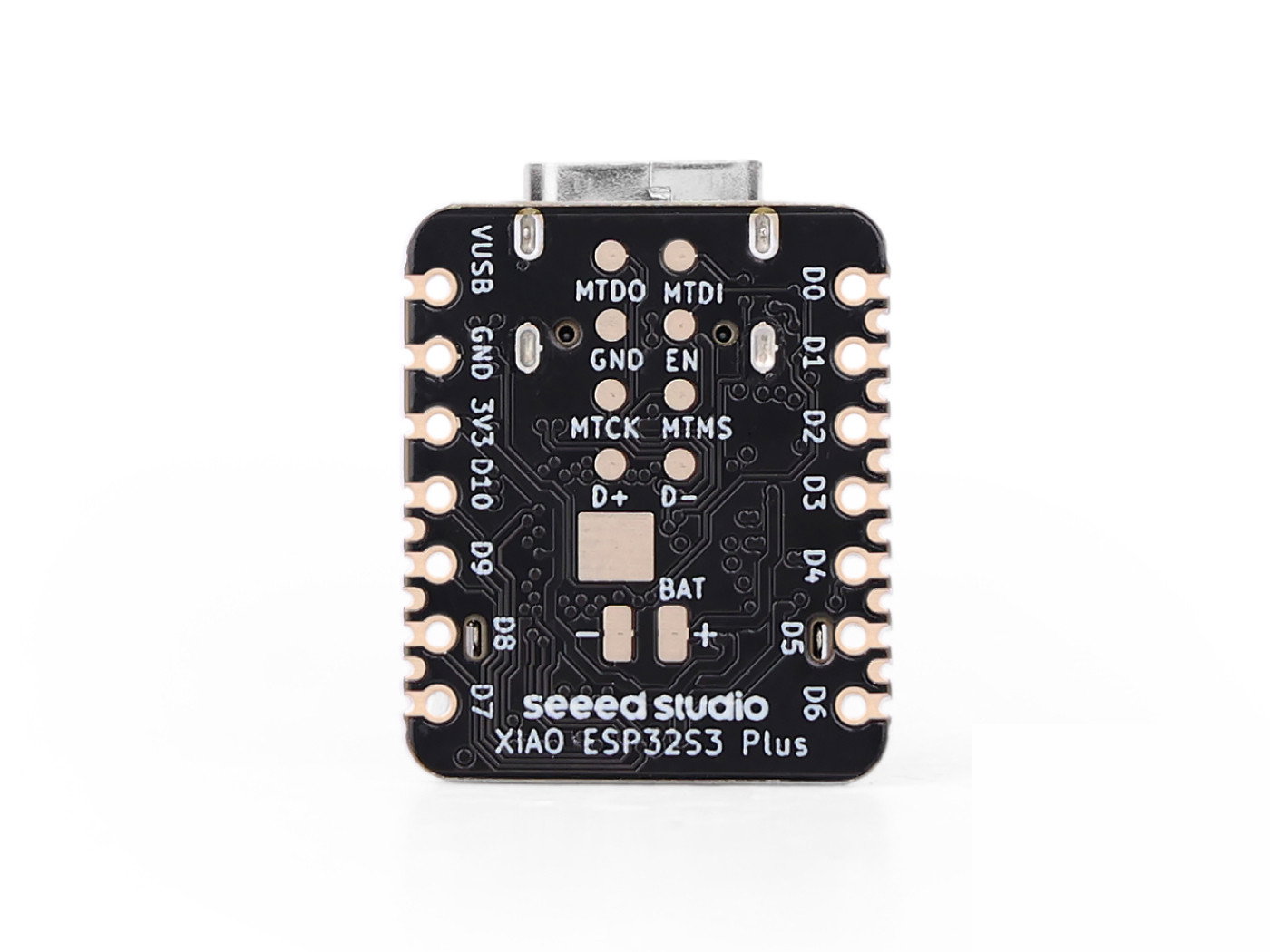

Seeed Studio XIAO ESP32-S3 Plus - bottom view with solder pads
What the Plus version adds
On the edges and the bottom of the board there are 9 additional pins in the form of SMD pads with 1.27 mm pitch, meaning castellated half-holes and solder pads that let you solder the XIAO onto your own PCB. They provide a second UART, a second SPI and I2S, meaning a digital audio interface. The battery pads, JTAG debugger pads and USB D+ and D- signals have the same layout as on other XIAO Plus boards.
The Plus version also has a B2B connector, meaning a socket through which expansion modules connect directly to the board. The front of the board stays unchanged, so the board fits add-on boards such as the XIAO Expansion Board, the Grove Shield for XIAO or the L76K GNSS module for XIAO.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Is it the right choice for you?
A good choice if:
- you need WiFi and Bluetooth and more than 11 pins in an XIAO-sized module
- your program, files or data logging do not fit in 8 MB of flash
- you are designing your own PCB and want to solder the XIAO onto it as a ready-made module
Consider another option if:
- 11 pins and 8 MB of flash are enough for you: choose the standard XIAO ESP32-S3
- the device has to run for years on a battery and Bluetooth is enough for you: see the XIAO nRF54LM20A
XIAO ESP32-S3 Plus vs. standard XIAO ESP32-S3
| XIAO ESP32-S3 Plus | XIAO ESP32-S3 | |
|---|---|---|
| Memory | 8 MB PSRAM, 16 MB flash | 8 MB PSRAM, 8 MB flash |
| GPIO pins | 18 | 11 |
| Interfaces | 2 x UART, 2 x SPI, I2C, I2S, B2B connector | UART, I2C, SPI |
| Additional 1.27 mm SMD pads on the bottom | 9 | none |
| Li-ion battery charging | yes, 100 mA | yes, 50 mA |
| Deep sleep current consumption | 33.51 µA | 14 µA |
| See | this page | XIAO ESP32-S3 |
XIAO Plus family comparison
| XIAO ESP32-S3 Plus | XIAO nRF52840 Sense Plus | XIAO RP2040 Plus | XIAO SAMD21 Plus | |
|---|---|---|---|---|
| Chip | ESP32-S3R8, 2 x Xtensa LX7 240 MHz | nRF52840, Cortex-M4F 64 MHz | RP2040, 2 x Cortex-M0+ 133 MHz | SAMD21G18, Cortex-M0+ 48 MHz |
| Memory | 8 MB PSRAM, 16 MB flash | 256 KB RAM, 1 MB + 2 MB flash | 264 KB SRAM, 2 MB flash | 32 KB SRAM, 256 KB flash |
| Wireless connectivity | WiFi 2.4 GHz, BLE 5.0 | BLE 5.4, Bluetooth Mesh, NFC | none | none |
| Sensors | none | motion sensor (IMU), microphone | none | none |
| GPIO pins | 18 | 20 | 26 | 27 |
| Analog inputs | 9 | 6 | 4 | 11 and DAC output |
| Interfaces | 2 x UART, 2 x SPI, I2C, I2S, B2B connector | 2 x UART, 2 x SPI, I2C, I2S, NFC | 2 x I2C, UART, SPI | 2 x I2C, UART, SPI, I2S |
| Additional 1.27 mm SMD pads on the bottom | 9 | 9 | 15 | 16 |
| Li-ion battery charging | yes, 100 mA | yes, 50 or 100 mA | yes | yes, about 200 mA |
| See | this page | XIAO nRF52840 Sense Plus | XIAO RP2040 Plus | XIAO SAMD21 Plus |
Fun fact
Over 100 m of range from a thumb-sized board
The manufacturer states that the XIAO ESP32-S3 Plus with the included U.FL antenna connects over a distance of more than 100 m. The antenna is included, and you plug it into the miniature socket on the board.
Source: Seeed Studio: XIAO ESP32-S3 Plus
Frequently asked questions
Is the camera from the Sense version compatible with this board?
No. The B2B connector on the XIAO ESP32-S3 Plus does not work with the camera module from the XIAO ESP32-S3 Sense, and the board has no microSD card slot either.
How do I connect a battery?
Solder a 3.7 V Li-ion battery to the BAT pads on the bottom of the board. The red LED blinks while charging and goes off when the battery is full.
How much current does the board draw in deep sleep mode?
At a 3.8 V supply, the board draws 33.51 µA in deep sleep, 2.45 mA in light sleep and about 81 mA with WiFi active.

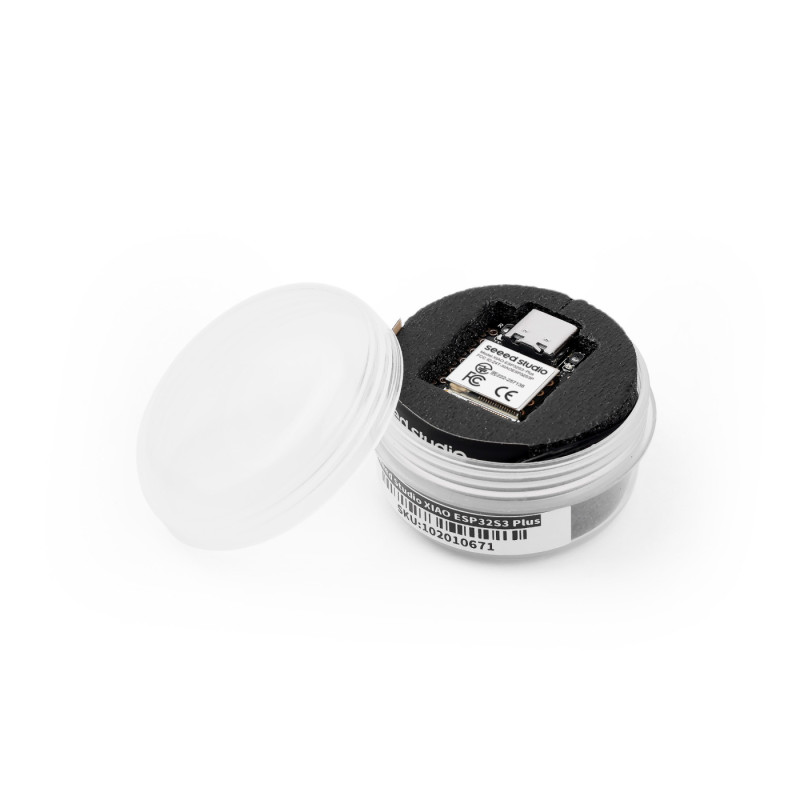

Package contents

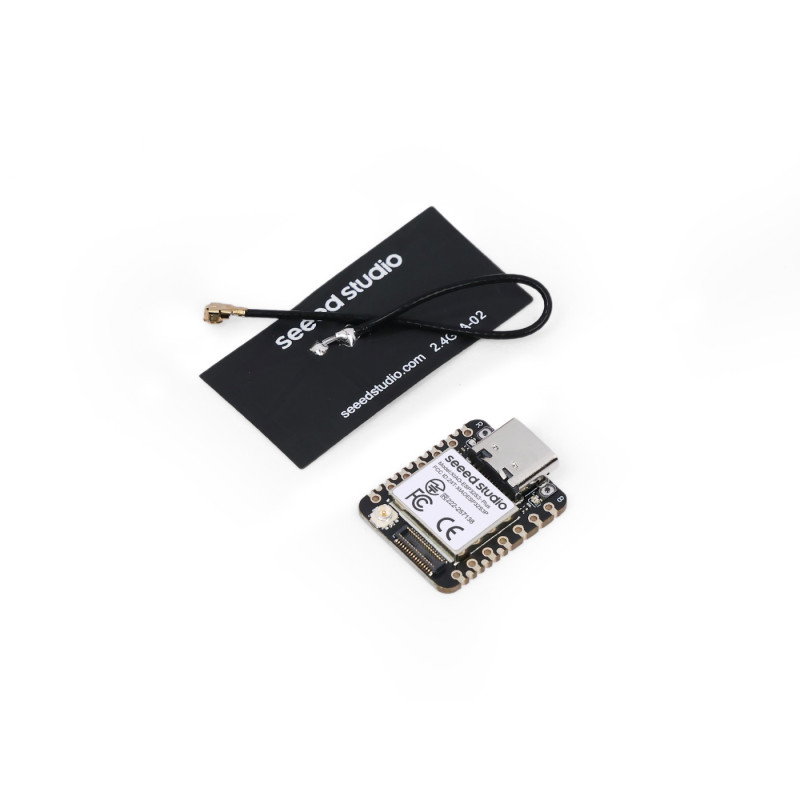

- 1 x Seeed Studio XIAO ESP32-S3 Plus board
- 1 x 2.4 GHz antenna for U.FL connector
- 2 x 7-pin gold pin headers
The gold pin headers are not soldered.
Technical specifications
| Parameter | Value |
|---|---|
| Microcontroller | ESP32-S3R8, 2 x 32-bit Xtensa LX7 cores up to 240 MHz |
| Memory | 8 MB PSRAM, 16 MB flash |
| Wireless connectivity | WiFi 2.4 GHz, Bluetooth Low Energy 5.0, Bluetooth Mesh |
| Antenna | external for U.FL connector, included; range over 100 m according to the manufacturer |
| Pins | 18 GPIO with PWM, including 9 additional 1.27 mm SMD pads |
| Analog inputs | 9 |
| Interfaces | 2 x UART, I2C, I2S, 2 x SPI, B2B connector, JTAG pads |
| On the board | user LED, charging LED, Reset and Boot buttons |
| Battery charging | 100 mA fast, 0.9 mA trickle |
| Current consumption | operation 28 mA (USB 5 V), 35 mA (3.8 V battery); WiFi 81 mA; BLE 101 mA |
| Sleep modes (3.8 V) | Modem-sleep 31.6 mA, Light-sleep 2.45 mA, Deep sleep 33.51 µA |
| 3V3 output | up to 700 mA |
| Power supply | USB Type-C 5 V; Li-ion battery 3.7 V via BAT pads |
| Software | Arduino, MicroPython, ESP-IDF |
| Operating temperature | -20 °C to 65 °C |

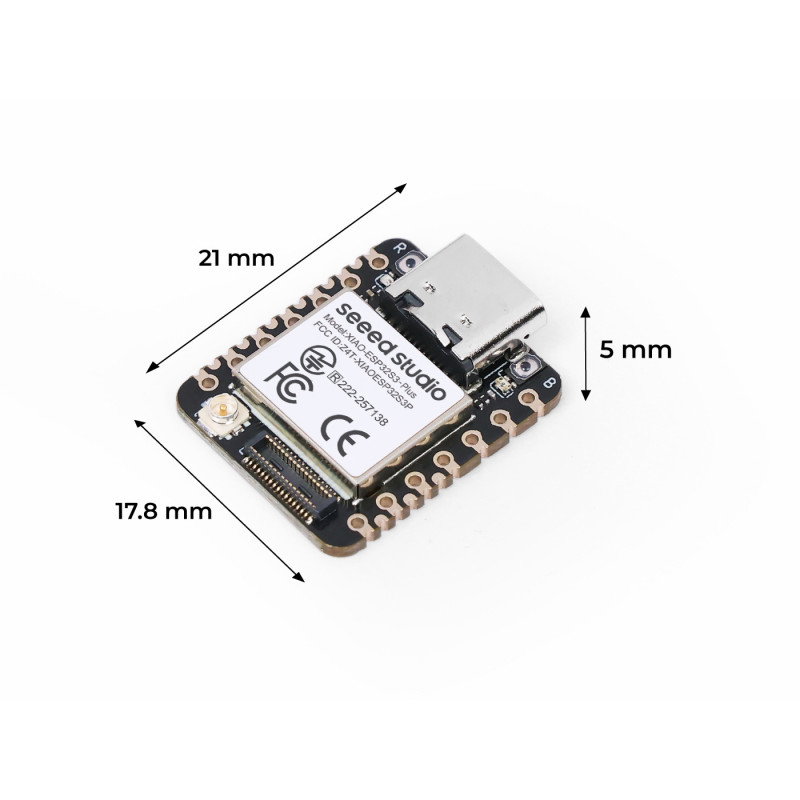

| Dimensions | 21 x 17.8 x 5 mm |
| Manufacturer code | 102010671 |
| Manufacturer | Seeed Studio |
Useful links
| Name | Value |
|---|---|
| UC - Microcontroller |
|
| UC - Core | Tensilica Xtensa LX7 |
| UC - Flash | 16 MB |
| UC - RAM | 8 MB |
| UC - core | 2. Dual Core |
| UC - Digital pins | 14 |
| UC - analog in | 9 |
| UC - freq | 240 MHz |
| UC - A/C | 12-bit |
| UC - WiFi | yes |
| UC - USB | USB C |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - Connector | USB typ C |
| UC - SPI interface | yes |
| Communication |
|
| Width | 4.5 cm |
| Height | 2.5 cm |
| Depth | 2.5 cm |
| Weight | 0.01 kg |
