Seeed Xiao nRF54LM20A - BLE 6.0/Thread/ZigBee/Matter/NFC - Seeedstudio 100023651
Bluetooth 6.0, Thread and Matter in an XIAO board that draws 4.76 µA in sleep: the Nordic nRF54LM20A chip in 21 x 17.8 mm.
- 28 GPIO pins and 9 analog inputs
- 512 KB RAM and 8 MB flash
- 2.4 GHz FPC antenna included
We could not load the price.
The promotional price does not combine with quantity discounts.
Bluetooth 6.0 and smart home networks in an XIAO board
Seeed Studio XIAO nRF54LM20A is a board with a Nordic nRF54LM20A chip that supports Bluetooth LE 6.0, Thread, Zigbee and Matter and draws about 4.76 µA in sleep. Thread, Zigbee and Matter are smart home network protocols, so you can build a sensor on this board that works with gateways and automation systems.
Bluetooth 6.0 supports Channel Sounding, meaning distance measurement between Bluetooth devices, and NFC, meaning near-field communication, lets you pair a device, for example, by touching it with a compatible phone. The 128 MHz Cortex-M33 core works together with a RISC-V coprocessor, you get 512 KB RAM, 2 MB of non-volatile NVM memory and 8 MB flash, and you can program the board in the nRF Connect SDK, Zephyr or PlatformIO.

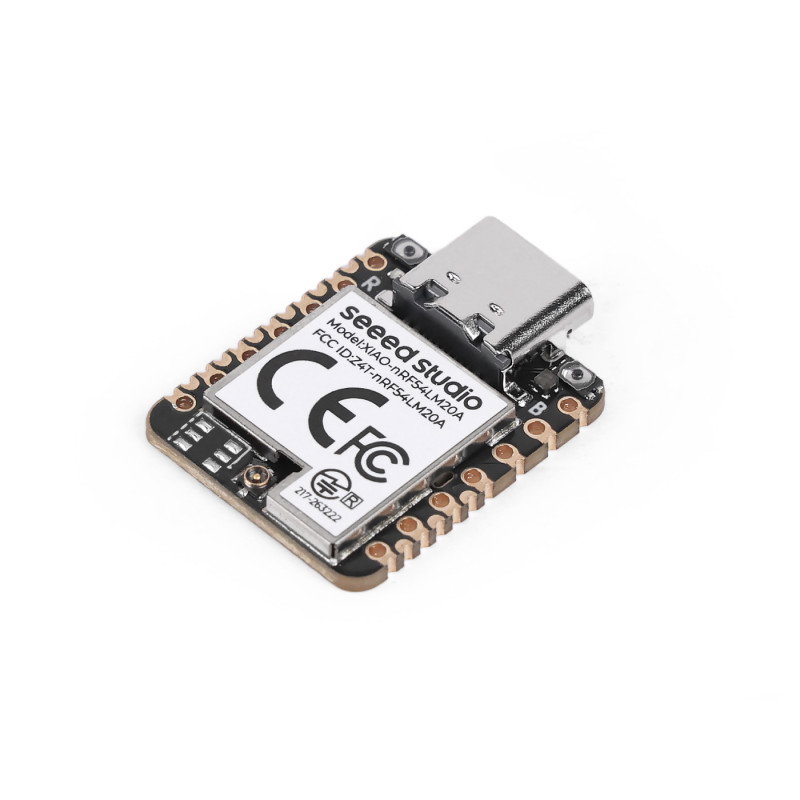

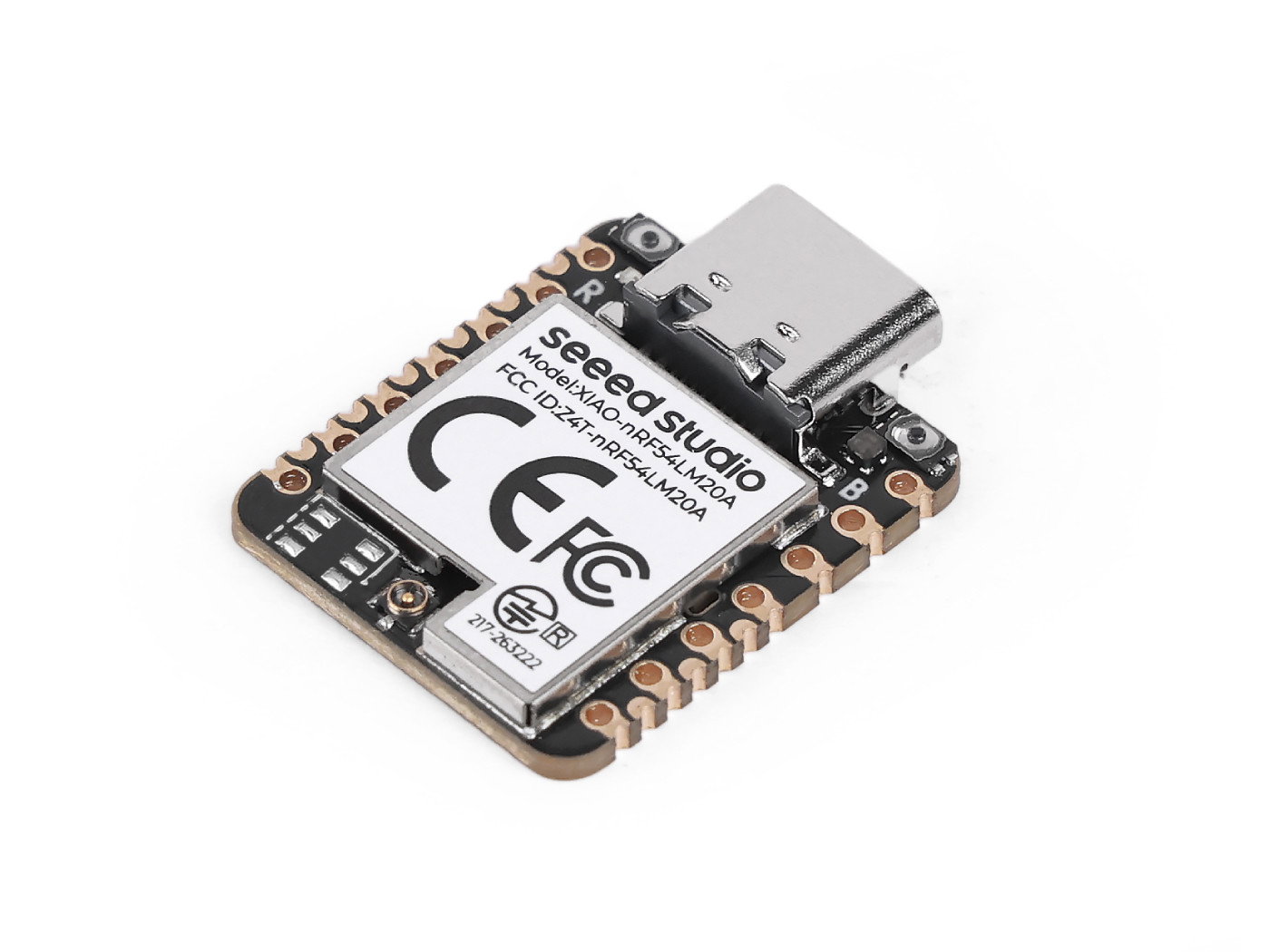

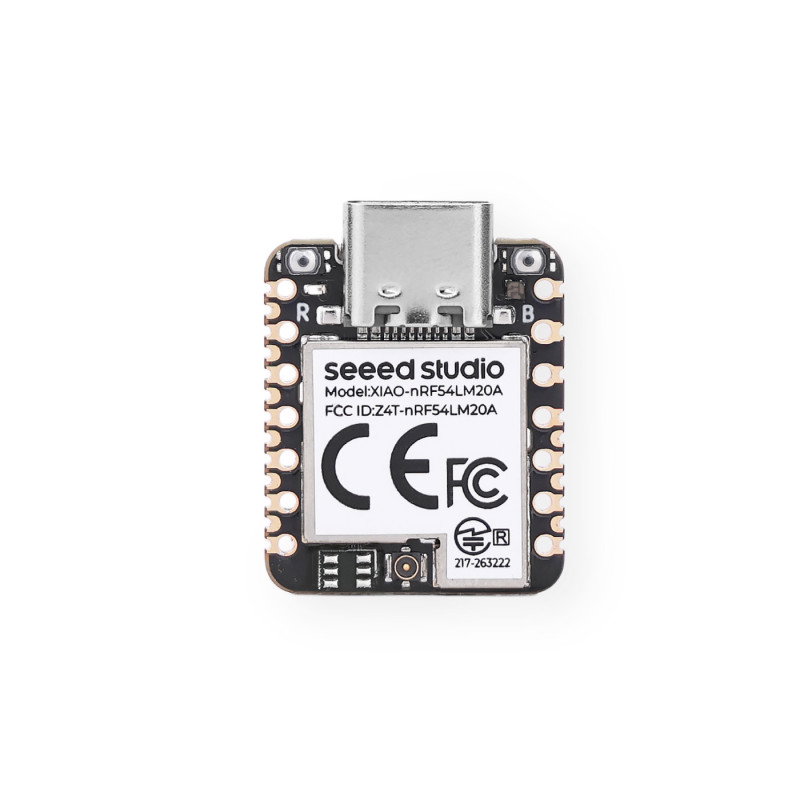

Seeed Studio XIAO nRF54LM20A - top view
BLE 6.0
Bluetooth LE with Channel Sounding plus Thread, Zigbee and Matter
28 GPIO
pins on the edges and the bottom of the board
4.76 µA
current consumption in System OFF mode on a 3.7 V battery
512 KB
of RAM and 8 MB of flash on the board

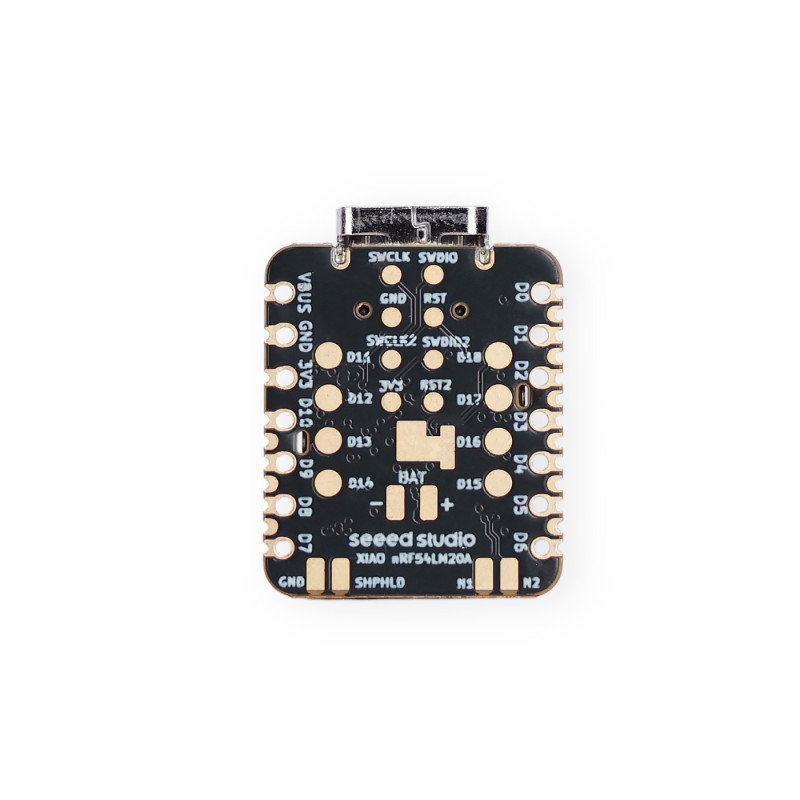

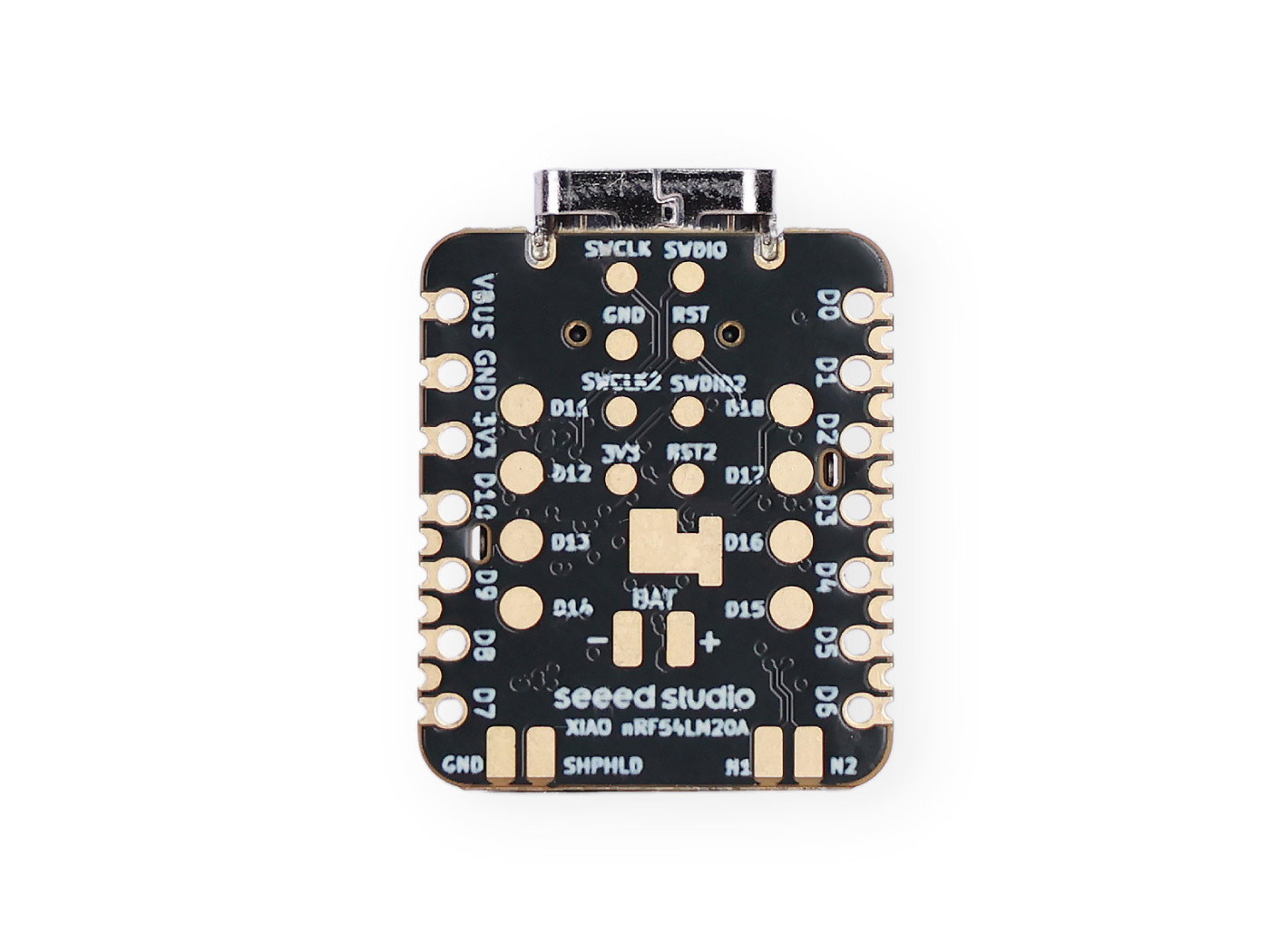

Seeed Studio XIAO nRF54LM20A - bottom view with solder pads
Pins like on an XIAO Plus from the very first version
The XIAO nRF54LM20A has no separate Plus version, because it has the additional pads from the start: on the bottom of the board there are pins D11-D18, a second SWD pair for debugging, NFC antenna contacts and the SHPHLD pin for ship mode, meaning a minimum-power mode for storage. Together with the 14-pin XIAO layout on the front, this gives you 28 GPIO pins, meaning general-purpose input and output pins.
Power is managed by the Nordic nPM1300 chip: it charges the Li-ion battery from USB Type-C, regulates the voltage and measures the battery status over I2C. The front of the board has the standard XIAO layout, so you can connect Grove sensors through the Grove Shield for XIAO or the XIAO Expansion Board.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Is it the right choice for you?
A good choice if:
- you are building a battery-powered sensor that has to run for months without charging
- you are creating a device for a Thread, Zigbee or Matter network
- you want to try Channel Sounding with Bluetooth 6.0
Consider another option if:
- you need a motion sensor and a microphone: choose the XIAO nRF54LM20A Sense
- you want to program in MicroPython or CircuitPython: see the XIAO nRF52840 Sense Plus
Comparison of XIAO boards with Bluetooth
| XIAO nRF54LM20A | XIAO nRF54LM20A Sense | XIAO nRF52840 Sense | |
|---|---|---|---|
| Chip | nRF54LM20A, Cortex-M33 128 MHz + RISC-V 128 MHz | nRF54LM20A, Cortex-M33 128 MHz + RISC-V 128 MHz | nRF52840, Cortex-M4F 64 MHz |
| Memory | 512 KB RAM, 2 MB NVM + 8 MB flash | 512 KB RAM, 2 MB NVM + 8 MB flash | 256 KB RAM, 1 MB + 2 MB flash |
| Wireless connectivity | BLE 6.0, Thread, Zigbee, Matter, NFC | BLE 6.0, Thread, Zigbee, Matter, NFC | BLE 5.4, Bluetooth Mesh, NFC |
| Antenna | external IPEX4, included | external IPEX4, included | built-in |
| Sensors | none | motion sensor (IMU), microphone | motion sensor (IMU), microphone |
| GPIO pins | 28 | 28 | 11 |
| Analog inputs | 9 | 9 | 6 |
| Li-ion battery charging | yes, nPM1300 PMIC | yes, nPM1300 PMIC | yes, 50 or 100 mA |
| Deep sleep current consumption | 4.76 µA | 4.76 µA | below 5 µA |
| See | this page | XIAO nRF54LM20A Sense | XIAO nRF52840 Sense |
Fun fact
0.33 µA in ship mode
The nPM1300 chip has a ship mode in which the board draws only 0.33 µA from the battery. That is more than 14 times less than in System OFF mode, where consumption is about 4.76 µA, so a battery-powered device can wait in a warehouse for a long time.
Source: Seeed Studio: XIAO nRF54LM20A
Frequently asked questions
Do I need to attach the antenna?
Yes, the manufacturer recommends attaching it. The board uses an external antenna on the IPEX4 connector, and a 2.4 GHz FPC antenna is included.
What can I program this board in?
The manufacturer supports the nRF Connect SDK with the Zephyr system and PlatformIO with the platform-seeedboards platform. You can write Arduino-style programs using the nrf54-arduino-core.
Can I connect a Li-ion battery?
Yes. Solder a 3.7 V battery to the BAT pads. Charging and battery status measurement are handled by the nPM1300 chip, and you read its data over I2C.
Package contents

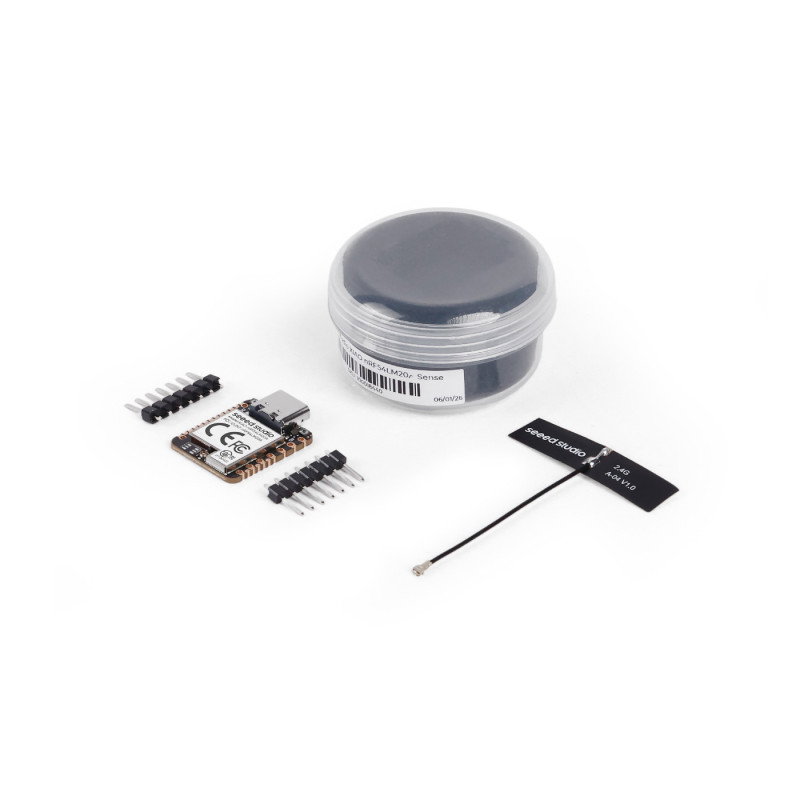

- 1 x Seeed Studio XIAO nRF54LM20A board
- 1 x A-04 2.4 GHz FPC antenna for IPEX4 connector
- 2 x 7-pin gold pin headers
The gold pin headers are not soldered.
Technical specifications
| Parameter | Value |
|---|---|
| Microcontroller | Nordic nRF54LM20A: Arm Cortex-M33 128 MHz and RISC-V 128 MHz coprocessor |
| Memory | 512 KB RAM, 2 MB NVM in the chip, 8 MB flash on the board |
| Wireless connectivity | Bluetooth LE 6.0 with Channel Sounding, Bluetooth Mesh, NFC, Thread, Zigbee, Matter, Amazon Sidewalk, proprietary 2.4 GHz protocol up to 4 Mb/s |
| Antenna | external for IPEX4 connector; 2.4 GHz FPC antenna included |
| Pins | 28 GPIO: 14-pin XIAO layout and pads on the bottom |
| Analog inputs | 9 |
| Interfaces | I2C, UART, SPI, NFC, SHPHLD (PMIC ship mode), 2 SWD pairs |
| Security | secure boot and update, secure key storage, TrustZone, cryptographic accelerator, tamper detection |
| On the board | RGB LED, charging LED, Reset and user buttons, IPEX4 connector |
| Power management | Nordic nPM1300 PMIC: charging, regulation and battery status measurement over I2C |
| Current consumption (3.7 V battery) | Light sleep about 9.96 µA, System OFF about 4.76 µA, System OFF with GRTC wake-up about 4.92 µA, ship mode 0.33 µA, on average 3.87 mA when transmitting at +8 dBm |
| Power supply | USB Type-C 5 V; Li-ion battery 3.7 V via BAT pads |
| Software | nRF Connect SDK, Zephyr RTOS, PlatformIO; Arduino via the nrf54-arduino-core |
| Operating temperature | -20 °C to 70 °C |

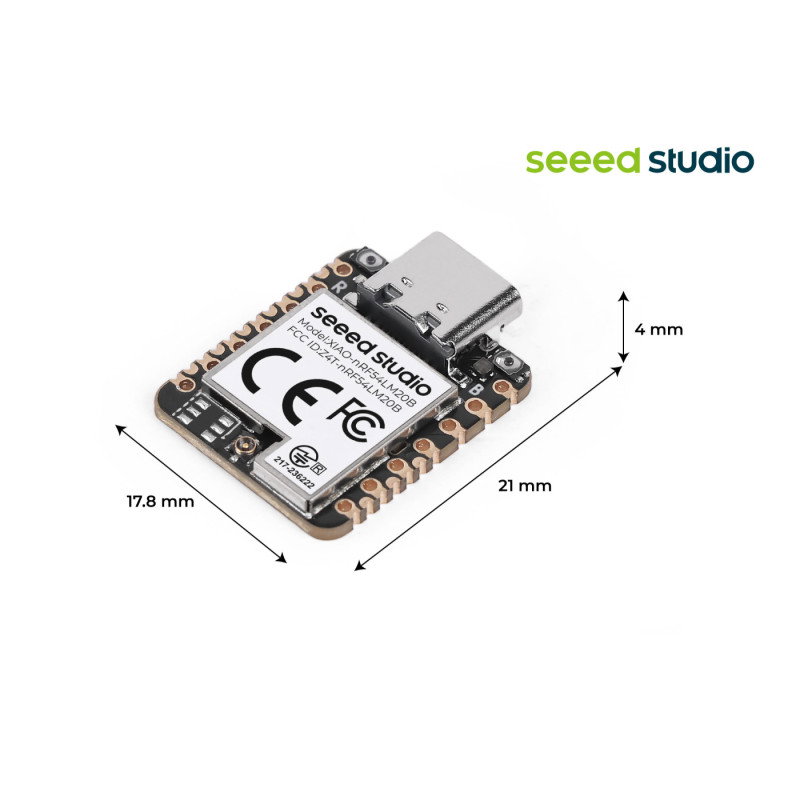

| Dimensions | 21 x 17.8 x 4 mm |
| Manufacturer code | 100023651 |
| Manufacturer | Seeed Studio |
