Seeed Xiao nRF54LM20A Sense - BLE 6.0/Thread/ZigBee/Matter/NFC - IMU and microphone - Seeedstudio 100018440
A motion sensor and a microphone in a board with Bluetooth 6.0, Thread and Matter: XIAO nRF54LM20A Sense with the Nordic nRF54LM20A chip.
- LSM6DS3TR-C IMU and MSM261DGT006 digital microphone
- 28 GPIO pins and 512 KB RAM
- Ship mode 0.33 µA
We could not load the price.
The promotional price does not combine with quantity discounts.
Motion and sound in a low-power board with Bluetooth 6.0
Seeed Studio XIAO nRF54LM20A Sense is a board with a Nordic nRF54LM20A chip, a motion sensor and a microphone that supports Bluetooth LE 6.0, Thread, Zigbee and Matter. The LSM6DS3TR-C IMU motion sensor combines an accelerometer and a gyroscope, and the MSM261DGT006 digital PDM microphone passes sound straight to the processor.
This combination is useful in activity-tracking bands, in gesture recognition and in TinyML, meaning machine learning on a microcontroller, for example for detecting voice commands. Thread, Zigbee and Matter are smart home network protocols. In sleep, the board draws about 4.76 µA from the battery.

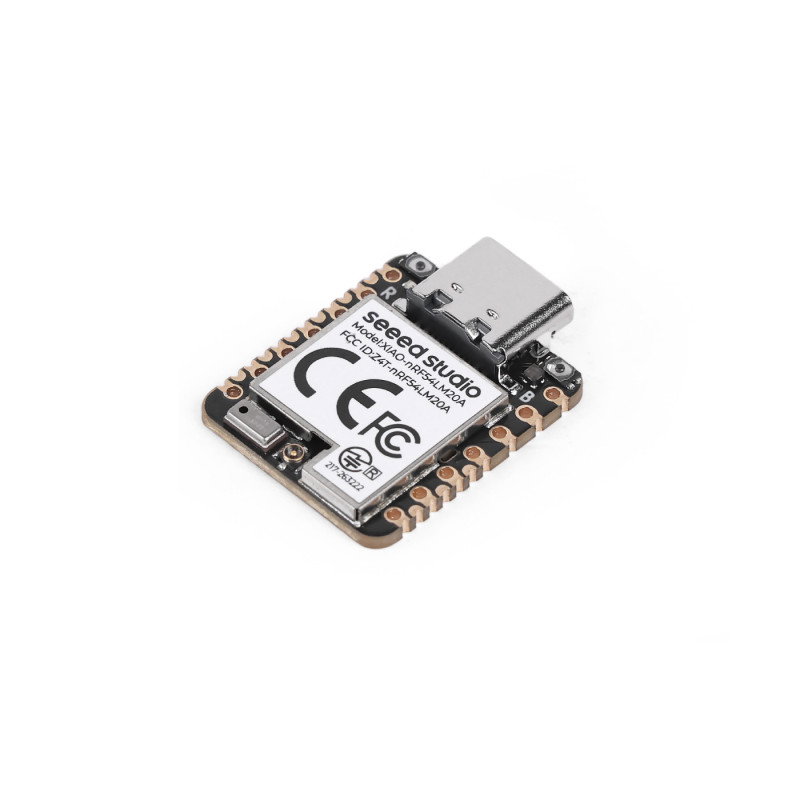

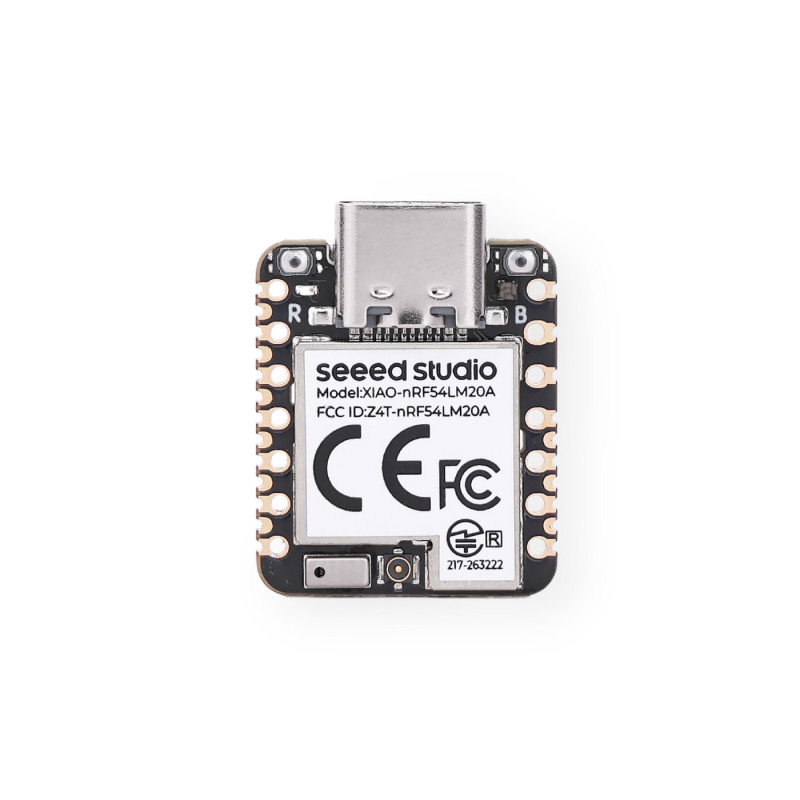

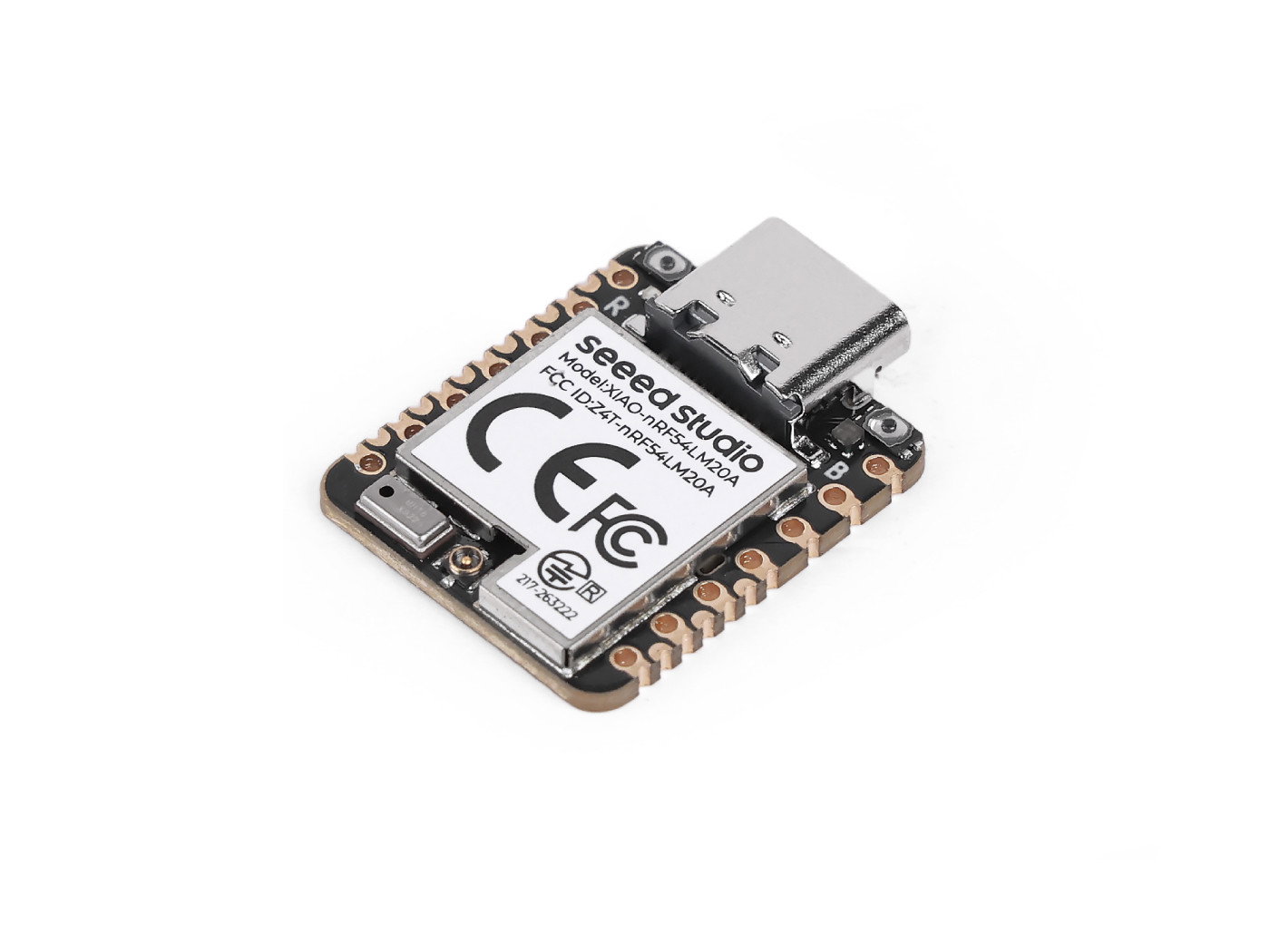

Seeed Studio XIAO nRF54LM20A Sense - top view
IMU and microphone
LSM6DS3TR-C motion sensor and MSM261DGT006 digital microphone
BLE 6.0
Bluetooth LE with Channel Sounding plus Thread, Zigbee and Matter
28 GPIO
pins on the edges and the bottom of the board
0.33 µA
current consumption in ship mode of the nPM1300 chip
What sets this model apart
Bluetooth 6.0, Thread and Matter together with a motion sensor and a microphone
Compared with the XIAO nRF52840 Sense Plus, this board adds Bluetooth 6.0 with Channel Sounding, meaning distance measurement between devices, as well as Thread, Zigbee and Matter networks, and it also has twice as much RAM. Keep in mind that you program it in the nRF Connect SDK, Zephyr or PlatformIO, and if you prefer MicroPython or CircuitPython, choose the XIAO nRF52840 Sense Plus.
512 KB
of RAM (XIAO nRF52840 Sense Plus: 256 KB)
28 GPIO
pins (XIAO nRF52840 Sense Plus: 20 GPIO)
128 MHz
Cortex-M33 core clock speed (XIAO nRF52840 Sense Plus: 64 MHz)

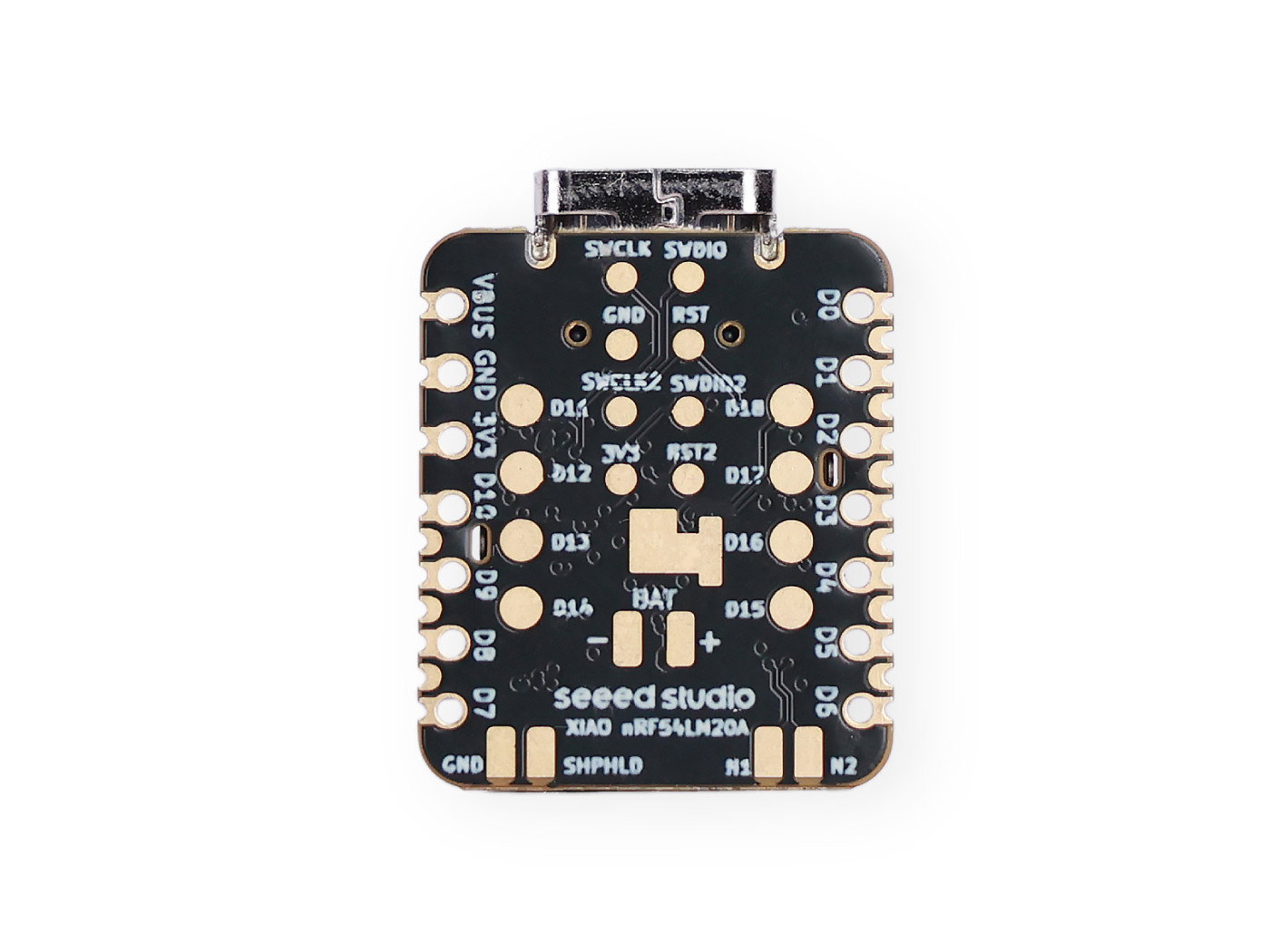

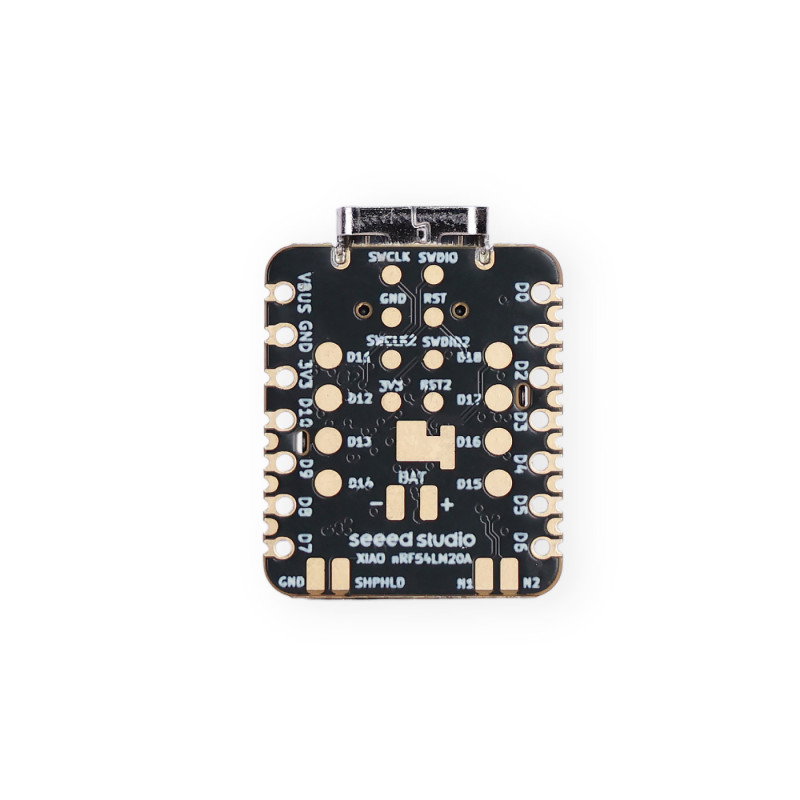

Seeed Studio XIAO nRF54LM20A - bottom view with solder pads
Pins like on an XIAO Plus from the very first version
On the bottom of the board there are pads D11-D18, a second SWD pair for debugging, NFC antenna contacts and the SHPHLD pin for ship mode, meaning a minimum-power mode for storage, so together with the 14-pin XIAO layout on the front you get 28 pins. You connect a 3.7 V Li-ion battery to the BAT pads, and the Nordic nPM1300 chip charges it and measures its status over I2C.
Next to the 128 MHz Cortex-M33 core there is a 128 MHz RISC-V coprocessor, and the 8 MB of flash on the board is useful for sensor data and TinyML models. The front of the board has the standard XIAO layout, so you can connect Grove sensors through the Grove Shield for XIAO or the XIAO Expansion Board.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Is it the right choice for you?
A good choice if:
- you are building a wearable device that should recognize motion, gestures or sound
- you want to connect sensors to a Thread, Zigbee or Matter network
- you need a small TinyML module with long battery life
Consider another option if:
- you do not need a motion sensor or a microphone: choose the XIAO nRF54LM20A
- you want to program in MicroPython or CircuitPython: see the XIAO nRF52840 Sense Plus
Comparison of XIAO nRF boards
| XIAO nRF54LM20A Sense | XIAO nRF54LM20A | XIAO nRF52840 Sense Plus | XIAO nRF52840 Sense | |
|---|---|---|---|---|
| Chip | nRF54LM20A, Cortex-M33 128 MHz + RISC-V 128 MHz | nRF54LM20A, Cortex-M33 128 MHz + RISC-V 128 MHz | nRF52840, Cortex-M4F 64 MHz | nRF52840, Cortex-M4F 64 MHz |
| Memory | 512 KB RAM, 2 MB NVM + 8 MB flash | 512 KB RAM, 2 MB NVM + 8 MB flash | 256 KB RAM, 1 MB + 2 MB flash | 256 KB RAM, 1 MB + 2 MB flash |
| Wireless connectivity | BLE 6.0, Thread, Zigbee, Matter, NFC | BLE 6.0, Thread, Zigbee, Matter, NFC | BLE 5.4, Bluetooth Mesh, NFC | BLE 5.4, Bluetooth Mesh, NFC |
| Antenna | external IPEX4, included | external IPEX4, included | built-in | built-in |
| Sensors | motion sensor (IMU), microphone | none | motion sensor (IMU), microphone | motion sensor (IMU), microphone |
| GPIO pins | 28 | 28 | 20 | 11 |
| Analog inputs | 9 | 9 | 6 | 6 |
| Deep sleep current consumption | 4.76 µA | 4.76 µA | about 5 µA | below 5 µA |
| See | this page | XIAO nRF54LM20A | XIAO nRF52840 Sense Plus | XIAO nRF52840 Sense |
Fun fact
Bluetooth that measures distance
Bluetooth LE 6.0 in the nRF54LM20A chip supports Channel Sounding. This is a feature that lets two Bluetooth devices measure the distance between them, rather than just detecting that they are nearby.
Frequently asked questions
Which motion sensor is installed on this board, and how does it work?
The board has a 6-axis LSM6DS3TR-C motion sensor that combines an accelerometer and a gyroscope. It communicates over I2C and can report events through the INT1 interrupt output.
What is the board current consumption in sleep mode on battery power?
When powered from a 3.7 V battery in System OFF mode, the board draws about 4.76 µA, about 4.92 µA with wake-up by the GRTC timer, and 0.33 µA in ship mode.
What should I do if the project list does not load in PlatformIO?
Delete the old platform-seed and framework-seed packages from the PlatformIO packages folder and install the platform-seeedboards platform again. The problem is caused by several platform versions being installed at the same time.

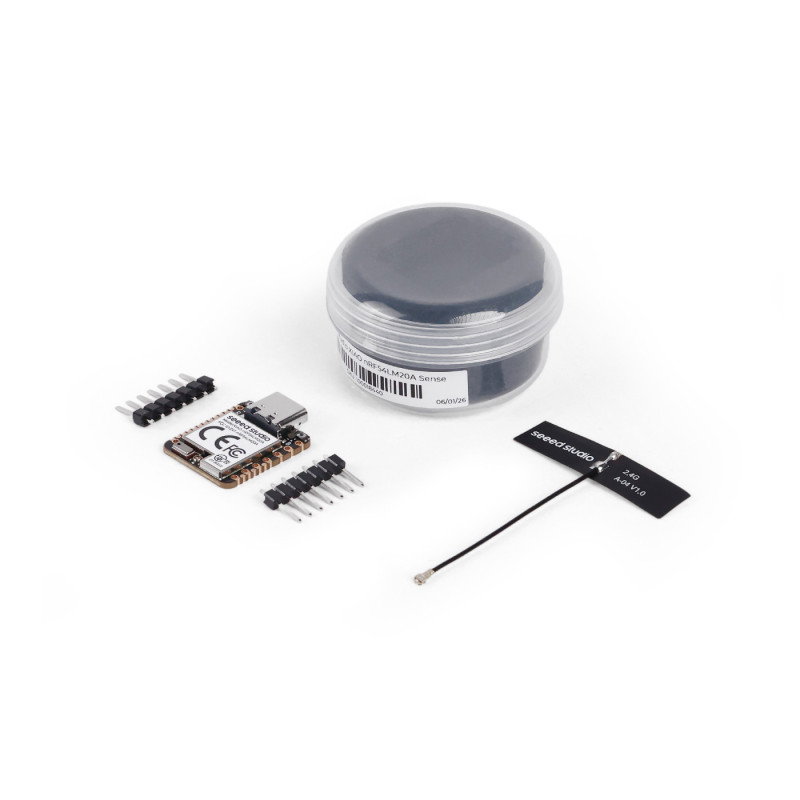

Package contents
- 1 x Seeed Studio XIAO nRF54LM20A Sense board
- 1 x A-04 2.4 GHz FPC antenna for IPEX4 connector
- 2 x 7-pin gold pin headers
The gold pin headers are not soldered.
Technical specifications
| Parameter | Value |
|---|---|
| Microcontroller | Nordic nRF54LM20A: Arm Cortex-M33 128 MHz and RISC-V 128 MHz coprocessor |
| Memory | 512 KB RAM, 2 MB NVM in the chip, 8 MB flash on the board |
| Wireless connectivity | Bluetooth LE 6.0 with Channel Sounding, Bluetooth Mesh, NFC, Thread, Zigbee, Matter, Amazon Sidewalk, proprietary 2.4 GHz protocol up to 4 Mb/s |
| Antenna | external for IPEX4 connector; 2.4 GHz FPC antenna included |
| Sensors | LSM6DS3TR-C IMU (3-axis accelerometer and gyroscope, I2C), MSM261DGT006 digital PDM microphone |
| Pins | 28 GPIO: 14-pin XIAO layout and pads on the bottom |
| Analog inputs | 9 |
| Interfaces | I2C, UART, SPI, NFC, SHPHLD (PMIC ship mode), 2 SWD pairs |
| Security | secure boot and update, secure key storage, TrustZone, cryptographic accelerator, tamper detection |
| On the board | RGB LED, charging LED, Reset and user buttons, IPEX4 connector |
| Power management | Nordic nPM1300 PMIC: charging, regulation and battery status measurement over I2C |
| Current consumption (3.7 V battery) | Light sleep about 9.96 µA, System OFF about 4.76 µA, System OFF with GRTC wake-up about 4.92 µA, ship mode 0.33 µA, on average 3.87 mA when transmitting at +8 dBm |
| Power supply | USB Type-C 5 V; Li-ion battery 3.7 V via BAT pads |
| Software | nRF Connect SDK, Zephyr RTOS, PlatformIO; Arduino via the nrf54-arduino-core |
| Operating temperature | -20 °C to 70 °C |

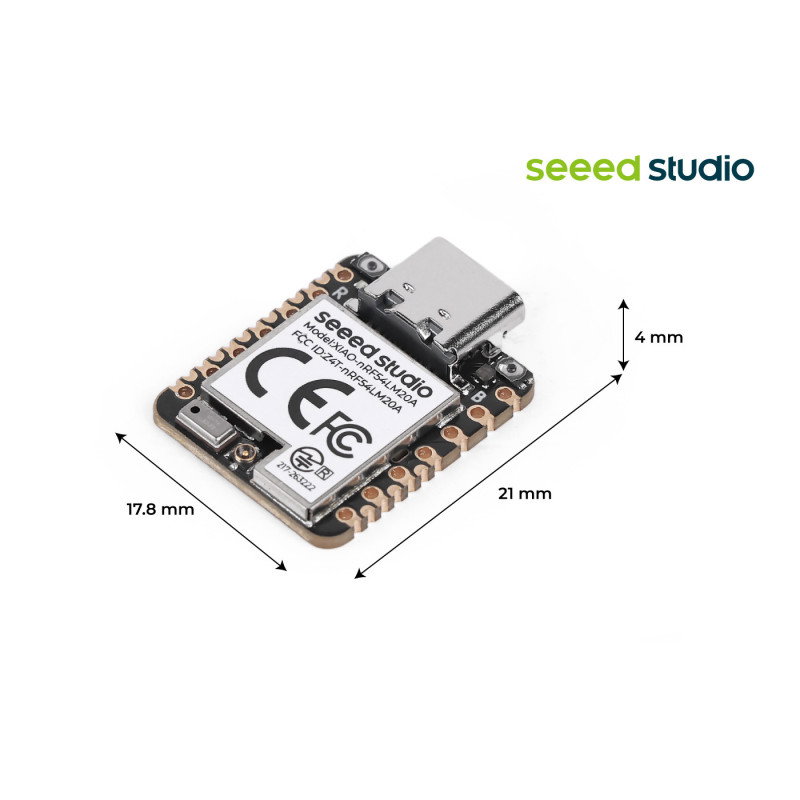

| Dimensions | 21 x 17.8 x 4 mm |
| Manufacturer code | 100018440 |
| Manufacturer | Seeed Studio |
