Sony IMX219-77 8Mpx camera module - compatible with Jetson Nano - Waveshare 16507

Index: WSR-14784 EAN: 5904422322564

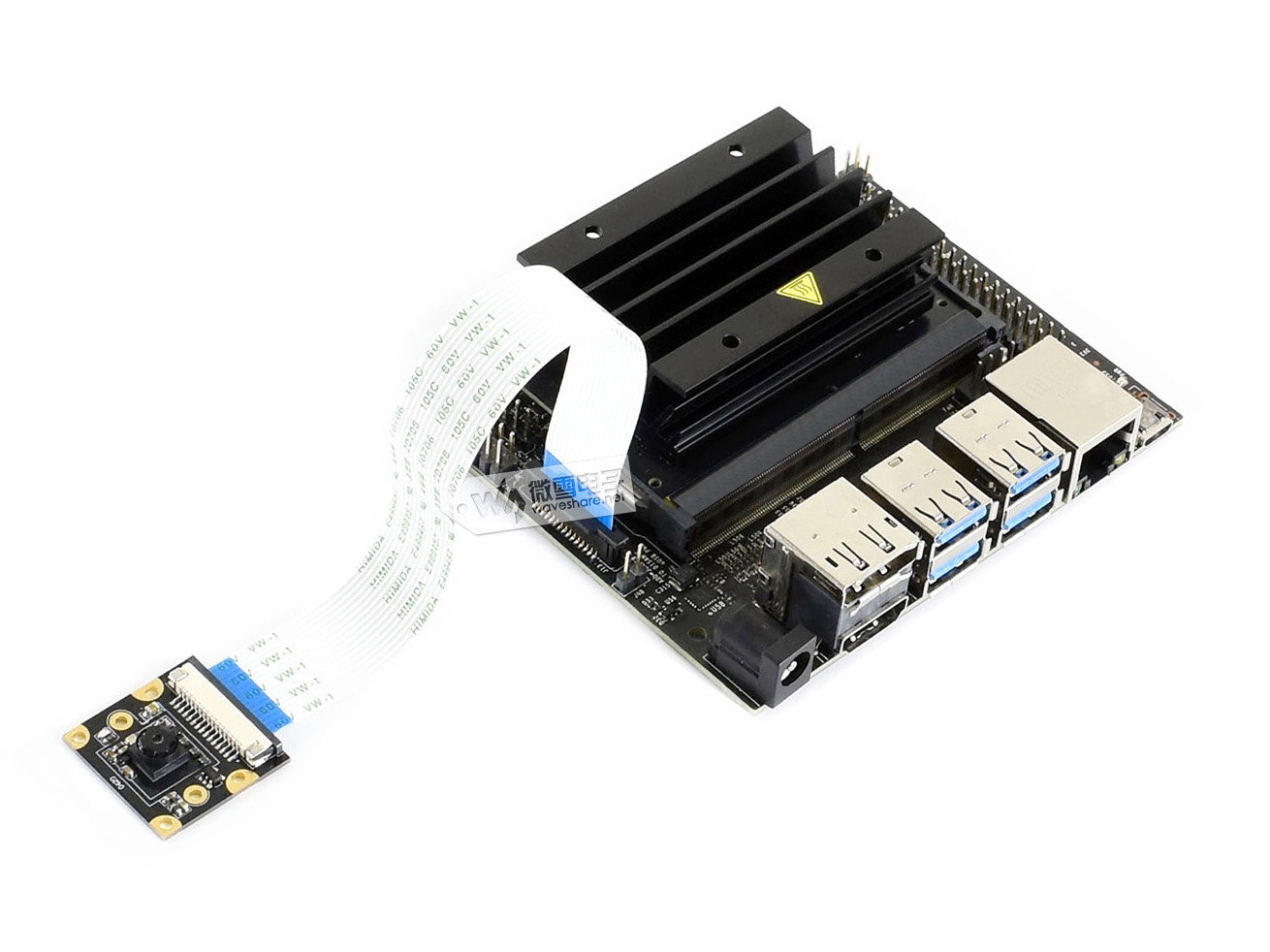

Camera module IMX219-77 equipped with Jetson Nano compatible IMX219 sensor. The camera has a matrix with a resolution of 8 Mpx. It has a maximum image resolution of 3280 x 2464 px and an F.O.V. angle of 77°.

Sony IMX219-77 8Mpx camera module - compatible with Jetson Nano - Waveshare 16507
€16.50
€13.41 tax excl.
Delivery 5 pcs scheduled for 2024-12-20
Waiting for delivery
PayPal payment
Manufacturer: Sony

Product description: Sony IMX219-77 8 Mpx camera module - compatible with Jetson Nano

Camera module IMX219-77 equipped with Jetson Nano compatibleIMX219 sensor. The camera has a matrix with a resolution of 8 Mpx.It has a maximum image resolution of 3280x 2464 px andan F.O.V. angle of 77°.

Moduł kamery Sony IMX219-77Sony IMX219-77 8 Mpx camera module.

The camera has aCMOSsensor and its iris is 2.0. The module is powered by 3.3 V. The sets include the camera module, mounting screws and connection tape.

Application of the camera module IMX219-77

  • Face recognition
  • Detection of traffic signs
  • Recognition of registration plates

The subject of sale is Sony IMX219-77 8 Mpx camera module itself,

JetsonNanomust be purchased separately.

Technical specifications of the Sony IMX219-77 camera module

Parameter Scope
Number of pixels 8 Mpx
Sensor Sony IMX219
Resolution 3280 x 2464 px
Lens specification
  • Matrix type: CMOS
  • Aperture (F): 2.0
  • Focal length: 2.96 mm
  • FOV: 77 °
  • Distortion < 1 %
  • Lens dimensions: 6.5 mm x 6.5 mm
Fixing 4 screw holes
Dimensions 25 mm x 24 mm
Mass 0.012 kg

Resolution 3280x2464px
Camera - matrix 8MPx IMX219
Camera - IR filter No
Package width 5.2 cm
Package height 11 cm
Package depth 2.3 cm
Package weight 0.011 kg
