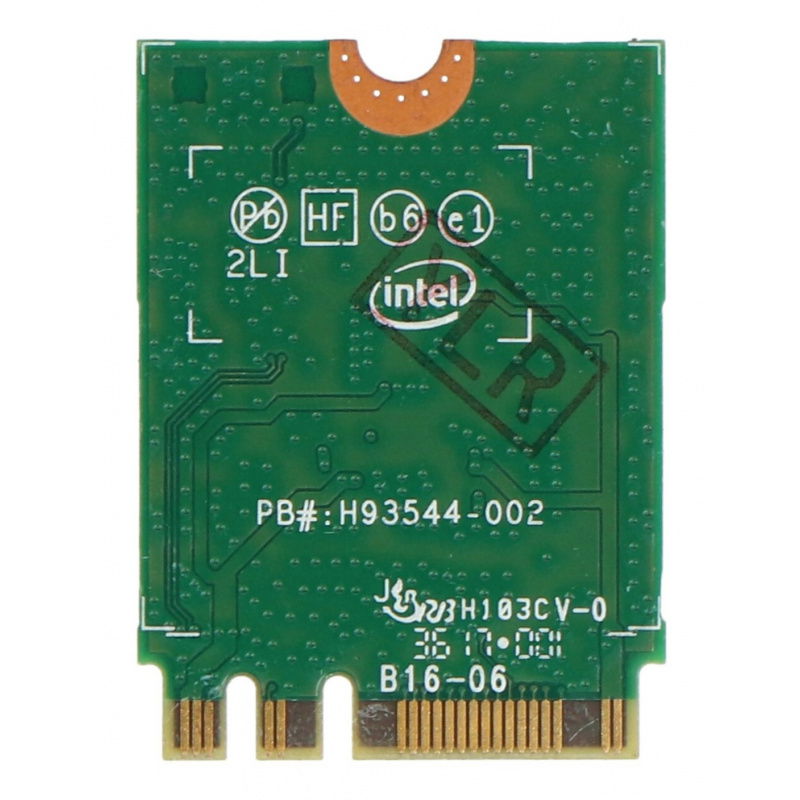

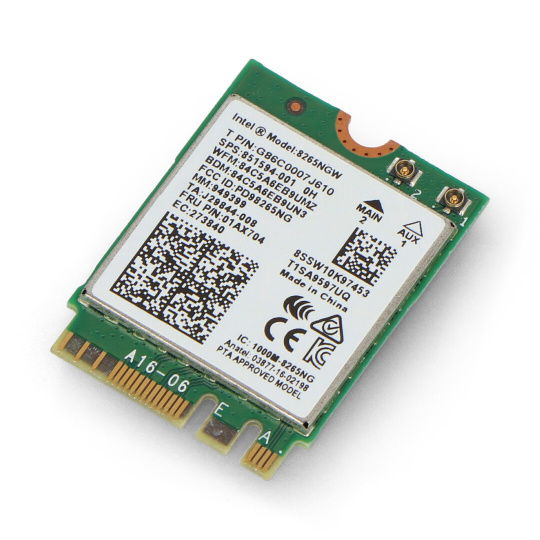

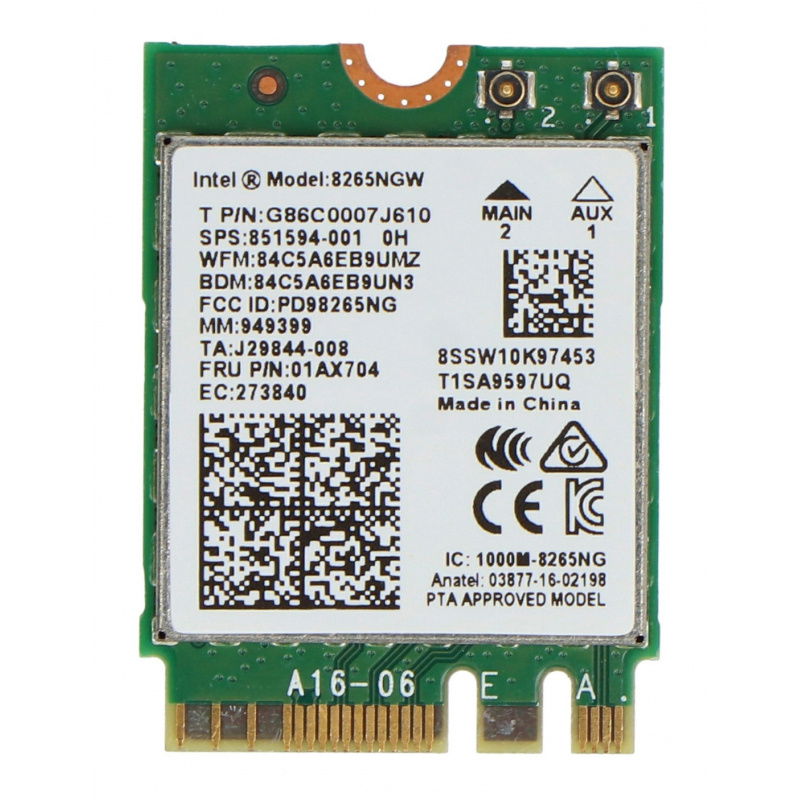

Product description: Intel 8265AC WiFi network card - for Nvidia Jetson Nano

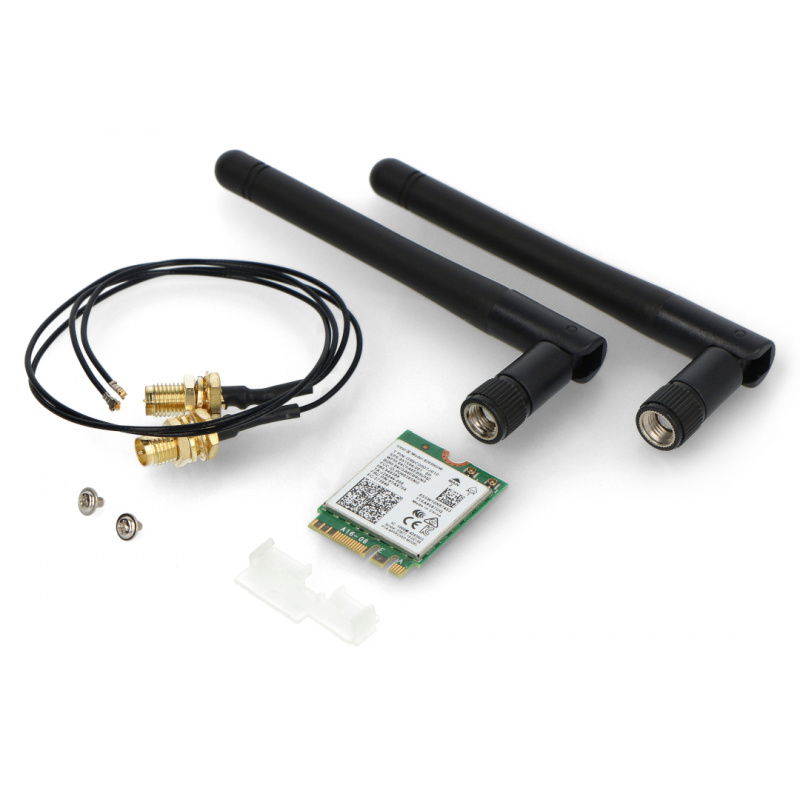

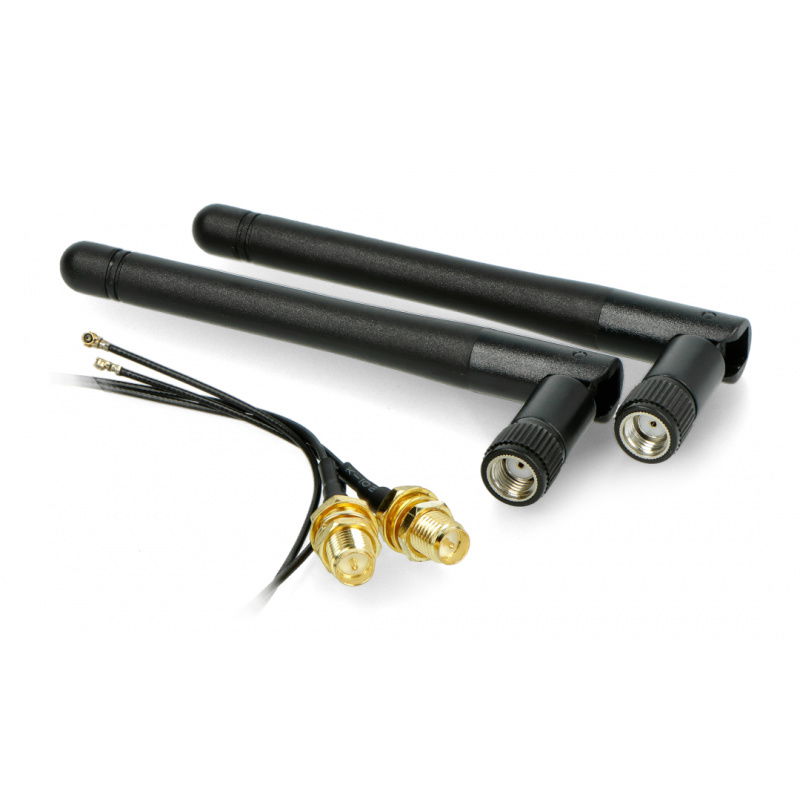

WiFi network card based onIntel 8265ACchip.Compatible with NvidiaJetson Nano,it allows4.2Bluetooth wireless communicationand 2.4 GHz and 5 GHz WiFi at speeds up to867 Mbps. Antennas with3 dBgain and90°angle adjustment are included.
Connection to Nvidia Jetson Nano.
To mount the WiFi Router to the Nvidia Jetson Nano board, remove the heat sink, place the Router in the slot (as pictured above), and then mount the heat sink again.
Specification of the WiFi network card
- Layout: Intel 8265AC
- Network interface: NGFF (m.2)
- WiFi frequency: 2,4 GHz or 5 GHz
- Network protocol: IEEE 802.11 a/b/g/n/ac
- Data transfer rate: 300 Mb/s + 867 Mb/s
- Antenna connector: IPEX
- Bluetooth standard: 4.2
- Compatibility: Linux, Windows 10 / 8.1 / 8 / 7
- Dimensions: 30 x 22 x 2.4 mm
Useful links |
Advantages
- Compatible with Nvidia Jetson Nano
- Supports both 2.4 GHz and 5 GHz WiFi frequencies
- High data transfer rate up to 867 Mbps
- Includes antennas with 3 dB gain and 90° angle adjustment for better signal strength
- Bluetooth 4.2 wireless communication
- Easy installation, no additional drivers required on J1010 recomputer
- Compact dimensions (30 x 22 x 2.4 mm)
Disadvantages
- Requires removal of the heat sink for installation into Nvidia Jetson Nano
