Multi-Camera Kit - 6 IMX477 12,3MPx cameras - for Nvidia Jetson AGX Orin - ArduCam B0473

Index: ACM-25543
The Multi-Camera Kit from ArduCam is an advanced kit designed for the Nvidia Jetson AGX Orin . Equipped with 6 cameras with a resolution of 12.3 MPx with built-in ISP processing, it allows simultaneous streaming of video from each camera. With an adapter supporting up to 6 CSI-2 modules , the kit eliminates the limitations of the lack of a native camera interface in the AGX Orin. It is an ideal solution for machine vision, automation, medicine and robotics. Compatible with JetPack 5.1.1 and above.
Multi-Camera Kit - 6 IMX477 12,3MPx cameras - for Nvidia Jetson AGX Orin - ArduCam B0473
€321.00
€260.98 tax excl.
Waiting time approx. 4-6 weeks.
Waiting for delivery
PayPal payment
Manufacturer: ArduCam

Product description: Multi-Camera Kit - set of 6 IMX477 12.3 MPx cameras - for Nvidia Jetson AGX Orin - ArduCam B047389

The Multi-Camera Kit from ArduCam is a professional camera set designed specifically for the Nvidia Jetson AGX Orin . It consists of 6 cameras with a resolution of 12.3 MPx , which provide high image quality thanks to the Sony IMX477 sensor and built-in ISP . The adapter supports up to 6 cameras simultaneously, each with the possibility of independent operation . This is crucial in applications requiring simultaneous image capture from different perspectives. The kit eliminates the limitations resulting from the lack of a native MIPI CSI-2 interface on the AGX Orin. It offers support for resolutions up to 4032 x 3040 px at 30 fps and works with the latest versions of JetPack 5.1.1 / L4T 35.3.1. Thanks to its wide viewing angle (120°) and easy integration, the kit will work well in machine vision, robotics, medicine or 3D scanning .

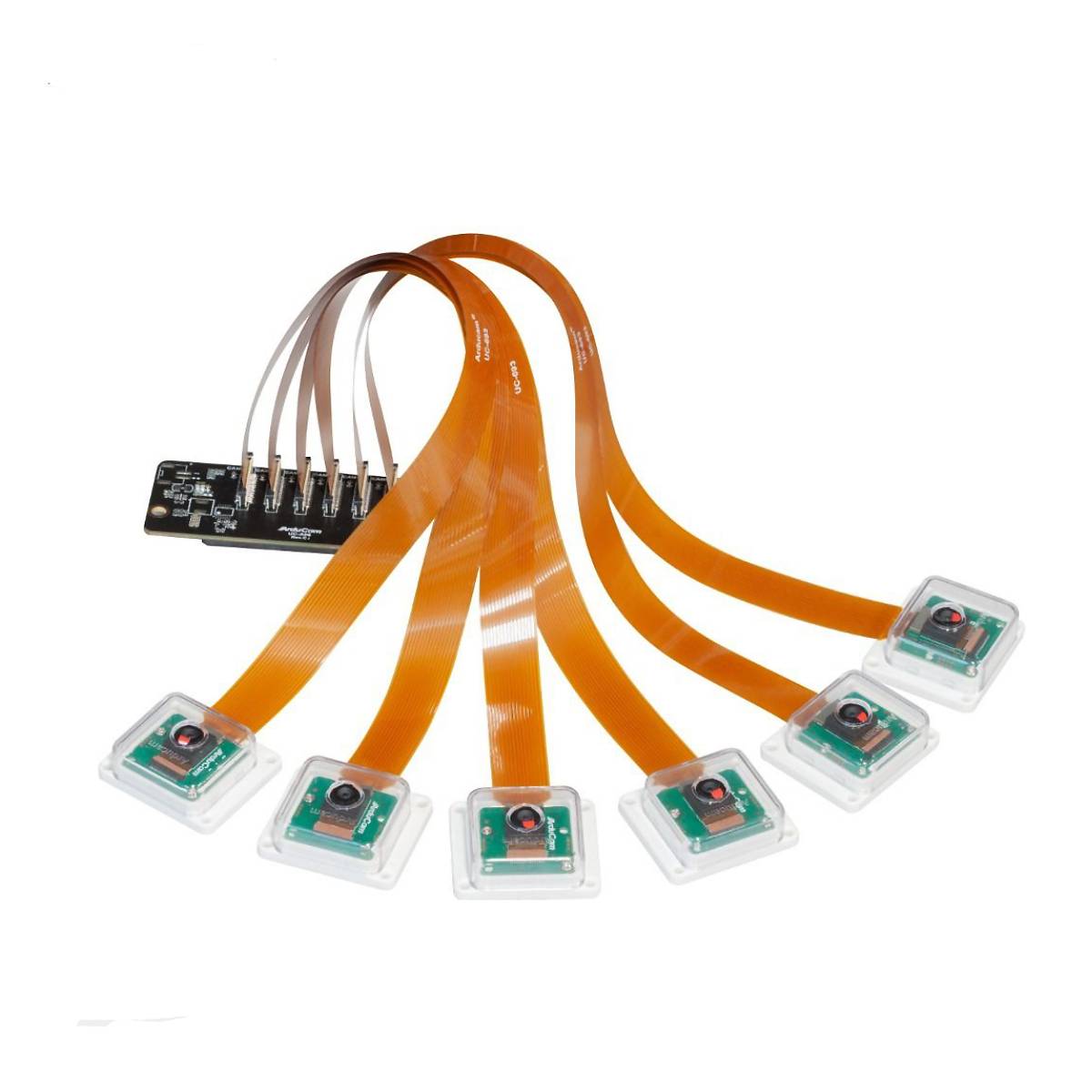

Multi-Camera Kit - set of 6 IMX477 12.3 MPx cameras - for Nvidia Jetson AGX Orin - ArduCam B047389

Multi-Camera Kit - set of 6 IMX477 12.3 MPx cameras - for Nvidia Jetson AGX Orin - ArduCam B047389.

Multi-Camera Kit - set of 6 IMX477 12.3 MPx cameras - for Nvidia Jetson AGX Orin - ArduCam B047389

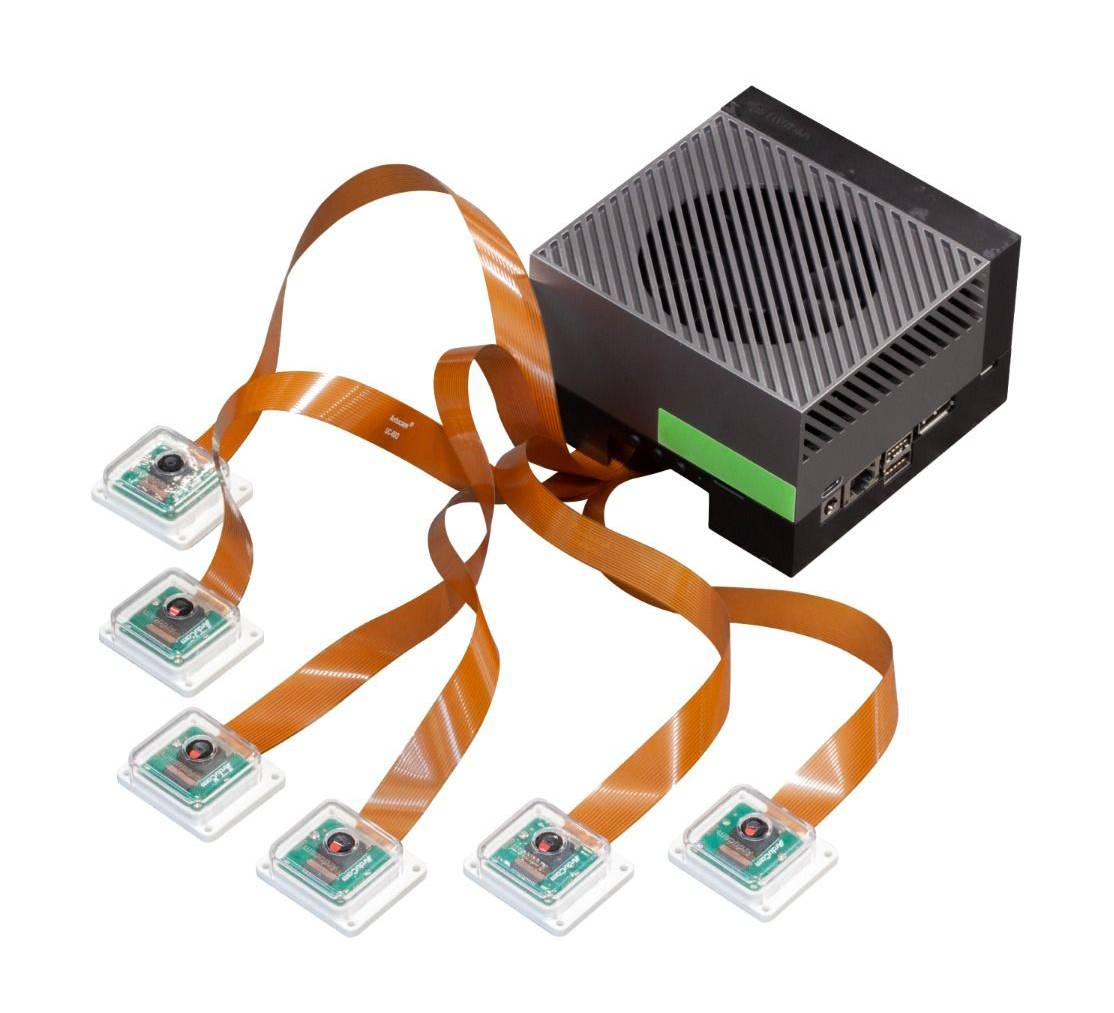

Set of six cameras with adapter. Nvidia Jetson AGX Orin must be purchased separately.

Key Features of the Multi-Camera Kit

  • High resolution: Each camera offers 12MPx and a Sony IMX477 sensor for detailed images
  • Multiple camera support: the adapter allows you to connect up to 6 cameras simultaneously, each working independently
  • Built-in ISP: Provides better image quality with advanced image processing
  • Compatibility: Adapted to Nvidia Jetson AGX Orin and latest versions of JetPack
  • Wide viewing angle: 120° allows you to capture wide frames
  • Easy integration: adapter solves the problem of lack of native CSI-2 interface in AGX Orin

Attention!

The kit does not include Nvidia Jetson AGX Orin . The minicomputer must be purchased separately.

Practical applications

ArduCam Multi-Camera Kit can be used in advanced machine vision projects such as:

  • Machine Vision: Monitoring and Analyzing Production Processes
  • Automation and Robotics: Robots Recognizing Objects and Environments
  • 3D Scanning and Metrology: Precise Measurement and Surface Mapping
  • Medical Imaging: Use in Microscopy and Diagnostics
  • Optical Inspection: Automatic Detection of Defects in Production

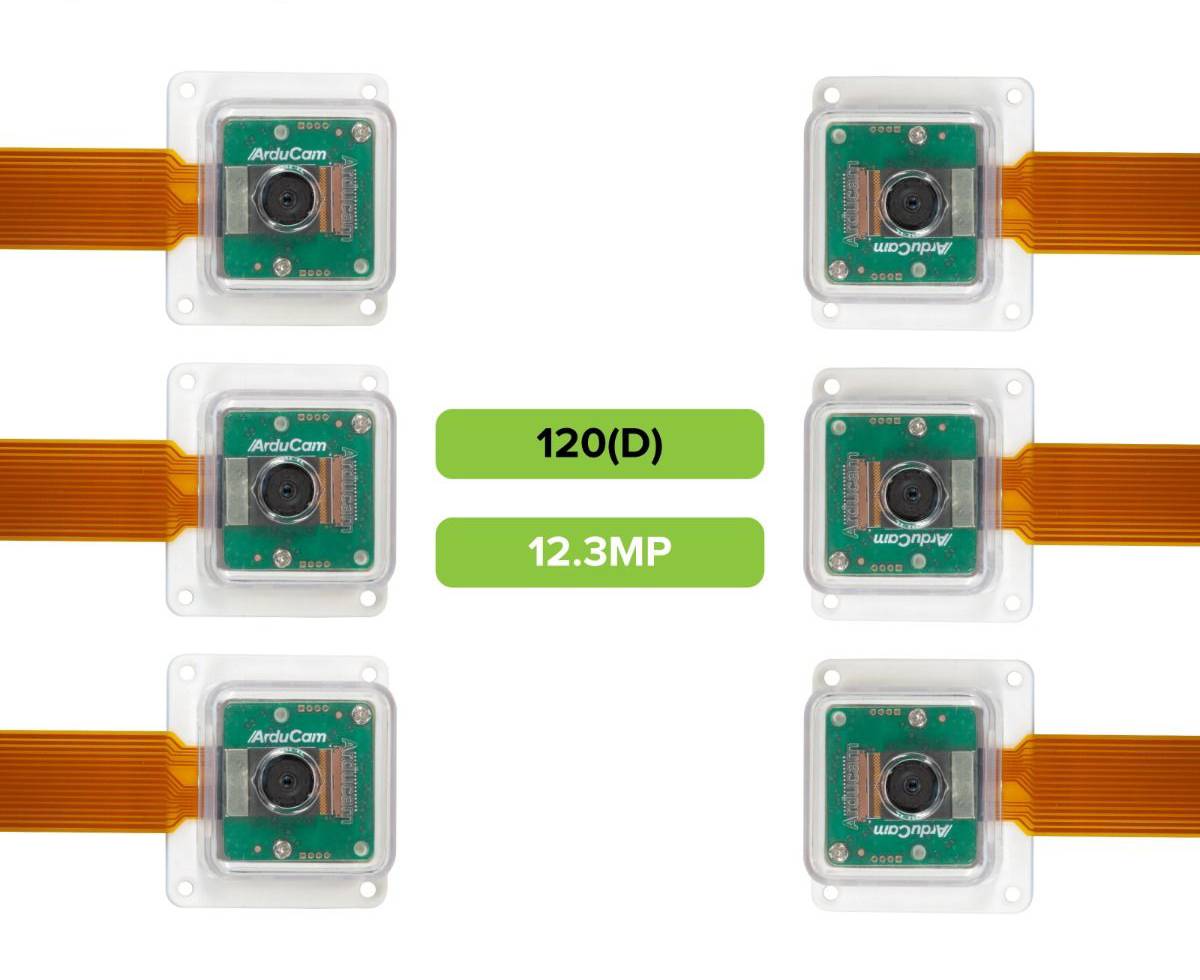

Multi-Camera Kit - set of 6 IMX477 12.3 MPx cameras - for Nvidia Jetson AGX Orin - ArduCam B047389 The cameras offer a resolution of 12.3 MPx.
Multi-Camera Kit - set of 6 IMX477 12.3 MPx cameras - for Nvidia Jetson AGX Orin - ArduCam B047389

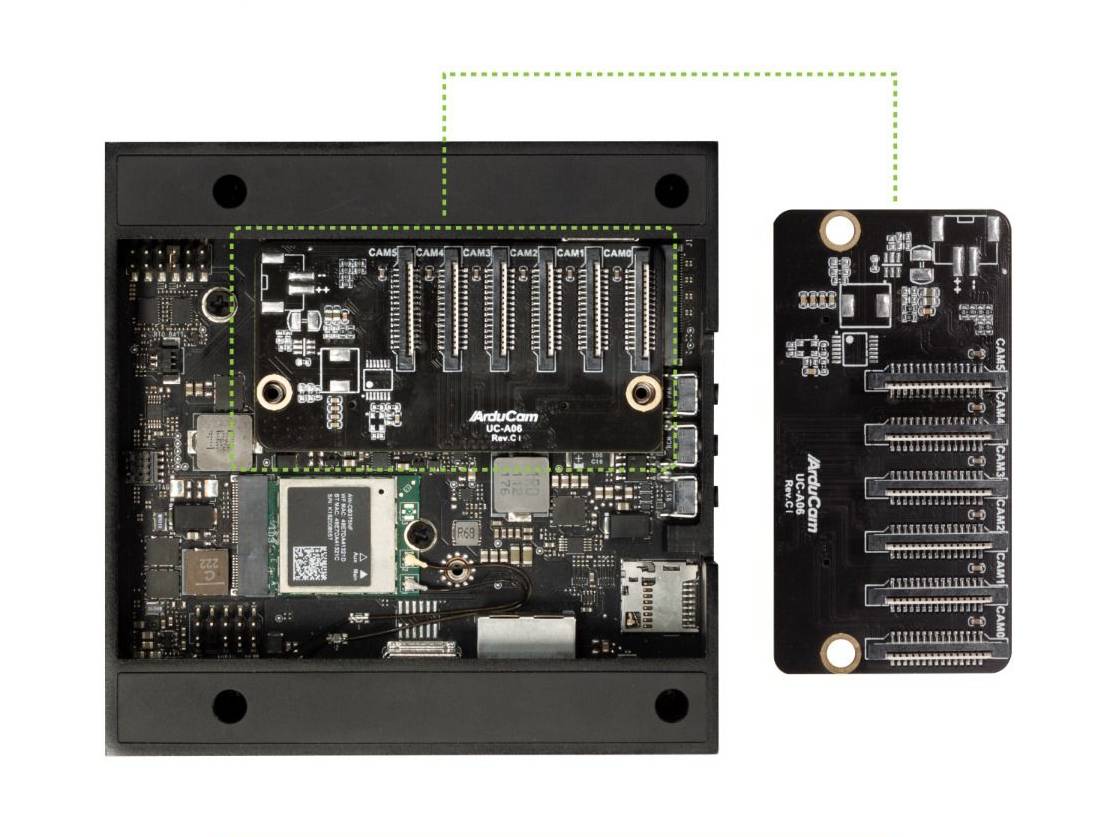

The adapter allows you to simultaneously connect 6 of the same cameras to the Nvidia Jetson AGX Orin.

Set configuration

The ArduCam kit is easy to set up. The 6-port CSI-2 15-pin adapter allows you to connect up to 6 cameras at once . Each camera must be the same model to ensure compatibility and the highest quality of operation. Additional driver configuration for JetPack 5.1.1 / L4T 35.3.1 or later is required. The manufacturer's documentation provides detailed setup instructions, which makes it easy to get started with the kit quickly.

Technical Specifications Multi-Camera Kit

  • Resolution: 12.3MPx (4056 x 3040 px)
  • Supported video modes:
    • L4T 32.x: 4032 x 3040 pixels at 30 fps, 3840 x 2160 pixels at 30 fps, 1920 x 1080 pixels at 60 fps
    • L4T 35.x: 4032 x 3040 pixels at 20 fps, 3840 x 2160 pixels at 30 fps, 1920 x 1080 pixels at 60 fps
  • Sensor: Sony IMX477
  • Sensor size: 1/2.3''
  • Viewing angle: 120°
  • Focal length: 2.75mm, F2.8
  • Pixel size: 1.55μm x 1.55μm
  • Shutter type: Rolling Shutter
  • Supported cameras: up to 6 cameras simultaneously
  • Interface: CSI-2 with built-in ISP
  • Protocol support: MIPI CSI-2
  • Current consumption: max 300 mA
  • Camera dimensions: 25 x 24 mm

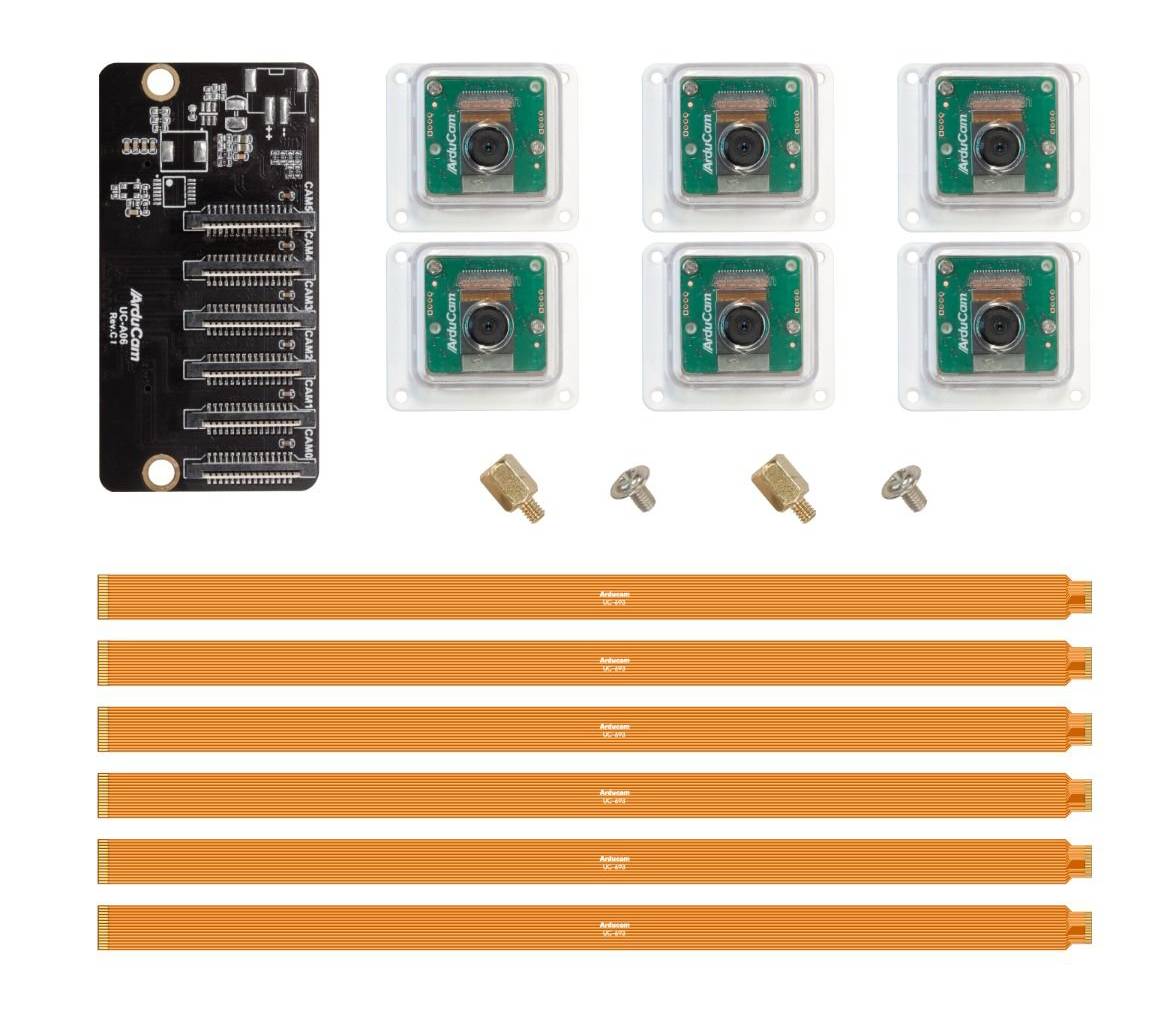

Kit Contents

  • 6x 12.3 MPx camera modules with housing
  • 6x FPC tapes 15-22 pin (30 cm)
  • 1x Camera adapter for Nvidia Jetson AGX Orin
  • 1x Set of mounting screws
Multi-Camera Kit - set of 6 IMX477 12.3 MPx cameras - for Nvidia Jetson AGX Orin - ArduCam B047389 Items included in the set.

Package width 22 cm
Package height 20.5 cm
Package depth 7 cm
Package weight 1.392 kg
