Product description: IMX477P 12.3 MPx HQ Camera with 6mm CS-Mount Lens - for Raspberry Pi - ArduCam B0240
The camera is equipped with an IMX477P sensor in 1/2.3" format and a resolution of 12.3 MPx. The maximum photo resolution is 4056 x 3040 px. The camera is equipped with a lens with a focal length of 6 mm , mounted using the CS-Mount method. The camera is designed for the Raspberry Pi and Jetson Nano minicomputer.
IMX477P 12.3 MPx HQ Camera with 6mm CS-Mount Lens - for Raspberry Pi - ArduCam B0240.
Camera for Raspberry Pi.ArduCam Camera Specifications
- Camera:
- sensor: IMX477P
- format: 1/2.3"
- resolution: 4056 x 3040 px, 12.3 MPx
- pixel size: 1.55 x 1.55 um
- IR sensitivity: visible light
- interface: 4-line MIPI CSI-2
- lens mounting method: CS-Mount
- frame rate:
- full resolution / 60 fps, 4k2k / 60 fps, 1080p / 240 fps
- full resolution / 40 fps (12-bit)
- full resolution / 3- fps (DOL-HDR)
- Lens:
- format: 1/2.3"
- focal length: 6 mm
- aperture: F1.2
- viewing angle: 65°
- mounting: CS-Mount
- rear focal length: 7.53 mm
- MOD (minimum distance from object): 0.2 m
- lens dimensions: 30 x 31 mm
- weight: 29 g
- Module dimensions: 38 x 38 mm

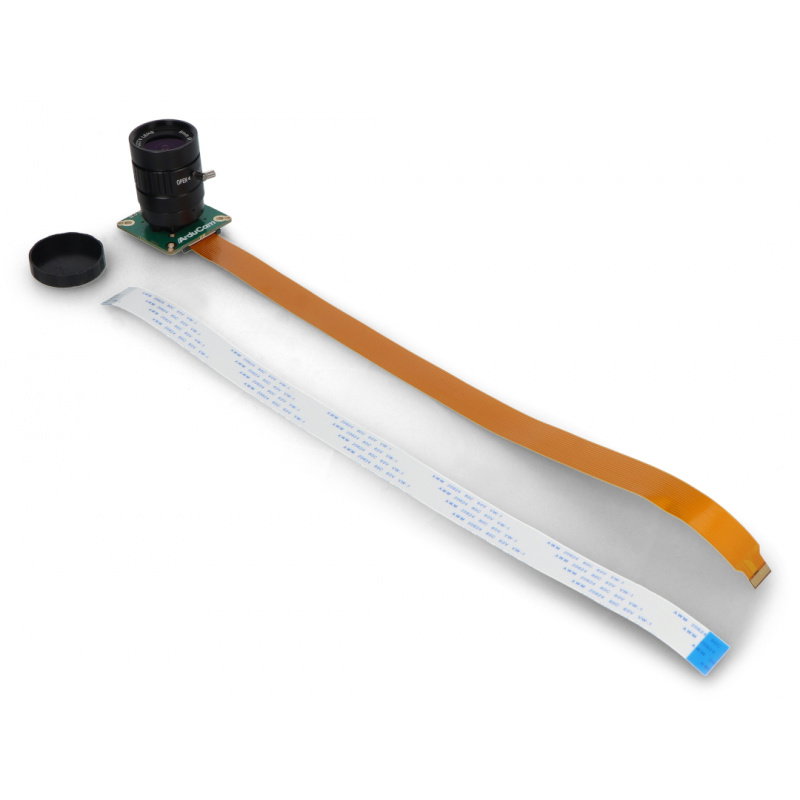

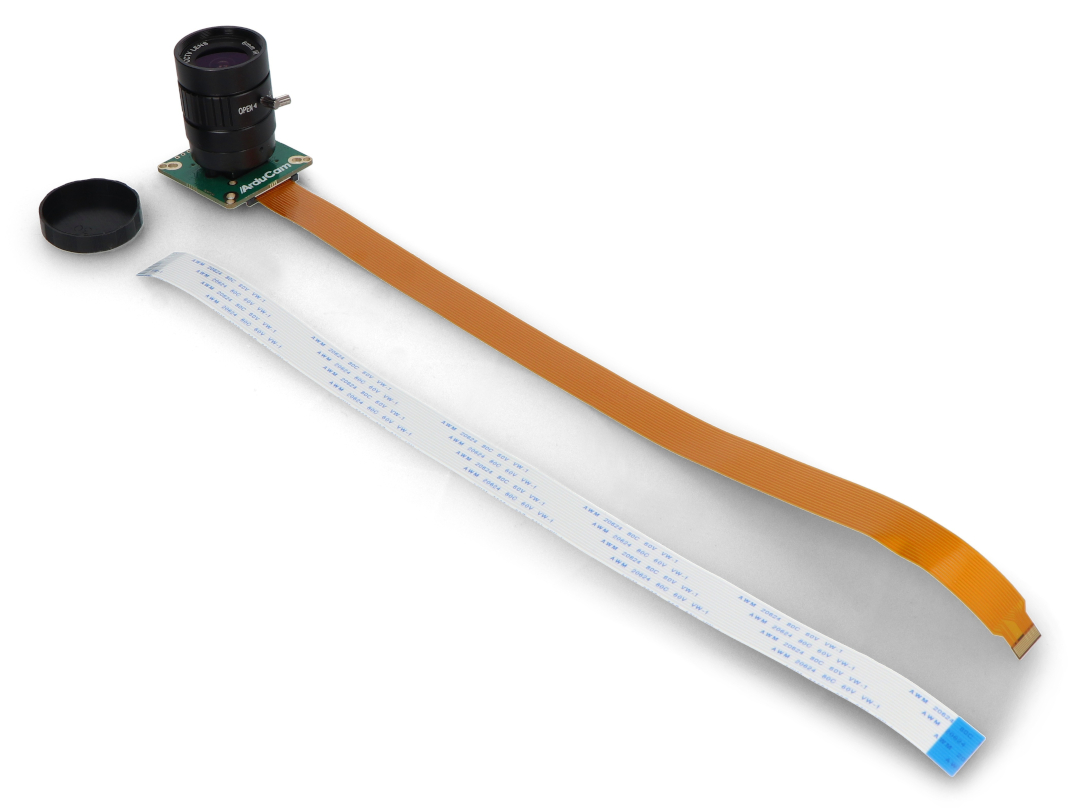

The set includes
- IMX477P 12.3MPx camera
- 6mm CS-Mount Lens
- 300mm 15-pin ribbon cable for Raspberry Pi A/B
IMX477P 12.3MPx HQ Camera with 6mm CS-Mount Lens - for Raspberry Pi - ArduCam B0240
The ArduCam B0240 is a high-quality Raspberry Pi camera. This module is equipped with a Sony IMX477 sensor with a 12.3 MPx matrix, capable of recording at 4056 x 3040 pixels at 60 frames per second and 10-bit color depth.
The Raspberry Pi camera with a Sony IMX477P sensor offers quality comparable to modern smartphones, providing virtually limitless possibilities. It's perfect for monitoring and property protection systems, as well as for building neural networks for image recognition.
Raspberry camera by ArduCam
The B0240 module enables communication with Raspberry Pi and Nvidia Jetson Nano minicomputers. The kit includes a 6mm CS-Mount lens and a 300mm 15-pin ribbon cable for connection to development boards.
The Raspberry ArduCam B0240 camera only works in the visible light range.
