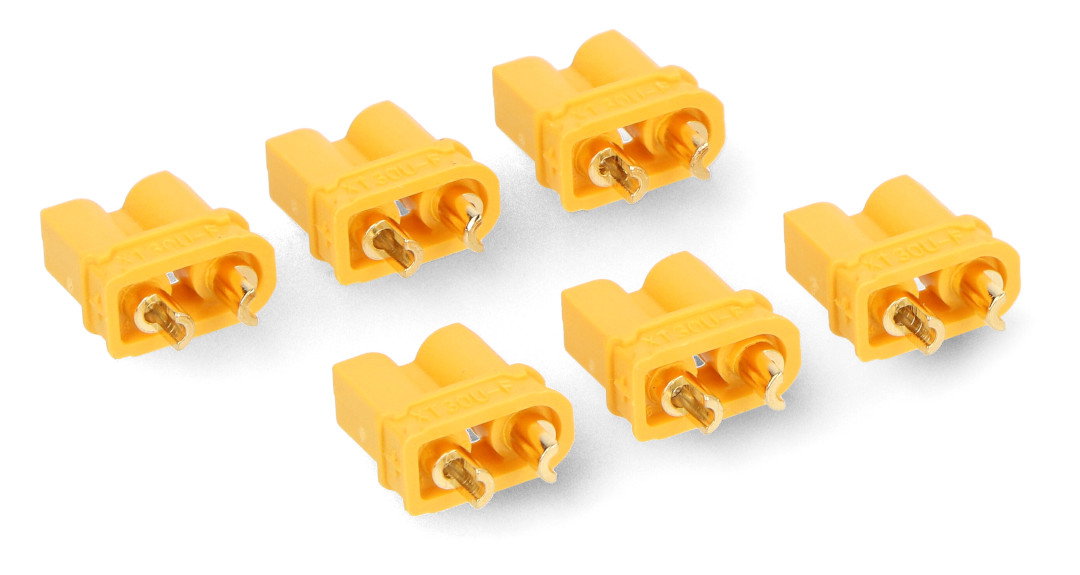

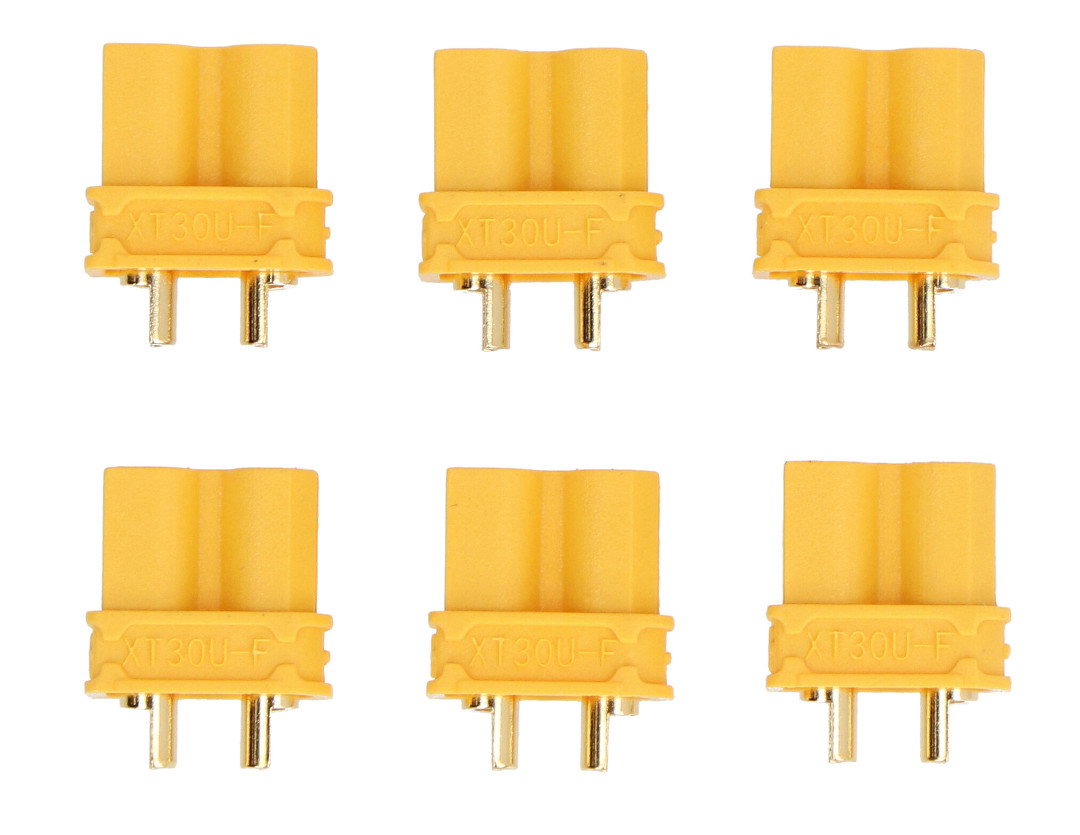

Socket XT30U-F - high-current female connector - 5pcs.
XT30U-F socket designed for use in DC power systems . It has a housing made of material resistant to high temperatures and gold-plated contacts , ensuring reliable connections and durability. Small dimensions and high operating current enable use in smaller models. The set includes 5 sockets.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: XT30U-F socket - high-current female connector - 5 pcs.
The XT30U-F DC power socket is characterized by high quality workmanship and excellent technical parameters that ensure a safe and stable connection . The product is characterized by high durability, low electrical resistance and resistance to high temperatures . The set includes 5 pieces of sockets .
Application
- Used to connect batteries, e.g. Li-Pol in power systems, ensuring a stable and safe connection.
- Used in remote-controlled models for a safe power connection.
- Used in a variety of industrial equipment where reliable power connectors are required.
- Perfect for home electronics projects requiring solid power connections.
XT30U-F socket - high-current female connector - 5 pcs.
XT30U type connectors are intended for power connections in DC systems.
What are XT30U power connectors?
XT30U type electrical connectors are intended for power connections in DC systems. They play a key role in applications requiring reliable and stable connections with low contact resistance. XT30U connectors are characterized by compact dimensions , high mechanical strength and excellent electrical parameters. Thanks to gold-plated brass contacts , they ensure low resistance and durability of up to 1000 switching cycles. Polyamide (PA) insulation guarantees high temperature resistance and compliance with UL94 V0 flammability standards. XT30U connectors are widely used in RC modeling, drones, robotics and in various DIY electronics projects, where the reliability and safety of power connections are important.
XT30U-F plug specifications
- Model: XT30U-F
- Connector type: DC power supply
- Connector type: female
- Color: yellow
- Number of pins: 2
- Contact plating: gold-plated brass
- Insulation material: polyamide (PA)
- Mechanical installation: cable
- Electrical assembly: soldering
- Electrical contact resistance (CR): 0.70 mΩ
- Rated voltage: DC 500V
- Rated current: 15 A
- Maximum instantaneous current: 30 A
- Flammability class: UL94 V0
- Operating temperature: from -20°C to 120°C
- Mechanical durability: 1000 switching cycles
- Recommended wire cross-section: 18 AWG
| Name | Value |
|---|---|
| Width | 5 cm |
| Height | 7 cm |
| Depth | 1 cm |
| Weight | 0.004 kg |
