Product description: LiPo Amigo - charger for Li-Pol batteries - PiMoroni PIM611

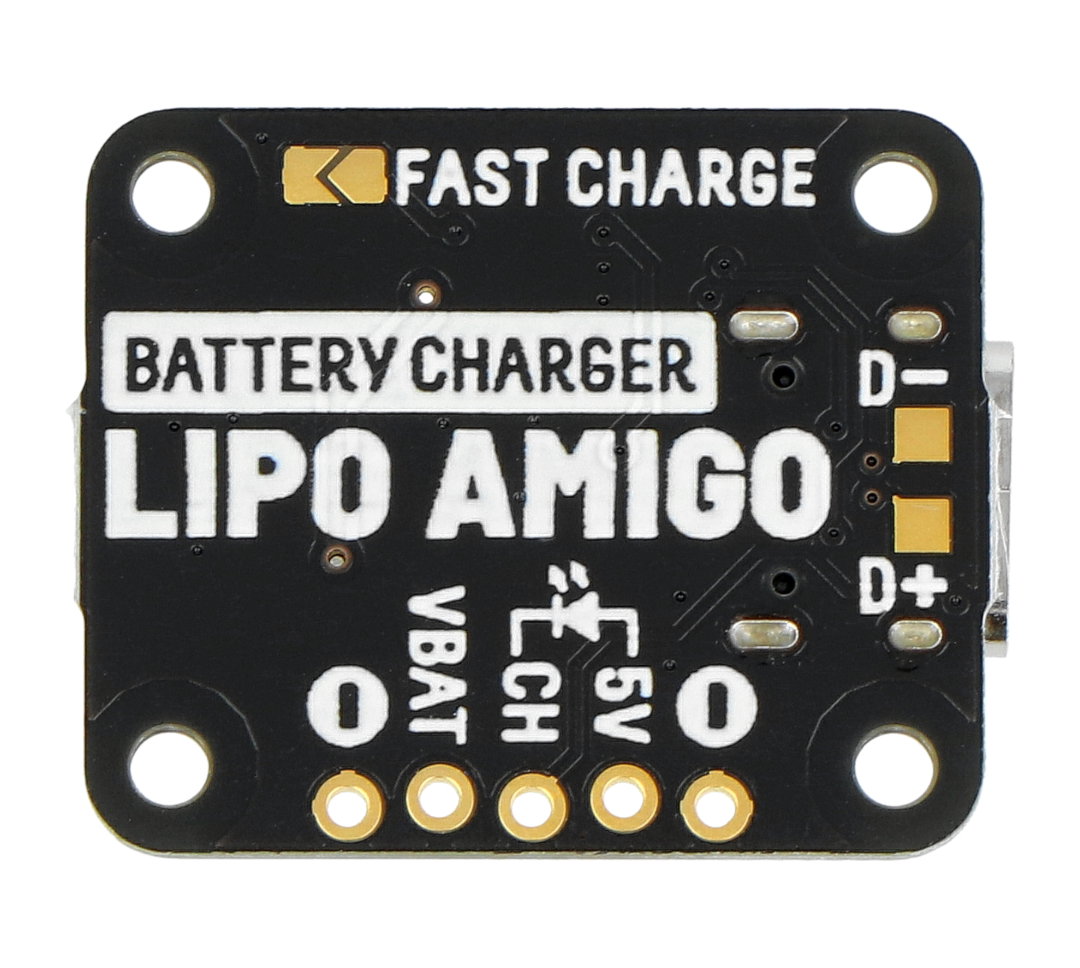

Pimoroni Li-Pol Amigo is a charger module for lithium-polymer batteries (Li-Pol) and lithium-ion batteries (Li-Ion) . The module is equipped with a USB Type-C port for connecting the power supply to charge the cell and a JST-PH socket for connecting the battery. In addition, the board has diodes indicating the current charging status and a system that protects the battery against damage. The module can charge the battery with a current of up to 500 mA after switching to Fast Charge mode, by shorting the pads on the bottom of the board.

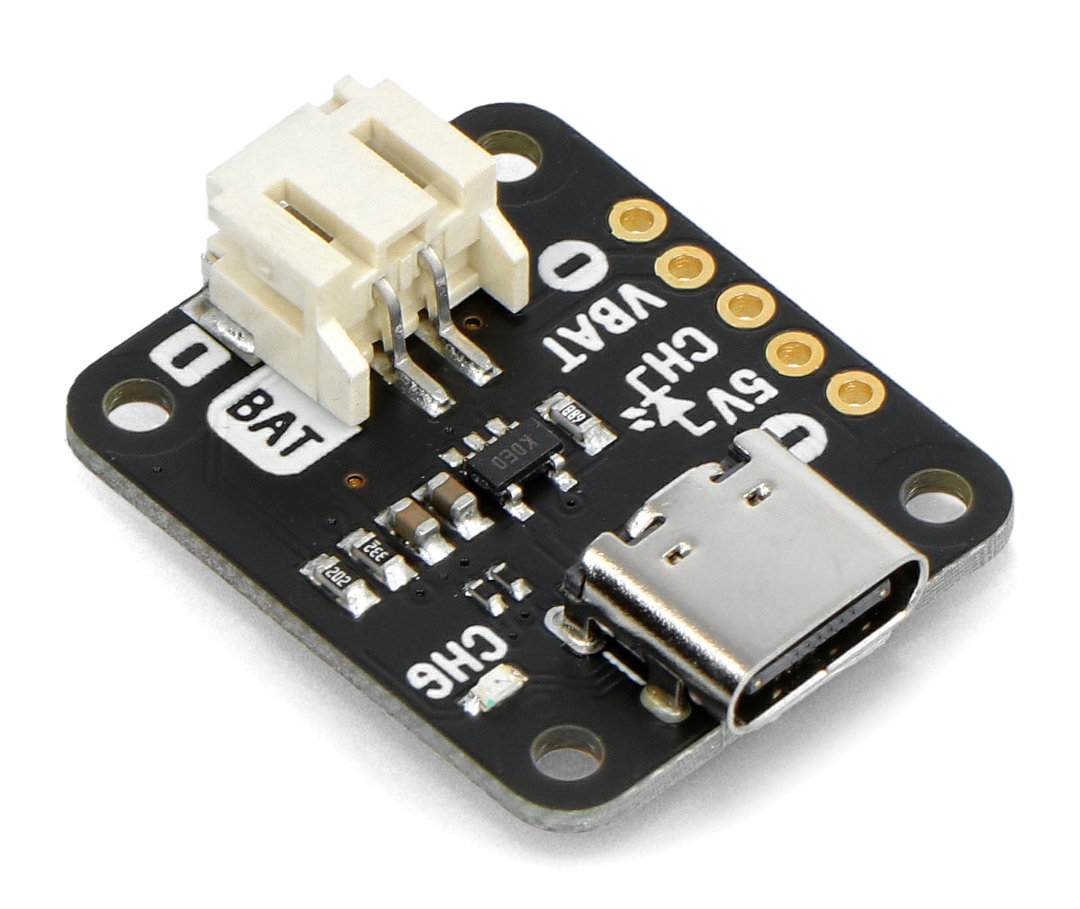

LiPo Amigo - charger for Li-Pol batteries - PiMoroni PIM611.

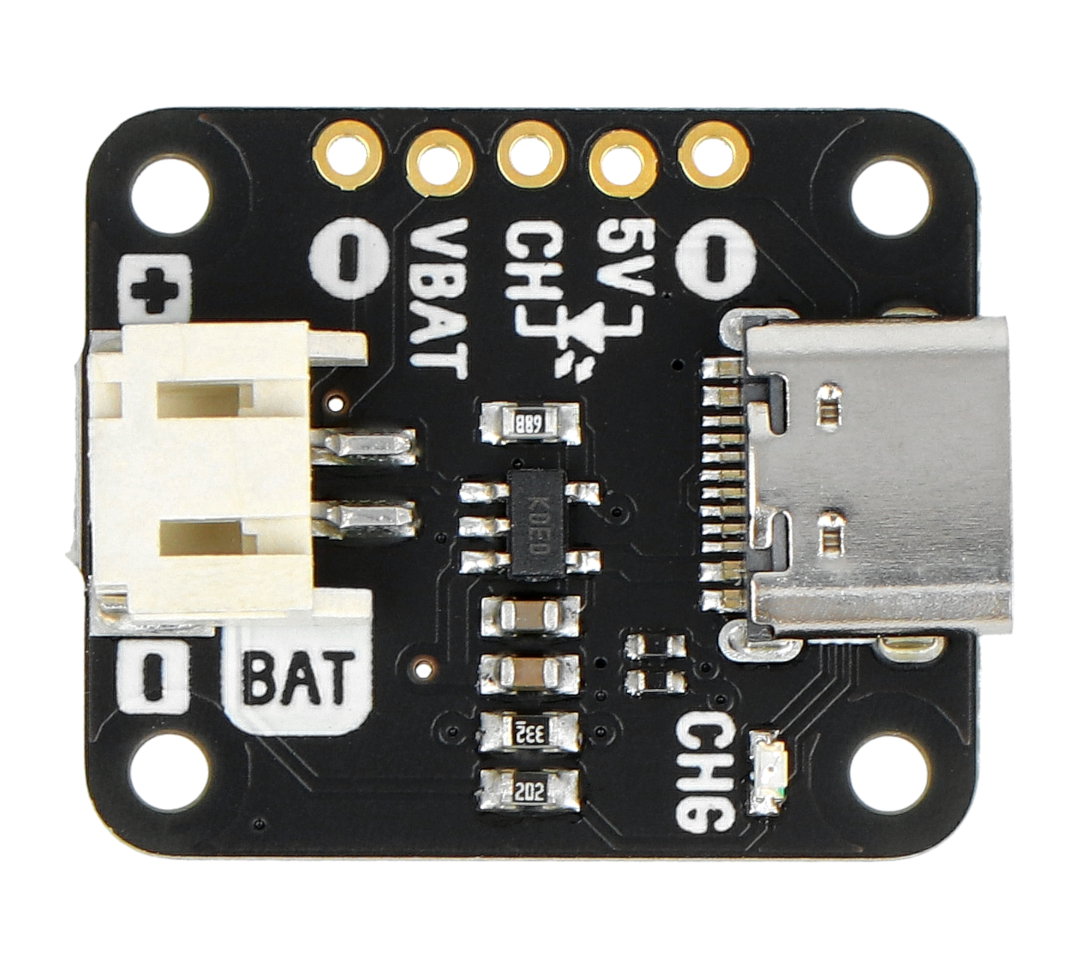

LiPo Amigo - charger for Li-Pol batteries.
Features of the Amigo LiPo power supply
- There is space left on the board for the user to solder additional components.
- The board has a USB Type-C socket for connecting the power supply and a 2-pin JST-PH socket for connecting the batteries.
- The light and small design makes the product compact and easy to use.
What should you pay attention to when using the overlay?
- The manufacturer recommends using the LiPo Amigo cover only with Li-Pol lithium-polymer batteries or Li-Ion lithium-ion batteries.
Technical specifications of LiPo Amigo
- Required additional elements: Li-Pol / Li-Ion battery
- Built-in charging chip: MCP73831
- Charging current: 200 mA
- Interfaces:
- USB Type-C socket
- 2-pole JST PH connector with polarity marked on the board
- LEDs: 2 LEDs to indicate charge level and power process
- Power supply: 6V
- Dimensions: 26 x 21 x 7 mm
LiPo Amigo - Li-Pol charger module with USB C.
