Charger BFF - charging module Li-Pol/Li-Ion - add-on for QT Py - Adafruit 5397

Index: ADA-21466
The Charger BFF module is equipped with a charger system for Li-Pol and Li-Ion MCP73831 batteries . The board is mounted directly on the pins of modules from the Adafruit QT Py series. It enables charging single-purpose Li-Ion and Li-Pol batteries with a voltage of 3.7 V through a JST connector with a pitch of 2.0 mm. Charging takes place via the USB connector of the QT Py module, the charging current is a maximum of 200 mA . Battery charging is indicated by a yellow LED. The module can also function as a battery backup for QT Py plates thanks to the built-in Shottky diode. Power can be switched via the built-in slide switch.
Charger BFF - charging module Li-Pol/Li-Ion - add-on for QT Py - Adafruit 5397
€6.90
€5.61 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit

Product description: Charger BFF - charger module for Li-Pol / Li-Ion - add-on for QT Py - Adafruit 5397

The Charger BFF module is equipped with a charger system for Li-Pol and Li-Ion MCP73831 batteries . The board is mounted directly on the pins of the Adafruit QT Py series. It enables charging single-purpose Li-Ion and Li-Pol batteries with a voltage of 3.7 V through a JST connector with a pitch of 2.0 mm. Charging takes place via the USB connector of the QT Py module, the charging current is a maximum of 200 mA . Battery charging is indicated by a yellow LED. The module can also function as a battery backup for QT Py plates thanks to the built-in Shottky diode. Power can be switched via the built-in slide switch.

Charger module for Li-Pol Li-Ion Charger module for Li-Pol / Li-Ion batteries, which is an addition to the QT Py plates. The battery and the QT Py plate can be purchased separately in our store.

The pins of the module

  • The module is equipped with a slide switch in the center of the board, which enables switching the power supply of the QT Py module.
  • The JST socket allows you to connect a 3.7V Li-Pol / Li-Ion battery that is to be charged or with which the QT Py module is to be powered.
  • The yellow LED is located in the upper right corner of the plate and indicates that the battery is charging.
  • Pin A2 allows you to monitor the state of charge of the battery.

The manufacturer has prepared a user guide that makes it much easier to start working with the module in conjunction with QT Py.

Charger BFF module specification

  • Charger chip: MCP73831
  • Maximum charging current: 200 mA
  • Compatible with: QT Py
  • Charging takes place via the USB C connector of the QT Py board
  • Supported batteries: single-purpose Li-Pol and Li-Ion
  • Built-in LED: yellow, informing about battery charging
  • Dimensions: 20.9 x 17.9 x 7.2 mm
  • Weight: 1.6 g

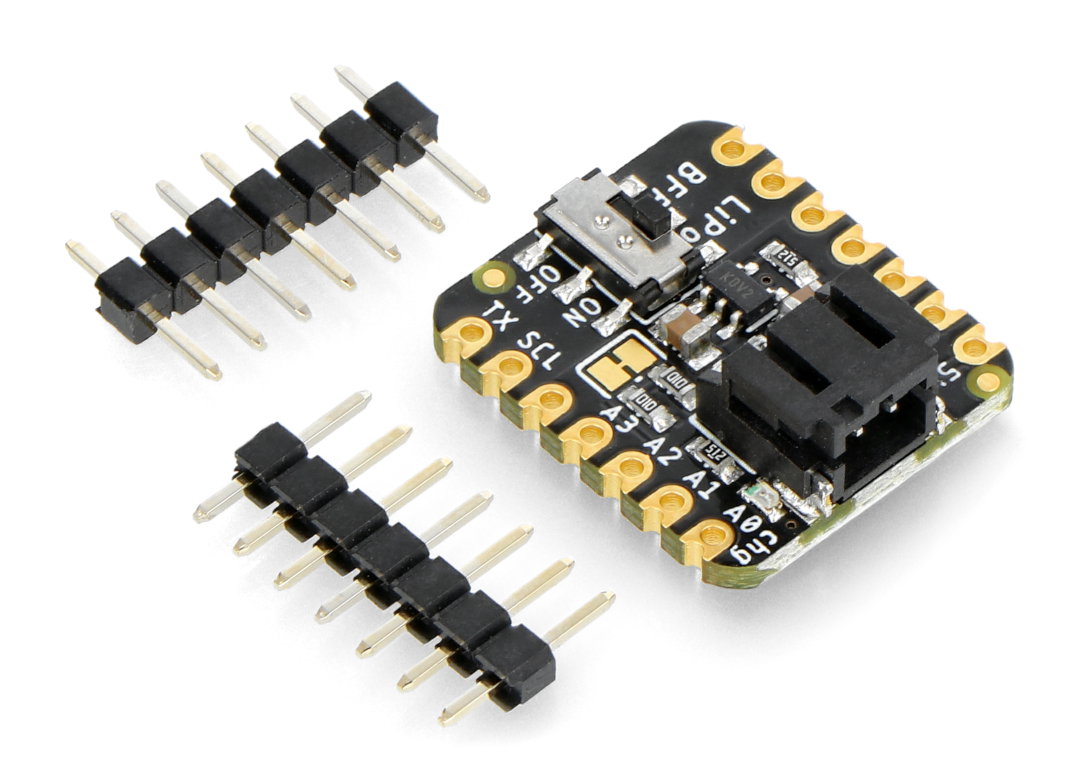

Set contains

  • 1x Charger BFF - charger module for Li-Pol / Li-Ion - add-on for QT Py - Adafruit 5397
  • 2x male goldpin strip
Zawartość zestawu Charger BFF Kit Contents.

Package width 7.5 cm
Package height 0.5 cm
Package depth 9 cm
Package weight 0.004 kg
