Product description: Wio Tracker L1 Pro - LoRa Meshtastic Development Module with GPS - Seeedstudio 114993649
The Wio Tracker L1 Pro from Seeedstudio is an energy-efficient communication device designed for mesh networks operating independently of cellular infrastructure. A module based on the SX1262 chip provides LoRa connectivity in the 862 MHz to 930 MHz band , while a Nordic nRF52840 processor is responsible for device operation and Bluetooth 5.0 communication. The L76K module enables positioning using GPS , BeiDou, GLONASS, and QZSS . Information can be read directly on the 128 x 64 px OLED screen , and operation is facilitated by a joystick, menu button, and buzzer. The Pro version has a built-in 2000 mAh battery and a housing , making it ready for use as a mobile Meshtastic node.

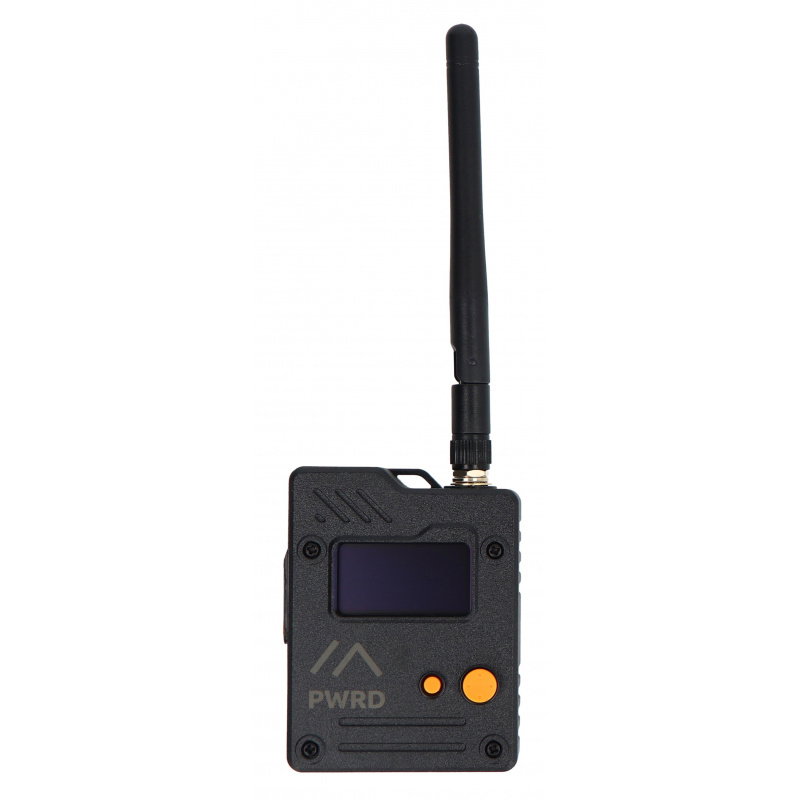

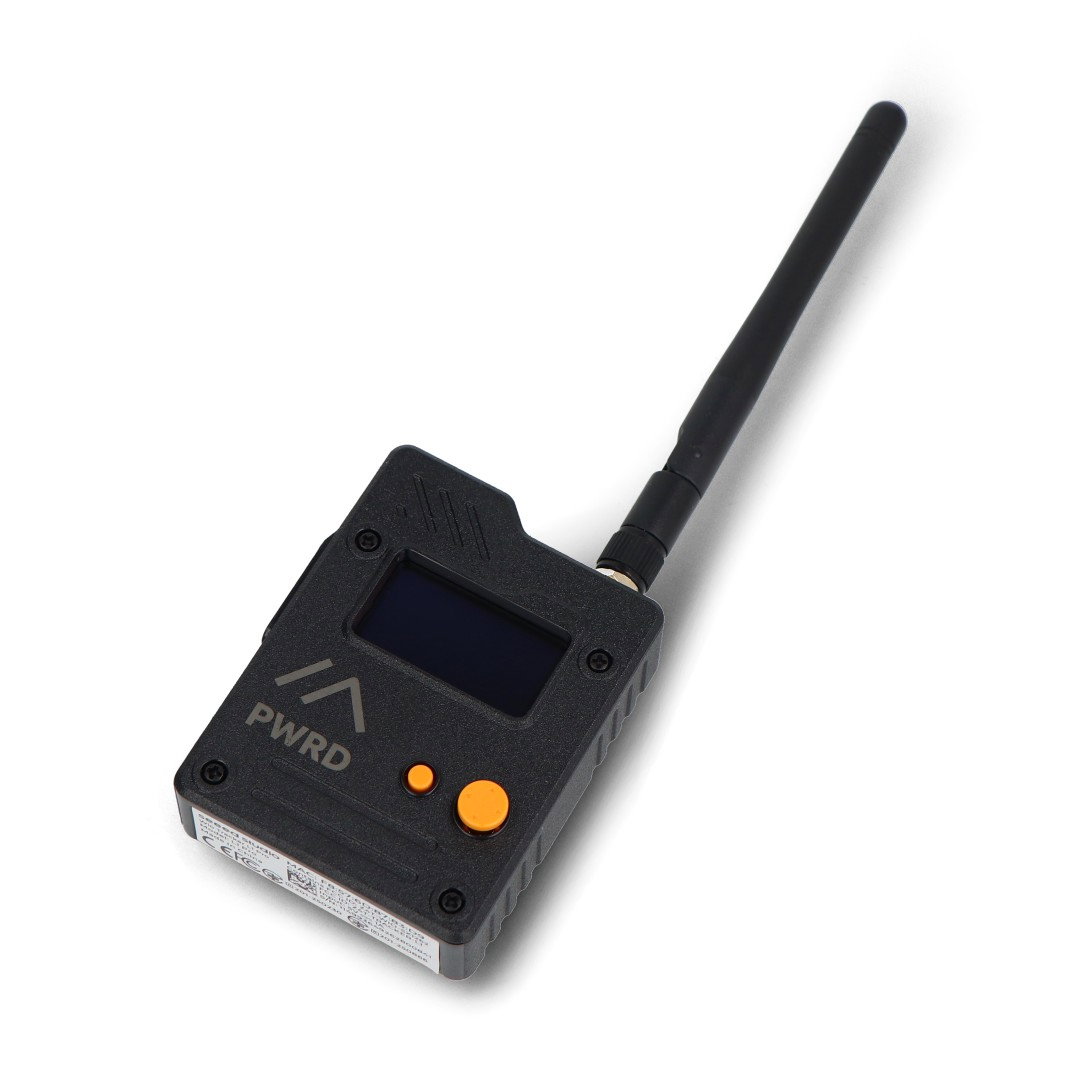

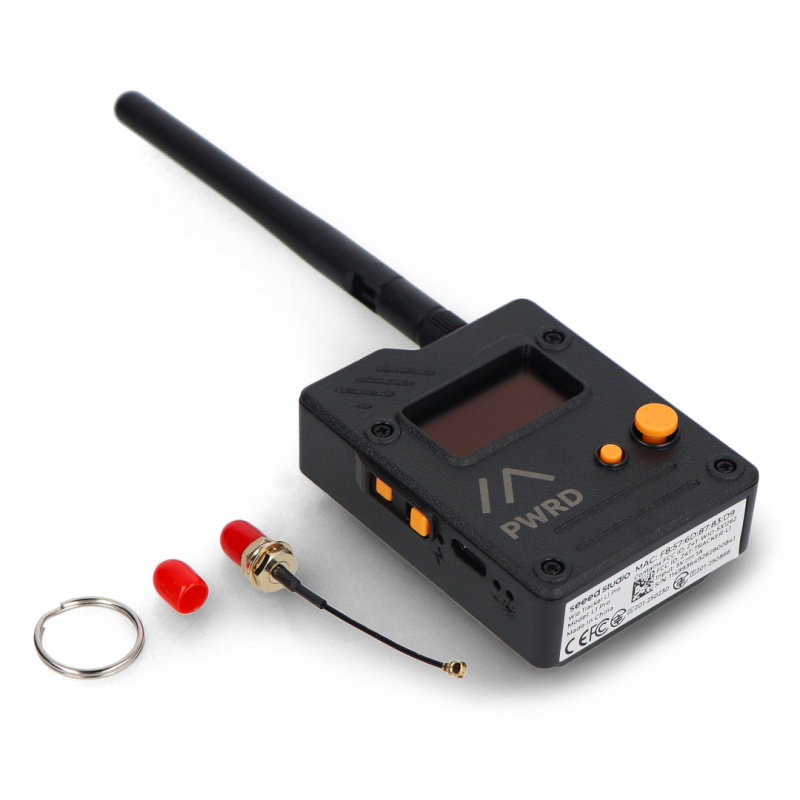

Wio Tracker L1 Pro - LoRa Meshtastic Development Module with GPS - Seeedstudio 114993649.

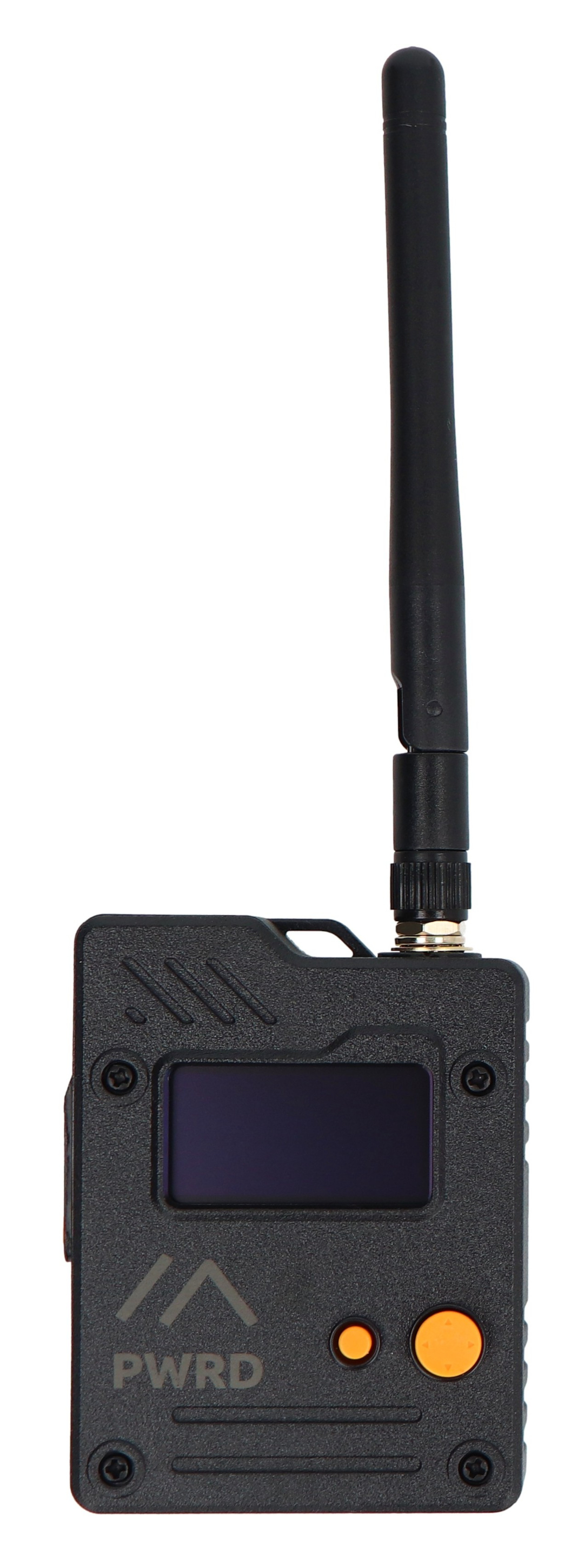

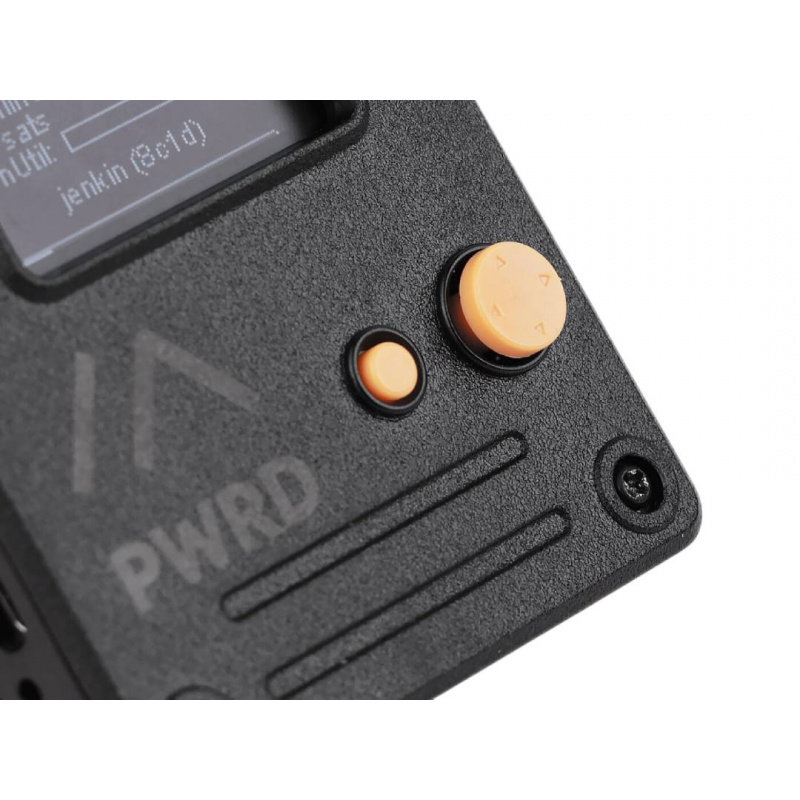

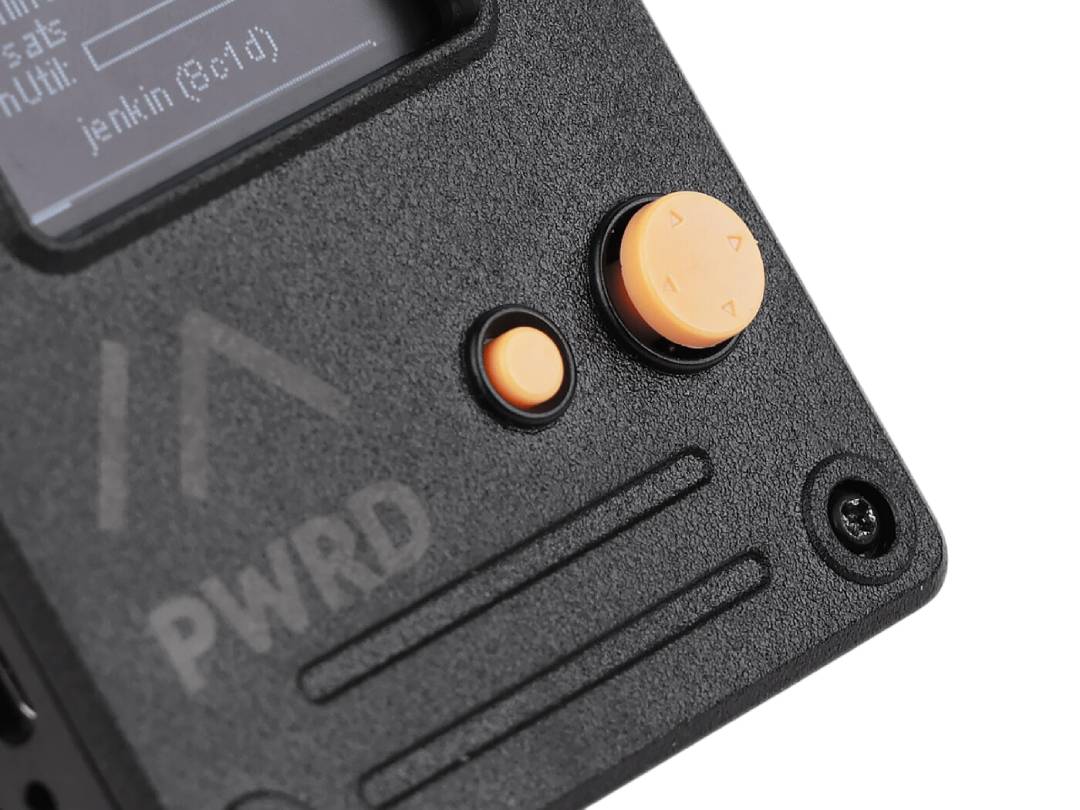

The 1.3'' OLED display provides a clear view of data.
Main features of the LoRa tracker with GPS
- LoRa connectivity : Support for the 862 MHz to 930 MHz band enables the creation of energy-efficient, long-range mesh networks
- Meshtastic : Pre-installed software lets you quickly get started with an open communication network without the need for internet
- Nordic nRF52840 processor : ARM Cortex-M4 chip with FPU operating at up to 64 MHz ensures efficient and energy-efficient operation of the device
- L76K GNSS module : GPS, BeiDou, GLONASS and QZSS support allows you to determine and share your location in the network
- 1.3" OLED display : a screen with a resolution of 128 x 64 px allows you to view information without having to use a smartphone
- Bluetooth 5.0 : allows you to wirelessly connect your tracker to a compatible mobile app
- 2000 mAh battery : integrated power source allows you to use the device on the go without connecting an external battery
- Three power supply options : the device can use USB Type-C, built-in battery and solar panel power input
- LoRa 3 dBi Antenna : The external antenna is adapted to the radio communication used by the device.
- Grove interface : UART, I2C and GPIO support allows you to expand the device with compatible sensors and modules
- PTH connectors and SWD interface : enable hardware expansion, programming and debugging of your own projects
- Joystick and buzzer : controls allow you to conveniently interact directly with your device
- PC+ABS housing : injection-molded construction enhances device durability and makes the Pro version ready to use without the need for a custom case
Meshtastic - communication beyond the reach of the internet
Meshtastic is an open mesh communication system that uses energy-efficient LoRa technology to exchange messages and data without access to the internet or a mobile operator's infrastructure. Individual nodes can forward data further within the network, allowing for expansion of the communication area with additional devices. The Wio Tracker L1 Pro comes pre-installed with Meshtastic software and can communicate with a smartphone via Bluetooth , simplifying configuration, sending messages, and managing location-based features. This solution is suitable for outdoor activities, creating experimental mesh networks, and implementing IoT projects in areas with limited access to traditional connectivity.
The Wio Tracker L1 Pro comes with Meshtastic software pre-installed.

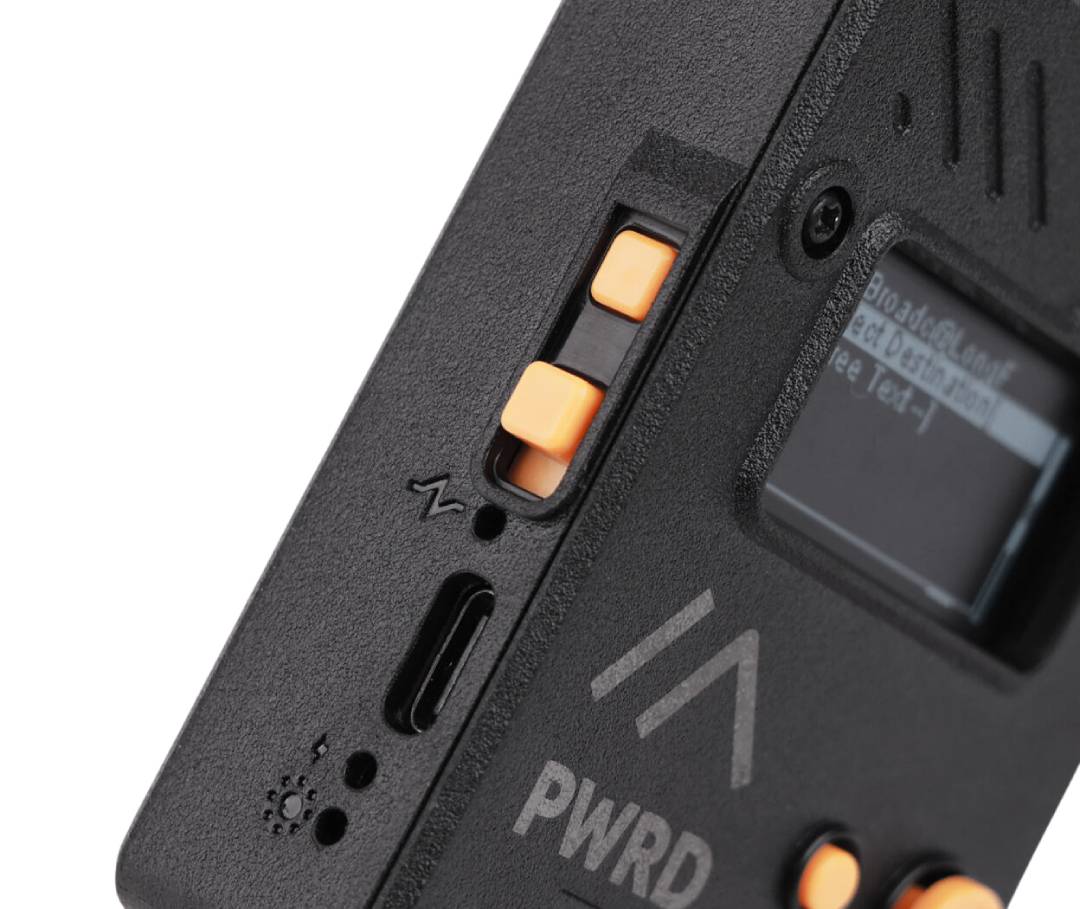

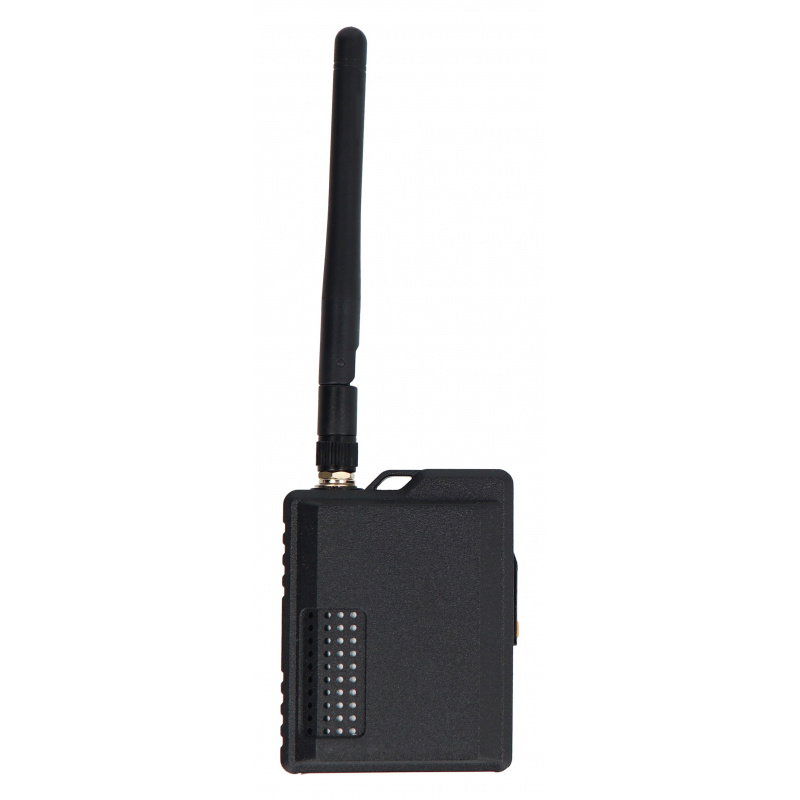

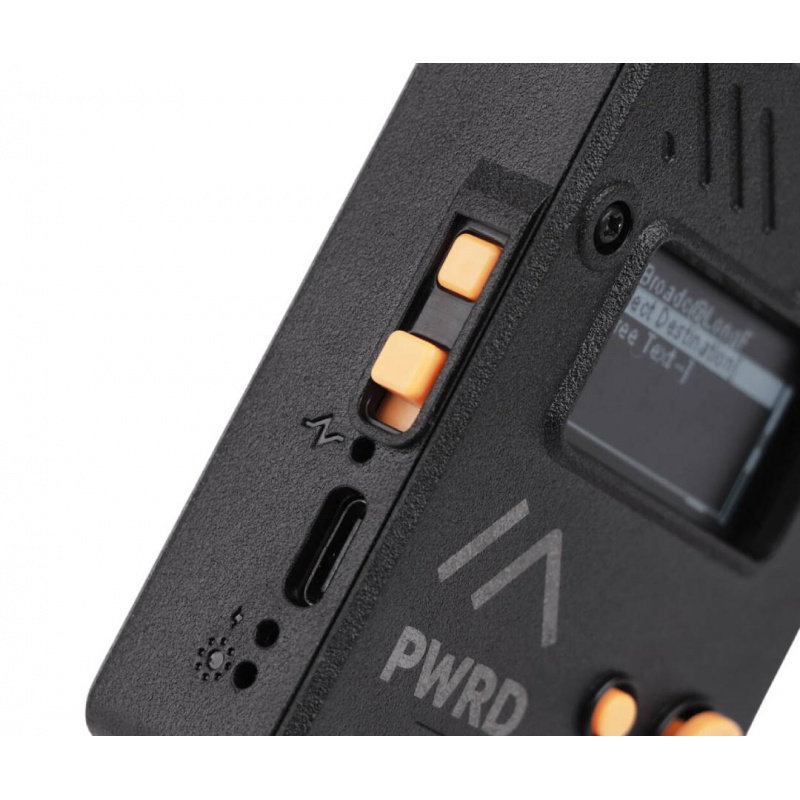

The housing allows for convenient use of the module in the field.
Comparison of Wio Tracker L1 series models
The Wio Tracker L1 series uses a common hardware platform with LoRa and GNSS positioning, but individual versions differ in their features. The Wio Tracker L1 Pro is the most integrated variant, equipped with an OLED screen, a housing, and a built-in 2000 mAh battery. The Lite variant is primarily intended for projects that don't require a screen, while the E-Ink version uses an energy-efficient 2.13" display.
| Characteristic | Wio Tracker L1 Lite | Wio Tracker L1 | Wio Tracker L1 Pro | Wio Tracker L1 E-Ink |
|---|---|---|---|---|
| LoRa | Yes | Yes | Yes | Yes |
| GPS / GNSS | Yes | Yes | Yes | Yes |
| Display | Lack | OLED 1.3" | OLED 1.3" | E-Ink 2.13" |
| Resolution | - | 128 x 64 px | 128 x 64 px | 122 x 250 px |
| Battery powered | Battery connector | Battery connector | Built-in 2000 mAh battery | Battery connector |
| Solar powered | Yes | Yes | Yes | Yes |
| Case included | NO | NO | Yes | NO |
LoRa GPS Applications in Practice
Wio Tracker L1 Pro can be used as a portable communication terminal for people moving outside the range of the mobile network , for example while hiking, Field trips or work in remote locations. The GNSS module allows for location transmission within the Meshtastic network , making the device also suitable for localization projects and tracking mobile nodes. The Grove interface allows the tracker to be connected to compatible temperature, humidity, pressure, and other sensors , opening the possibility of building distributed monitoring systems. The device can also be used for IoT prototyping, experimental mesh social networks, maker projects, and field asset monitoring.
The built-in battery and solar power support enable versatile use of the Wio Tracker L1 Pro in various projects.

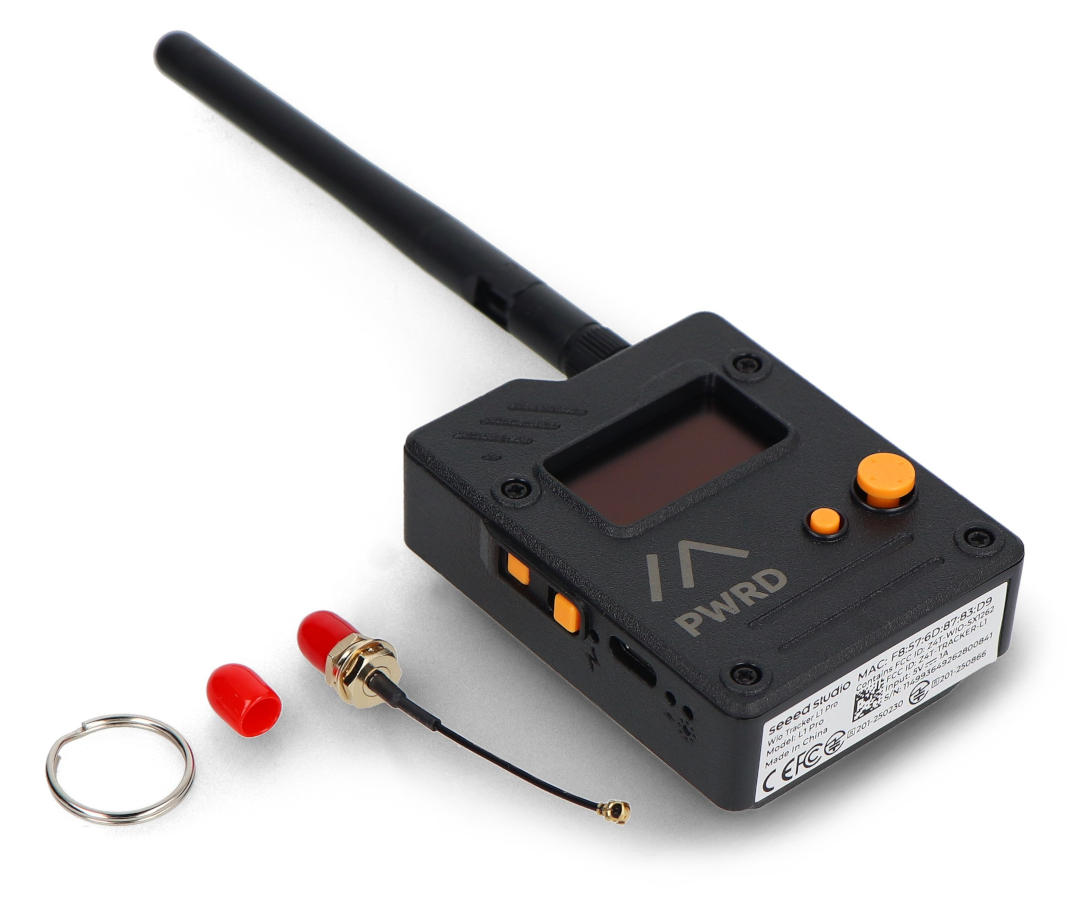

Elements included in the set.
Technical specifications of the LoRa module
- Processor: Nordic nRF52840
- Core: ARM Cortex-M4 with FPU
- Maximum clock speed: 64 MHz
- Flash memory: 1 MB
- RAM: 256 kB
- LoRa chip: Wio-SX1262 / SX1262
- LoRa frequency range: 862 MHz to 930 MHz
- LoRa antenna: 3 dBi
- Bluetooth: 5.0
- GNSS module: L76K
- Supported navigation systems: GPS, BeiDou, GLONASS, QZSS
- Display: OLED 1.3"
- Display resolution: 128 x 64 px
- Active display area: 34.5 x 23.0 mm
- Grove Interface: UART / I2C / GPIO
- PTH Connectors: UART / I2C / GPIO / Analog Input
- Debug interface: SWD
- USB connector: USB Type-C
- Power supply via USB Type-C: 5V/1A
- Solar power: 5V/1A
- Maximum solar input voltage: 5 V
- Battery: built-in, rechargeable
- Battery capacity: 2000 mAh
- Controls: Four-way joystick, menu/reset button, power switch
- Signaling: LEDs and passive buzzer
- Current housing material: PC+ABS
- Dimensions: 56 x 181 x 26 mm (with housing and antenna)
Contents of the set
- 1x Wio Tracker L1 Pro with OLED display, case and built-in battery
- 1x LoRa Antenna
