WisBlock Meshtastic Starter Kit - Base Board + Core development module - 868MHz- Rak Wireless
A starter kit from Rak Wireless containing two basic modules of WisBlock series - WisBlock Base Board and WisBlock Core developer module. Also included are LoRa and BLE external antennas, 2 dBi LoRa antenna with SMA connector, U.FL - SMA adapter, microUSB connection cable and mounting screws.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: WisBlock Meshtastic Starter Kit - Base Board + Core development module - 868MHz- Rak Wireless
Starter kit manufactured by Rak Wireless containing two basic modules of WisBlockseries - WisBlockBase Boardand WisBlockCore developer module. In addition, the kit also includes LoRa and BLE external antennas, 2 dBi LoRa antenna with SMA connector, U.FL - SMA adapter, microUSB connection cable and mounting screws. The kit, combined withWisBlock IOextensions andWisBlock Sensors, enables simple and convenient prototyping, testing of various types of sensors, and application development.
Starter Kit for WisBlock series.

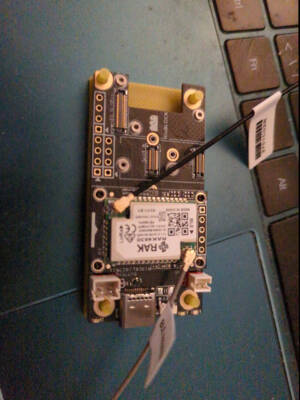

RAK19007 base board and RAK4630 Core developer module.
Technical specification

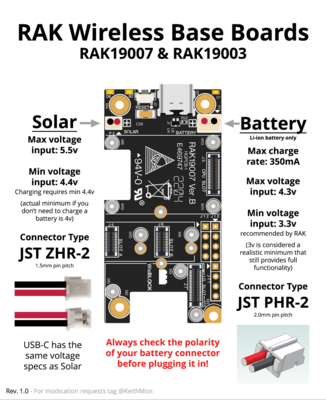

- WisBlock Base Board
- model: RAK19007
- prototyping connectors:
- WisBlock Core - 1 pc.
- WisBlock Sensor - 4 pcs.
- WisBlock IO - 1 pc.
- Interfaces: I2C, UART, GPIO, BOOT
- WisBlock Core development module
- model: RAK4630
- chip: nRF52840
- MCU with very low power consumption
- 32-bit ARM Cortex-M4F processor
- processor clocking: 64 MHz
- Flash memory: 1 MB
- RAM: 256 kB
- chip: SX1262 LoRa
- Bandwidth of supported wireless systems: from 7.8 kHz to 500 kHz

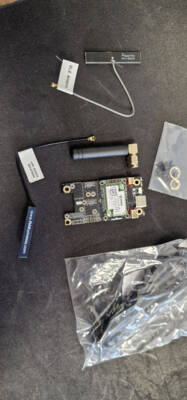

Set contents
- WisBlock Base Board
- WisBlock Core developer module
- LoRa external antenna
- BLE external antenna
- LoRa 2 dBi antenna with SMA connector
- U.FL - SMA adapter
- Mounting screws
- MicroUSB cable
Also check out theWisblock Sensor series and WisBlock IOextensions.
The set also includes LoRa antenna with SMA connector.
WisBlock System Composition.
WisBlock Series
WisBlockseries modules produced byRak Wireless. They allow to makeextended IoT projects, which can be used in advanced scenarios and in basic projects. WisBlock system includes: WisBlockBase Board, WisBlockCoredeveloper module, WisBlockSensorsand WisBlockIO expansionmodules. They are used for rapid implementation of engineering prototypes. They are also designed to create mass applications ready for industrial deployment.
Useful links
| Name | Value |
|---|---|
| Width | 9 cm |
| Height | 5 cm |
| Depth | 14.5 cm |
| Weight | 0.065 kg |
