Product description: Wio Tracker L1 - LoRa Meshtastic development module with GPS, nRF52840 and OLED screen - Seeedstudio 114993648
The Wio Tracker L1 from Seeedstudio is a versatile platform for wireless communication and location projects. The ARM Cortex-M4 nRF52840 microcontroller provides high performance with low power consumption, making it ideal for mobile and solar applications. The built-in SX1262 LoRa module enables long-range communication, while the L76K GPS module guarantees precise positioning. The board is pre-built for Meshtastic software, allowing you to quickly create your own mesh network without complex configuration. Compatible with the Grove ecosystem, the Wio Tracker L1 can be easily expanded with additional environmental sensors, making it a versatile tool for hobbyists and professionals.

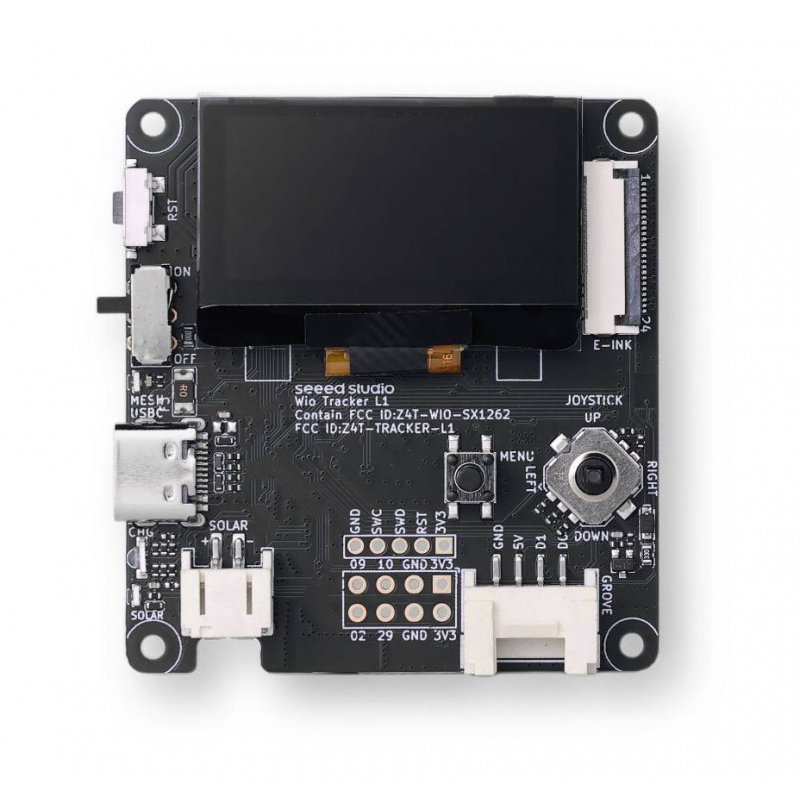

Wio Tracker L1 - LoRa Meshtastic development module with GPS, nRF52840 and OLED screen - Seeedstudio 114993648.
The Wio Tracker L1 comes with Meshtastic firmware pre-installed.
Main features of the Wio Tracker L1
- LoRa from 862 MHz to 930 MHz : long-range communication with low power consumption
- nRF52840 microcontroller : a powerful ARM Cortex-M4 chip clocked at up to 64 MHz
- GPS L76K : Supports GPS, BeiDou, GLONASS and QZSS systems
- 1.3'' OLED display : clear view of data and device status
- Meshtastic support : ready-made firmware for creating mesh networks
- Versatile power supply : USB Type-C, solar panel or Li-Ion batteries
- Grove, UART, IIC and GPIO interfaces : convenient integration with sensors and expansion modules
- Bluetooth 5.0 : easy communication with a mobile application

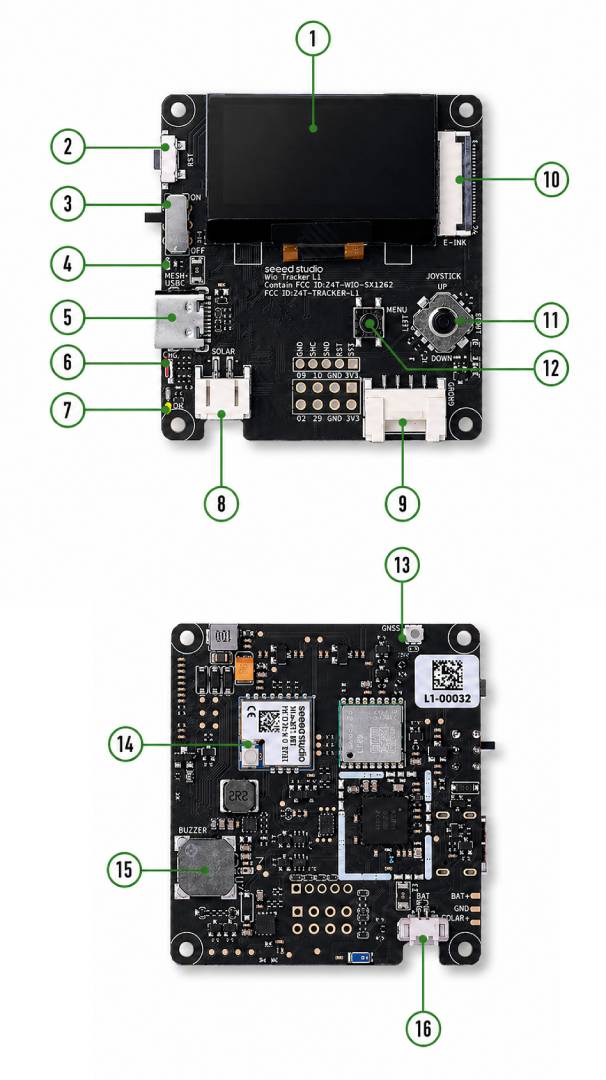

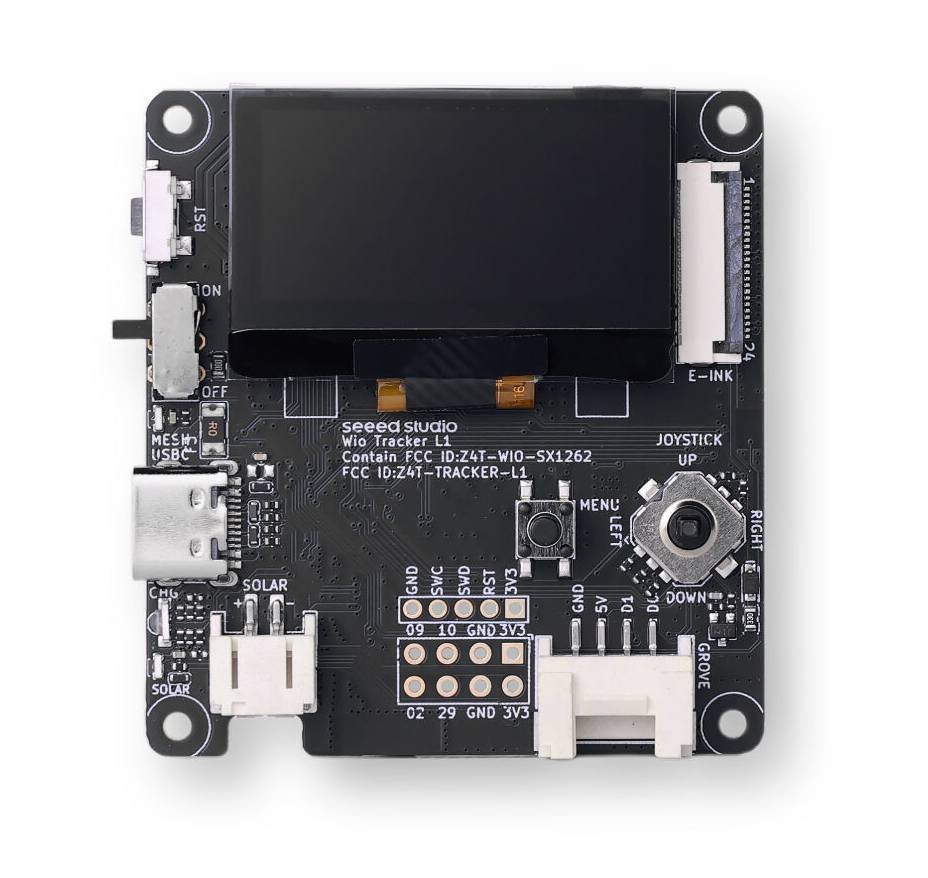

Wio Tracker L1 board construction
The Wio Tracker L1 board is designed for rapid prototyping and convenient integration with additional modules. Key connectors, buttons, and indicators are easily accessible , making it easy to install in mobile, field, and IoT projects.
- 1.3'' OLED display
- Reset button
- Power switch
- Mesh status LED (yellow)
- USB Type-C port
- Charging status LED (red)
- Solar panel status LED (yellow)
- Solar panel connector
- Grove connector
- 24-pin E-Ink display connector
- 4-way joystick
- Menu button
- GPS antenna connector
- LoRa antenna connector
- Buzzer
- Battery connector

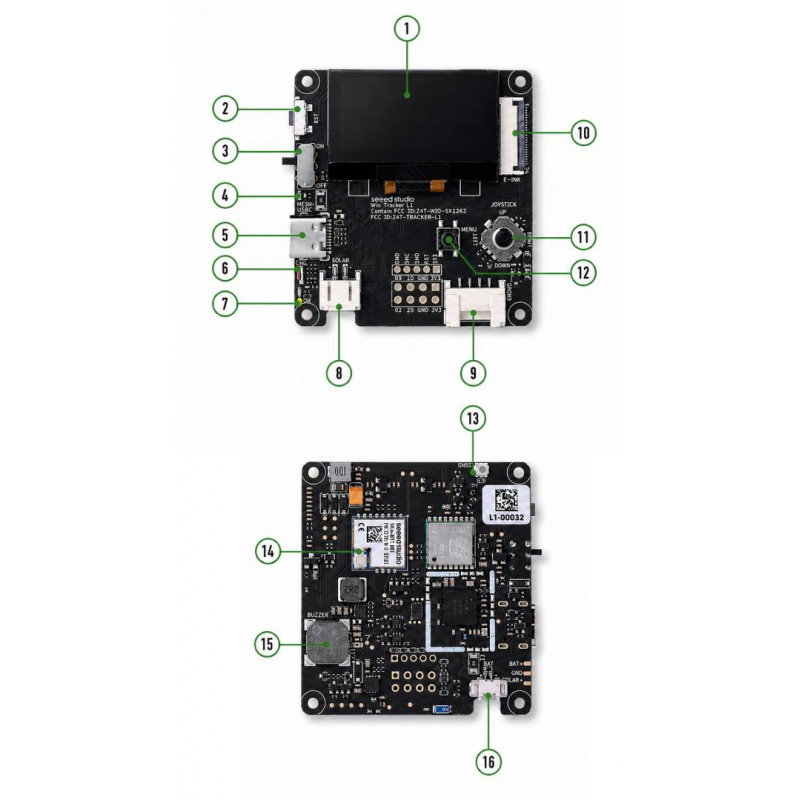

Arrangement of components on the board.
Compatibility with the Grove ecosystem allows expansion with sensors.
Meshtastic in LoRa communication
The Wio Tracker L1 is compatible with Meshtastic software, which enables the creation of decentralized mesh communication networks . Devices can transmit messages without access to the internet or operator infrastructure , which is useful in the field, during expeditions, emergency operations, and monitoring projects. The combination of LoRa technology, the energy-efficient nRF52840 chip, and GPS location allows for the construction of practical communication and position tracking systems.
Technical specifications of Wio Tracker L1
- Microcontroller: Nordic nRF52840, ARM Cortex-M4 with FPU
- Clock speed: up to 64 MHz
- Flash memory: 1 MB
- RAM: 256 kB
- LoRa: Wio-SX1262, 862 MHz to 930 MHz
- Bluetooth: 5.0
- GPS: L76K, GPS / BeiDou / GLONASS / QZSS
- Display: OLED 1.3''
- Screen resolution: 128 x 64 px
- Interfaces: Grove UART/IIC/GPIO, PTH UART/IIC/GPIO/analog, SWD
- Display connector: 24-pin
- Power supply via USB Type-C: 5V/1A
- Solar power supply: 5V/1A, 2mm 2-pin connector
- Battery power supply: 3.7V/1A, JST 1mm 2-pin connector
- Dimensions: 52 x 50 x 12 mm

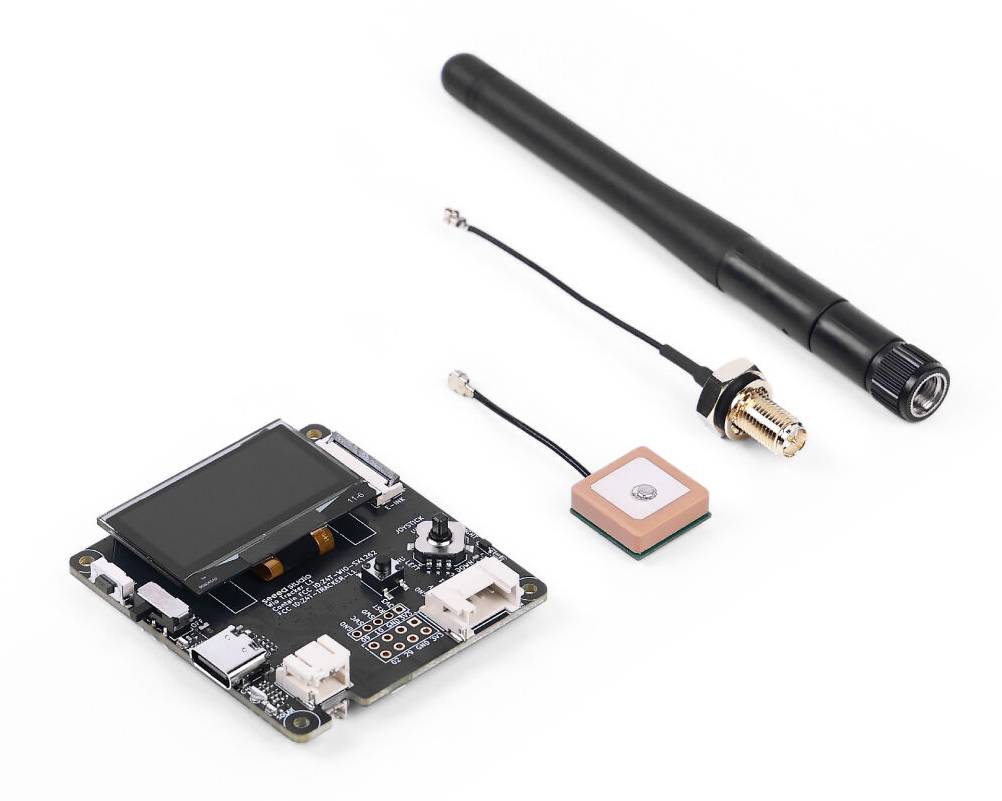

Contents of the set
- 1x Wio Tracker L1 Board with 1.3'' OLED display
- 1x LoRa Antenna
- 1x RF Cable 60mm RP-SMA Female to IPEX
- 1x GPS antenna

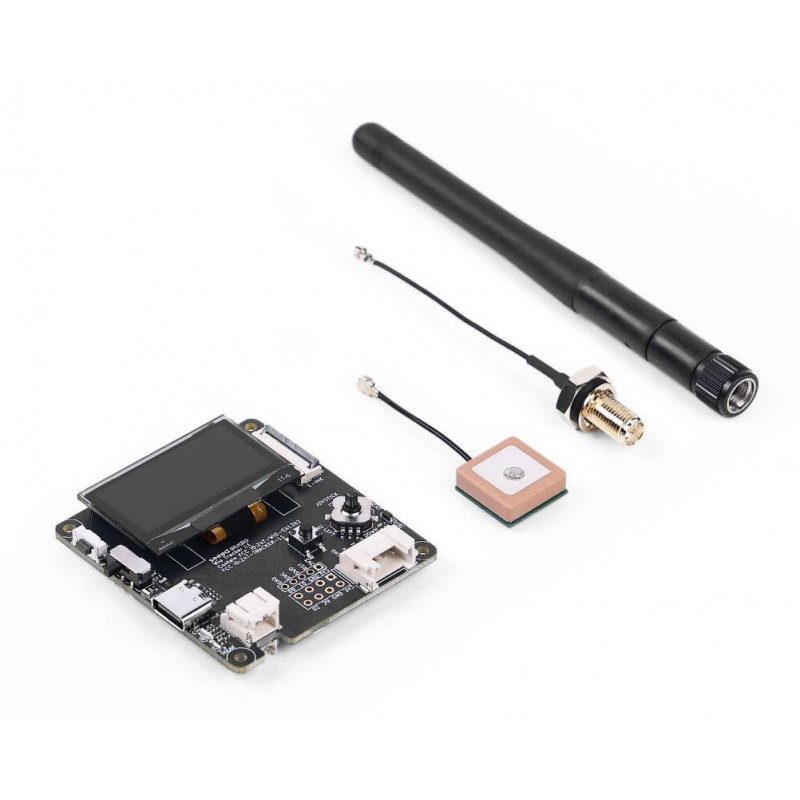

Elements included in the set.
