Pololu Reverse Voltage Protector with Ideal Diode Function, 4-60V, 20A - Pololu 5388
Reverse connection protection down to -60 V with an ideal diode function: a Pololu module for 20 A continuous.
- Operating voltage 4-60 V
- Power path resistance approx. 3 mΩ
- Blocks current flowing from the load to the source
We could not load the price.
The promotional price does not combine with quantity discounts.
A wiring mistake will not burn your circuit
Pololu Ideal Diode Reverse Voltage Protector is connected between the power supply and the load and blocks a reversed battery or power supply connection, even at -60 V. When connected correctly, the current flows through a MOSFET transistor with a resistance below 3 mΩ, so the module loses almost no voltage and carries up to 20 A continuously, and even about 50 A for a few seconds.
This version works as an ideal diode: it also blocks current flowing from the load back to the source. It is useful when you combine several power sources or want the load's capacitors not to discharge into the power supply. The large holes fit 5 mm pitch ARK connectors and wires up to 14 AWG.

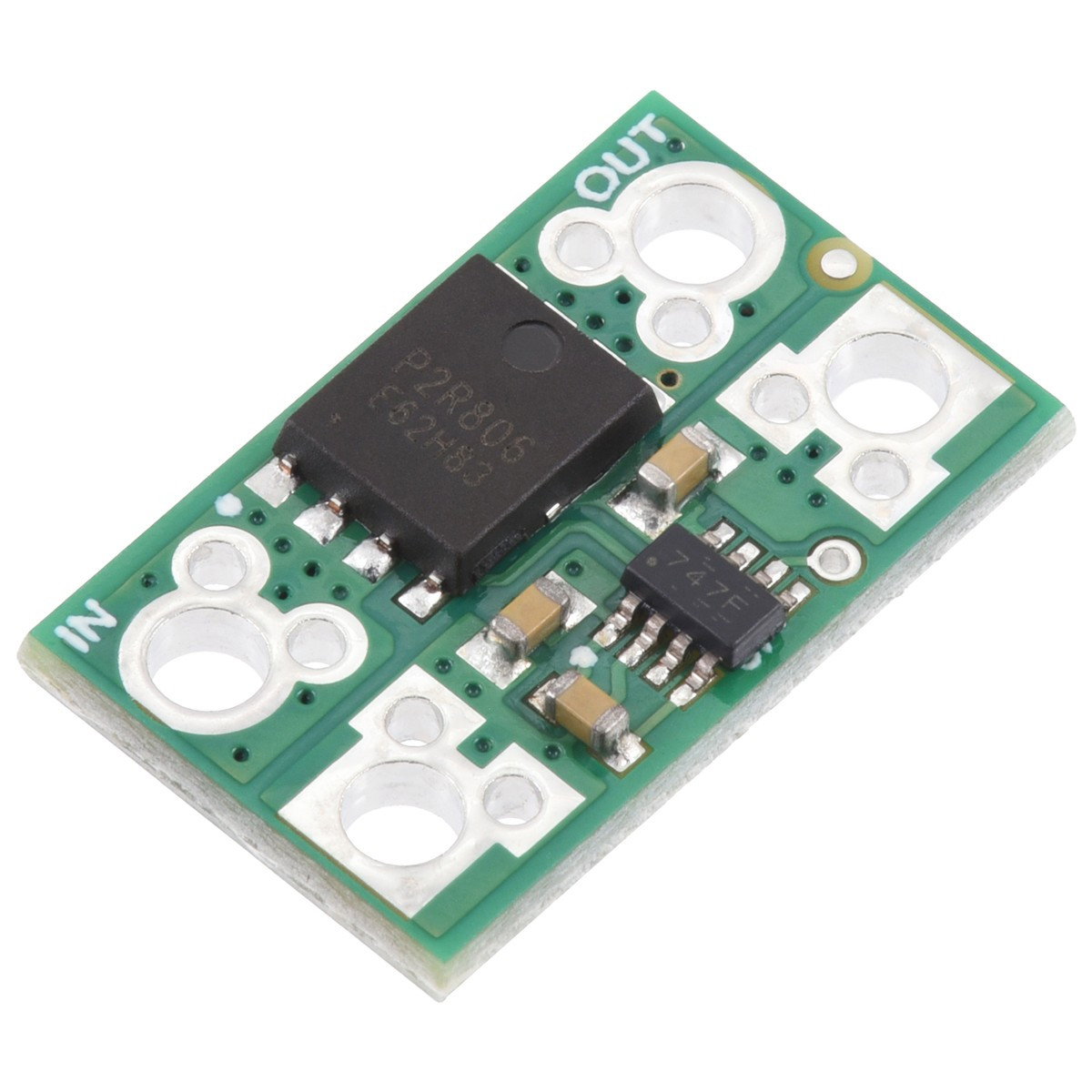

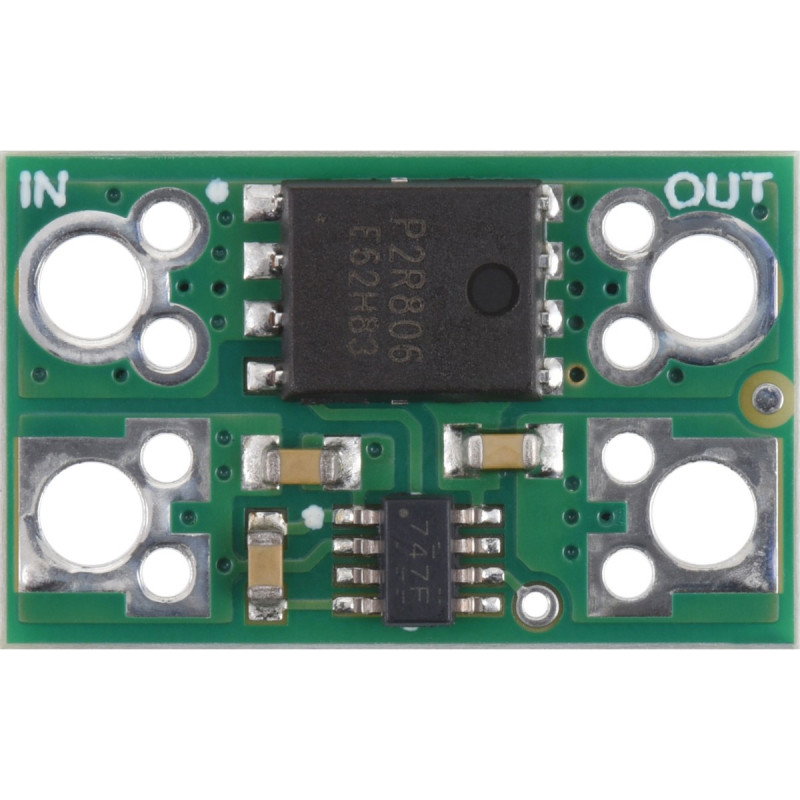

Pololu reverse voltage protector board
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.
down to -60 V
reverse connection protection
20 A
continuous current, approx. 50 A for a few seconds
4-60 V
operating voltage
< 3 mΩ
power path resistance
A good choice for you?
A good choice if:
- you protect a device against reverse connection of a battery or power supply up to 60 V
- you need a small voltage drop at a high current, up to 20 A
- you want to block current flowing from the load to the source
Consider another option if:
- a lower current is enough for you: see Pololu 4-75 V 8 A protection module
- you also want to switch the power on with a button: choose Pololu Push MOSFET SV switch 4.5-40 V/4 A
Technical specifications
| Parameter | Value |
|---|---|
| Type | reverse polarity protection module with an ideal diode function |
| Operating voltage | 4-60 V (works from 3.2 V after startup) |
| Reverse voltage protection | down to -60 V |
| Current | 20 A continuous, approx. 50 A for a few seconds |
| Path resistance | about 3 mΩ |
| Reverse current blocking | yes |
| Chip | LM74700-Q1 ideal diode controller and an N-channel MOSFET transistor |
| Connectors | large holes for 5 mm ARK connectors or wires up to 14 AWG, small holes at 2.54 mm pitch |
| Additional | solder pads for an optional TVS diode in an SMB package |
| Dimensions | 11.1 x 17.8 mm |
| Included | module without connectors |
| Manufacturer | Pololu (number 5388) |
Did you know?
A diode with almost no voltage drop
An ordinary protection diode takes away part of the voltage and heats up at high current. Here the role of the diode is played by a MOSFET transistor with a resistance of about 3 mΩ, so at 20 A the voltage drop is only about 0.06 V.
Source: Pololu: product page
Frequently asked questions
How do I connect the module?

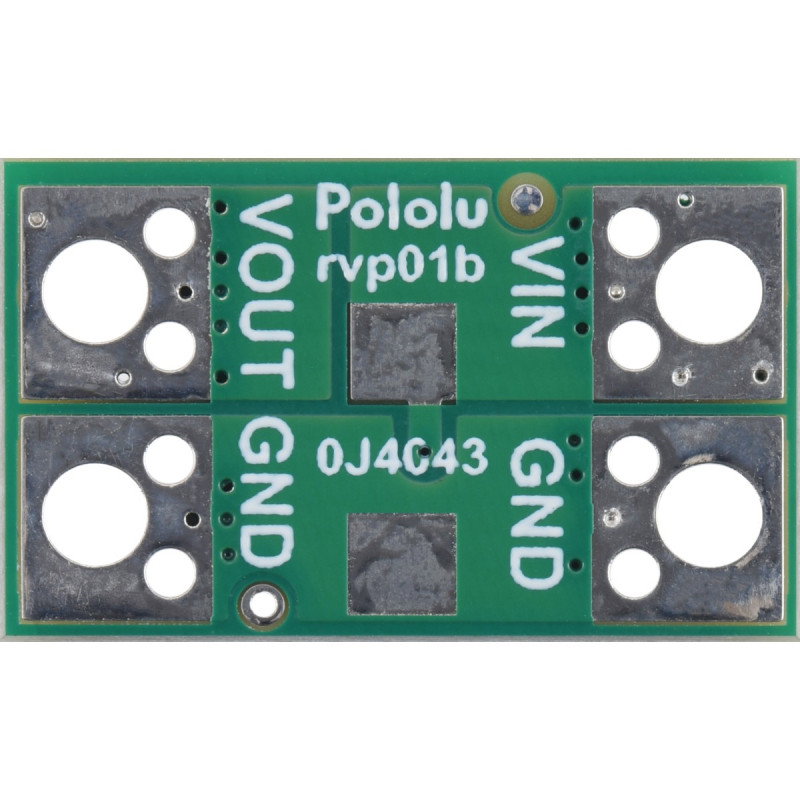

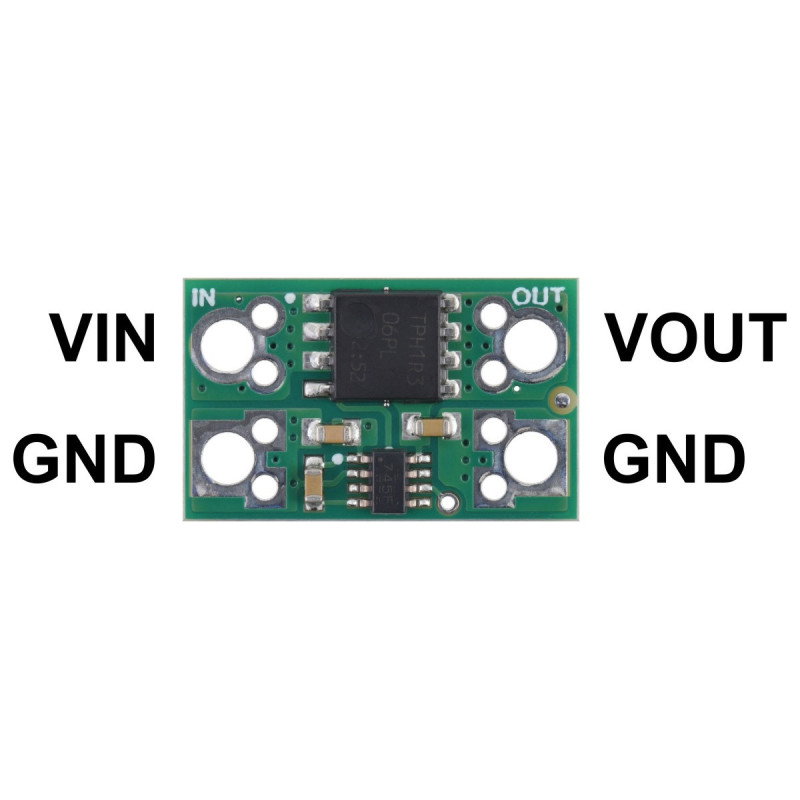

You connect the power supply to VIN and GND, and the load to VOUT and GND. If the power is connected the wrong way round, the module simply does not let the voltage through.
Can I use it with a motor driver on a battery?
Better not. This version blocks reverse current, and when braking the motor returns energy to the battery. For such applications the manufacturer recommends the version without reverse current blocking.
Are screw terminals included?
No. The screw terminals and pins visible in some of the manufacturer's photos are not included.
