Membrane keypad - 2 coloured buttons - self-adhesive
Keyboard equipped with two colored buttons. Keyboard leads are made in the form of a connection tape finished with3-pinraster2.54 mm. Plug located at the end of the tape significantly facilitates the process of connecting the keyboard to the main module such as Arduino. To make such a connection we can use connection cables or goldpin connectors with a raster2,54 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.

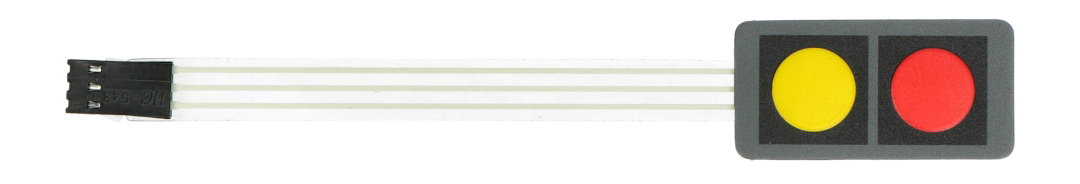

Diaphragm keypad - 2 coloured buttons - Self-adhesive.
Keyboard equipped with two colored buttons. Keyboard leads are made in the form of a connection tape ended with a3-pinfemale connector with a2.54 mmraster. The connector located at the end of the tape significantly facilitates the process of connecting the keyboard to the main module, e.g. Arduino. To make such a connection we can useconnecting cables orgoldpinconnectors with a 2.54 mm raster. Additionally, on the back of the keyboard there isa self-adhesive tape, which allows to easily attach the keyboard in any place.
The length of the tape connecting the keyboard to the module is 90 mm.
The graphics also include the dimensions of the keyboard.
Implementation of the keyboard leads
The graphics below illustrate how the keyboard outputs were implemented. The first pin is responsible for powering the entire keyboard, while pins 3 and 4 correspond to a yellow and red button in turn.
Diaphragm keypad specifications
- Number of buttons: 2
- Type of connector: 1x3 pin - female raster 2.54 mm
- Dimensions: 40 x 20 x 0.8 mm
- Belt length: 90 mm
| Name | Value |
|---|---|
| Switch - type2 | monostable |
| Switch - type | keyboard |
| Switch - shape | rectangular |
| Switch - backlight | no |
| Length | 40 mm |
| Width | 20 mm |
| Height | 0.8 mm |
| Raster | 2.54 mm |
| Width | 5.5 cm |
| Height | 0.2 cm |
| Depth | 20 cm |
| Weight | 0.002 kg |
