CR Touch Auto Leveling Kit for Creality 3D printer

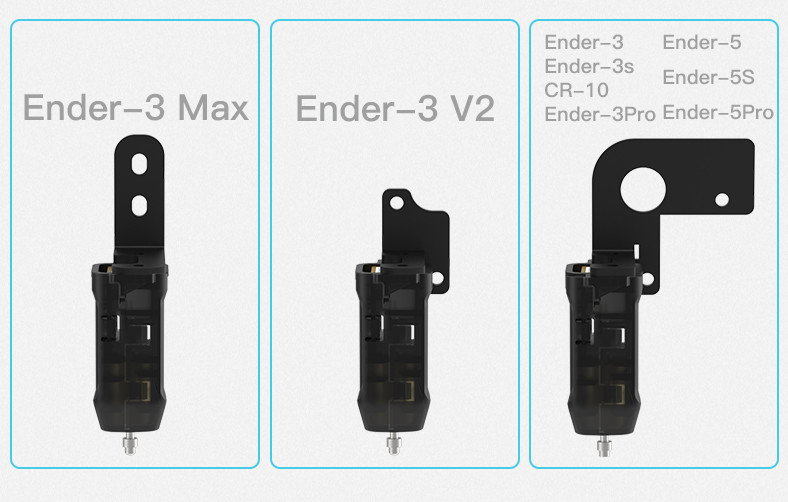

Auto- leveling sensor for selected models of Creality 3D printers: Ender-3, Ender-3 V2, Ender-3 Pro, Ender-3 Max, Ender-5, Ender-5 Pro, CR-10. The sensor is mounted on the print head. Its task is to carry out a multi-point measurement of the distance to the surface of the working table . It also records the height of each detection point. Then it calculates the angle of inclination between the nozzle and the build plate, automatically compensating for any differences. The set includes three mounting brackets , used depending on the 3D printer model.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: CR Touch auto-leveling sensor kit for Creality printers
Auto- leveling sensor for selected models of Creality 3D printers: Ender-3 , Ender-3 V2 , Ender-3 Pro , Ender-3 Max , Ender-5, Ender-5 Pro , CR-10. The sensor is mounted on the print head. Its task is to carry out a multi-point measurement of the distance to the surface of the working table . It also records the height of each detection point. Then it calculates the angle of inclination between the nozzle and the build plate, automatically compensating for any differences. The set includes three mounting brackets , used depending on the 3D printer model.
CR Touch auto-leveling sensor kit for Creality printers .
Botland is the only official distributor of Creality 3D printers in Poland. Buying from us guarantees original equipment shipped from a warehouse inside the country and fast technical support. We also run a professional service in Poland and offer original spare parts.

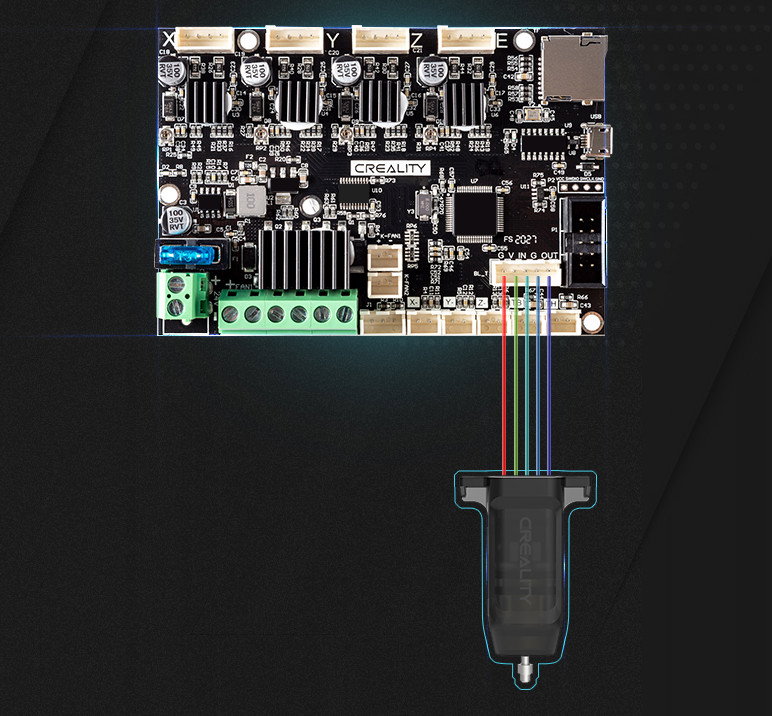

The method of attaching the sensor to the Creality motherboard .

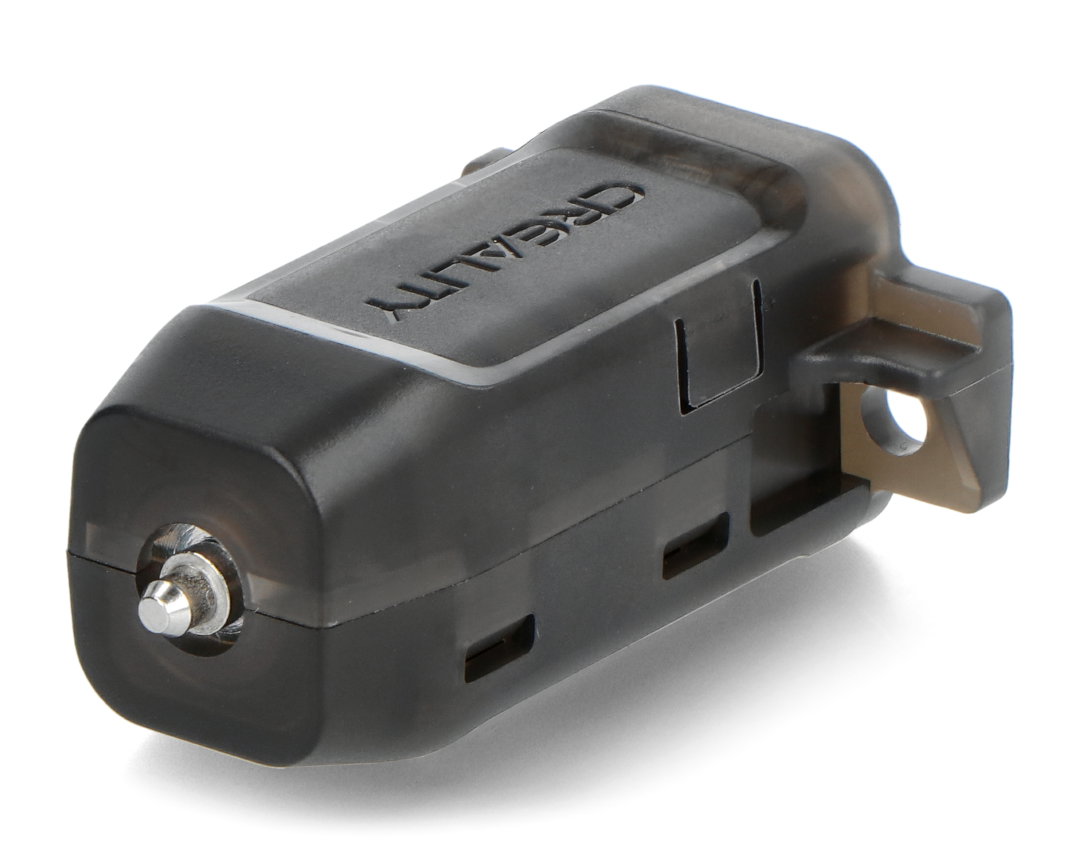

Creality CR-Touch sensor
- Multi-point measurement with intelligent inequality compensation
- High precision of work
- Low power consumption
- Easy installation
- Compatibility with Creality's most popular 3D printer models: Ender-3 , Ender-3 V2 , Ender-3 Pro , Ender-3 Max , Ender-5, Ender-5 Pro , CR-10
- Long sensor life. Tests carried out by the manufacturer show that the sensor can be used up to 100,000 times
- Built-in metal probe
Principle of operation of the CR-Touch photoelectric sensor
After energizing the electromagnetic element, the probe extends. When the probe touches the printing platform, the photoelectric sensor on the PCB detects the contact signal and the system records the current altitude.
CR Touch sensor specification
- Developer: Creality
- Product type: leveling sensor
- Rated voltage: 5V
- Power consumption: <1 W
- Positioning accuracy: ≤ 0.04mm
- Service life: about 100,000 measurements
- Maximum working temperature: 65 ° C
- Sensor dimensions: 27 x 17.5 x 39.3 mm
- Weight: about 11.5 g
Kit contents
- CR Touch auto-leveling sensor - 1 pc.
- Mounting brackets (used depending on the 3D printer model): 3 pcs.
- Cable - 1 pc.
- Screws - 4 pcs.
- Fastening bands: 3 pcs.

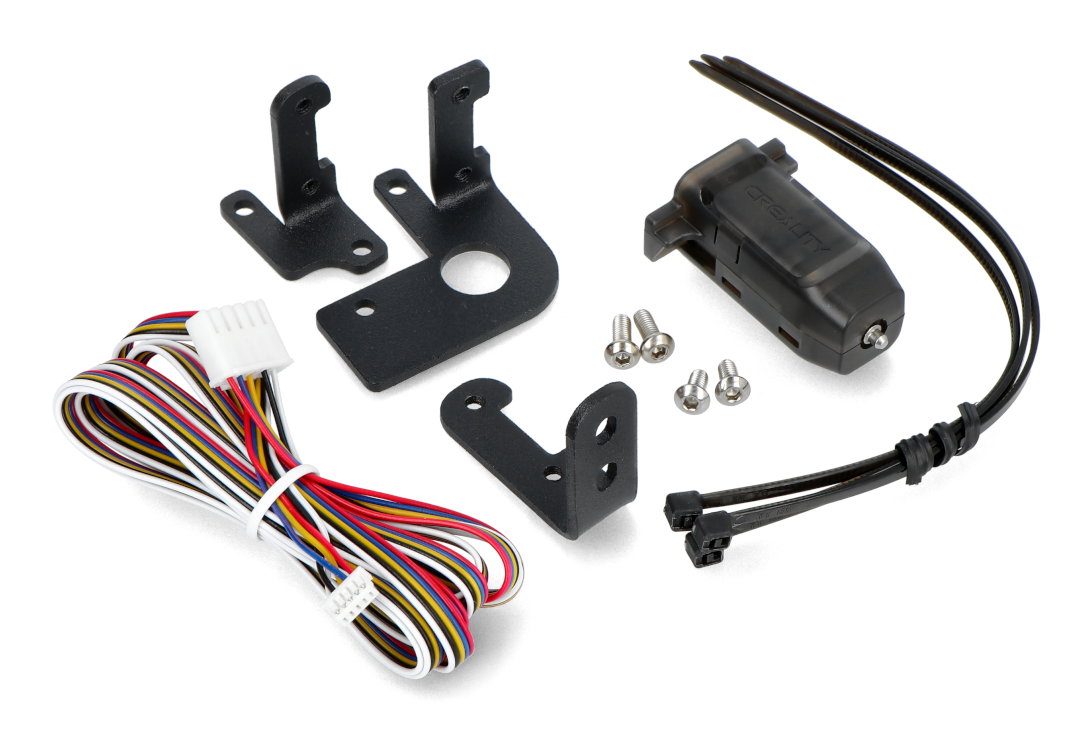

Elements included in the sensor kit .
Useful links
| Name | Value |
|---|---|
| Creality - model |
|
| Width | 10 cm |
| Height | 4.5 cm |
| Depth | 6 cm |
| Weight | 0.12 kg |
