Limit switch - endstop - for 3D printers - Creality
A limit switch (Endstop) is a component used in 3D printers to stop moving parts of the system - such as carriage or table movements. It also detects when the X, Y or Z axes reach their extreme positions (maximum and minimum setting). A built-in lever increases the distance for braking the mechanism and leaves a possible margin for error. The limiters are a very good safety device which prevents the moving element from exceeding the limit position. Lack of such protection could cause damage to the printer and its environment.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: limit switch - endstop - for 3D printers - Creality
Limit switch (Endstop) is an element used in3D printerstostop moving parts of the system- such as carriage or table movements. It also allows detection of the moment when the X, Y or Z axes reach theirextreme positions(maximum and minimum setting). A built-in lever increases the braking distance of the mechanism and leaves a possible margin for error. The limiters are a very good safety device which prevents the moving element from exceeding the limit position. Lack of such protection could causedamage to the printerand its environment. The module has a built-in female 3-pin socket, by means of which it should be connected to the main board. The set does not contain a suitable connection cable.
Limit switch - for 3D printers - Creality.
Botland is the only official distributor of Creality 3D printers in Poland. Buying from us guarantees original equipment shipped from a warehouse inside the country and fast technical support. We also run a professional service in Poland and offer original spare parts.

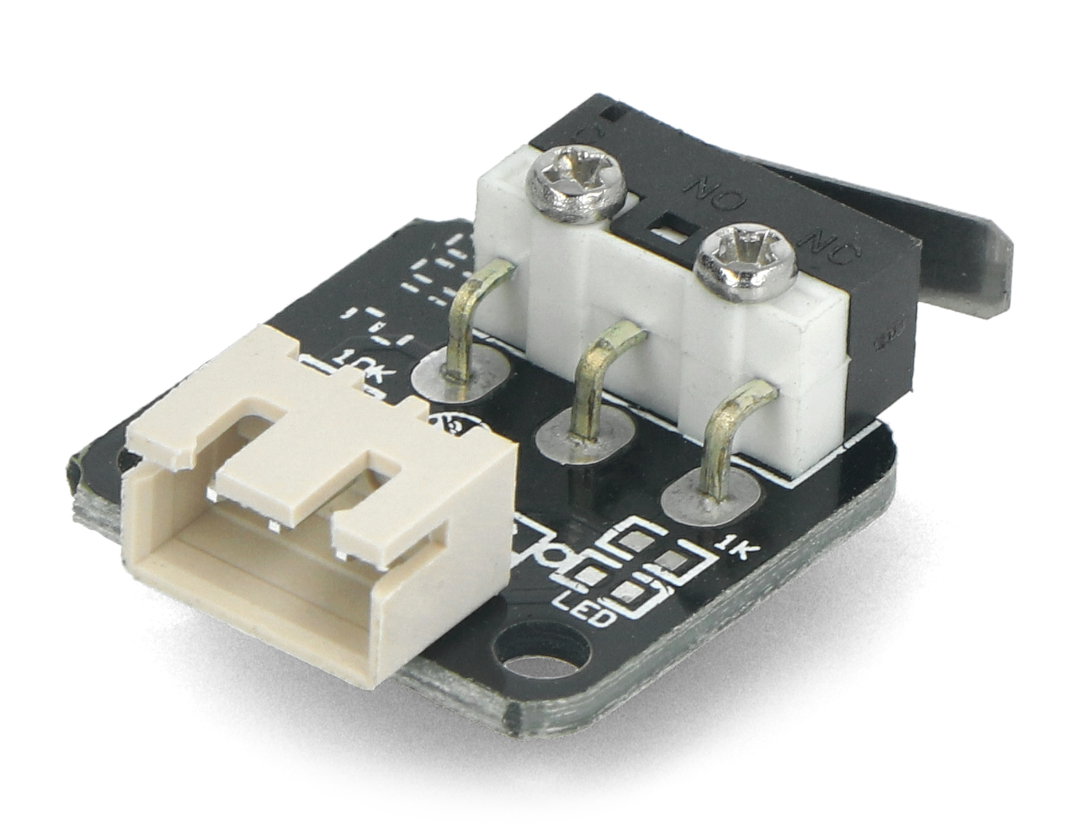

The module is equipped with a 3-pin female socket.
Technical specification
- Type: limit switch
- Purpose: for 3D printers
- Compatible printers: Creality CR-10, Creality CR-10-S4, Creality CR-10-S5, Creality CR-10S, Creality Ender 3, Creality CR-10S Pro, Creality Ender 3 Pro, Creality CR-20 Pro, Creality Ender 5, Creality CR-X, Creality CR-10 Max, Creality CR-10S Pro V2, Creality CR-10 V2, Creality Ender 5 Pro, Creality Ender 5 Plus, Creality CR-10 Mini, Creality Ender 3 V2, Creality CR-6 SE, Creality CR-10 V3
- Original spare part used by 3D printer manufacturer Creality
- Installed in almost all Creality FDM printers
- Connector: 3-pin female sockets
- Sensor dimensions: 20 x 25 x 8 mm
- Mounting hole spacing: 15 mm
- Number of pieces in set: 1 pcs.

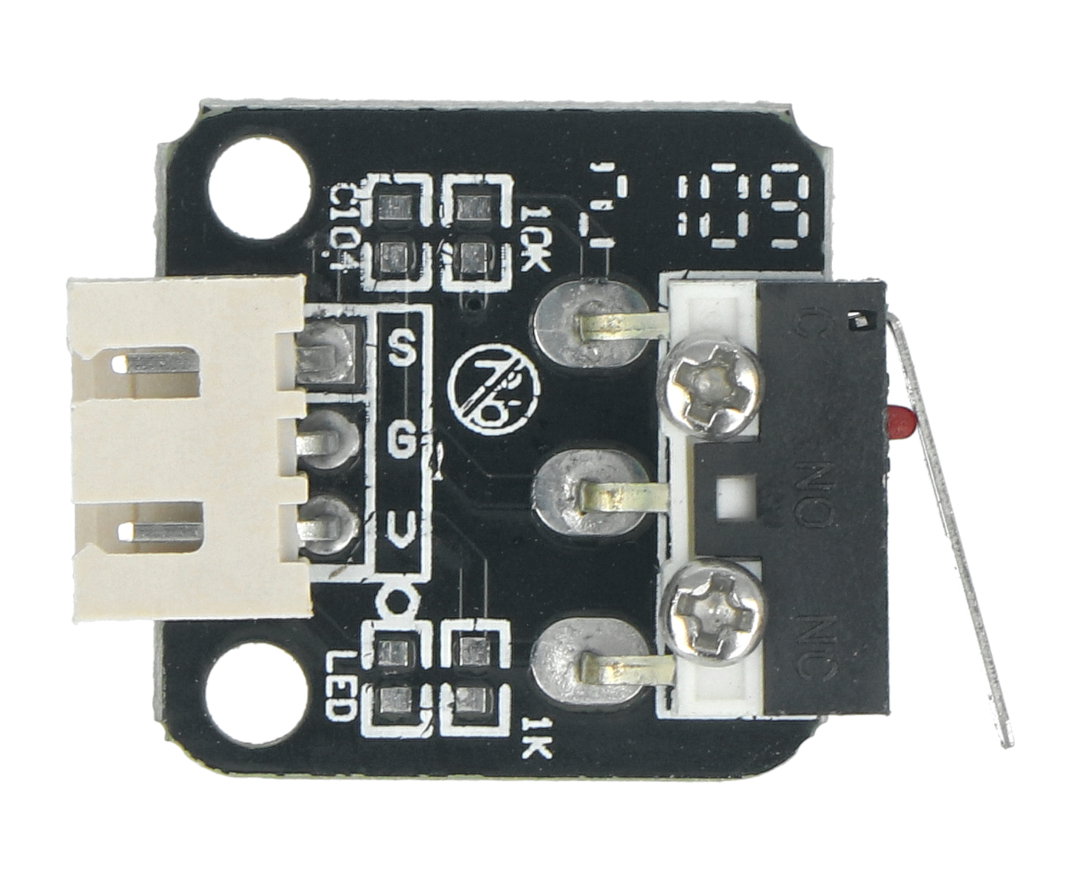

Pinout description
- S - signal
- G - system ground
- V - power supply

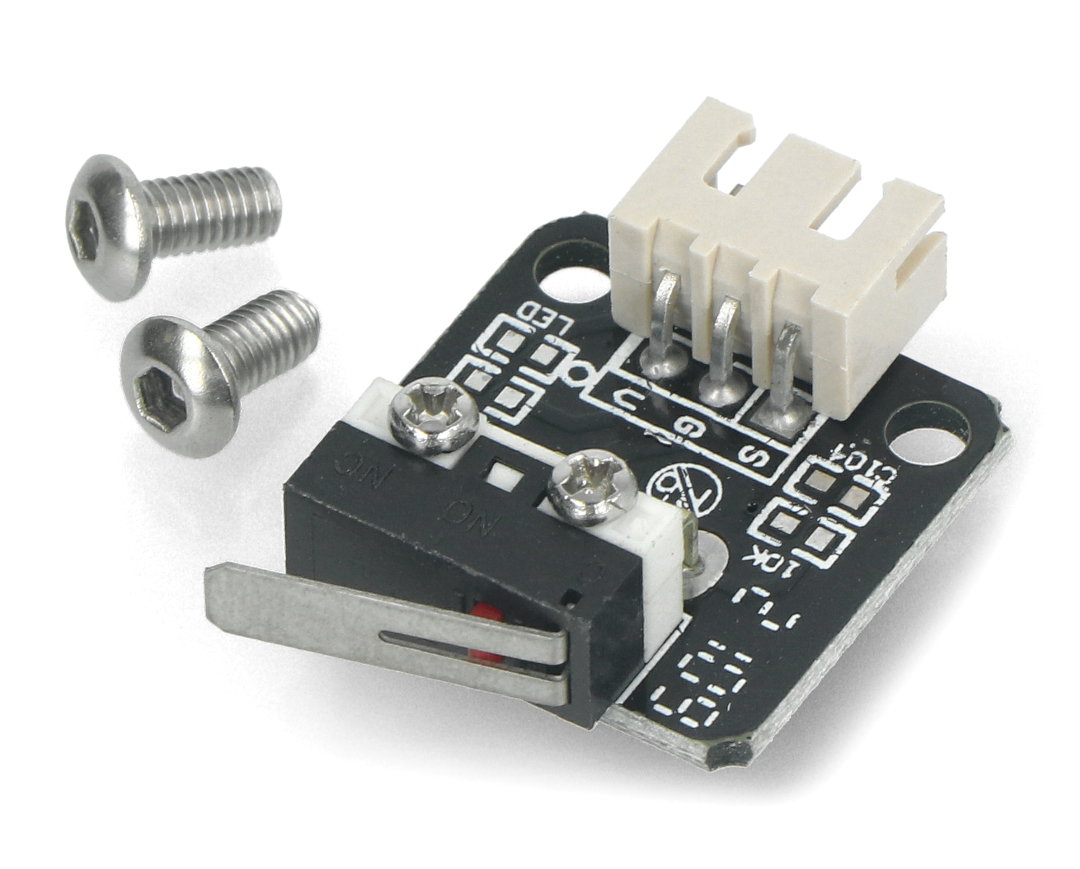

Set contents
- Limit switch - for Creality 3D printers
- Assembly elements - screws - 2 pieces.
In our offer you will also find other original components for 3D printers fromCreality! We encourage you to familiarize yourself with the available range.
Mounting holes spacing allows for easy installation of the sensor.
Useful links
| Name | Value |
|---|---|
| Creality - model |
|
| Width | 1.9 cm |
| Height | 10 cm |
| Depth | 8 cm |
| Weight | 0.008 kg |
