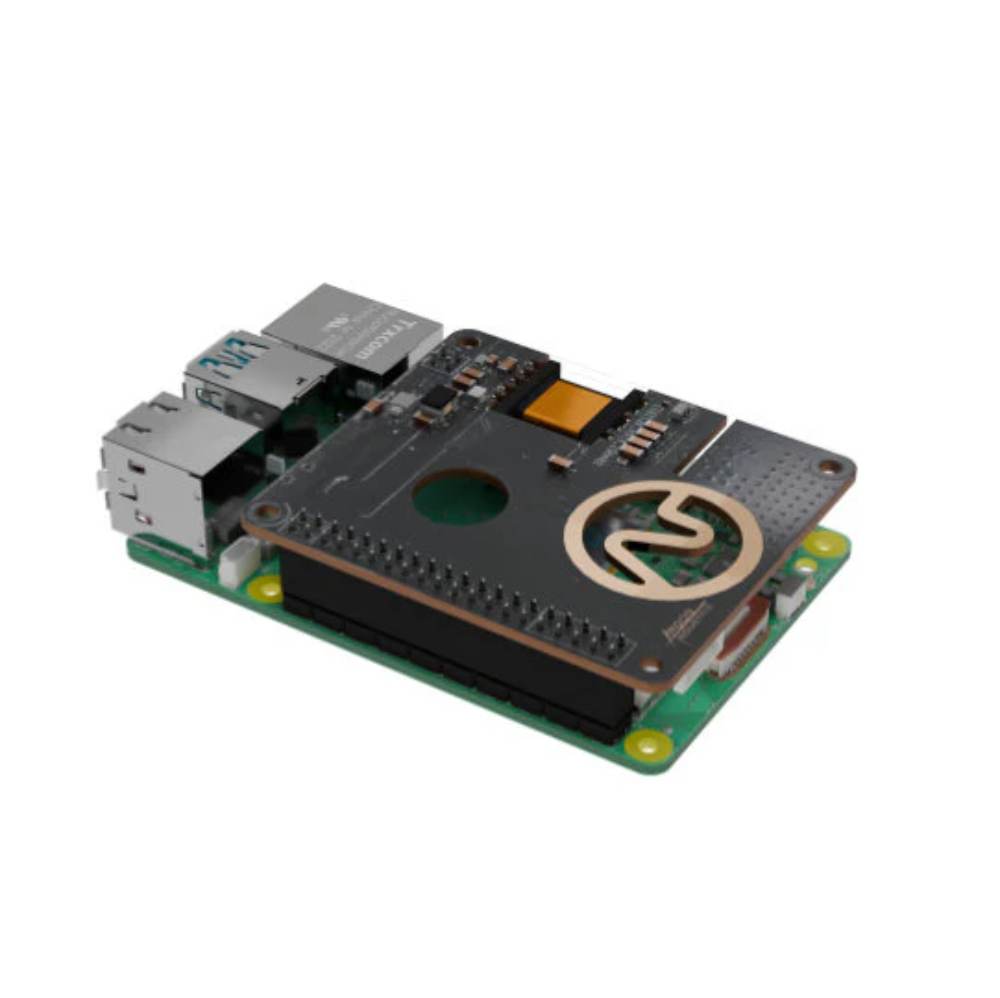

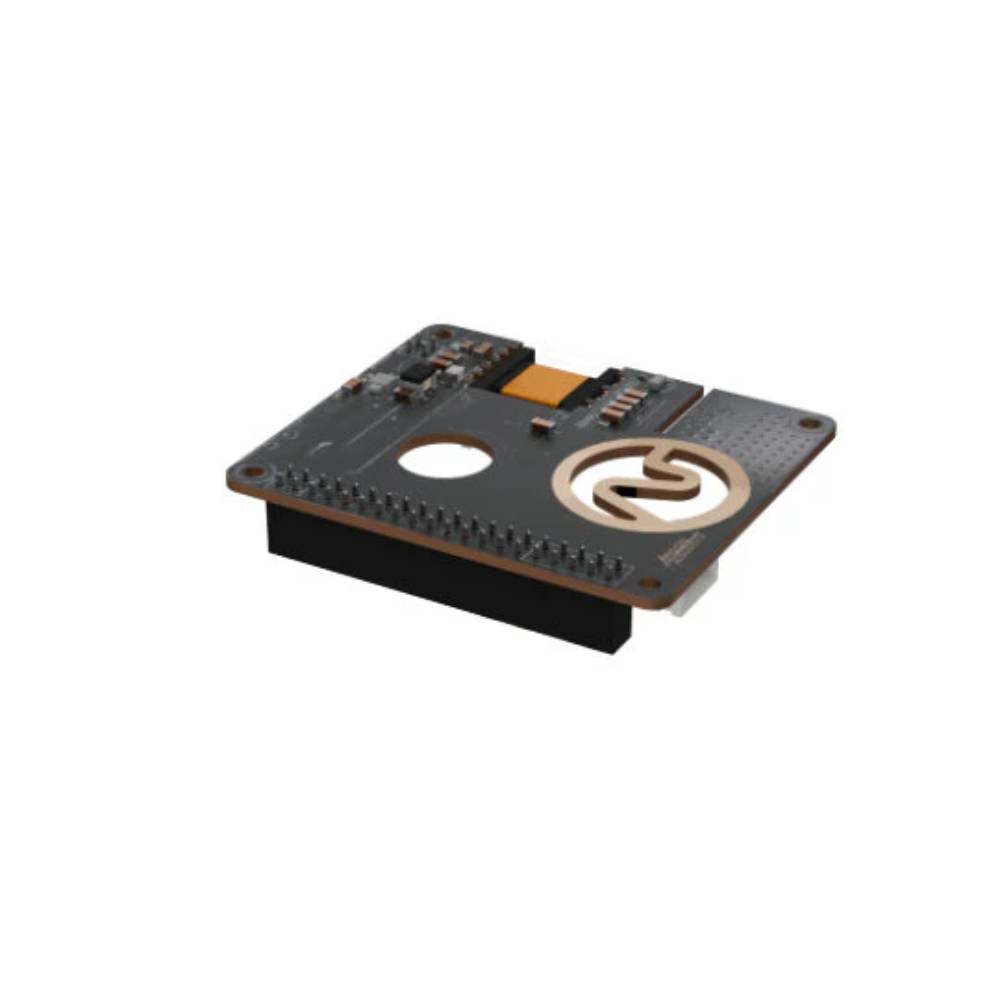

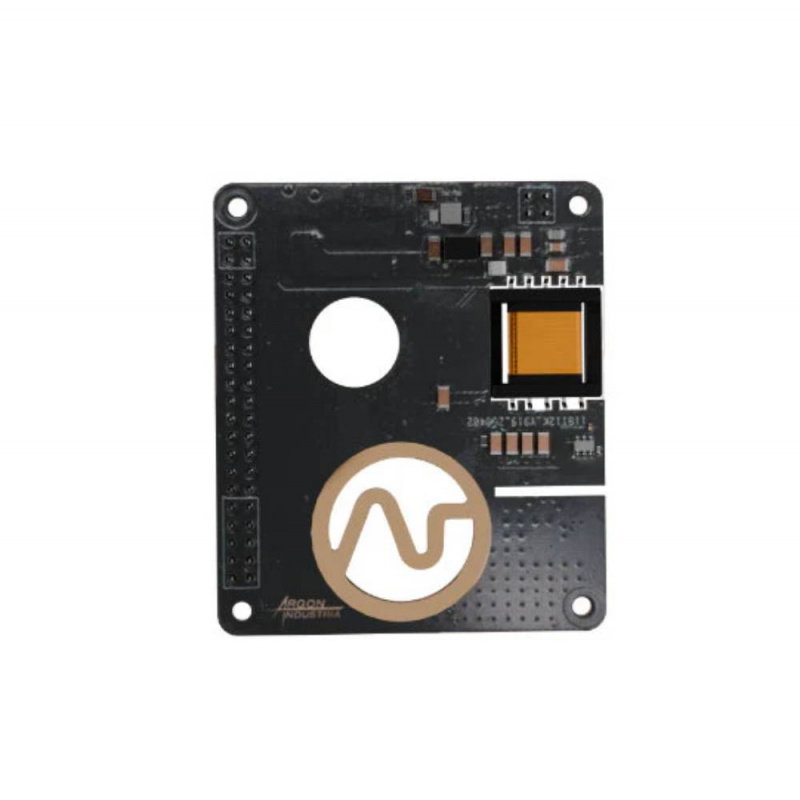

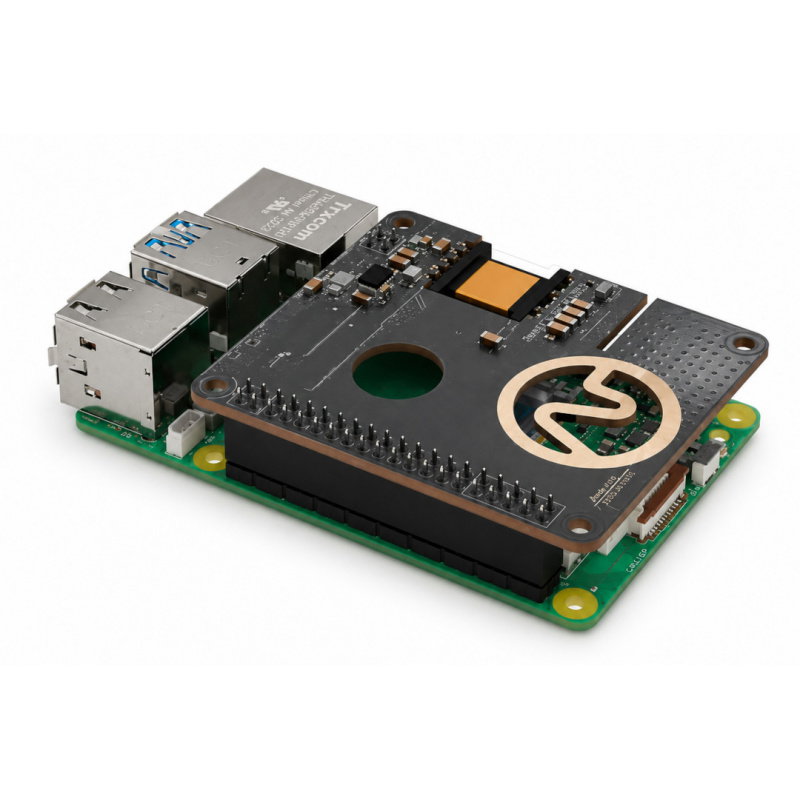

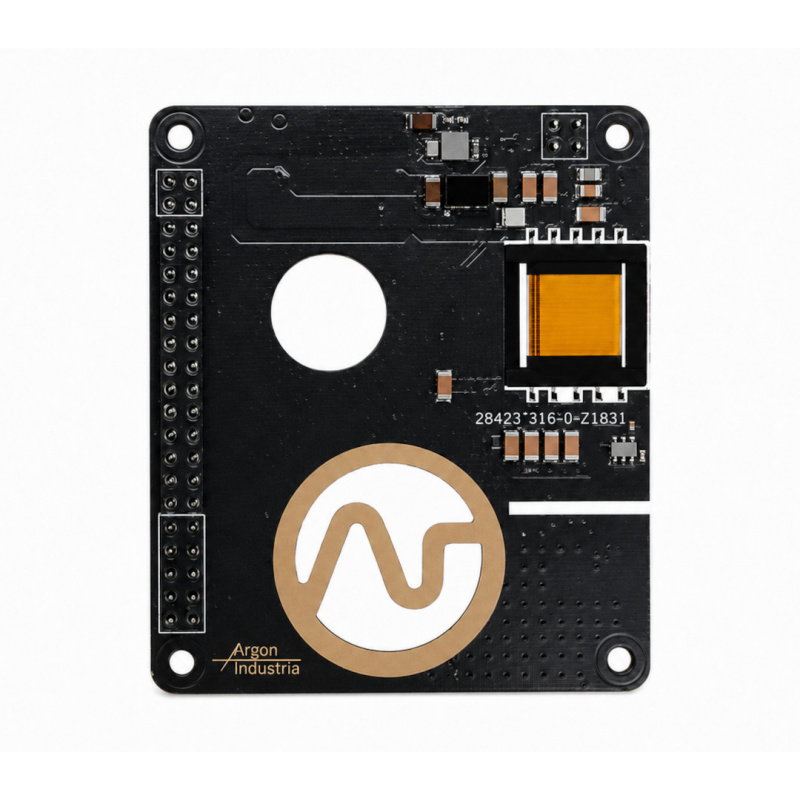

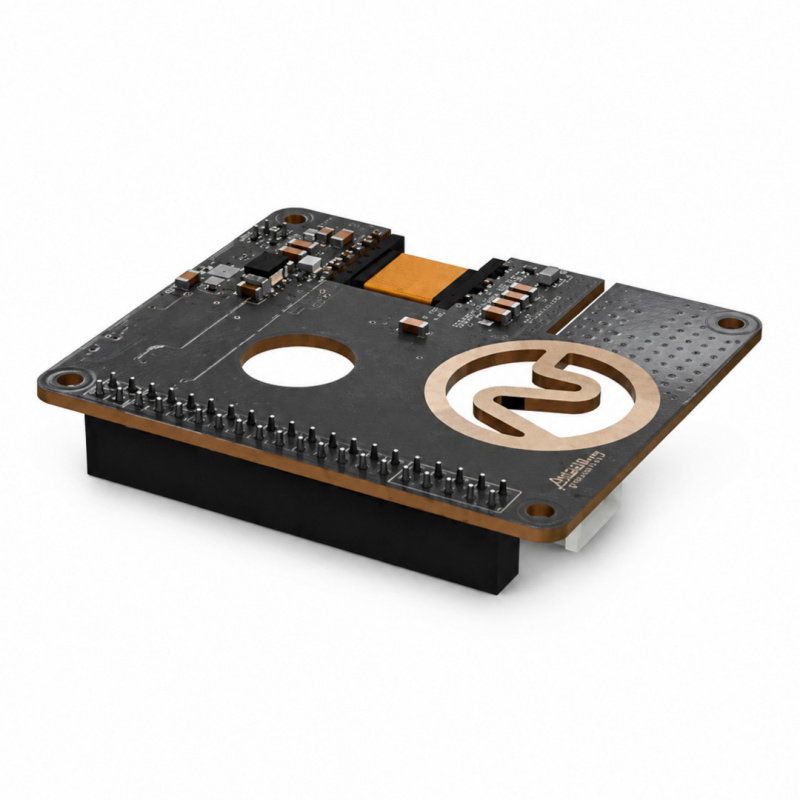

Product description: Argon Industria PoE+ HAT - PoE+ adapter for Raspberry Pi 5
The Argon Industria PoE+ HAT is a powerful PoE+ adapter for the Raspberry Pi 5 , designed to power the minicomputer directly over an Ethernet cable. Compliant with the IEEE 802.3af/at PoE+ standard, the module enables simultaneous Gigabit Ethernet data and power transmission, significantly simplifying Raspberry Pi 5 installation in server racks, IoT systems, industrial automation, and installations without easy access to a power outlet.
The HAT provides a stable 5V/5A power supply and up to 25W of power, ensuring proper operating conditions for the Raspberry Pi 5 and connected peripherals. Its Raspberry Pi HAT-compliant design facilitates easy installation and integration with popular Argon enclosures, such as the Argon Poly+ 5, Argon NEO 5, Argon ONE V5, and Argon Industria HMI enclosures. Additional SH connectors enable powering the Raspberry Pi Touch Display 2, Argon HMI, and the Argon ONE V5 OLED display.

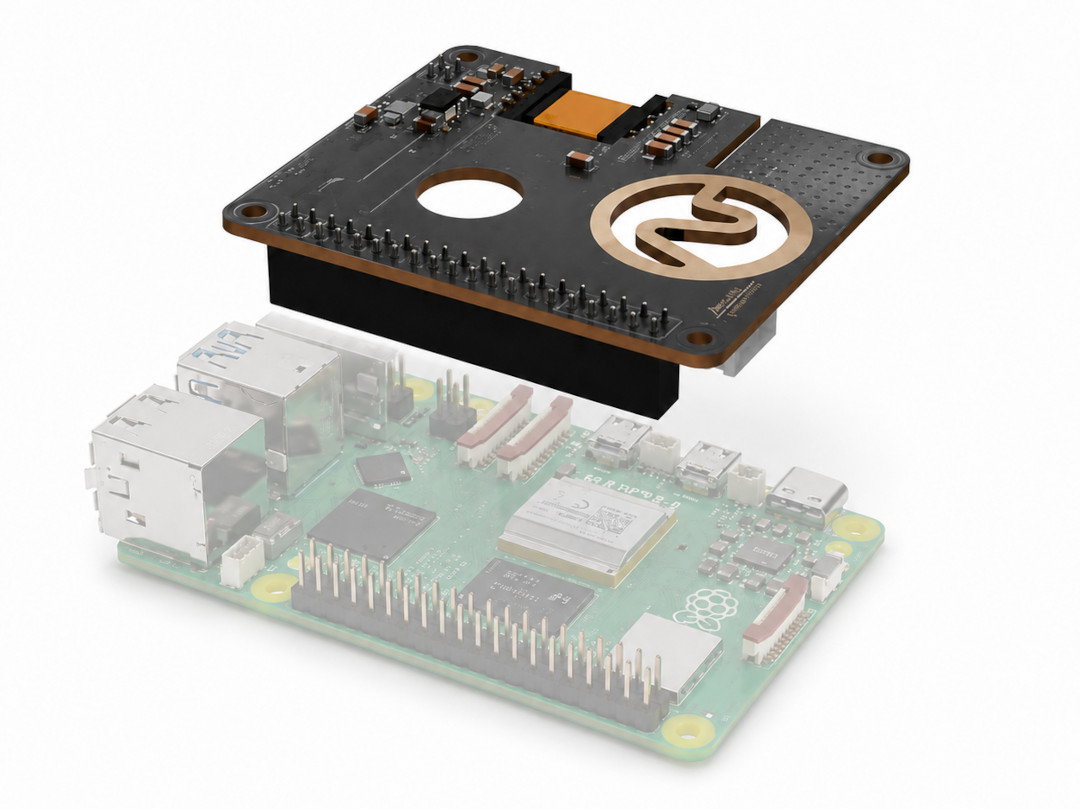

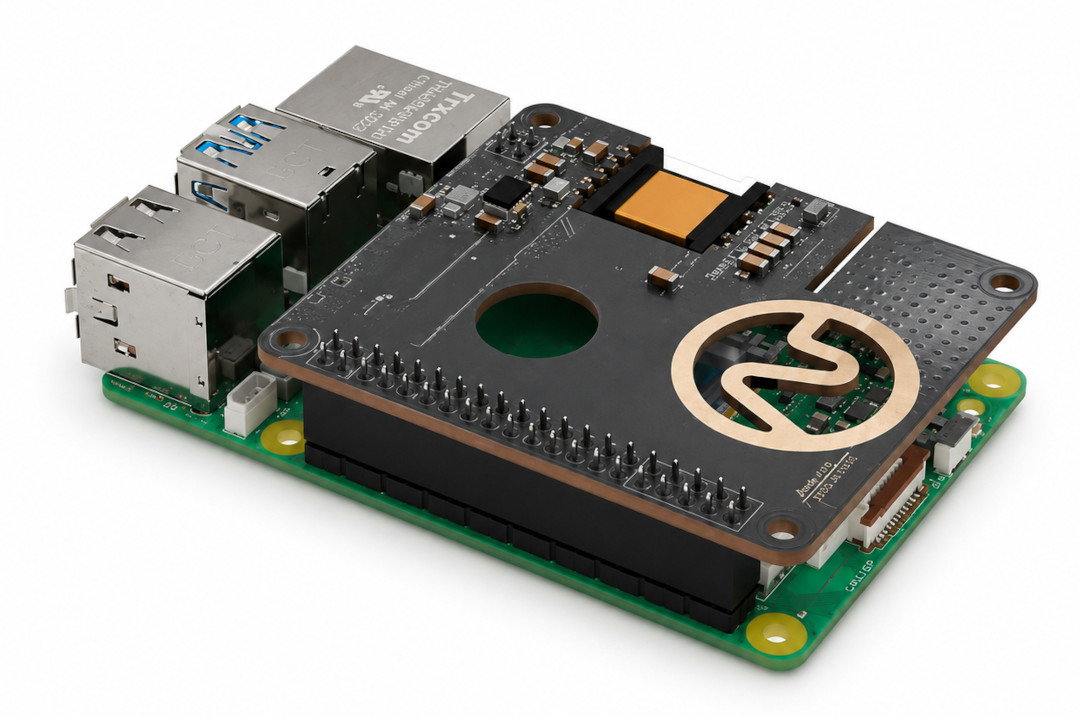

Argon Industria PoE+ HAT - PoE+ power adapter for Raspberry Pi 5.
The Argon Industria PoE+ HAT is a powerful PoE+ adapter for the Raspberry Pi 5, designed to power the minicomputer directly via an Ethernet cable.Special features of the Argon Industria PoE+ overlay
- PoE+ power supply for Raspberry Pi 5: the module allows you to power the minicomputer via an Ethernet cable
- One cable for data and power: the solution simplifies installation in places without convenient access to a power outlet
- IEEE 802.3af/at standard: PoE+ compliance allows operation with a suitable PoE switch or injector
- Stable 5V/5A output: the shield delivers up to 25W of power to the Raspberry Pi 5 and connected peripherals
- Gigabit Ethernet: the LAN cable is used for both data and power transmission

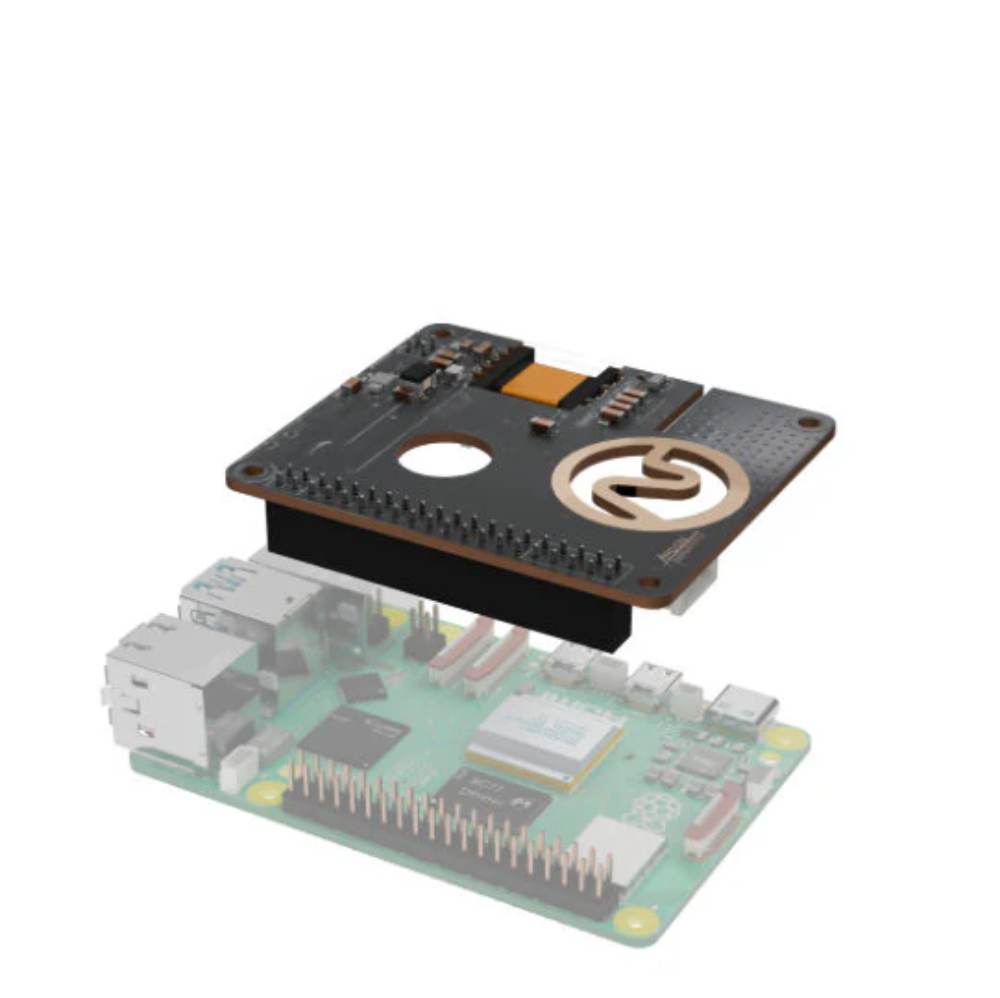

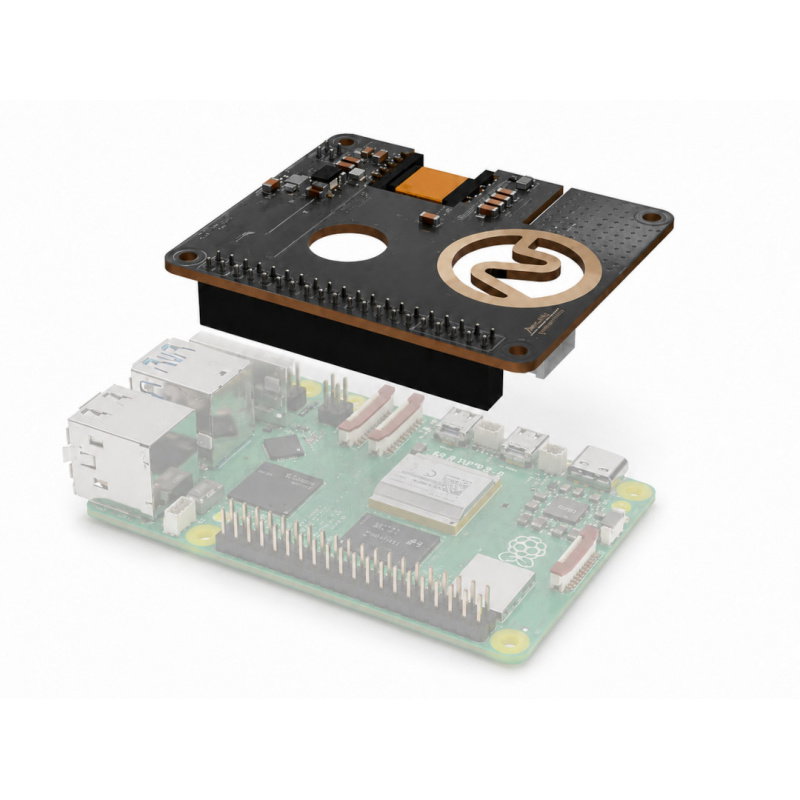

- Standard Raspberry Pi HAT: the overlay format is adapted to the Raspberry Pi 5
- SH 3-pin 5 V connector: designed for Raspberry Pi Touch Display 2 7", 5" screens and Argon HMI 8" and 10" screens, among others
- SH 4-pin I2C 3V connector: designed for Argon ONE V5 OLED screen
- Raspberry Pi cluster support: the module makes it easy to build server kits, IoT nodes, and headless installations
- Broad compatibility with Argon enclosures: compatible with Argon Poly+ 5, Argon NEO 5, Argon ONE V5 and Argon Industria HMI enclosures
Technical specifications
- Product type: PoE+ HAT for Raspberry Pi 5
- Model: Argon Industria PoE+ HAT
- Compatibility: Raspberry Pi 5
- Power standard: IEEE 802.3af/at PoE+
- Input voltage: 36V to 57V DC
- Output voltage: 5V
- Output current: 5 A
- Output power: up to 25 W
- Format: Raspberry Pi HAT standard
- Connectivity: Ethernet - data and power
- Data transmission: Gigabit Ethernet
- Additional 3-pin SH output: 5V, for Raspberry Pi Touch Display 2 7", 5" screens and Argon HMI 8" and 10" screens
- Additional SH 4-pin output: I2C with 3V voltage, for Argon ONE V5 OLED screen
- Compatible housings: Argon Poly+ 5, Argon NEO 5, Argon ONE V5, Argon Industria HMI
- Example applications: server racks, IoT clusters, industrial automation, smart home systems
Contents of the set
- Argon Industria PoE+ HAT: 1 pc
The shield provides a stable power supply of 5 V / 5 A and up to 25 W, ensuring appropriate working conditions for the Raspberry Pi 5 and connected peripherals.
