Stepper motor driver L9110 12V/0,8A

Index: MOD-09820 EAN: 5904422338442

The driver module uses L9110 chips to control one stepper motor or two DC motors. Supply voltage is from 3 V to 12 V. Continuous current up to 800 mA.

Stepper motor driver L9110 12V/0,8A
€2.50
€2.03 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

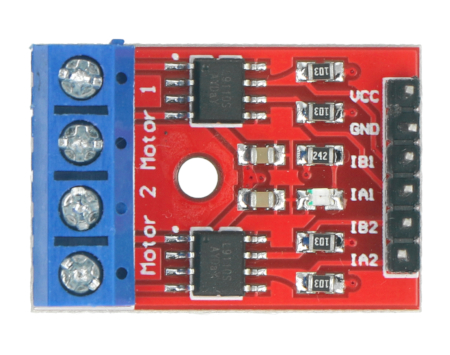

Product description: L9110 12 V / 0,8 A stepper motor driver

The driver module uses L9110 chips to control one stepper motor or two DC motors. Supply voltage is from 3 V to 12 V. Continuous current up to 800 mA. The module comes with a 6-pin goldpin strip and two ARK screw connectors. Example of use can be found on this page.

Technical specifications of the driver

  • Supply voltage: 3 V to 12 V
  • Maximum continuous current: 800 mA
  • Circuit: L9110
  • Connectors:
    • 6-pin goldpin 2.54 mm raster
    • 2 x 2-pin ARK
  • Possibility to control two DC motors or one stepper motor
  • Dimensions: 29 x 23 mm
Package width 4 cm
Package height 1.5 cm
Package depth 6 cm
Package weight 0.006 kg
