ATmega328 mini module - microBOARD-M328
Module microBOARD-M328 is a mini development set with microcontroller ATmega328P used in popular Arduino Uno modules.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Module microBOARD-M328 is a mini development set with microcontroller ATmega328P used in popular Arduino Unomodules. On the board there is also a voltage regulator 5 V, quartz resonator 12 MHz and programmer connector IDC-10 (kanda). The module can be programmed in C language just like BASCOM AVR and Arduino IDE usingthe adapter USB-UARTafter the boot loader.

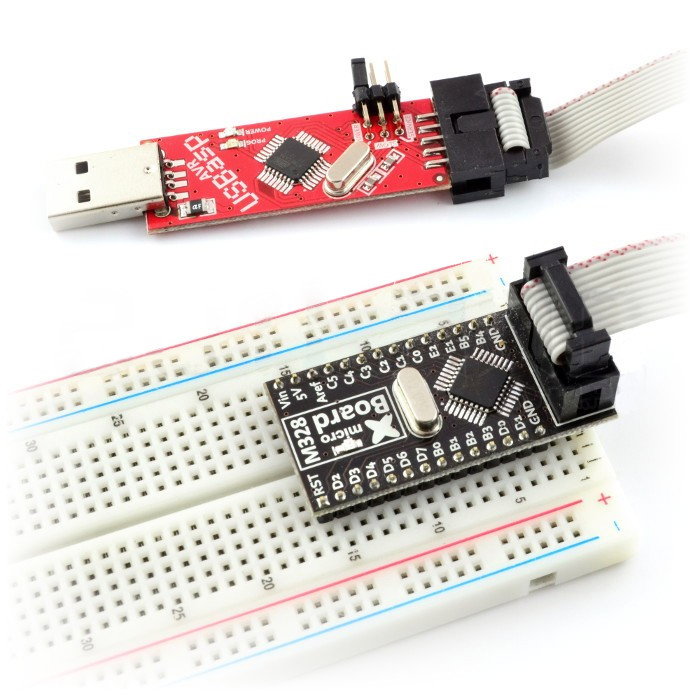

In our offer there are alsoprogrammers AVRandbreadboards (seen in photo).
Specification
- Microcontroller: ATmega328P-AU
- Connector for ISP programming
- Voltage regulator: 5 V (78M05)
- Maximum current: 0.5 A
- The supply voltage of the microcontroller is filtered using capacitors
- Supply voltage analog part, optionally filtered using ferrite balls
- Power supply by continuous voltage in the range: 7 - 12 V
- LED: indicating the connection of the supply voltage
- The pins of the microcontroller are on 2 connection pins: (goldpin raster 2.54 mm) – with the exception of the outputs are connected to the quartz resonator
- Resistor: pulling-up RESET supply voltage (5 V)
- Dimensions of the board: 47 x 23 x 29 mm
Key features of the ATmega328 microcontroller
- 32 KB Flash memory (program memory)
- 1 KB of SRAM (Static RAM)
- 2 counters/timers 8-bit
- 1 counter/timers 16-bit
- 1 analog-to-digital Converter (8 channels 10-bit accuracy)
- Network interfaces: SPI, UART, TWI (I2C)
- Built-in analog comparator
- 6 PWM channels
Useful links
| Name | Value |
|---|---|
| Width | 2.5 cm |
| Height | 2.5 cm |
| Depth | 5 cm |
| Weight | 0.011 kg |
