Yihua 853AA+ 3-in-1 BGA soldering station - preheater + grotto + hotair with fan in flask - 1270W
The Yihua 3-in-1 soldering station is an innovative combination of hotair , tip soldering iron and heater , with a total power of 1270 W. Perfect for precise work with small electronic components, it is suitable for servicing phones, BGA, PLCC, QFP and small SMD components. Equipped with functions such as memory of operating modes, temperature correction, sleep function and automatic cooling , it ensures comfort and efficiency of work.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Yihua 853AAA+ 3-in-1 BGA soldering station - preheater + tip + hotair with a fan in the butt - 1270 W
The Yihua 853AAA+ 3in1 soldering station is a versatile and programmable tool designed for electronics professionals. Thanks to the combination of hotair, soldering tip and heater , it enables precise operations on small components such as phones, BGA, PLCC, QFP and small SMD components. The station offers a memory of three operating modes, a temperature correction function and an automatic cooling function , which significantly increases efficiency and safety. The ability to operate in Fahrenheit and Celsius degrees and an intuitive LCD display make it easier to control operating parameters. It has ESD Safe protection that protects electronic components against damage. Temperature regulation is available in the ranges of hotair: from 100°C to 480°C , tip: from 200°C to 480°C , heater from 50°C to 300°C . Air is blown out by a fan located in the flask.
Our offer also includes other soldering stations and soldering accessories - check it out!

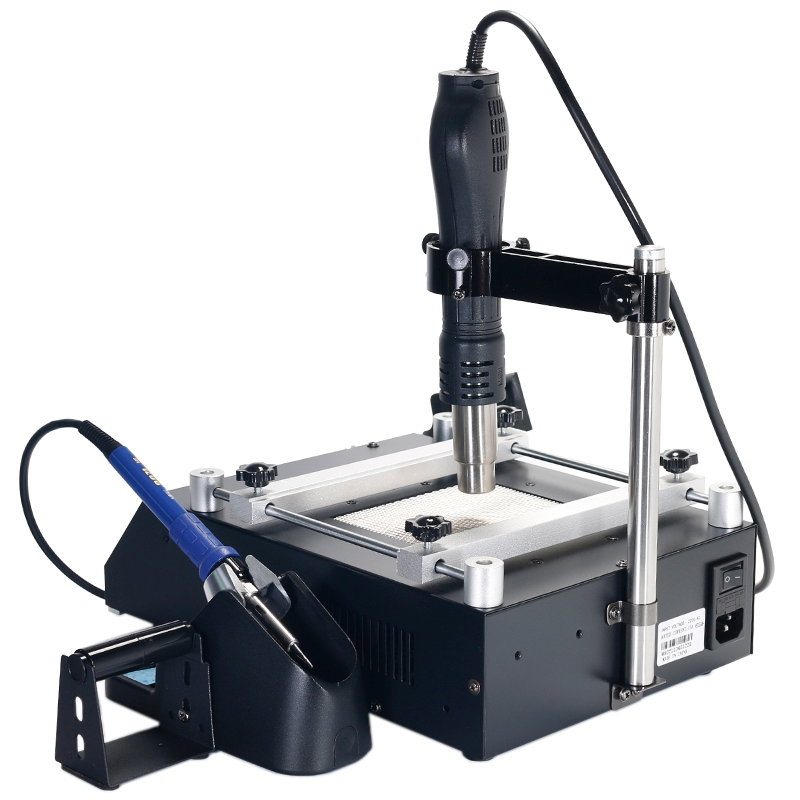

Yihua 853AAA+ 3in1 BGA soldering station - preheater + tip + hotair with a fan in the butt - 1270 W.
The soldering station combines a hotair soldering iron, a tip soldering iron and a heater.
Special features of the product
- Hot air flask stand: ensures stability and precision of operations.
- Memory of 3 operating modes: speeds up and increases work efficiency.
- Temperature correction function: enables accurate calibration for repeatable results and precise temperature control for sensitive components.
- Sleep function: saves energy and extends the life of the tips.
- Dual temperature operation: allows you to choose between Fahrenheit and Celsius.
- Automatic cooling: ensures safe completion of work.
- Digital LCD display: facilitates parameter control.
- PID control: guarantees temperature stability and precise results.
- ESD Safe: protects against electrostatic damage.
- High-quality heating elements: ensure long service life and stable operation.
- Safe soldering: precise temperature control for sensitive components.
Technical specifications of the soldering station
- Supply voltage: 220 V to 240 V AC / 50 Hz
- Power: 1270 W
- Settings memory
- 3 work programs
- LCD display
- Control via PID
- Quick heating to the set temperature
- Cooling system after finishing work
- Convenient air flow regulation
- ESD-safe
- Safe soldering of temperature-sensitive components: QFP, PLCC, BGA
The soldering station offers a wide range of operating temperature adjustments.
The station has three programmable settings segments.
Technical specifications of the hotair soldering iron
- Hot air temperature regulation: from 100°C to 480°C
- Temperature stability: +/- 1°C
- Air source: brushless fan in the flask
- Air flow: up to 130 l/min
Programming: working time, temperature, blowing power
Technical specifications of the tip soldering iron
- Tip temperature adjustment: from 200°C to 480°C
- Temperature stability: +/- 1°C
- Peak power of tip soldering iron: 72 W to 75 W
- Ground voltage: up to 2 mV
- Ground resistance: up to 2 Ω
- The stock is equipped with a HAKKO 75 W, 24 V heater and a TB tip
- Cable made of soft and flexible silicone, resistant to high temperatures
- 6-pin plug
Technical specifications of the heater
- Power consumption: 600 W
- Temperature range: from 50°C to 300°C
- Temperature stability: +/- 2°C
- Heating area: 120 x 120 mm
- Programming: working time, temperature
Set contents
- Yihua 853AAA+ soldering station
- Hotair stock
- Hotair stock stand
- 907I point stock with TB conical point
- A stand for the flask with a sponge for cleaning the flask
- Power cord
- Grapple for lifting systems
- Set of 4 nozzles: round 4.4 mm, round 7 mm, round 9 mm, square 12 x 12 mm
The station automatically goes into sleep mode after 10 minutes. inactivity.
| Name | Value |
|---|---|
| Voltage to | 220 V AC |
| Voltage from | 240 V AC |
| Voltage nominal | 230 V AC |
| Nominal power | 1270 W |
| Temperature | 200 - 480 °C |
| Solder - Fan | yes |
| Solder - real temperature reading | yes |
| Solder - Hotair | yes |
| Solder - Type A/C | digital |
| Width | 37 cm |
| Height | 32 cm |
| Depth | 19 cm |
| Weight | 5.671 kg |
