DIY Magnetic Connector - Right Angle Three Contact Pins - Adafruit 5360

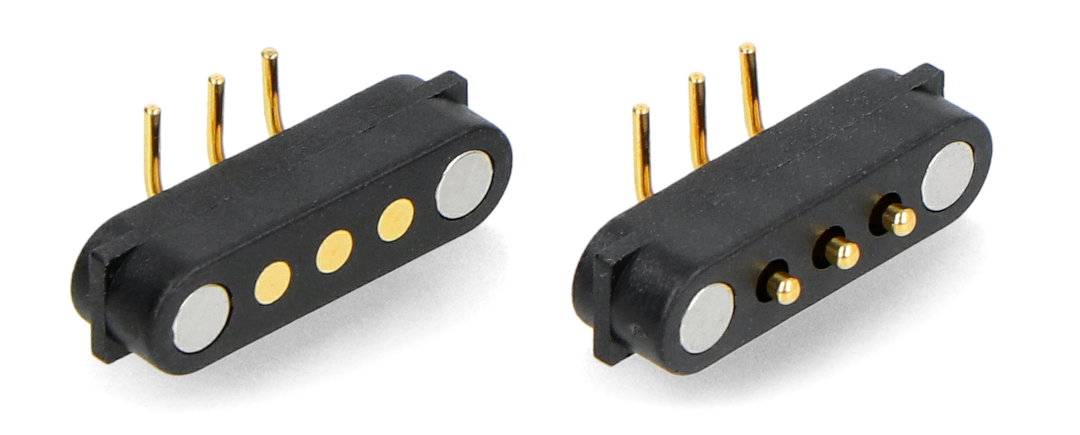

A set of two magnetic connectors for easy and quick connection of two modules. The connectors were made by Adafruit in the manner of MagSafe. The set includes a male pogo connector and a female 3-pin connector at an angle of 90 °. The raster of the pins is 2.54 mm , so they can be soldered to most popular PCB prototype boards. A similar solution can be found in MacBooks and the littleBits set.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: DIY Magnetic Connector - 3-pin right angle magnetic connectors - Adafruit 5360
A set of two magnetic connectors for easy and quick connection of two modules. The connectors were made by Adafruit in the manner of MagSafe. The set includes a male pogo connector and a female 3-pin connector at an angle of 90 °. The raster of the pins is 2.54 mm , so they can be soldered to most popular PCB prototype boards. A similar solution can be found in MacBooks and the littleBits set.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
A set of angular 3-pin magnetic connectors with a pitch of 2.54 mm. The set includes a pair of connectors: male and female.
Specification of magnetic connectors
- Type of connectors: magnetic, pogo
- Number of pin: 3
- Pitch: 2.54 mm
- Type: angular
- Voltage: 36 V
- Max current: 2 A.
- Working and storage temperature: -30 ° C to 65 ° C
- Dimensions: 15 x 4 x 5.5 mm
Kit contents
- 1x male pogo magnetic connector, 3-pin, angled
- 1x female magnetic connector, 3-pin, angled
Useful links
| Name | Value |
|---|---|
| Raster | 2.54 mm |
| Lead | 3 |
| Conn Type | magnetic |
| Conn - Standard |
|
| Width | 5 cm |
| Height | 2 cm |
| Depth | 7 cm |
| Weight | 0.002 kg |
