Product description: Coral Wireless Add-on - overlay with WiFi and Bluetooth wireless communication - for the Coral Dev Board Micro module
Board in the form of a Coral Wireless Add-on overlay designed for the Coral Dev Board Micro module. It extends the functionality of the module with wireless WiFi and Bluetooth 5.0 communication . Supports 802.11 a / b / g / n / ac protocol, 2.4 GHz and 5 GHz band. The PHY data rate is up to 3 Mbps. The cover is designed for the Coral Dev Board Micro module, it also has specially cut sides, thanks to which it does not block access to the GPIO pins.
Before working with the overlay, also check the user's guide prepared by the manufacturer.

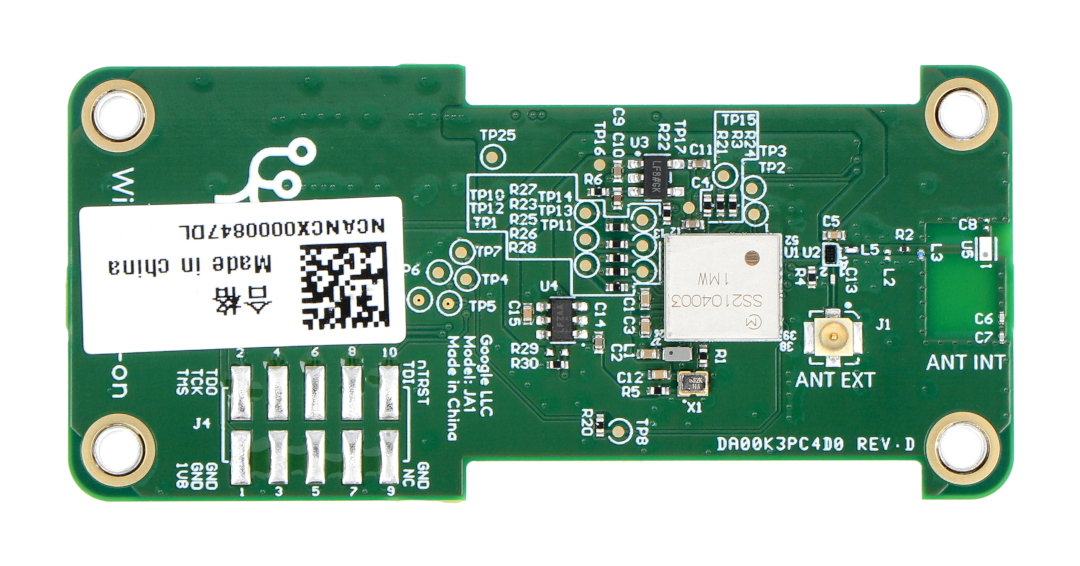

Coral Wireless Add-on - overlay with WiFi and Bluetooth wireless communication - for the Coral Dev Board Micro module.

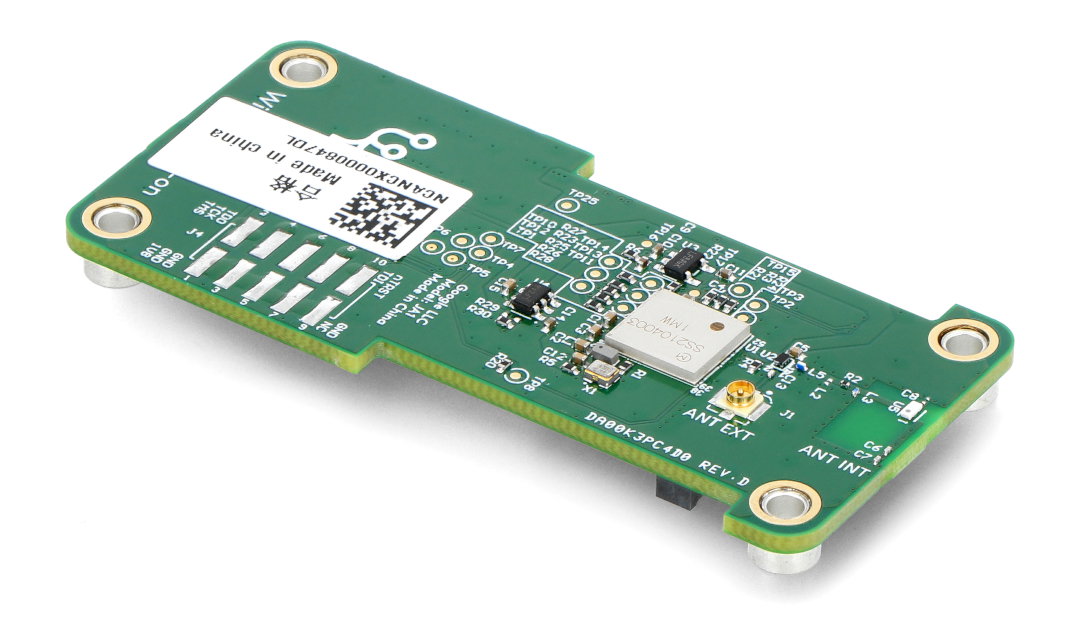

The board has special cutouts that do not block access to the GPIO pins.
Special features Coral Wireless Add-on
- Designed for the Coral Dev Board Micro module, which must be purchased separately
- It extends the capabilities of the board with wireless WiFi and Bluetooth connectivity
- The speed of the Bluetooth connection is 3 Mbps
- Has an alternate antenna connector (coaxial U.FL)
- It has exposed JTAG pins for motherboard debugging
- Supports 802.11 a/b/g/n/ac and 2.4GHz and 5GHz bands
- Our offer also includes a dedicated housing - check it out!
Installation instructions
Carefully press the plates together as follows:
Position the modules so that the mounting holes and connectors align.
Note - do not put pressure on the camera lens as you may damage the sensor.
Press the boards together using the flat part of the board near the connectors (mounted ICs can be pressed).
The correct connection is signaled by a firm click. To avoid accidental disconnection and damage to the plates, they can be screwed together with M2.5 screws or placed in a dedicated housing .

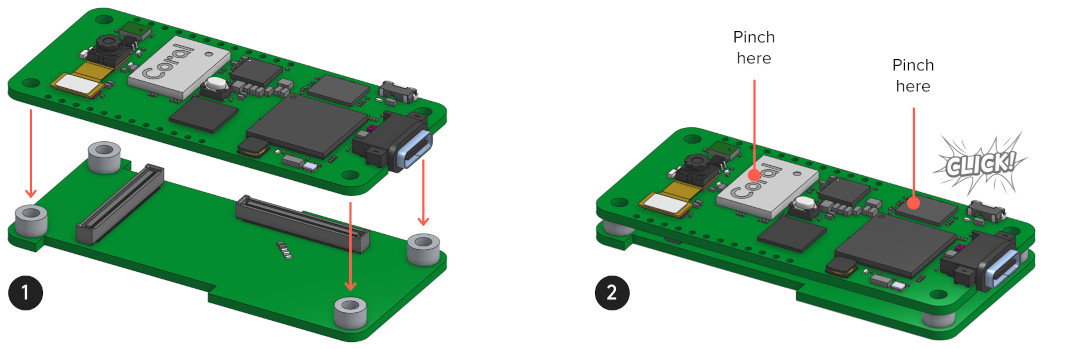

Installation instructions for the overlay with the main board.
The overlay has a Murata LBEE5HY1MW system.
Technical Specifications
- Type: Wireless overlay
- Functionality: WiFi and Bluetooth wireless communication
- Built-in chip: Murata LBEE5HY1MW
- Bluetooth:
- Standard: Bluetooth 5.0
- Speed: 3Mbps
- WiFi:
- Protocol: 802.11 a/b/g/n/ac
- Band: 2.4 GHz and 5 GHz
- Connector type: board-to-board connectors
- Overlay dimensions: 65 x 30 x 16.8 mm
- Weight: 19.8g
Kit contents
- Coral Wireless Add-on - overlay with WiFi and Bluetooth wireless communication - for the Coral Dev Board Micro module - 1 piece
