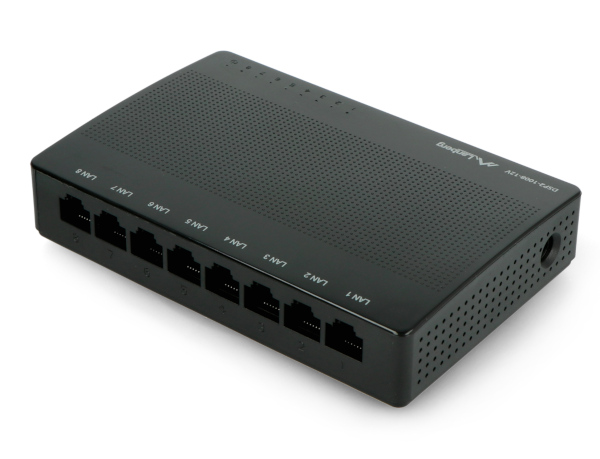

Description: Switch Lanberg DSP2-1008-12V 8 ports 1000 Mbps
Lanberg10/100/1000Mbpsswitch. It has 8RJ-45 ports,compatible with Gigabit Ethernet standard. The network switch has an option of automatic connection negotiation, it also uses MDI - MDIX technology. The product is a passively cooled Plug& Playdevice with black casing.
Lanberg DSP-1008-12V 8 ports 1000 Mbps.
The device has abidirectional transmissionfunctioninhalf-duplexand full duplexversions.The switch also automatically recognizes the type of connected wires, crossed or straight. The switch is powered by12 V. Its operation is monitored by means ofLEDs. It has hooks for wall mounting on the underside.
Lanberg DSP2-1008-12V specification
- Power: 4.53 W
- Power supply: external power supply: 12 V / 0.5 A
- Chipset: Realtek - RTL8370N-VB
- Number of ports: 8 withautomatic connection negotiationfunction
- Configuration: Non-controlled,Plug & Playcompliant device
- Functionality support: MDI /MDIX, MAC-learning, MAC-aging
- Flow control function
- Cooling: passive
- Supported network standards: IEEE802.3ab 1000Base-T, IEEE 802.3i 10Base-T, IEEE 802.3u100Base-TX, IEEE 802.3
- Dimensions: 89 x 137 x 28 mm
- Colour: black
- Weight: 240 g

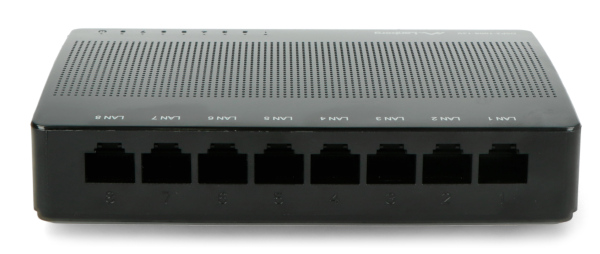

View of ports in DSP2-1008-12V.
Set contents
- Lanberg Switch DSP2-1008-12V
- Power supply
- Quick start up guide
