Product description: Switch for 10'' / 19'' server racks - 16 ports 1000 Mbps - Lanberg RSGE-16
The Lanberg RSGE-16 switch is an unmanaged network switch adapted for installation in 10" and 19" rack cabinets . Equipped with 16 Gigabit Ethernet ports (1000BASE-T and 100BASE-TX), it provides fast and stable network connections with a maximum speed of 1 Gbps on each port . Thanks to the Extend Mode function, you can extend the data transmission range up to 250 meters on one section of cable, which is especially useful in monitoring systems. The VLAN feature allows you to separate ports (1-14) from uplink ports (15-16), increasing network security and improving management. The switch also has surge protection up to 2 kV , which protects devices against sudden voltage increases. The set includes mounting brackets for 10" and 19" cabinets, which ensures installation versatility. The RSGE-16 switch is the ideal solution for users looking for a simple yet powerful network switch that provides high throughput, reliability, and ease of installation in a variety of network environments.

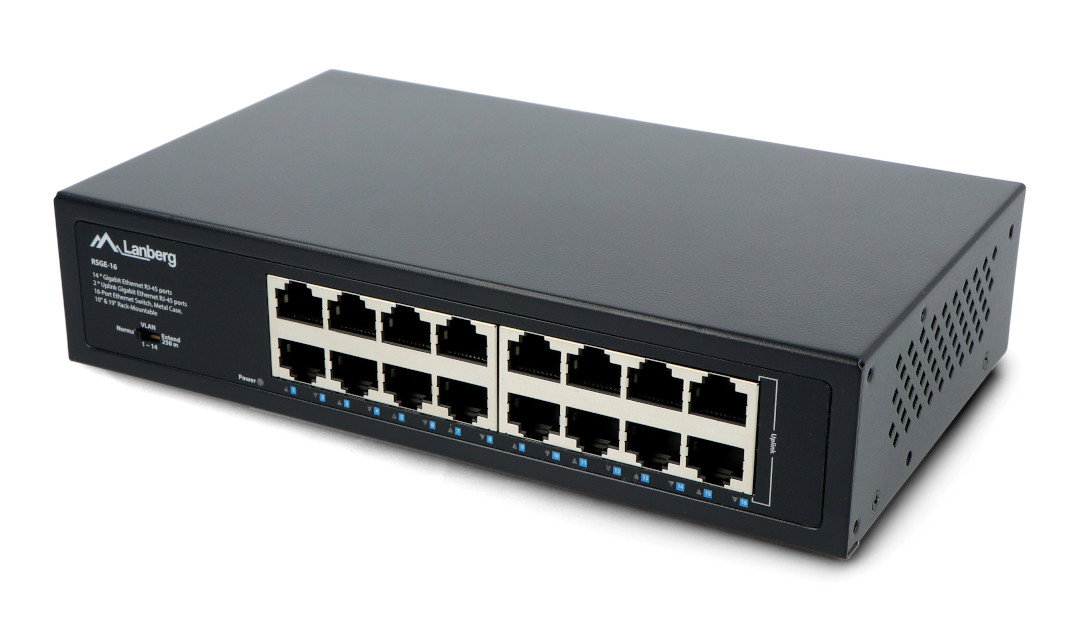

Switch for 10'' / 19'' server racks - 16 ports 1000 Mbps - Lanberg RSGE-16.
Network switch dedicated for installation in 10" and 19" rack cabinets.
Special features of the switch
- 16 Gigabit Ethernet ports: provide fast and stable connections in home and office networks.
- Extend mode: enables data transmission over a distance of up to 250 meters at a speed of 10 Mbps, ideal for monitoring systems.
- VLAN function: allows you to separate ports, which increases the security and efficiency of network management.
- Surge protection: Integrated 2 kV protection circuit protects the switch and connected devices against electrical discharges.
- Versatile installation: the set includes mounting brackets for 10" and 19" cabinets, which provides flexibility in installation.
- Plug & Play: simple to use, no configuration required, making installation easy even for people without advanced technical knowledge.
Technical specifications of the switch
- Model: RSGE-16
- Number of Ethernet ports: 16
- Port specifications: 16x 1000BASE-T, 16x 100BASE-TX
- Maximum network link speed: 1 Gbps
- Housing type: rack 10" / 19"
- Management: unmanaged
- Tightness class: IP20
- PoE support: no
- Buffer: 4.1 Mbit
- Bandwidth: 32 Gbps
- MAC address table: 8K
- Cooling: Vents, Passive
- Power: 9.6 W

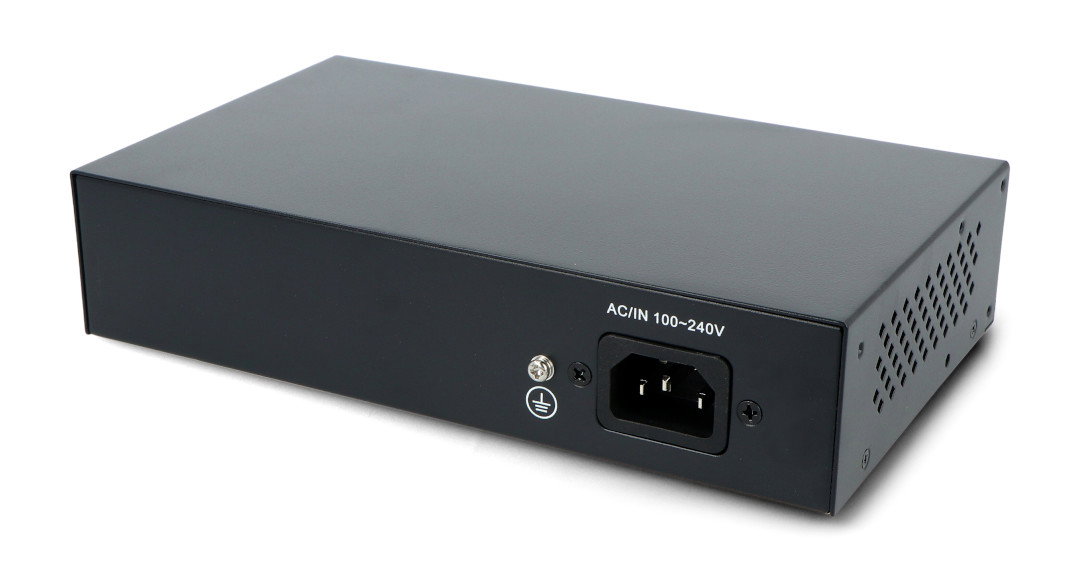

- Power requirements: 100 to 240 VAC
- Power consumption: 9.6 W
- Surge protection: 2 kV
- Plug & Play Support: Yes
- Operation indication: LED
- Wired standards: Gigabit Ethernet, IEEE 802.3ab 1000Base-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control)
- Features: Extend Mode, VLAN
- Material: metal
- Software: no
- Telecom height: 1 U
- Recommended ambient temperature: -20°C to 70°C
- Recommended ambient humidity: 5% to 95%
- Dimensions: 200 x 118 x 44 mm
- Weight: 0.84 kg

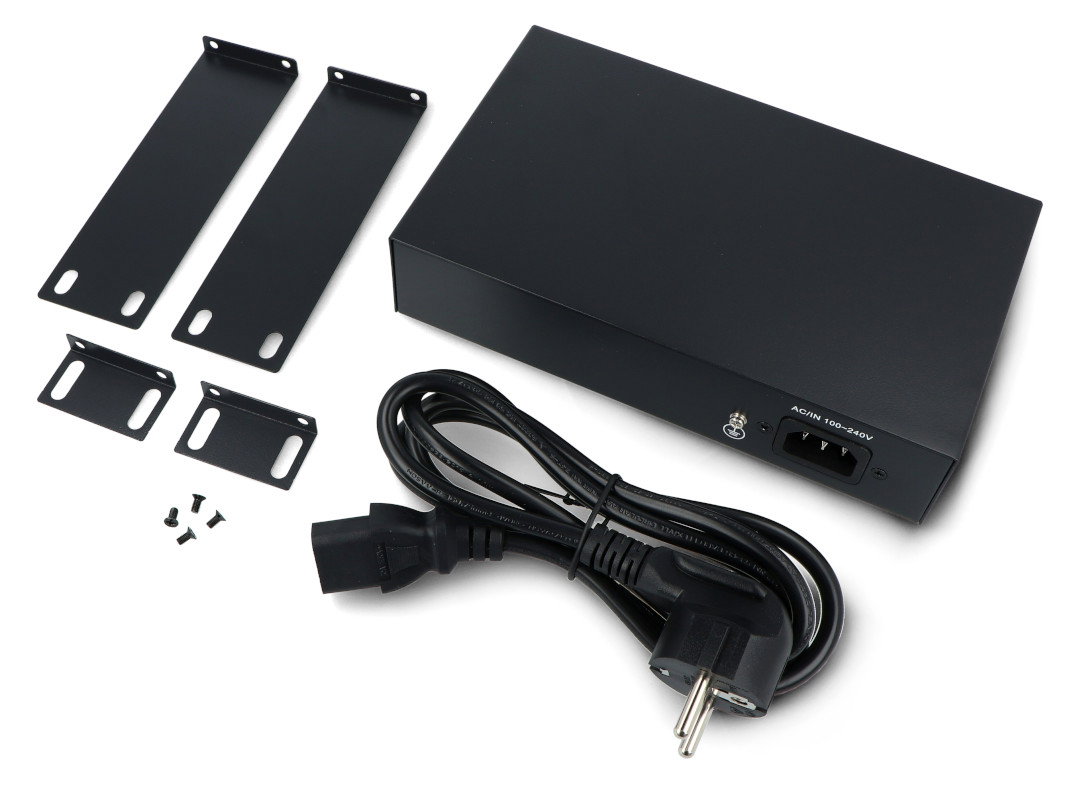

Elements included in the set.
