Product description: Odyssey - X86J4125864 v2 - Intel Celeron J4125 8GB RAM 64GB eMMC WiFi + Bluetooth - Seeedstudio 102110765 - system not activated

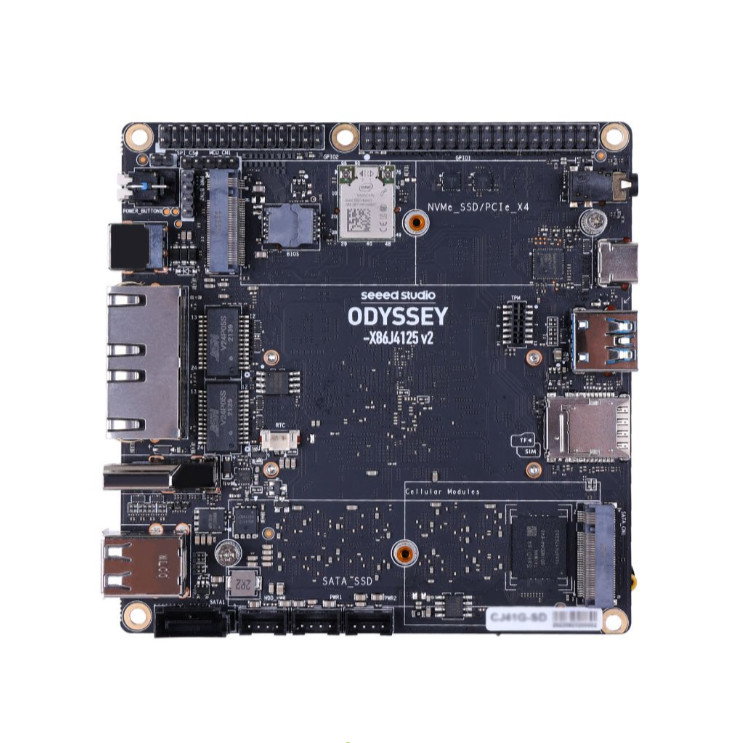

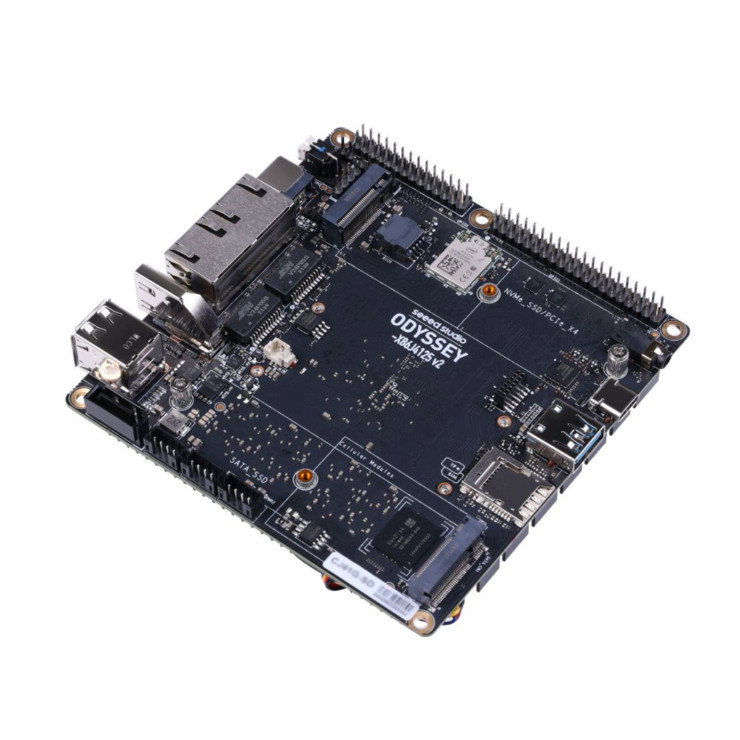

Odyssey X86J4125864 v2 is an advanced mini-computer equipped with a quad-core Intel Celeron J4125 processor with a clock speed of 2.0 GHz to 2.7 GHz and 8 GB of LPDDR4 RAM . It supports Windows and Linux operating systems and offers a wide range of ports , including Gigabit Ethernet, USB 3.0, HDMI, SATA III, PCIe and M.2 slots. It communicates using wireless WiFi and Bluetooth . Thanks to its compact dimensions and low power consumption, the Odyssey module will work great as a home server or multimedia center. This version of the mini-computer has a pre-installed Windows 11 Pro operating system, but it is not activated .
Our offer also includes a version of the Odyssey minicomputer with activated Windows 11 Pro.
Odyssey - X86J4125864 v2 - Intel Celeron J4125 8 GB RAM 64GB eMMC WiFi + Bluetooth - Seeedstudio 102110765 - system not activated.

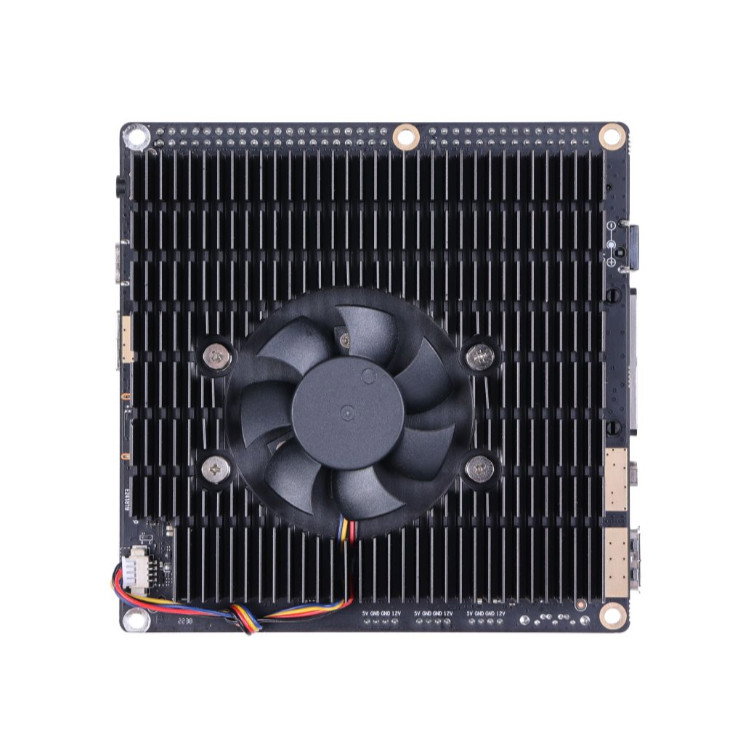

The minicomputer has a built-in fan to cool the system.
Special features of the module
- Equipped with Intel Celeron J4125 quad-core processor clocked from 2 GHz to 2.7 GHz
- It has a Raspberry Pi RP2040 coprocessor
- Supports 2.4 GHz and 5 GHz WiFi wireless communication and Bluetooth 5.0
- It has a graphics card Intel UHD 600
- Equipped with Dual 2.5 GbE Ethernet, which significantly improves the connection quality
- It allows you to build your own NAS (Network-Attached Storage), NVR (Network Video Recorder), high-performance virtual router or 4G LTE gateway in IoT applications
- Equipped with 40-pin GPIO connectors compatible with Raspberry Pi
- Equipped with 2x M.2 PCIe connectors (Key B and Key M)
- Supports Windows 11 and Linux operating systems
- It is compatible with the Grove series ecosystem
Odyssey X86J4125864 v2 Power Supply
There are two connectors on the board for power supply: USB C and DC 5.5 / 2.1 mm . The voltage of the power supply from USB C should be 15 V , and in the case of power supply via the DC 5.5 / 2.1 mm connector, the voltage should be in the range of 12 V to 19 V. A power supply with a DC 5.5 / 2.1 mm tip is included in the kit.
Application
X86J4125864 v2 from Odyssey is a device that you can use in many ways. Examples of board use:
- minicomputer
- NAS server
- edge computing
- router
- Robotics
- industry
- education
- home cinema
- computer cluster
- IoT Gateway
The device is equipped with a quad-core Intel Celeron J4125 processor and a Raspberry Pi RP2040 coprocessor.
Items included in the set.

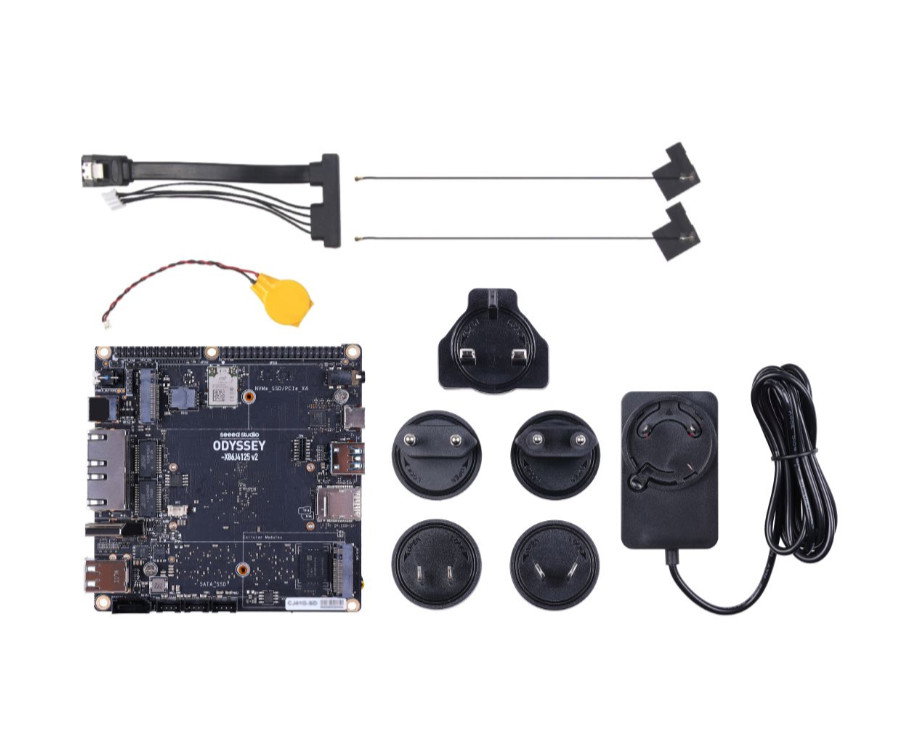

Kit Contents
- Odyssey minicomputer - X86J4125864
- Charger
- SATA cable
- Antenna x2
- RTC battery
- Radiator - built-in
- Fan - built-in
Odyssey Mini PC Specifications and Comparison
| TECHNICAL SPECIFICATION | ||
|---|---|---|
 |  | |
| Model | Odyssey X86J4125864 - 102110540 | Odyssey X86J4125864 v2 - 102110765 |
| BASIC INFORMATION | ||
| Processor | Intel Celeron J4125 | Intel Celeron J4125 |
| Coprocessor | ATSAMD21G18 32-bit ARM Cortex M0+ | Raspberry Pi RP2040 |
| Graphics | Intel UHD Graphic 600 | Intel UHD Graphic 600 |
| RAM memory | LPDDR4 8GB | LPDDR4 8GB |
| Internal memory | eMMC 64GB | eMMC 64GB |
| Operating system | Windows, Linux | Windows, Linux |
| Wireless communication | WiFi 802.11 a/b/g/n/ac dual band 2.4 GHz / 5 GHz HT160 Bluetooth 5.0 | WiFi 802.11 a/b/g/n/ac dual band 2.4 GHz / 5 GHz HT160 Bluetooth 5.0 |
| Network | Intel I211AT PCIe Gigabit LAN Supports Wake-On-LAN and PXE | Intel I226-V PCIe Gigabit LAN Supports Wake-On-LAN and PXE |
| Dimensions | 110x110mm | 110x110mm |
| INTERFACES | ||
| Audio | Mini-jack 3.5mm | Mini-jack 3.5mm |
| Connectors | 1x 40-pin Raspberry Pi compatible | 1x 40-pin Raspberry Pi compatible |
| USB | 2x USB 2.0 type A | 2x USB 2.0 type A |
| Video | HDMI 2.0a: up to 4096 x 2160 px / 60 Hz 24 bpp | HDMI 2.0a: up to 4096 x 2160 px / 60 Hz 24 bpp |
| Expansion Slots | M.2 (Key B, 2242/2280): SATA III, USB 2.0, UIM | M.2 (Key B, 2242/2280): SATA III, USB 2.0, UIM |
| RTC | JST 1.0 CR2032 3V (included) | JST 1.0 CR2032 3V (included) |
| TPM | Built-in TPM (2.0) | Built-in fTPM 2.0, optional external TPM 2.0 |
| Power supply | DC Jack 5.5/2.1 mm or USB Type C PD DC Jack: 12V to 19V USB Type-C: 15V | DC Jack 5.5/2.1 mm or USB Type C PD DC Jack: 12V to 19V USB Type-C: 15V |
