Product description: USB Type C CC Resistor Fixer - USB C adapter with 5.1 kΩ CC resistors - Adafruit 6323
The Adafruit USB Type-C CC Resistor Fixer was created for USB Type-C devices that don't function properly when connected to USB-C ports or USB Power Delivery chargers. This problem is most often caused by the lack of two required 5.1kΩ CC resistors , responsible for connection negotiation and 5V power delivery . The adapter is mounted between the cable and the device or directly in a poorly designed port . The circuit forwards the VBUS, GND, and basic USB data lines while adding the missing CC resistors on the port side . This allows the device to be correctly detected and powered via the USB-C port. A built-in LED allows for quick verification of the presence of power.
USB Type C CC Resistor Fixer - USB C adapter with 5.1 kΩ CC resistors - Adafruit 6323.

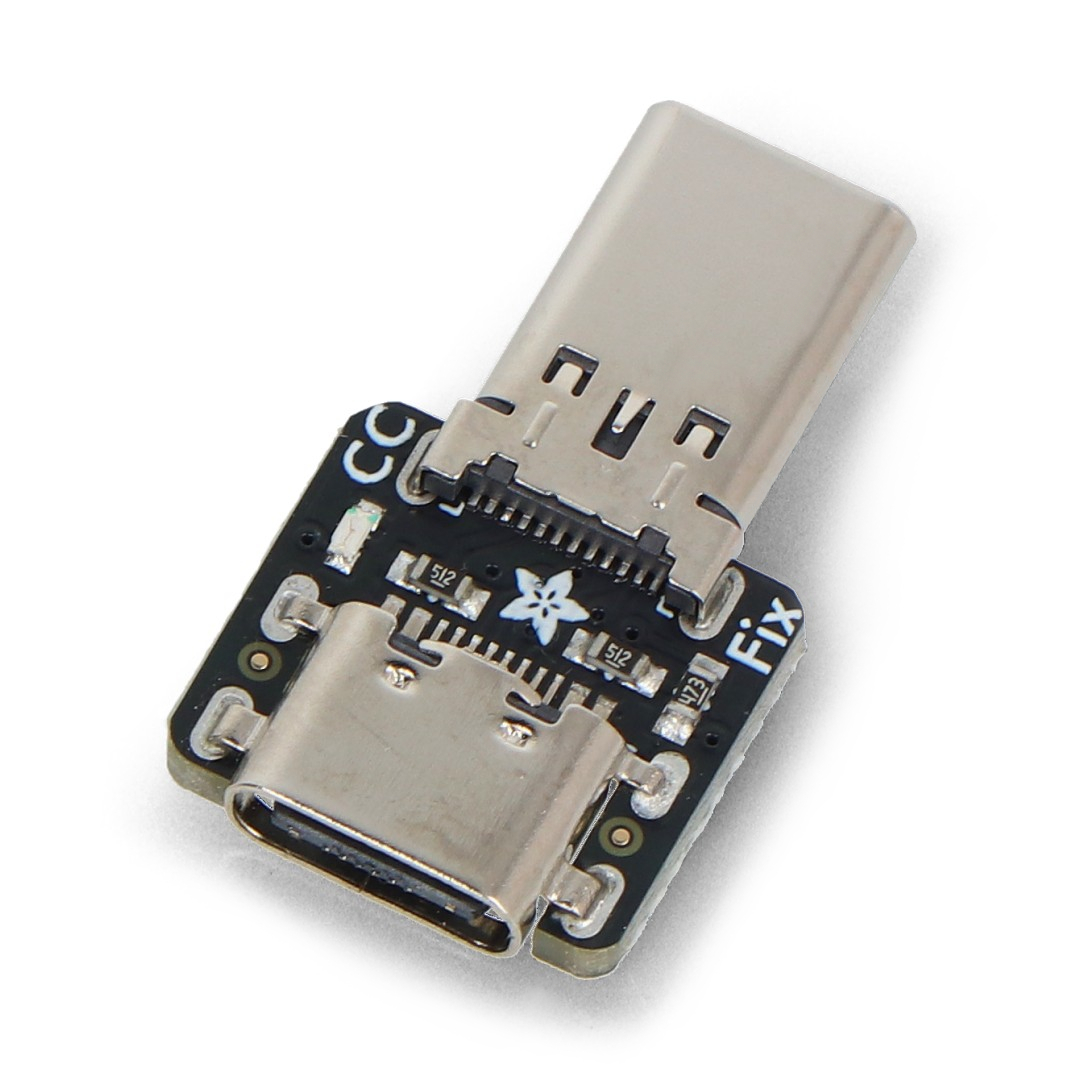

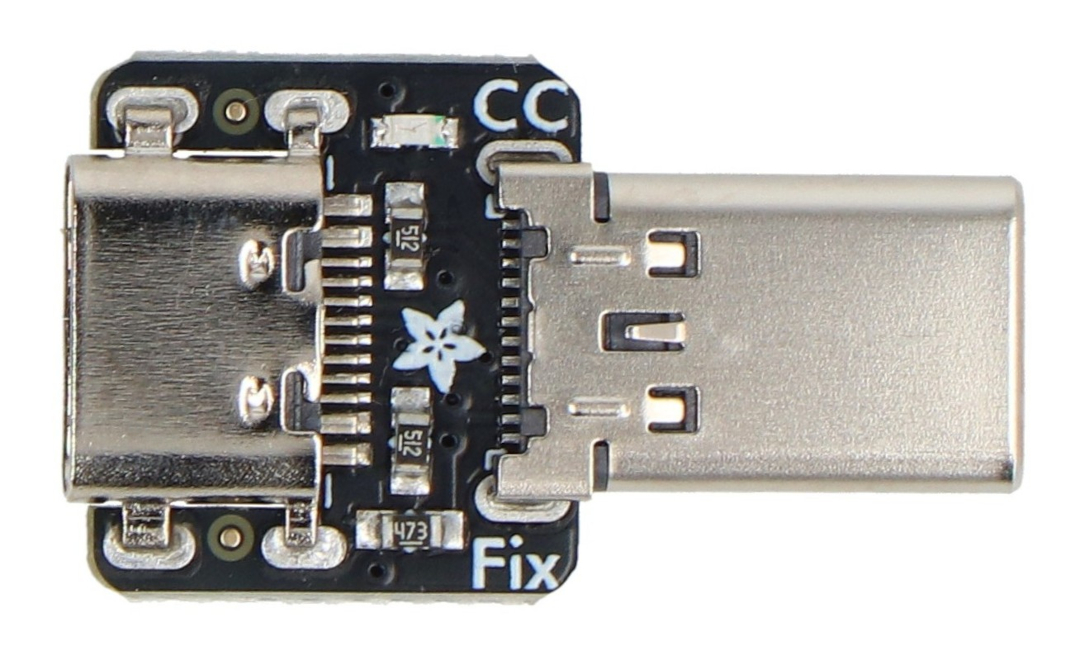

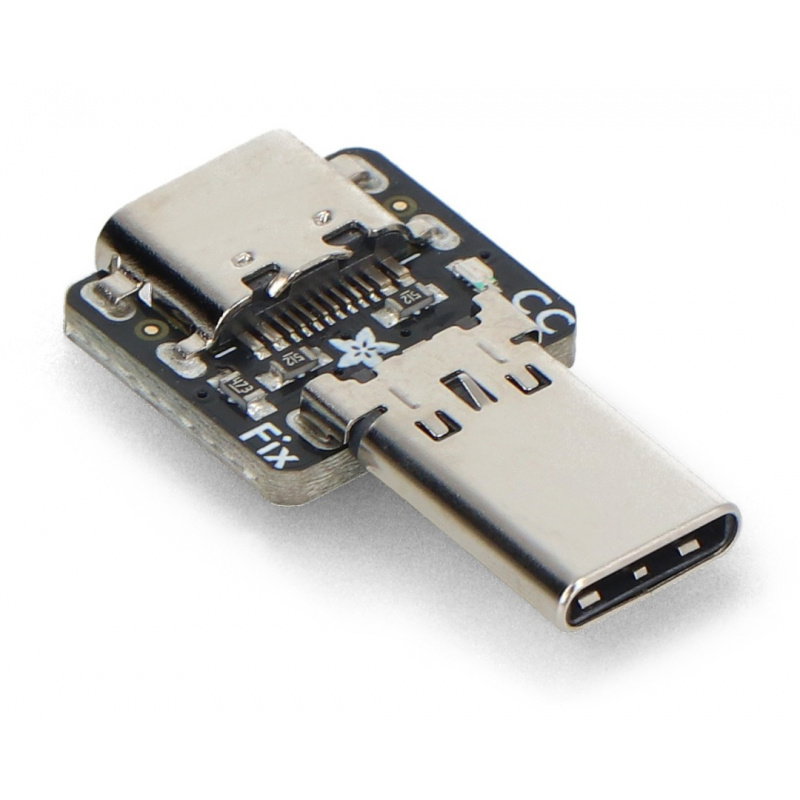

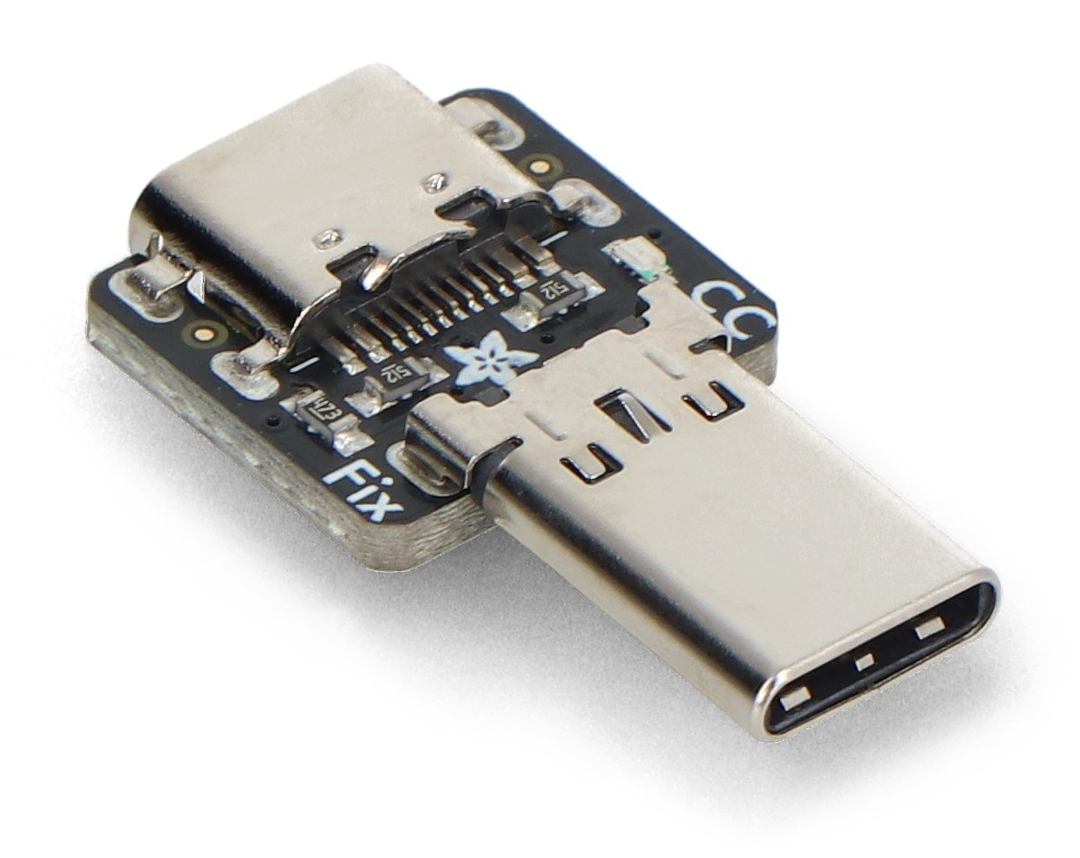

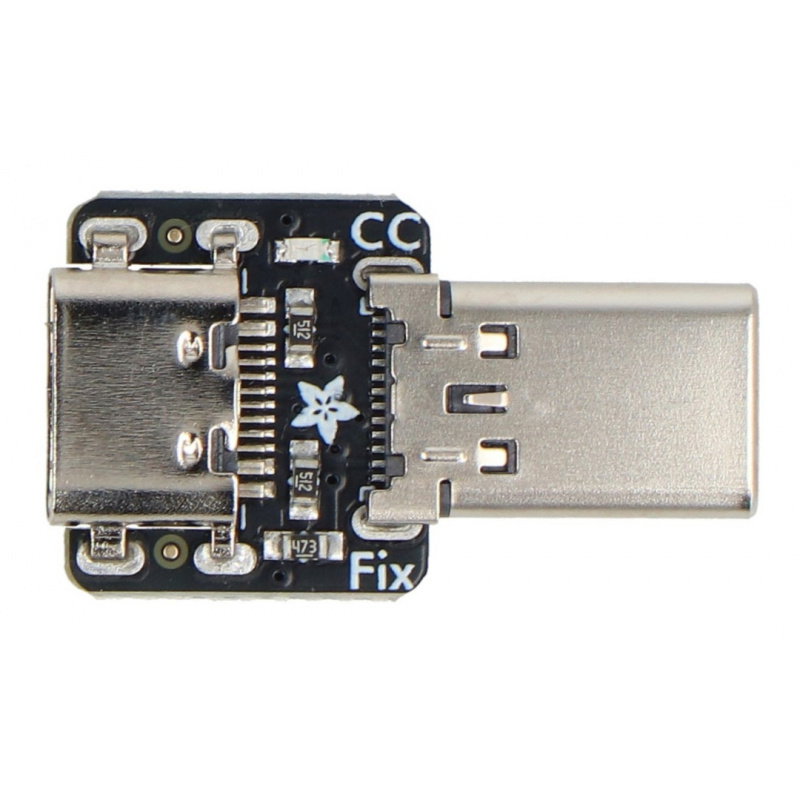

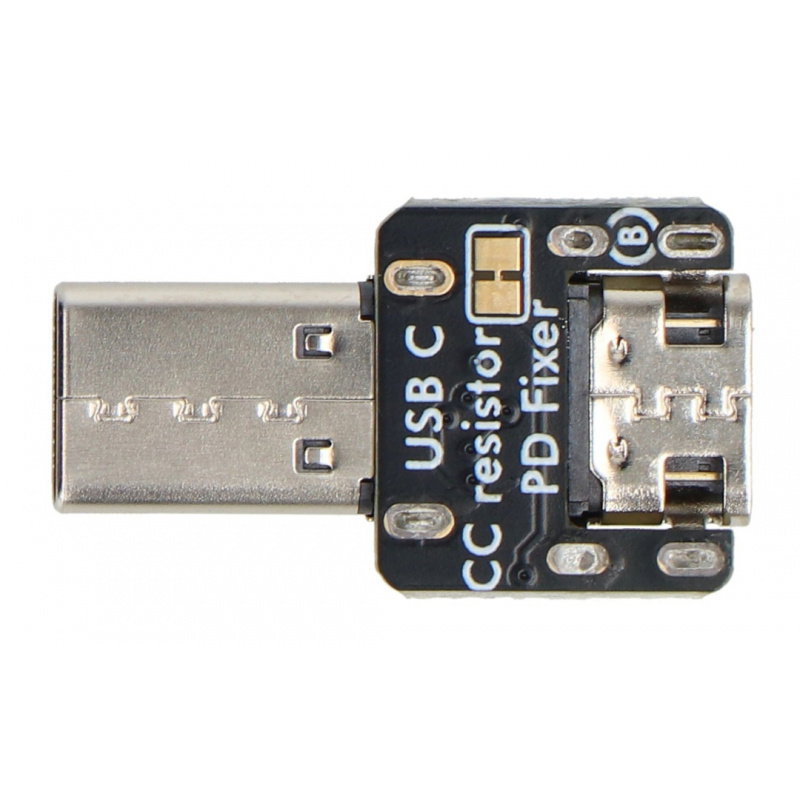

The module adds the missing 5.1kΩ resistors on the port side and a power LED.
Main features of the adapter
- USB Type-C CC Line Correction : Adds the two required 5.1kΩ resistors responsible for proper USB Type-C connection negotiation
- Solves power issues : Allows devices that fail to power on when connected to USB-C ports or USB Power Delivery chargers to function
- Power and data pass-through : Supports VBUS, GND, and basic USB data lines
- Power Good LED : indicates the presence of power and correct operation of the adapter
- Compact design : small dimensions allow for convenient use with USB C cables and devices
- Ready to use : factory-assembled module, no soldering required
- Possibility of using a 3D casing : the manufacturer provides a design of a protective casing for self-3D printing
Adapter technical specifications
- Plug (male): USB Type-C
- Socket (female): USB Type-C
- Feature: Add CC resistors for USB C connections
- CC resistors: 2 x 5.1 kΩ
- Power indication: Power Good LED
- Supported signals: VBUS, GND, basic USB data lines
- USB Power Delivery Support: Enables correct detection of devices requiring CC resistors
- High-speed USB interface support: no
- Sideband Line Support: No
- Dimensions: 24.8 x 14 x 3.4 mm
- Weight: 1.3 g
Contents of the set
- 1x Adafruit USB Type C CC Resistor Fixer
